Description

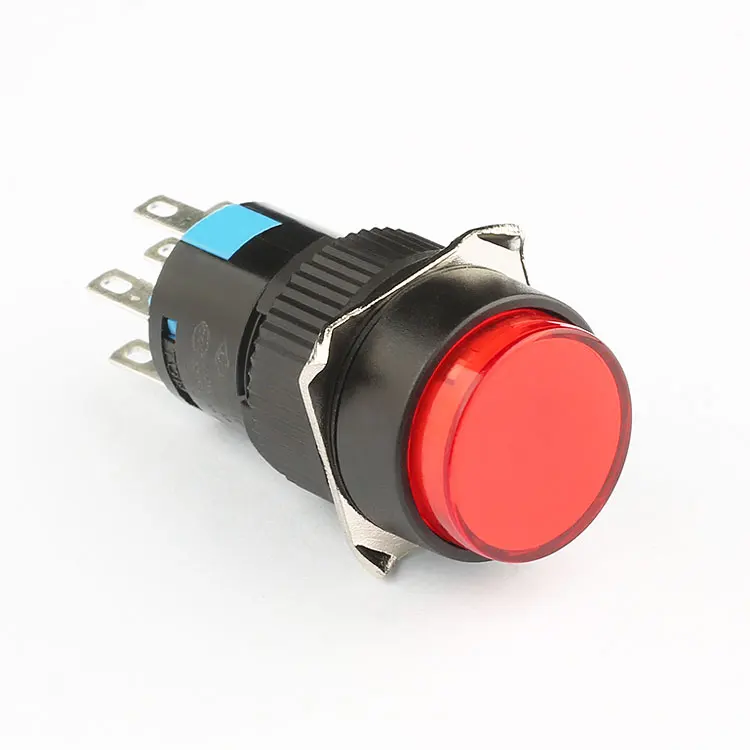

This illuminated push button switch features a 1NO1NC configuration, operates at 24V, and comes with a bright red LED indicator. It’s made from durable plastic, ensuring longevity in various environments. The switch is rated IP40 for protection against dust and is suitable for a wide range of applications, including industrial controls, machinery, and automation systems.
Our switch stands out with its latching and momentary functionality, allowing users to choose between a sustained or momentary contact. With a maximum current of 3A and a maximum voltage of 250V, it’s capable of handling demanding electrical loads. The contact resistance is ≤50mΩ, ensuring minimal energy loss, while the insulation resistance is ≥100MΩ, providing excellent electrical isolation.
We pride ourselves on offering high-quality products at competitive prices, backed by excellent customer service. As a factory supplier, we can provide bulk orders and custom solutions to meet your specific needs. Don’t miss out on this opportunity to enhance your projects with our reliable push button switch.
|

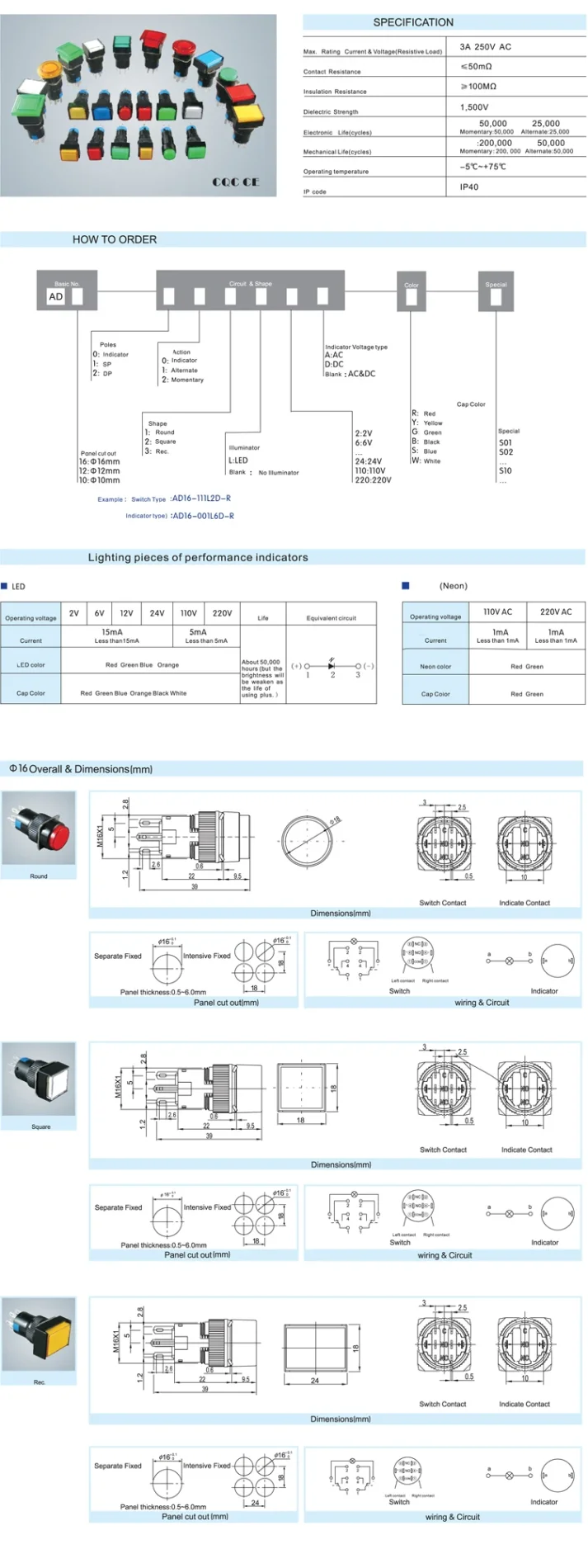

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AD16-111L220V-R
|
|
IP(ingress protection)
|
IP40
|
|
Max.Current
|
3A
|
|
Max.Voltage
|
250V
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
5T75
|
|
Mechanical Life
|
50000
|
|
Electrical Life
|
25000
|
|
Voltage of indicator
|
220v
|
|
Current of indicator
|
＜5mA
|
Why Choose Our 16mm Red LED Push Button Switch?
Our 16mm Red LED Push Button Switch is designed to meet the demands of industrial and commercial applications. With its latching and momentary functionality, it offers flexibility in operation, allowing users to choose the mode that best suits their needs. The bright red LED indicator provides clear visual feedback, making it easy to monitor the switch's status.
What Makes Our Switch Stand Out?
Unlike other switches on the market, our product combines durability, reliability, and aesthetics. The plastic housing ensures longevity, while the red LED adds a touch of style. With a maximum current of 3A and a maximum voltage of 250V, it's capable of handling demanding electrical loads. Additionally, our factory direct pricing means you get high-quality products at competitive prices.
How Can We Help You?
As a factory supplier, we can provide bulk orders and custom solutions to meet your specific needs. Whether you're looking for a standard configuration or a customized design, our team is here to assist you. Don't hesitate to contact us for more information or to place an order.
