Description
Our switch boasts a contact resistance of ≤50mΩ, ensuring reliable performance. It has an insulation resistance of ≥100MΩ and a dielectric strength of 1500V, providing excellent electrical safety. With an electronic life of 10,000 cycles for momentary operation and 5,000 cycles for alternate operation, as well as a mechanical life of 50,000 cycles for momentary and 100,000 cycles for alternate, this switch is built to last.
The operating temperature range is -25℃ to +55℃, making it suitable for a wide variety of environments. It has an IP40 protection level, ensuring dust resistance. The maximum rating current and voltage are 1A/250V AC, and it is certified by CQC and CE for quality assurance.

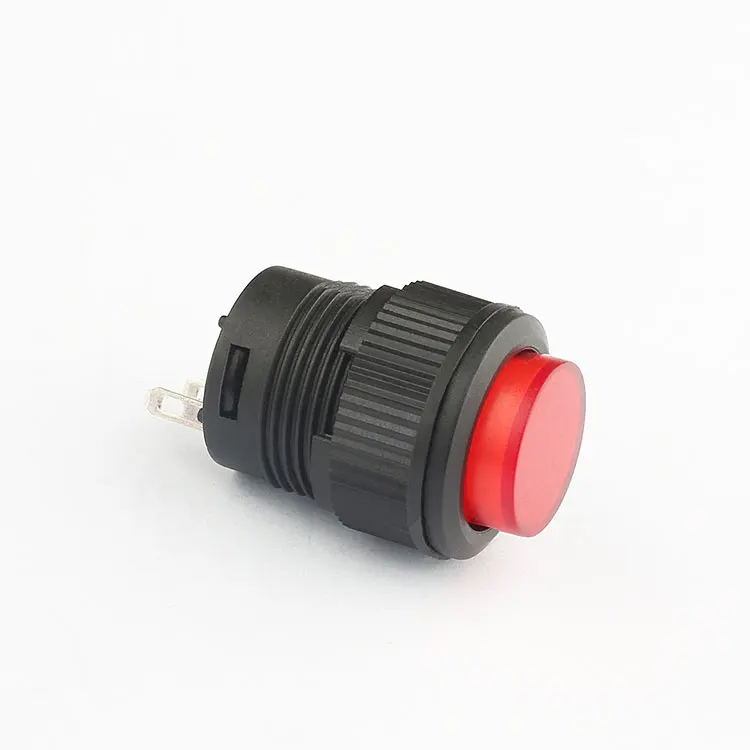

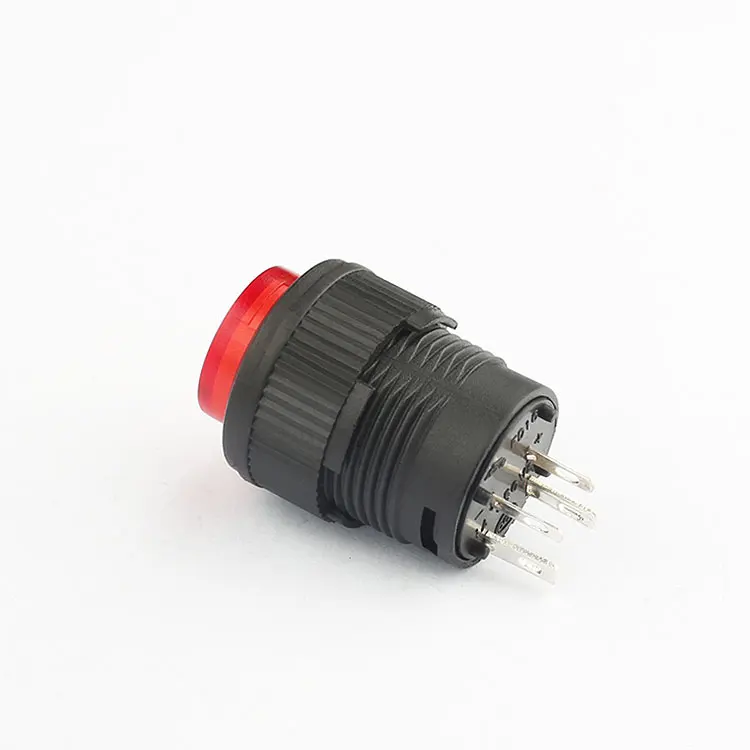

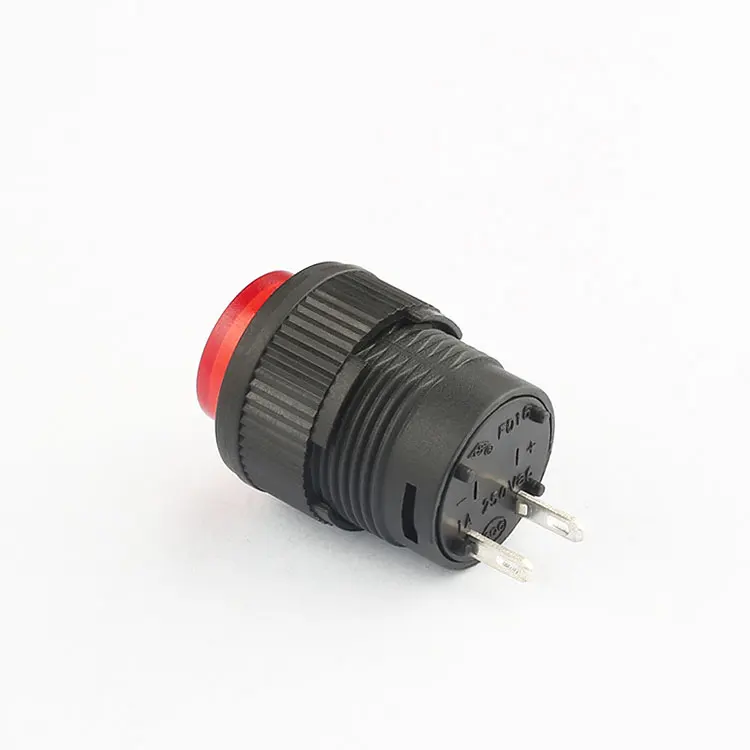

Choose our 16mm Red LED Selflocking Push Button Switch for its durability, reliability, and competitive pricing. We offer excellent after-sales service and are committed to providing the best customer experience.
|
Contact resistance |
≤50mΩ |
|
Insulation resistance |
≥100MΩ |
|
Dielectric strength |
1500v |
|
Electronic life (cycles) |
Moment:10000 Alternate:5000 |
|
Mechanical life (cycles) |
Moment:50000 Alternate:100000 |
|
Operating temperature |
25T55 |
|
IP code |
IP40 |
|
Max.Rating Current&Voltage |
1A/250V AC |
|
Certification |
CQC, CE |
Why Choose Our 16mm Red LED Selflocking Push Button Switch?
Our switch stands out with its bright red LED indicator, providing clear visual feedback. It's designed for durability and reliability, with a long electronic and mechanical life. The selflocking mechanism ensures stable operation, and the customizable voltage makes it adaptable to various applications.
What Are the Key Features of This Switch?
Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 1500V. It operates at 5V with a 4-pin design for easy installation. The switch is also certified by CQC and CE for quality assurance.
Where Can This Switch Be Used?
This switch is ideal for industrial controls, consumer electronics, home automation, and custom projects. Its wide operating temperature range and IP40 protection level make it suitable for a variety of environments.
