16mm Round Red LED Push Button Switch | Wholesale Supplier Factory

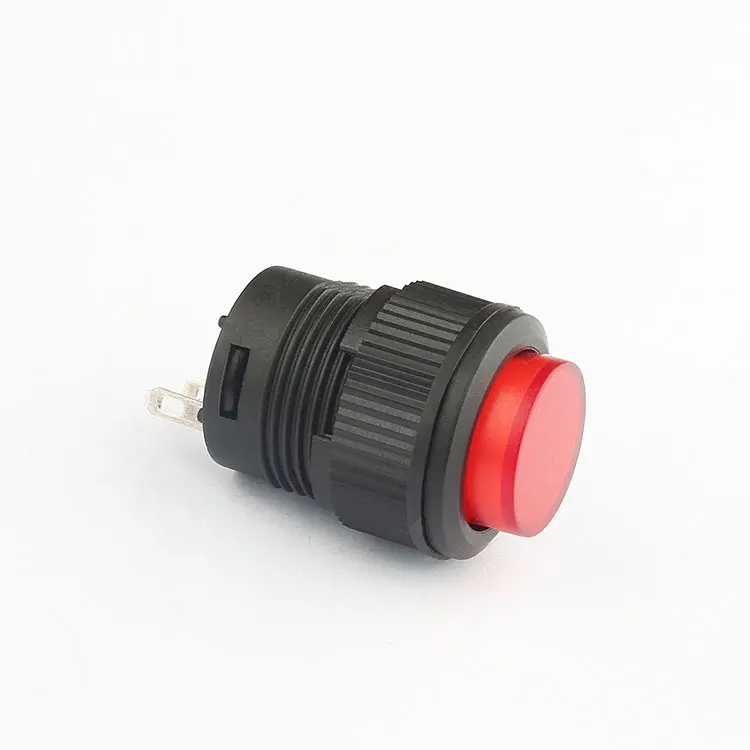

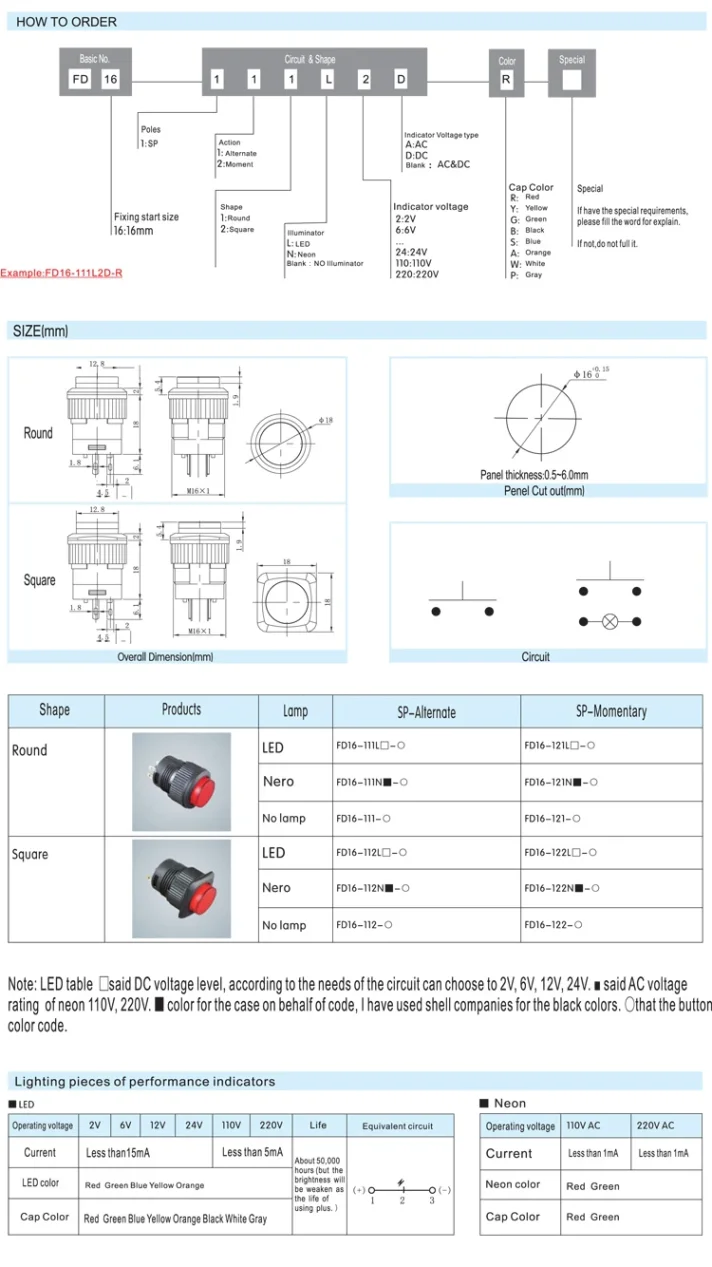

Introducing our high-quality 16mm Round Red LED Push Button Switch, a must-have for electronic applications. As a direct factory supplier and wholesaler, we offer competitive prices and excellent quality. This switch features a round head design with a red LED indicator, making it both functional and visually appealing. The switch is made of durable plastic, ensuring long-lasting performance. With customizable switching voltage according to customer requirements, it’s versatile and adaptable. Key specifications include a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 1500V. It boasts an electronic life of 10,000 cycles for momentary operation and 5,000 cycles for alternate operation, along with a mechanical life of 50,000 cycles for momentary and 100,000 cycles for alternate. Operating temperature ranges from -25℃ to +55℃, with an IP40 protection level. Certified by CQC and CE, it ensures safety and reliability. Perfect for electric applications, this switch stands out with its compact size, easy installation, and clear LED indication. Choose us for factory-direct pricing, reliable quality, and exceptional customer service.
