Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai)
|
|
Model Number
|
FD16-111L24D-R
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
5000
|
|
Mechanical Life
|
10000
|
|
Panel cut-out size
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
LED Voltage
|
24V DC
|
|
Cap color
|
Red
|

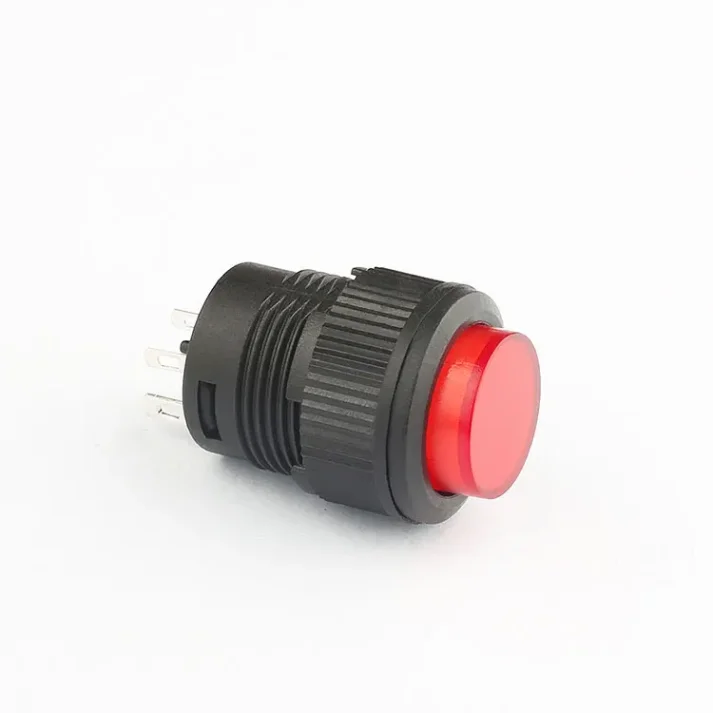

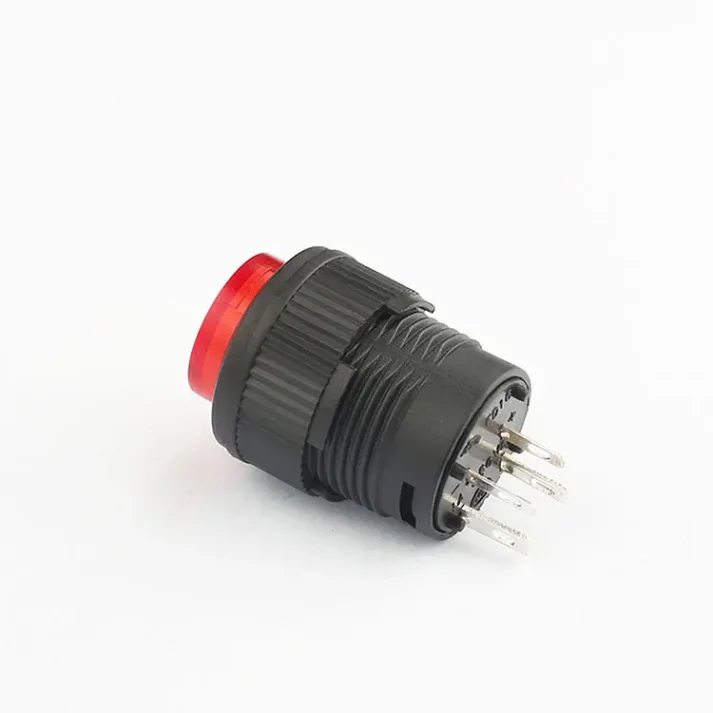

Why Choose Our 16mm Self-Locking Plastic Button Switch?

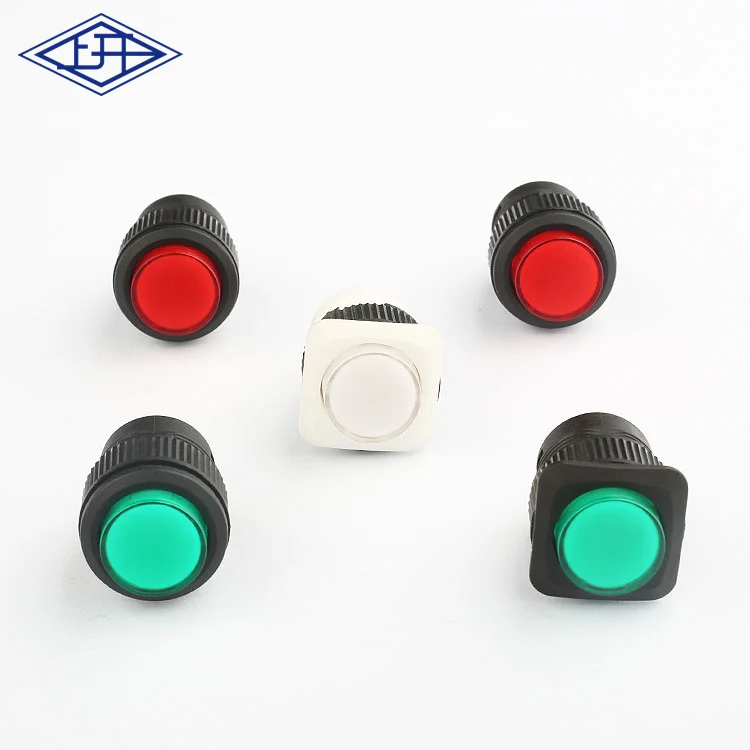

Our 16mm Self-Locking Plastic Button Switch stands out for its durability, reliability, and versatility. As a factory supplier, we offer wholesale pricing without compromising on quality. The self-locking feature ensures stable on/off control, while the red LED indicator provides clear visibility. With multiple LED voltage options and colors, it can be customized to fit your specific needs.

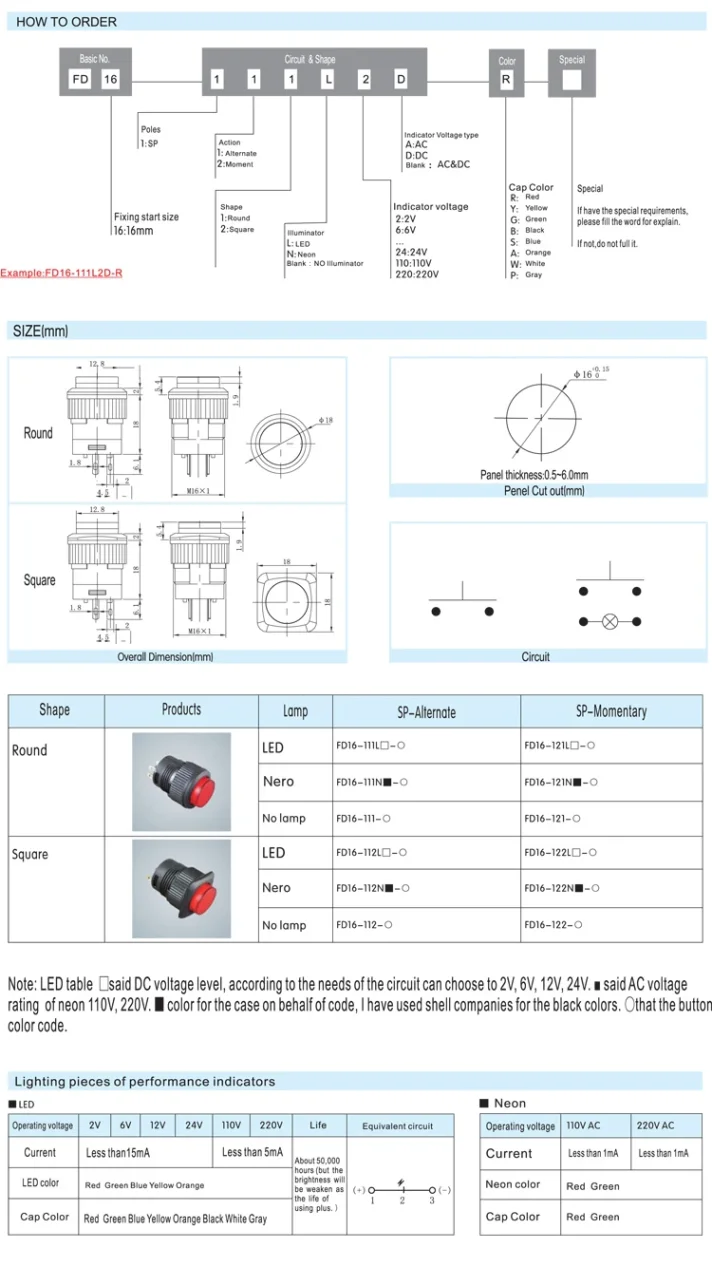

What Are the Key Specifications of Our Switch?
Our switch features a 16mm mounting hole size, making it compatible with various panels. It has a max current of 1A and max voltage of 250V AC, meeting strict safety standards. The low contact resistance (≤50mΩ) and high insulation resistance (≥100MΩ) ensure efficient electrical performance. Additionally, its IP40 protection level offers basic dust resistance, suitable for indoor use.
How Does Our Switch Compare to Others on the Market?
Our switch offers superior quality and competitive pricing due to our factory-direct approach. It stands out with its customizable LED voltage and color options, allowing for greater flexibility in application. The robust plastic construction ensures longevity and reliability, making it a preferred choice for industrial and commercial use.
