Description

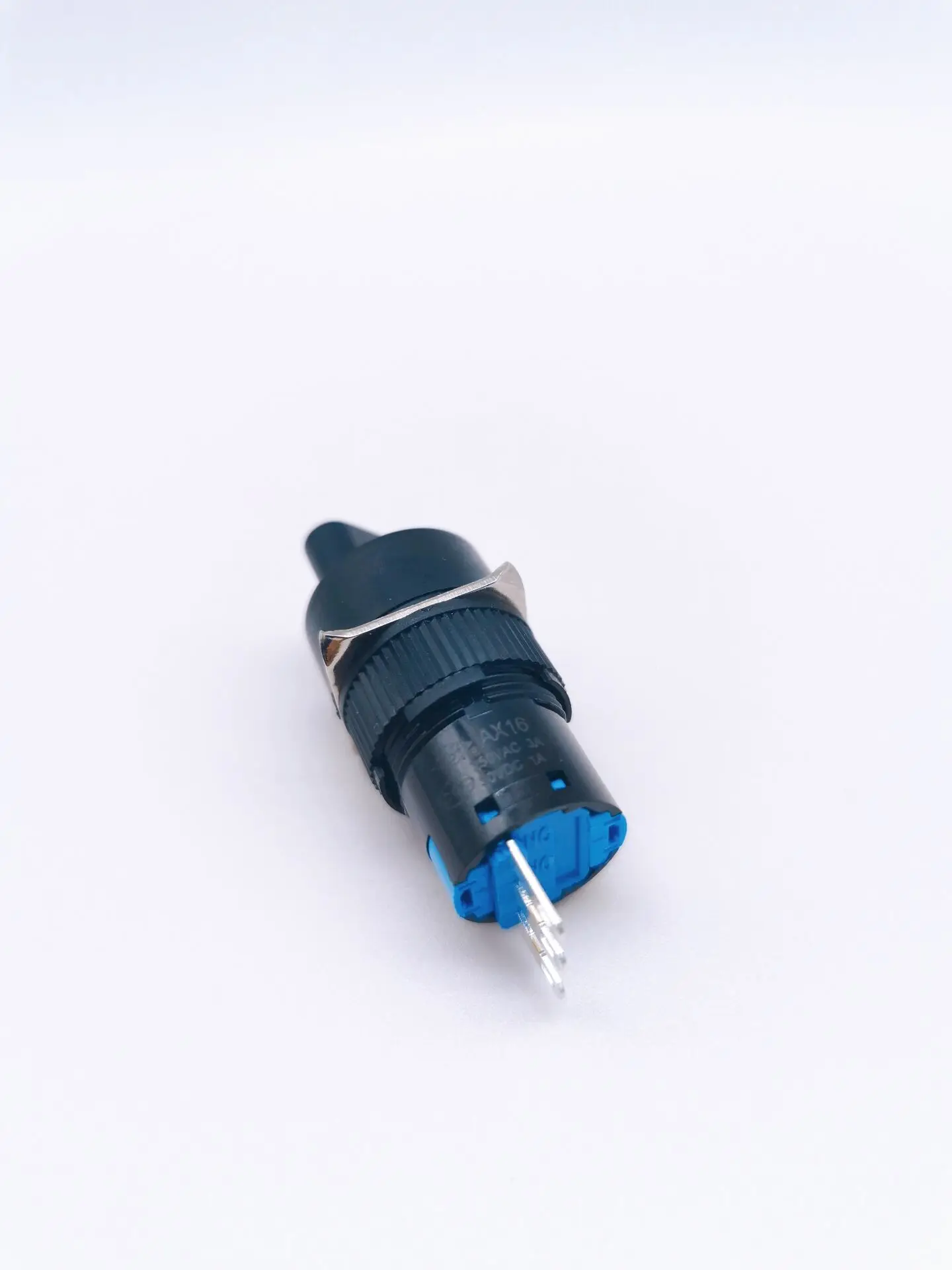

Discover our high-quality 16mm Self-locking 2 Position Single Pole 3 Pin Keylock Selector Rotary Switch, manufactured by SK (Shangkai), a trusted factory supplier. Ideal for wholesale purchases, this switch is designed to meet your industrial and commercial needs.
Key Specifications:
- Place of Origin: Shanghai, China
- Brand Name: SK (Shangkai)
- Model Number: AY16-113-2
- Protection Level: IP40
- Max. Current: 3A
- Max. Voltage: 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1500V
- Operating Temperature: -25°C to +55°C
- Electrical Life: 25,000 cycles
- Mechanical Life: 50,000 cycles
- Panel Cut Out: 16mm
- Panel Thickness: 0.5-6.0mm
- Position: 2 Positions, 1NO+1NC
- Color: Black
Product Advantages:
Our rotary switch stands out with its self-locking feature, ensuring reliable operation in various environments. With a high mechanical and electrical life, it offers durability and longevity, reducing maintenance costs. The IP40 protection level provides adequate protection against dust, making it suitable for industrial applications.
After-sales Service:
As a factory supplier, we offer comprehensive after-sales service, including technical support and warranty coverage. We are committed to ensuring your satisfaction and providing timely solutions to any issues that may arise.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AY16-113-2
|
|
Protection Level
|
IP40
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
25000
|
|
Mechanical Life
|
50000
|
|
Panel cut out
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
Position
|
2 Positions,1NO+1NC
|
Key Features and Benefits
Our 16mm Self-locking Rotary Switch is designed with durability and reliability in mind. The self-locking mechanism ensures that the switch remains in the desired position, even under vibration or accidental contact, providing peace of mind in critical applications.
Why Choose Our Rotary Switch?
With a high mechanical and electrical life, our switch offers long-term reliability, reducing the need for frequent replacements. The IP40 protection level makes it suitable for use in environments with dust, ensuring consistent performance. Additionally, as a factory supplier, we offer competitive wholesale prices and excellent after-sales service.
Applications and Compatibility
This rotary switch is ideal for a wide range of industrial and commercial applications, including control systems, automation equipment, and more. Its compatibility with various panel thicknesses and cut-out sizes makes it a versatile choice for different setups.
