Description
Our rotary switch features a square design with 2 positions, making it easy to use and install. It has a maximum rating of 3A 250V AC, with a contact resistance of ≤50MΩ and an insulation resistance of ≥100MΩ. The switch also boasts a dielectric strength of 1,500V, ensuring safety and durability.
With a mechanical life of 200,000 cycles and an electronic life of 50,000 cycles (momentary) or 25,000 cycles (alternate), this switch is built to last. It operates within a temperature range of -25℃ to +55℃ and has an IP40 protection level, making it suitable for various environments.
What sets our rotary switch apart is its precision engineering and attention to detail. We use high-quality materials to ensure consistent performance and reliability. Plus, as a factory supplier, we can offer competitive pricing and flexible order quantities to meet your needs.

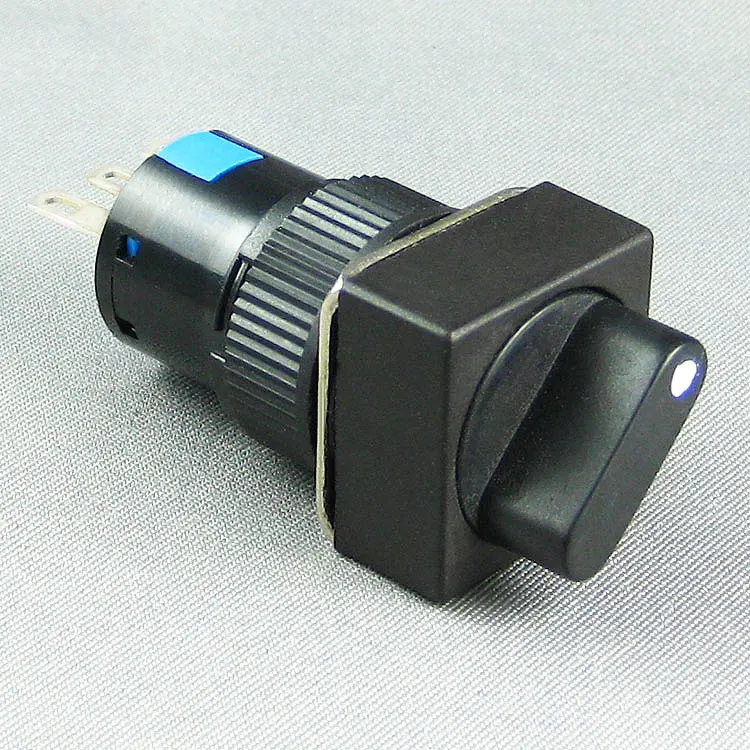

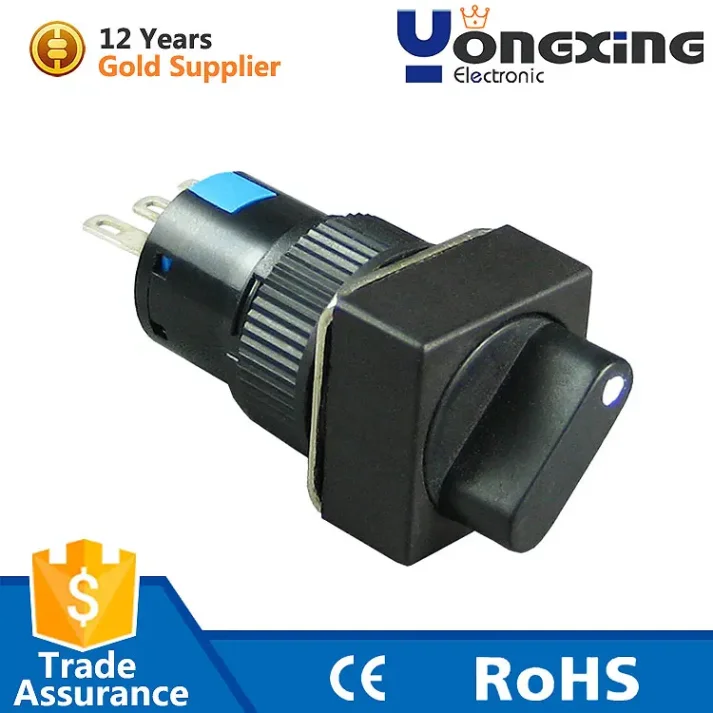

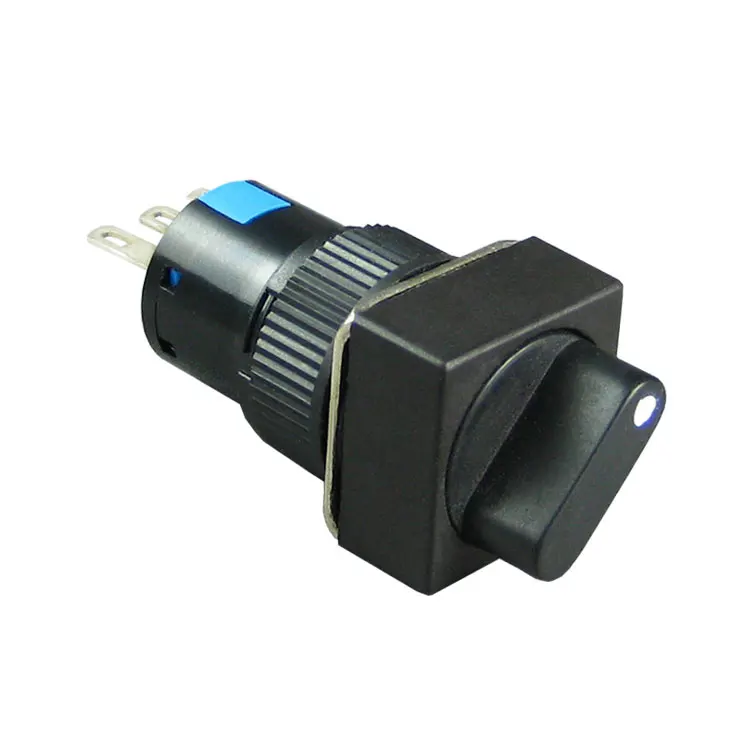

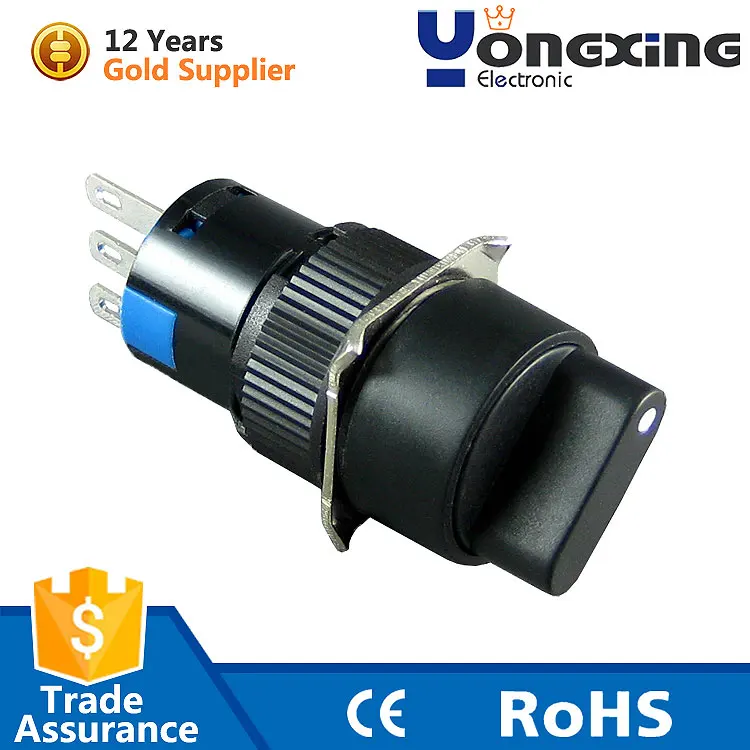

Choose our 16mm Square Rotary Dimmer Switch for your next project and experience the difference in quality and service.
| Max. Rating Current & Voltage (Resistive Load) | 3A 250V AC |
| Contact Resistance | ≤50MΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1,500V |
| Electronic Life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical Life(cycles) | Momentary:200,000 Alternate:50,000 |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 |

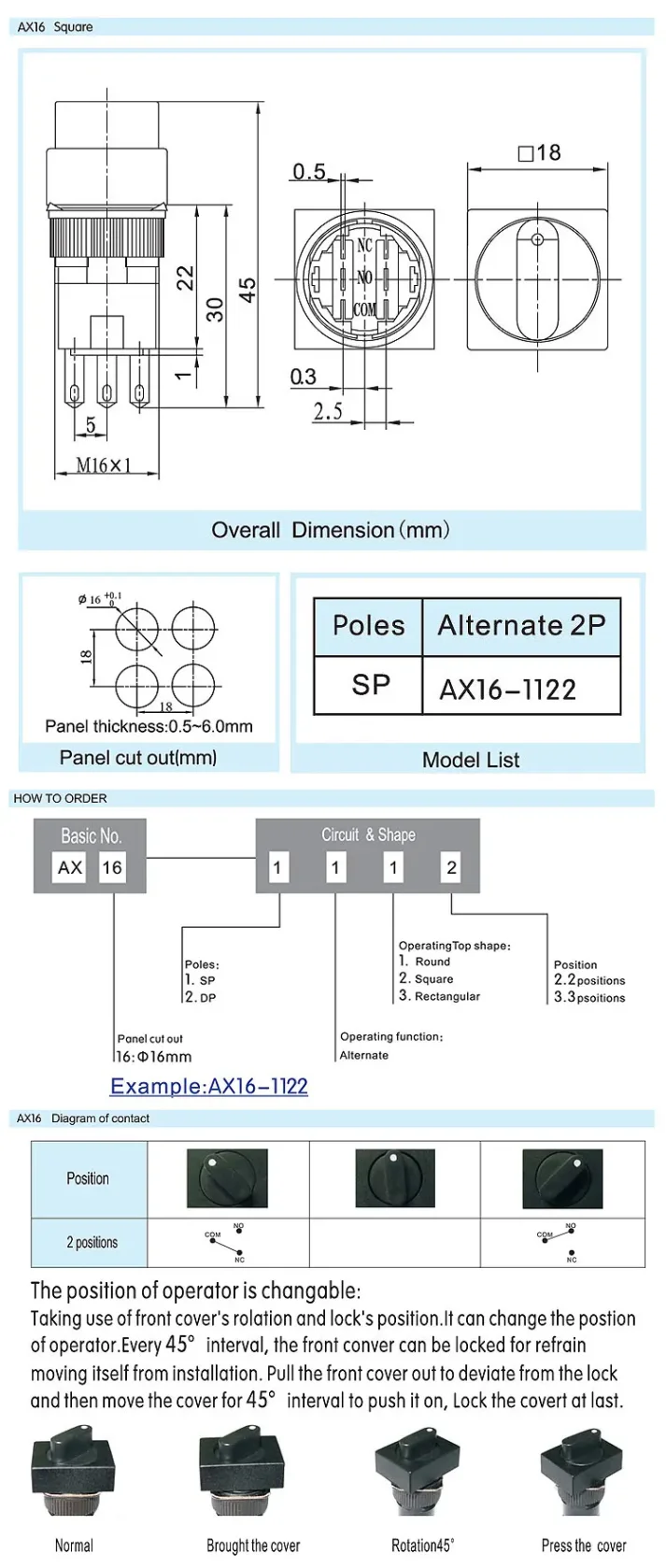

| Panel cut out | φ16mm |
| Poles | SP(Single Pole) |
| Operating Top shape | Square |
| Position |
2 position |
Product Features
Our 16mm Square Rotary Dimmer Switch is designed for precision and durability. With a square shape and 2 positions, it offers easy operation and installation. The switch has a maximum rating of 3A 250V AC, ensuring compatibility with a wide range of applications.
Why Choose Our Product?
As a factory supplier, we offer competitive pricing and flexible order quantities. Our switch is made with high-quality materials, ensuring consistent performance and reliability. Plus, it has a long mechanical and electronic life, making it a cost-effective choice for your projects.
Applications
This rotary switch is perfect for controlling oven LED lighting in both industrial and home appliance settings. Its square design and 2 positions make it versatile and easy to use, while its IP40 protection level ensures durability in various environments.
