Description
| Max.Rating Current & Voltage(Resistive Load) | 3A/250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life(cycles) | 10000 |
| Mechanical Life(cycles) | 50000 |
| Operating temperature | -25°c~+85°c |
| IP code | IP40 |

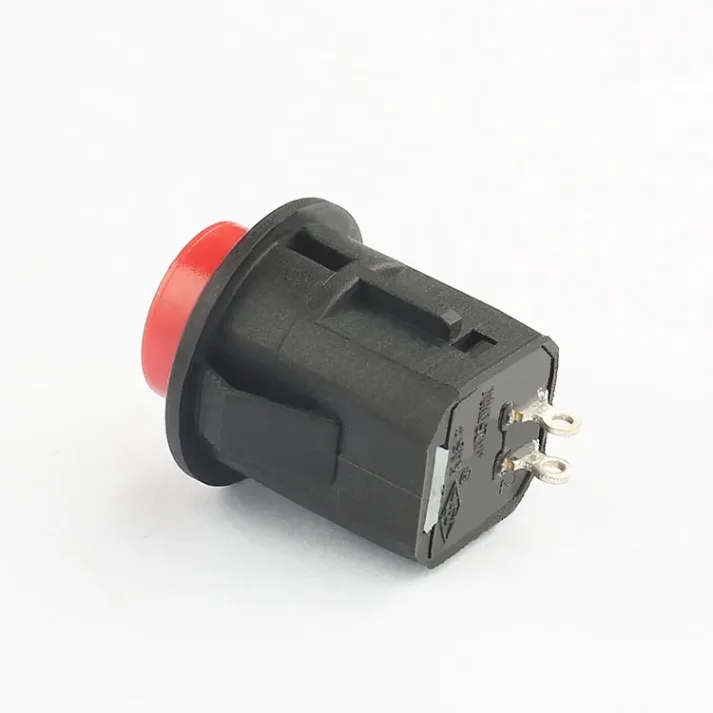

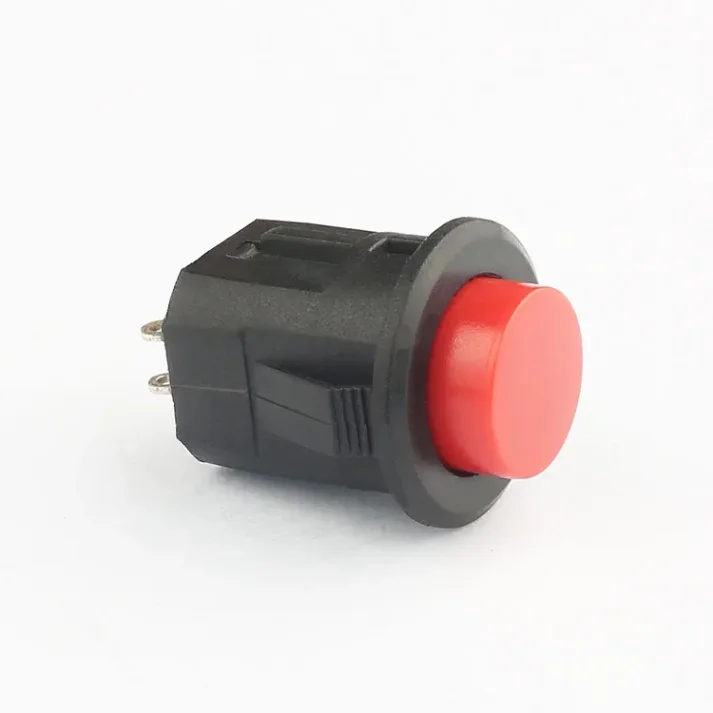

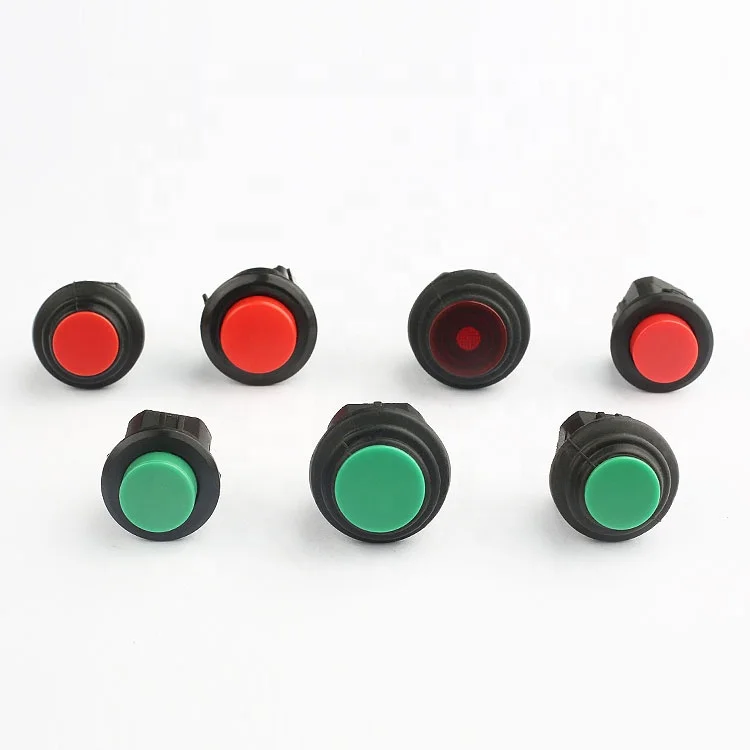

Why Choose Our 16mm Waterproof Push Button Switch?
Our 16mm Waterproof Push Button Switch stands out for its exceptional quality and durability. With an IP65 protection level, it offers superior waterproof and dustproof capabilities, making it ideal for various industrial and home applications. The switch's high electrical life of 100,000 cycles and mechanical life of 50,000 cycles ensure long-lasting performance, reducing the need for frequent replacements.
What Are the Key Features of Our Switch?
Our switch features a maximum rating of 3A/250V AC, contact resistance ≤50mΩ, insulation resistance ≥100mΩ, and dielectric strength of 1500V. These specifications guarantee reliable and safe operation. Additionally, the green waterproof ring enhances its durability, making it a reliable choice for demanding environments.
Why Buy from Yongxing?
As a factory direct supplier, Yongxing offers competitive wholesale prices and can customize switches to meet your specific requirements. Our company has independent plants, injection molding workshops, and advanced experimental equipment, ensuring high-quality production. With over 60 senior engineers and 5S management implemented in all workshops, we are committed to providing reliable, high-quality push button switches.
