Description

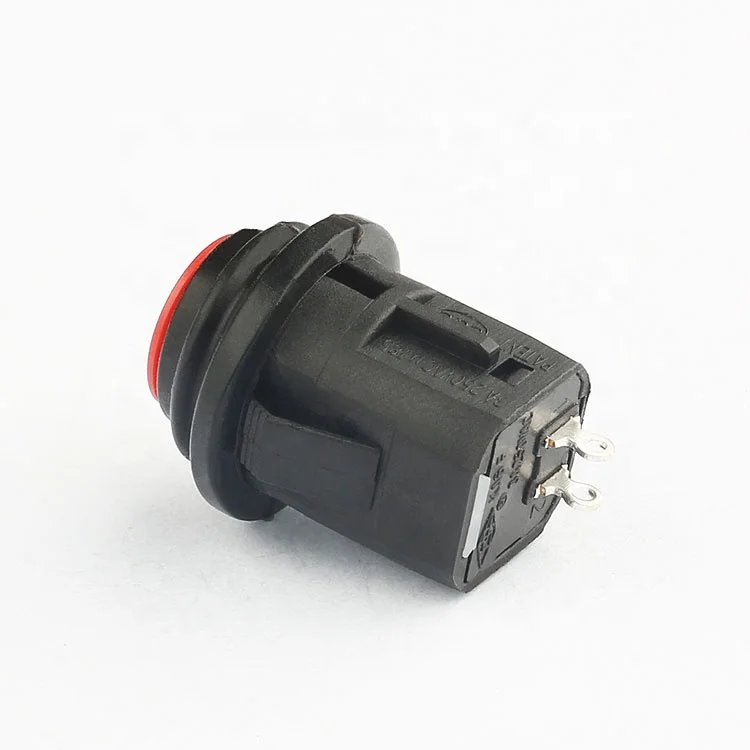

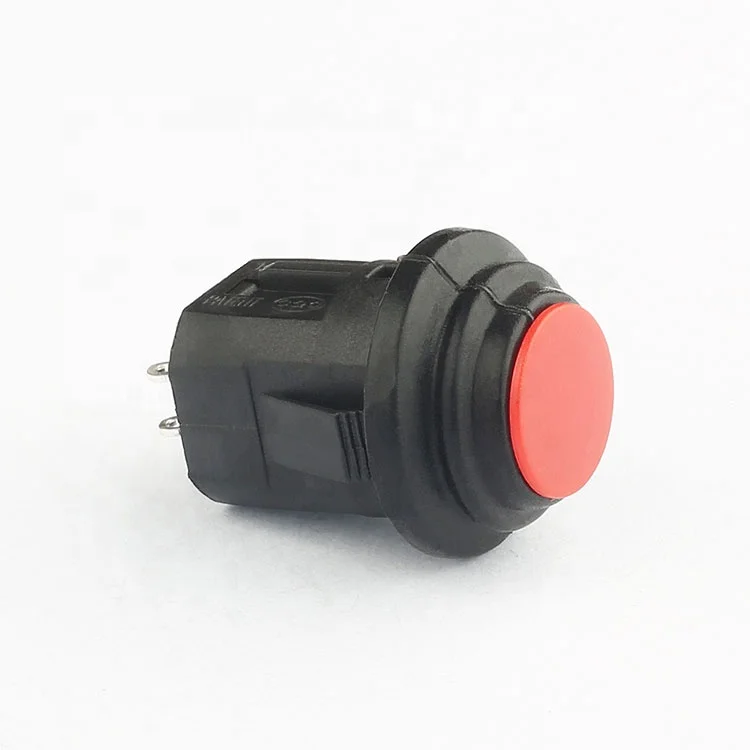

16mm Waterproof Push Button Switch – KA7-11-FAA-RB
Introducing our high-quality 16mm Waterproof Push Button Switch, model KA7-11-FAA-RB, a reliable solution for your electrical needs. As a direct factory supplier and wholesaler, we offer competitive pricing and exceptional quality.
Product Specifications:
- Max. Current & Voltage: 3A 250VAC
- Function: OFF-ON
- IP Level: IP65
- Mounting Hole Size: 16mm Diameter
- Color: Black/Red
- Certification: CQC CE
- Electrical Life: 10,000 cycles
- Contact Resistance: 50mΩ Max
- Dielectric Strength: 1500VAC 1MIN
- Insulation Resistance: 100MΩ Min
Product Advantages:
Our push button switch stands out with its waterproof design (IP65), ensuring durability in various environments. With a long electrical life of 10,000 cycles, it guarantees reliability and reduces maintenance costs. The compact 16mm size makes it suitable for a wide range of applications.
Customization & Support:
We offer customization services for bulk orders to meet your specific requirements. Our factory is equipped with advanced experimental equipment and a skilled team of over 60 senior engineers, ensuring top-notch quality and innovation. All workshops adhere to 5S and 5m management standards, guaranteeing efficient production and strict quality control.
After-Sales Service:
As a responsible supplier, we provide comprehensive after-sales service, including technical support and warranty coverage. Our goal is to ensure your satisfaction and build long-term partnerships.
|
KA7-11-FAA-RB
|
||
|
Max.Rating Current&Voltage：
|
3A 250V
|
|
|
Function：
|
OFF ON
|
|
|
Electrical life：
|
10,000 cycles
|
|
|
Color：
|
Black/red
|
|
|
Certification：
|
CQC CE
|
|
Why Choose Our 16mm Waterproof Push Button Switch?
Our 16mm Waterproof Push Button Switch offers unmatched durability and reliability, thanks to its IP65 waterproof rating and long electrical life of 10,000 cycles. This makes it ideal for use in harsh environments where moisture and dust are concerns.
What Are the Key Features?
Key features include a compact 16mm size, 3A 250VAC rating, and OFF-ON function. The switch also boasts low contact resistance and high dielectric strength, ensuring safe and efficient operation.
Can We Customize the Switch?
Yes, as a factory supplier, we offer customization services for bulk orders. Whether you need a specific color, configuration, or additional features, we can tailor the switch to meet your unique requirements.
