Description
|
item
|
value
|
|
Place of Origin
|
Shanghai(China)
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA7-12-FAA-RB
|
|
Protection Level
|
IP65
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical Life
|
10000times
|
|
Operating temperature
|
-25℃~+85℃
|
|
Certificate
|
CQC CE ROHS ISO9001
|
|
Color
|
black housing, green cap
|
|
Mounting Hole Size
|
16mm
|
|
Panel Thickness
|
1.0-2.0mm
|

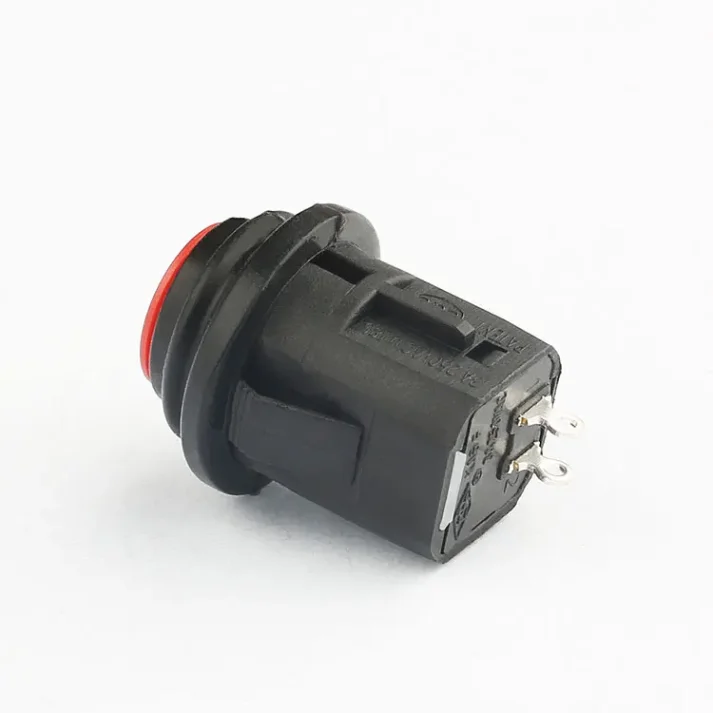

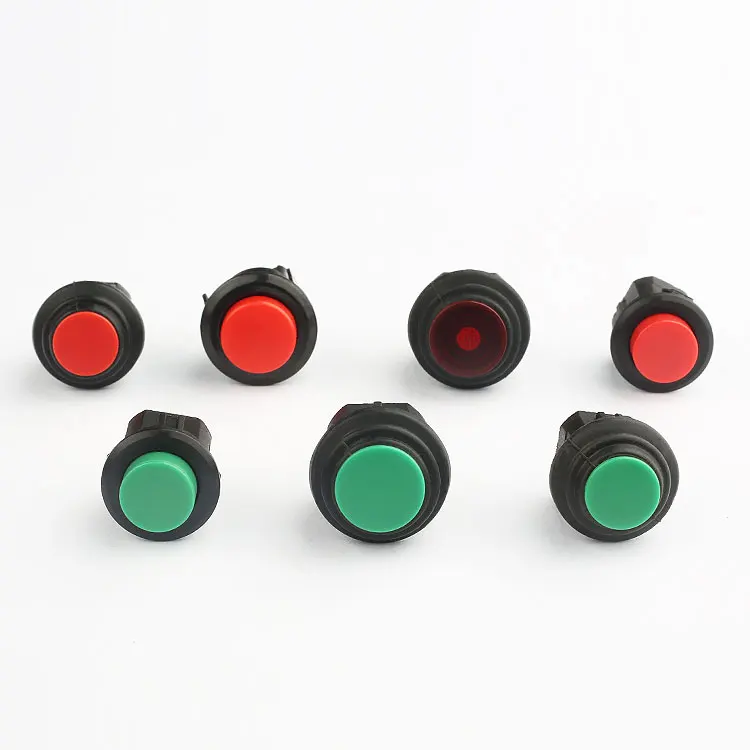

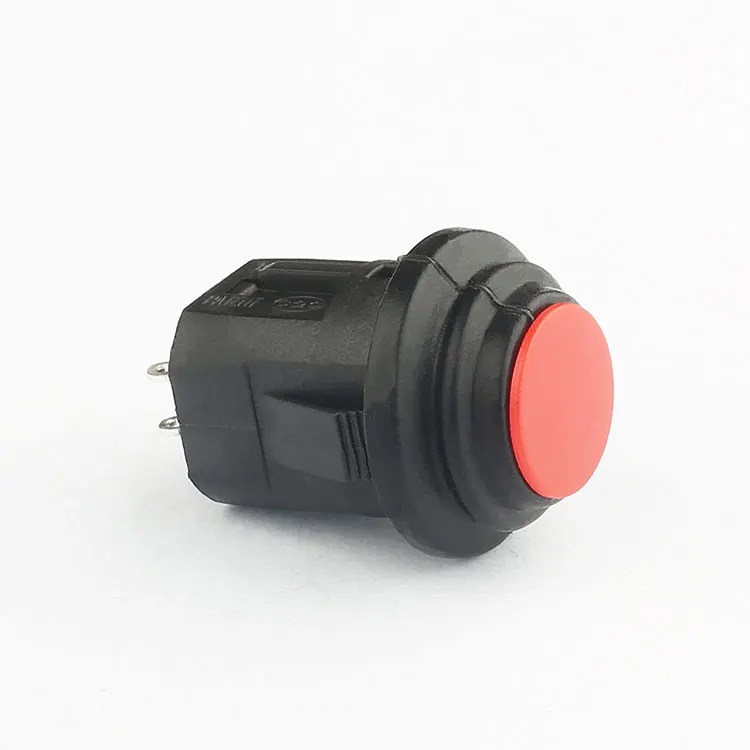

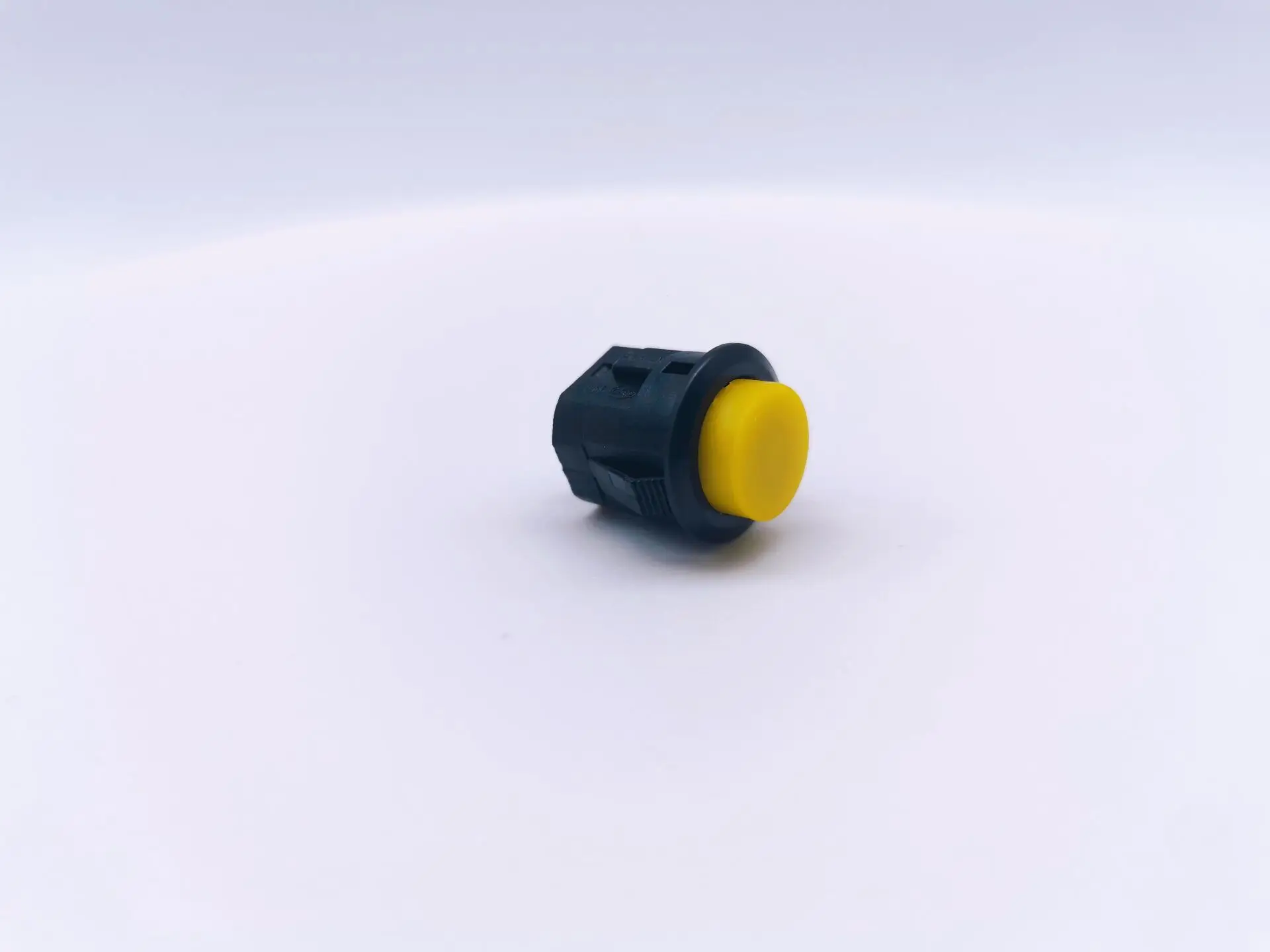

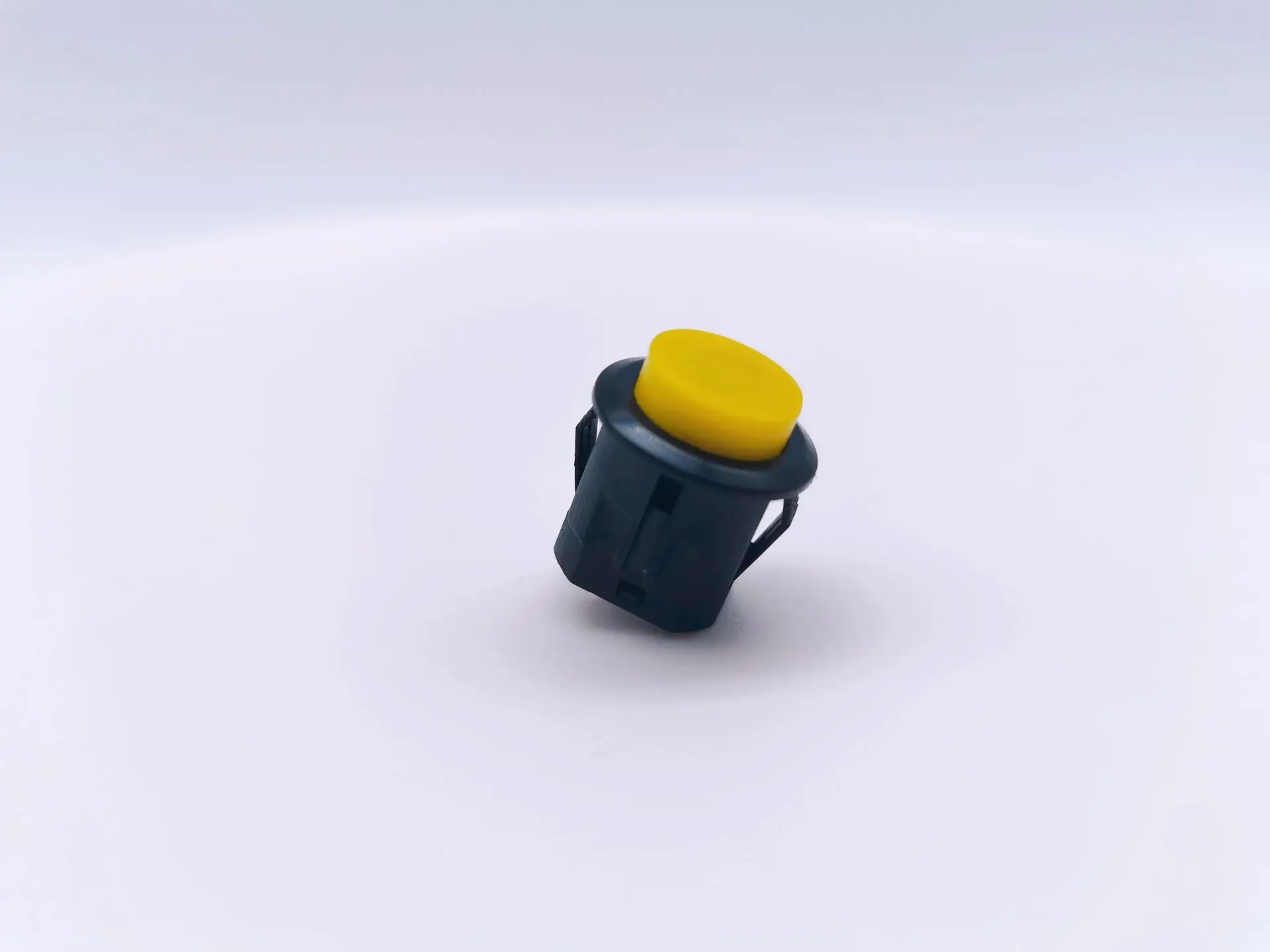

Why Choose Our 16mm Waterproof Push Button Switch?
Our 16mm Waterproof Push Button Switch is designed for durability and reliability. With an IP65 protection level, it ensures waterproof performance, making it suitable for a variety of environments. The switch operates at a maximum current of 3A and a maximum voltage of 250V AC, with an impressive electrical life of 10,000 times, ensuring long-lasting use.
What Are the Key Features of This Switch?
Key features include a black housing with a red cap, a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, and dielectric strength of 1500V. It is also certified by CQC, CE, ROHS, and ISO9001, ensuring quality and compliance with international standards.
Where Can This Switch Be Used?
This switch is ideal for industrial control, home appliances, and automotive applications. Its waterproof design and reliable performance make it a versatile choice for various needs. As a factory-direct supplier and wholesaler, we offer competitive pricing and excellent customer service.
