Description
|
item
|
value
|
|
Certification
|
CE RoHS
|
|
Whether the smart
|
Yes
|
|
Place of Origin
|
China
|
|
Brand Name
|
Shanghai Yongxing
|
|
Model Number
|
YXDGQ16F-11Z/J/S
|
|
Protection Level
|
IP67
|
|
Max. Current
|
5A
|
|
Max. Voltage
|
250V
|
|
LED
|
Other
|
|
Electronic Life
|
10000 cycles
|
|
Mechanical Life
|
50000 cycles
|
|
Working Environment Temperature
|
-25℃~+65℃
|
|
Switch circuit
|
1NO 1NC
|
|
Electrical Resistance
|
AC250V, 1min, no flicker and breakdown
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|

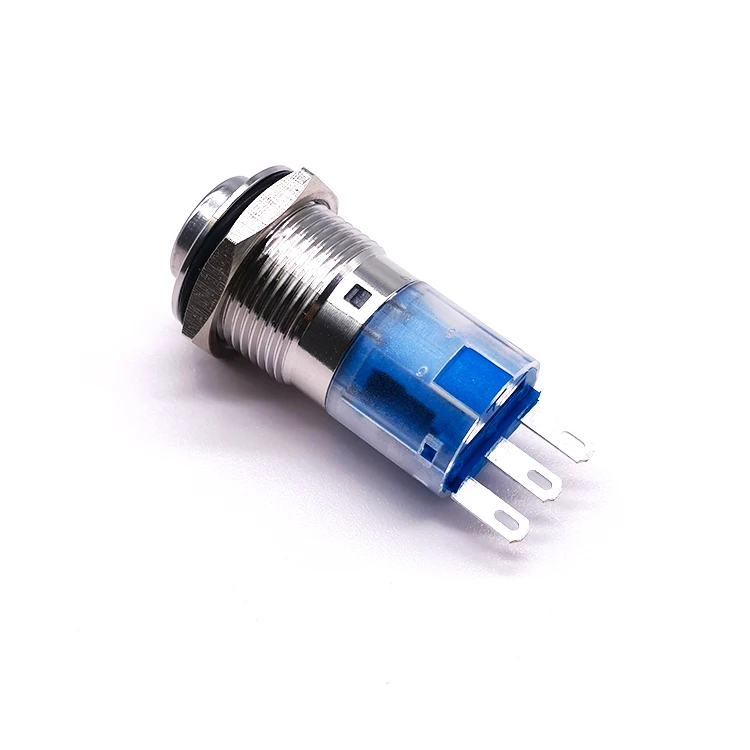

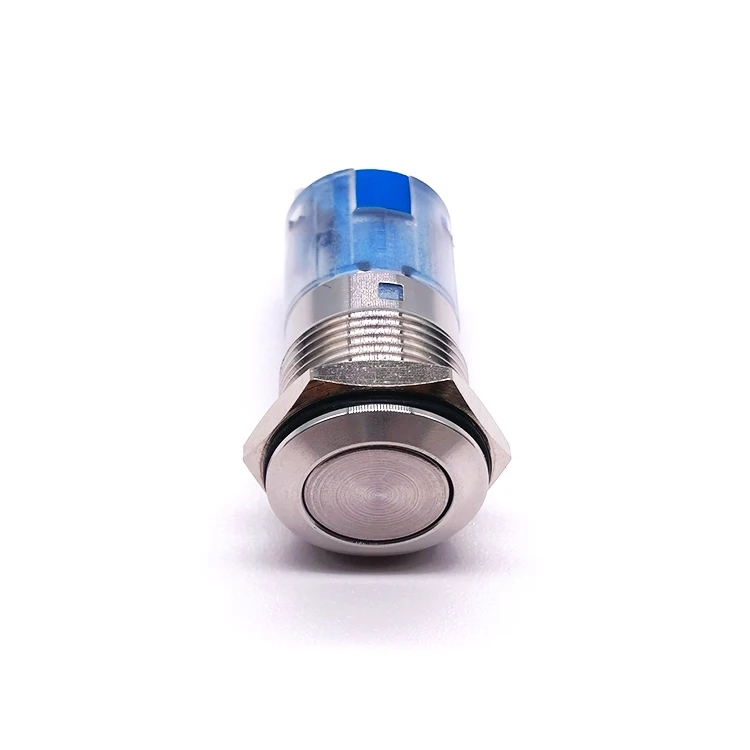

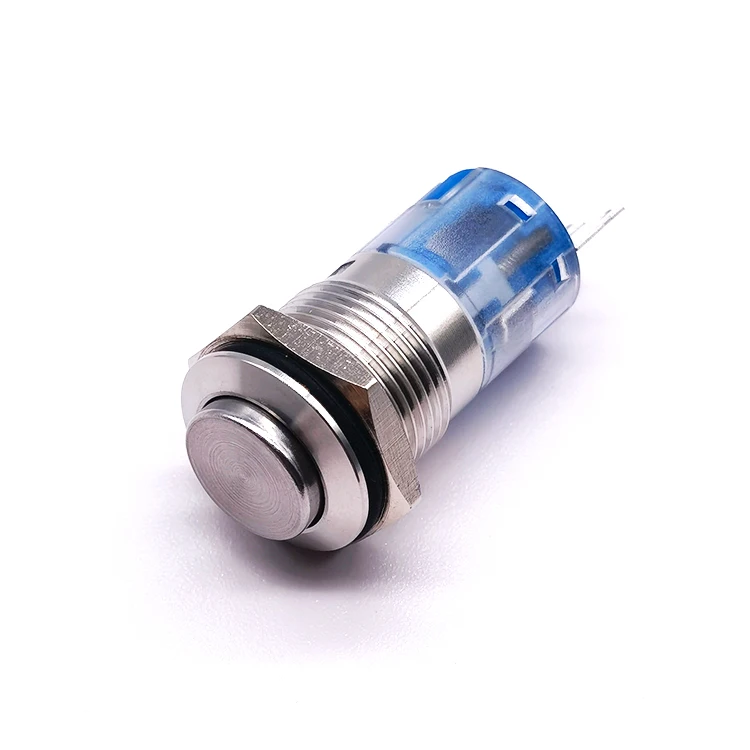

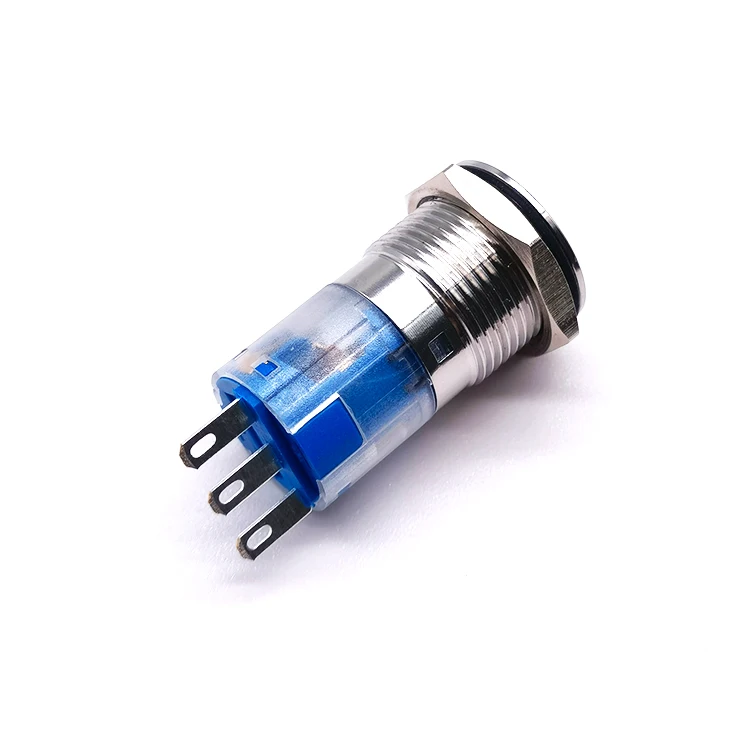

Why Choose Our 16mm Waterproof Push Button Switch?
Our 16mm Waterproof Push Button Switch stands out for its durability, reliability, and waterproof design. Made from stainless steel metal, it can withstand harsh conditions, making it ideal for industrial and outdoor applications. With an IP67 protection level, it ensures long-lasting performance even in wet environments.
What Are the Key Features of Our Switch?
Key features include a 1NO1NC latching momentary design, a maximum current of 5A, and a maximum voltage of 250V. It also boasts an impressive electronic life of 10,000 cycles and a mechanical life of 50,000 cycles. Additionally, it operates efficiently within a wide temperature range, from -25℃ to +65℃.
Why Buy from Us as a Factory Supplier?
As a factory supplier, we offer wholesale pricing directly to our customers, ensuring you get the best value for your money. Our products are backed by comprehensive after-sales service, providing you with peace of mind. Choose us for a reliable, durable, and cost-effective push button switch solution.
