Description

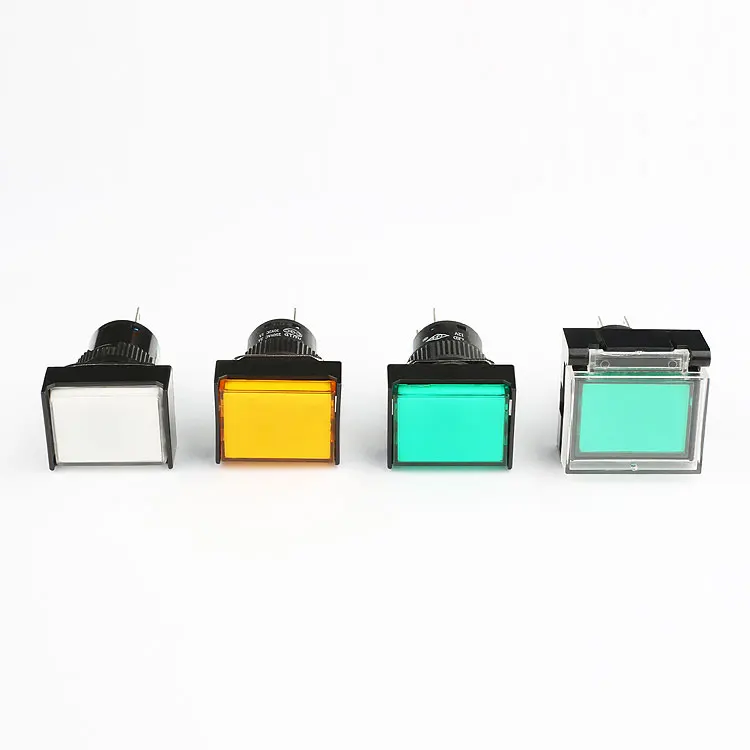

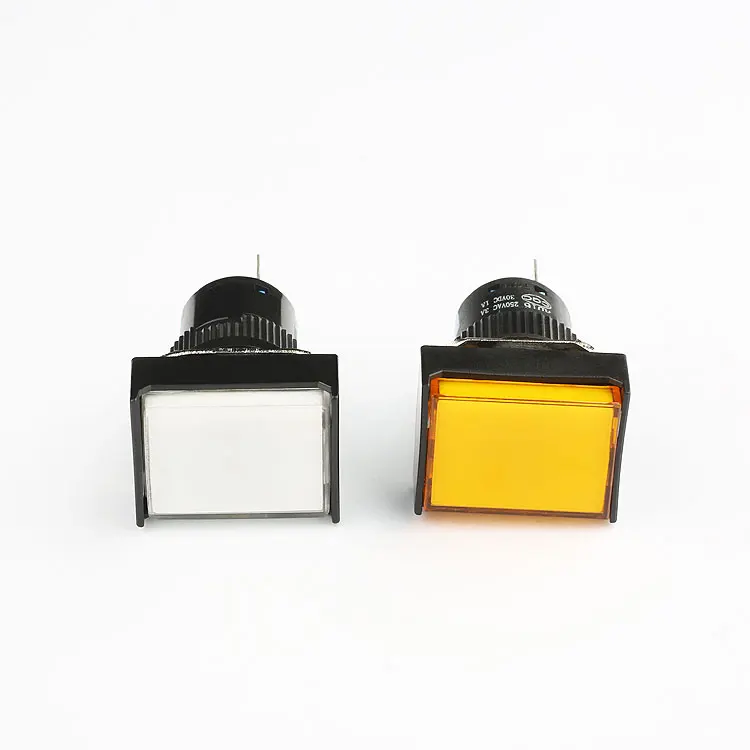

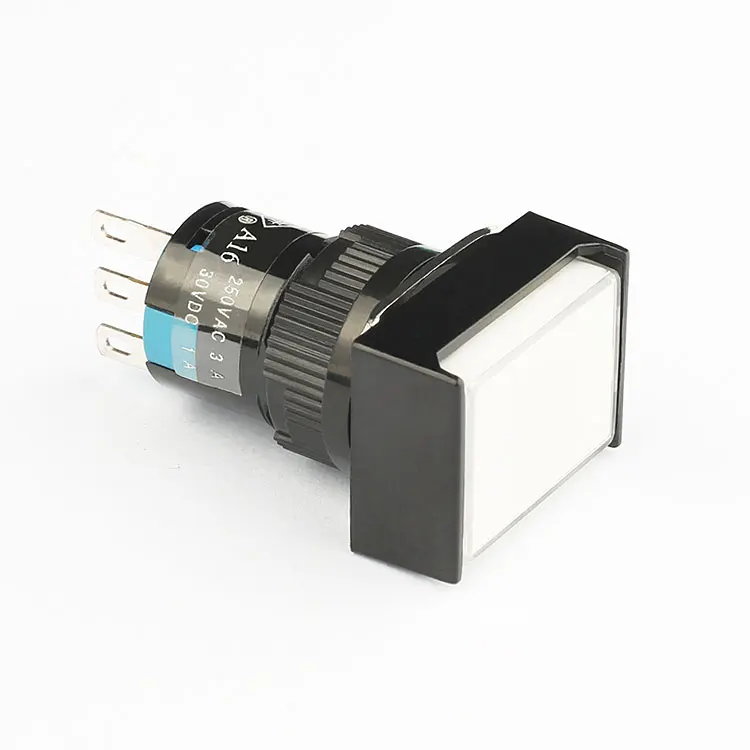

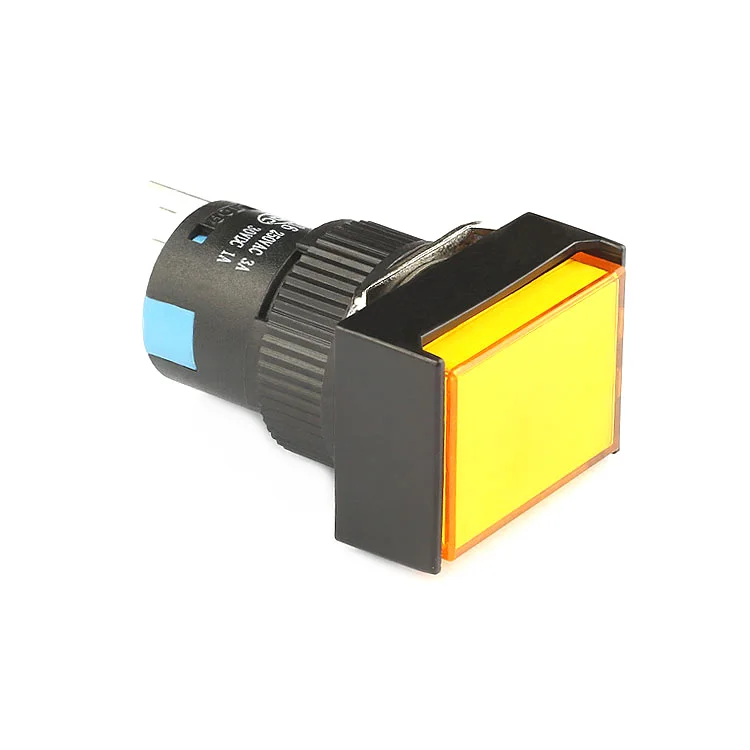

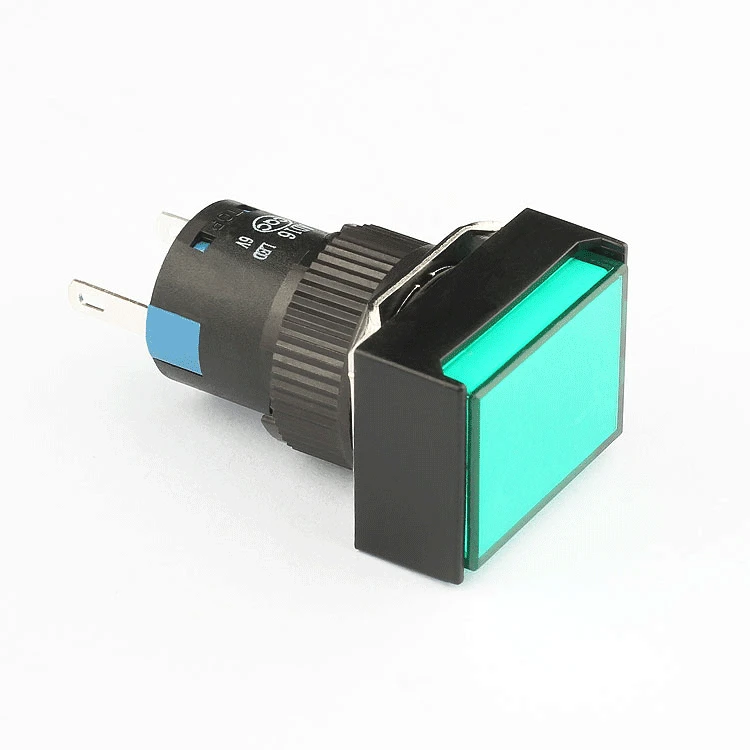

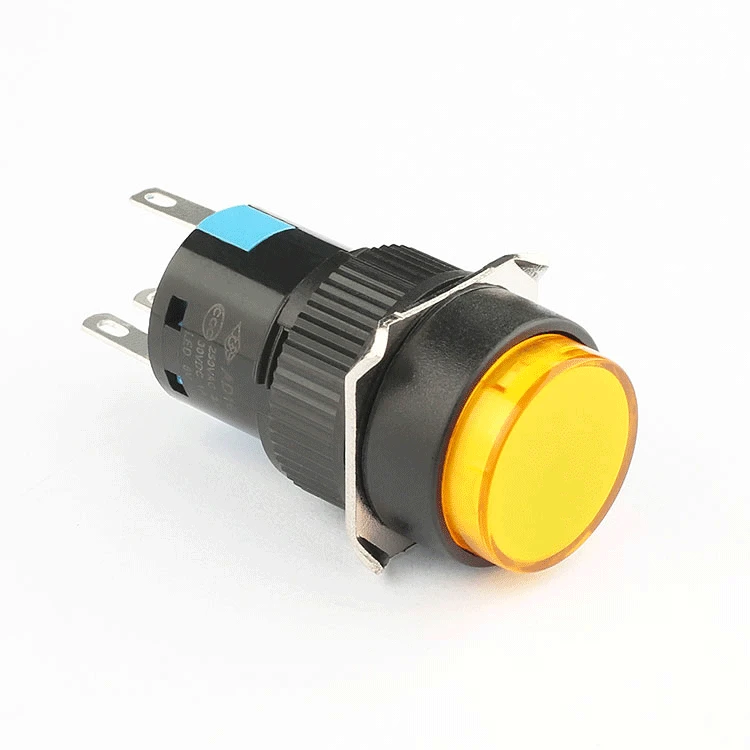

Premium 16mm Momentary Push Button Switch – Wholesale & Direct from Factory
Discover our high-quality 16mm momentary push button switch, perfect for a wide range of applications. As a leading factory supplier, we offer competitive wholesale prices and customization options to meet your specific needs.
Product Specifications
- Max. Current: 3A
- Max. Voltage: 250VAC
- Mounting Hole Size: 16mm
- Switch Combination: 1NO1NC, 2NO2NC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1500VAC for 1 minute
- Electrical Life: 50,000 cycles
- Operating Temperature: -5°C to +75°C
- Certification: CQC, CE
Product Advantages
Our momentary push button switch stands out with its robust construction, high electrical performance, and long service life. With over 60 senior engineers and advanced production facilities, we ensure each switch meets the highest quality standards. Customization services are available for bulk orders, making us your ideal partner for wholesale purchases.
After-Sales Service
We provide comprehensive after-sales support, including technical assistance and warranty services. Our dedicated team is always ready to address any concerns and ensure your satisfaction.
|
max.rating cnrrent&voltage
|
3a 250vac
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>100mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
mechanical life
|
momentary 200000,alternate 50000
|
||
|
electronic life
|
momentary 50000,alternate 25000
|
||
|
operating temperature
|
-5℃ to +75℃
|
||
|
CQC,CE
|
Why Choose Our 16mm Momentary Push Button Switch?
Our 16mm momentary push button switch is designed for durability and reliability, making it ideal for industrial control, electrical appliances, and automotive applications. With a long electrical life and low contact resistance, it ensures consistent performance over time.
Customization Options
As a factory supplier, we offer customization services to meet your specific requirements. Whether you need a different switch combination or a custom logo, we can accommodate your needs.
Wholesale Benefits
By purchasing wholesale from our factory, you enjoy competitive prices and direct access to our high-quality products. Our dedicated team ensures timely delivery and excellent after-sales support.
