17mm Square LED Push Button Switch | Factory Wholesale Supplier

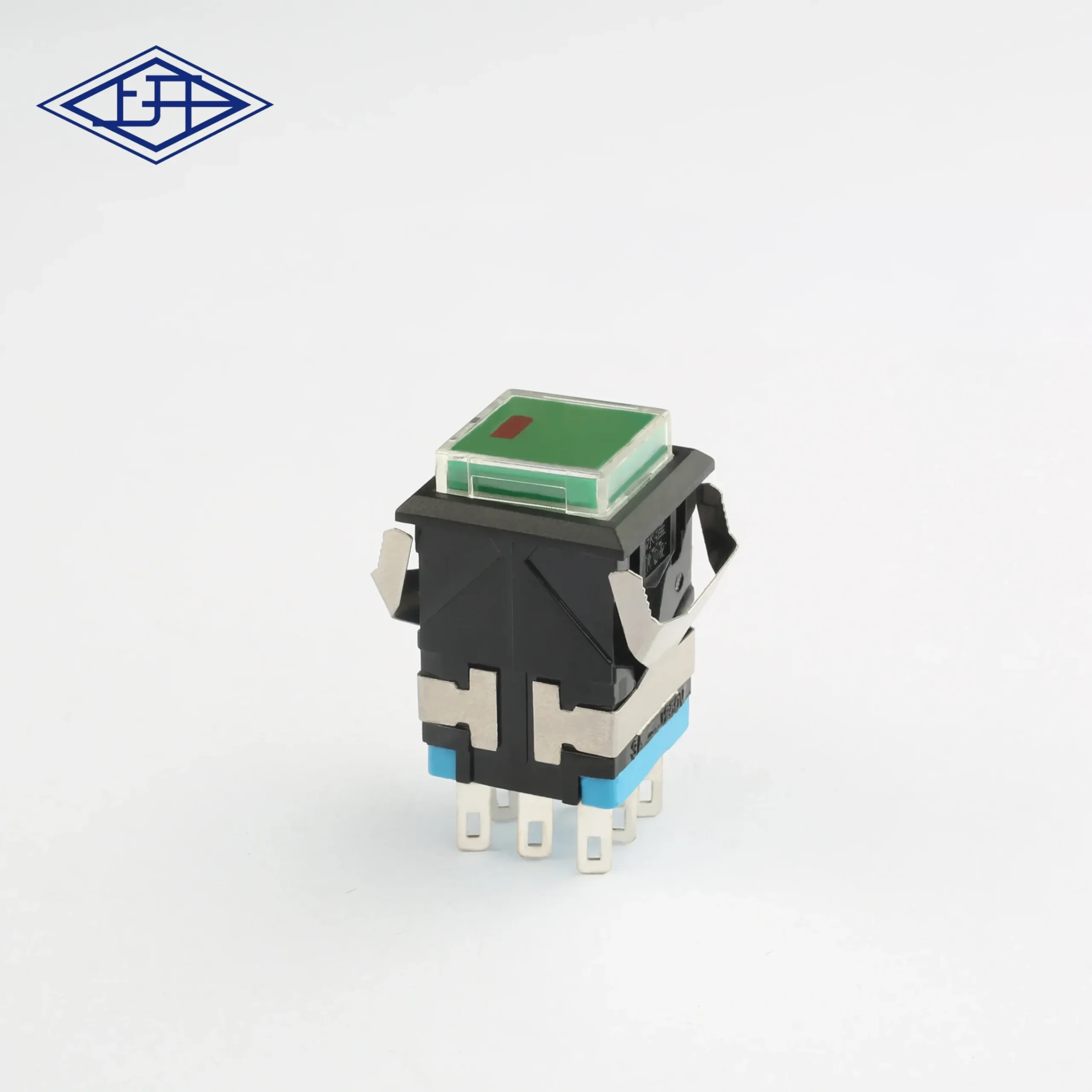

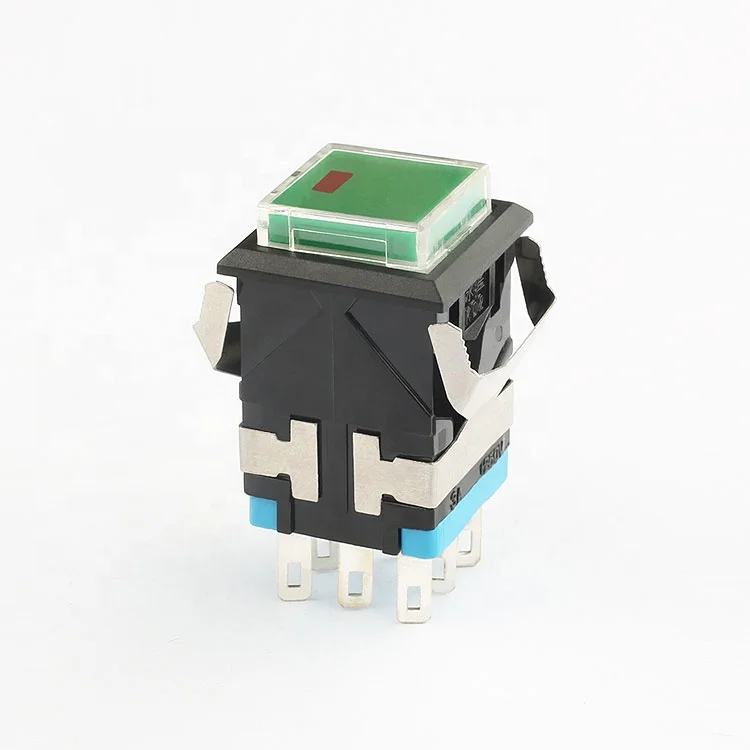

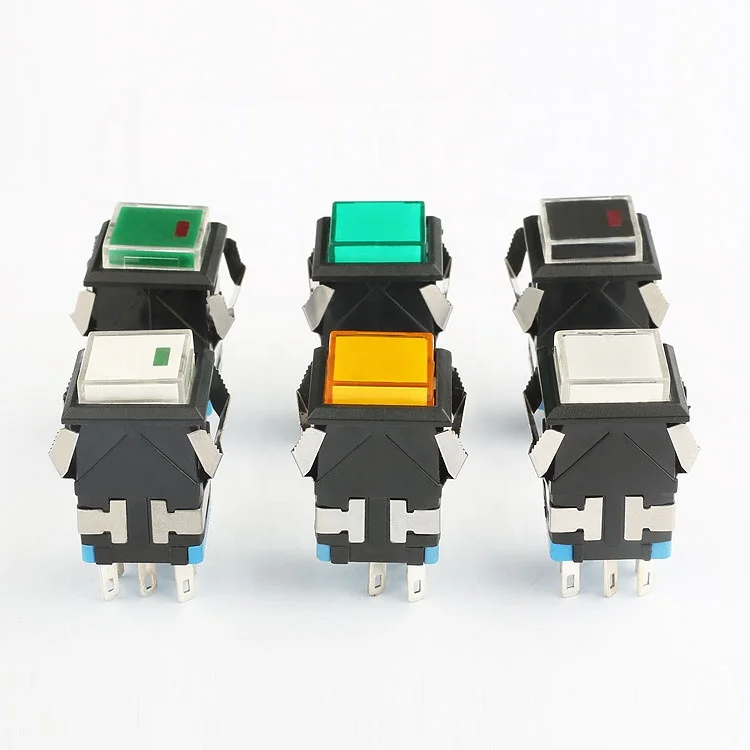

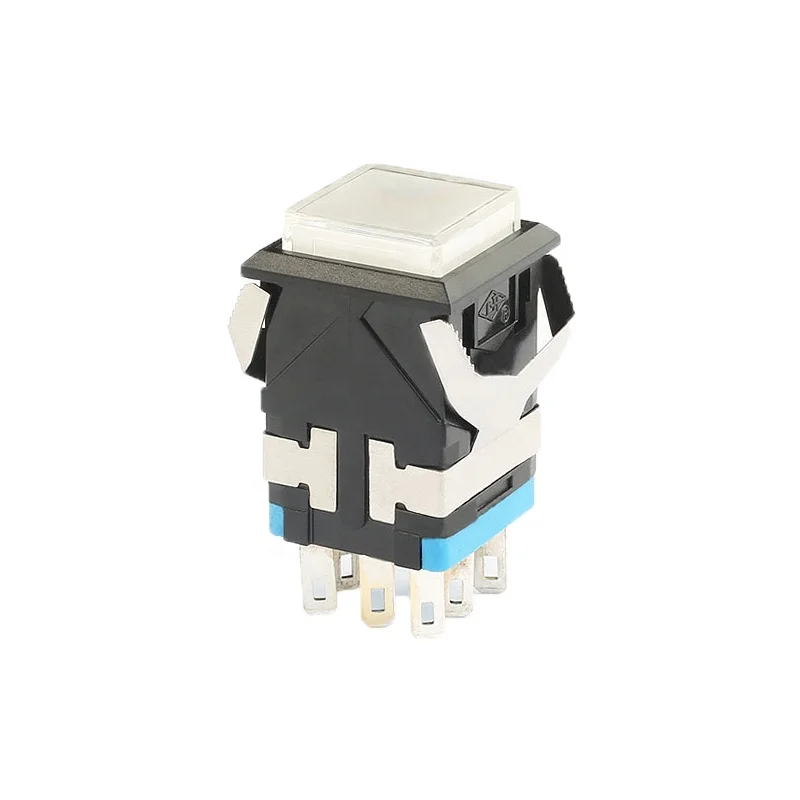

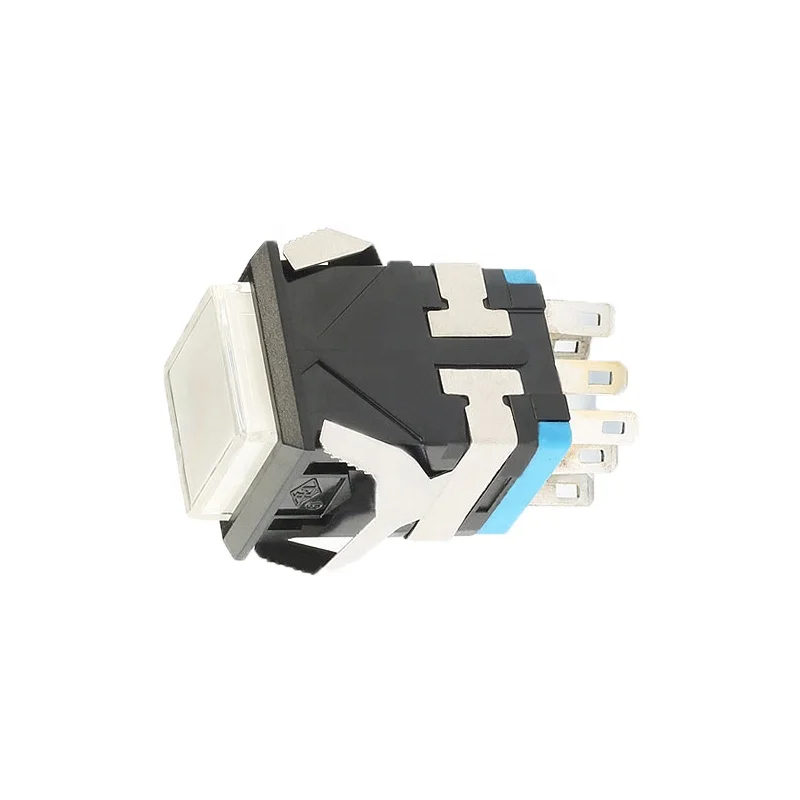

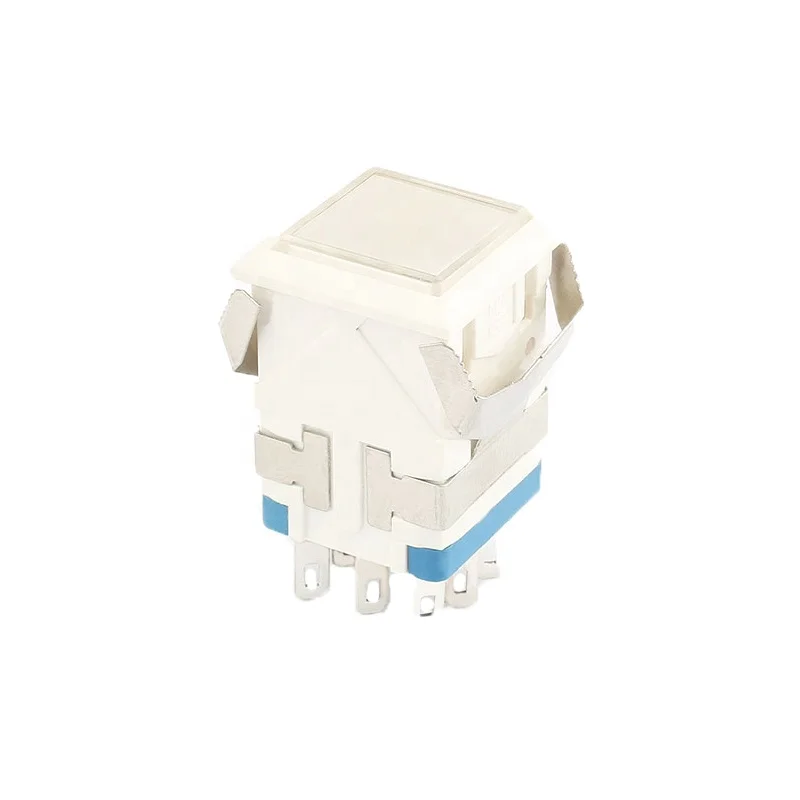

Our 17mm Square LED Push Button Switch is a high-quality, versatile component ideal for electric, home appliance, and industrial control applications. As a factory wholesale supplier, we offer competitive pricing and reliable quality. This switch features a durable plastic construction, ensuring longevity and resistance to wear. It is available in latching and momentary types, with a dot illuminated LED that provides clear visual indication. The switch supports a wide range of lamp voltages (2V, 6V, 12V, 24V, 110V, 220V) and has a maximum current rating of 3A and a maximum voltage of 250V AC. With an IP40 rating, it offers protection against solid objects larger than 1mm. Our switch stands out with its low contact resistance (≤50mΩ), high insulation resistance (≥100mΩ), and dielectric strength of 1500V, ensuring safety and reliability. The electrical life is rated at 10,000 cycles, and it operates within a temperature range of -25℃ to +55℃. Certified by CQC and CE, our switch meets international standards. We offer customizable switch combinations (1NO1NC, 1NO, 2NO2NC) to suit various needs. Choose us for factory-direct pricing, excellent customer service, and fast shipping.
