Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|

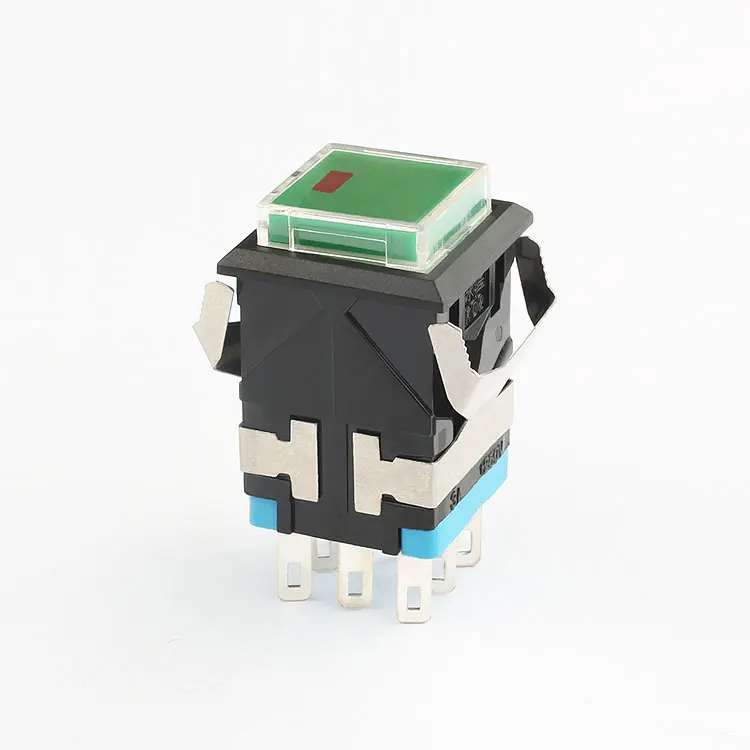

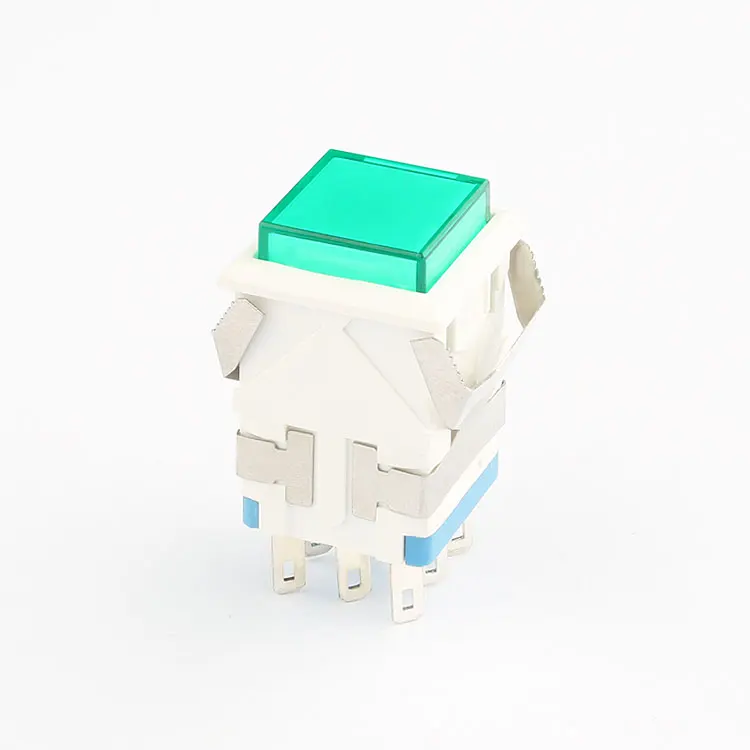

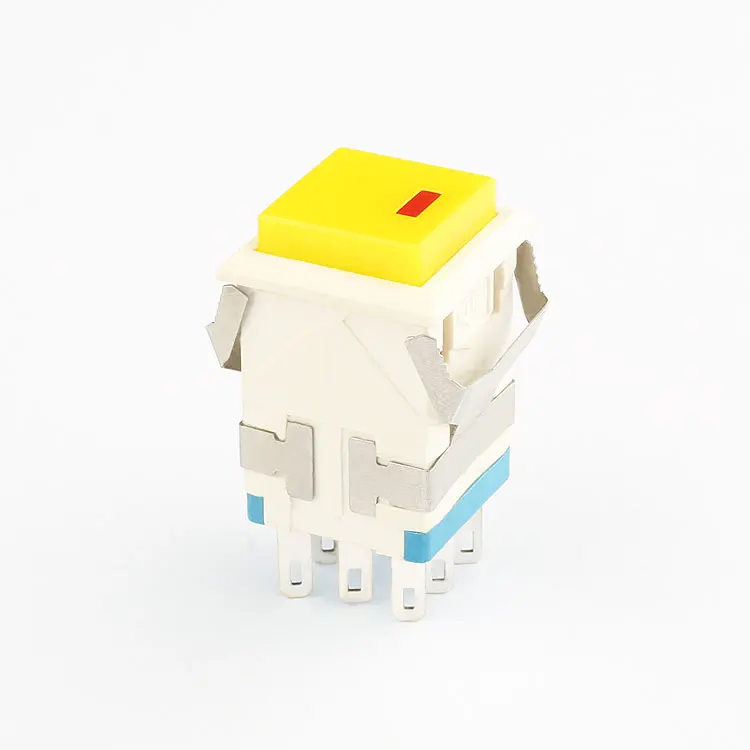

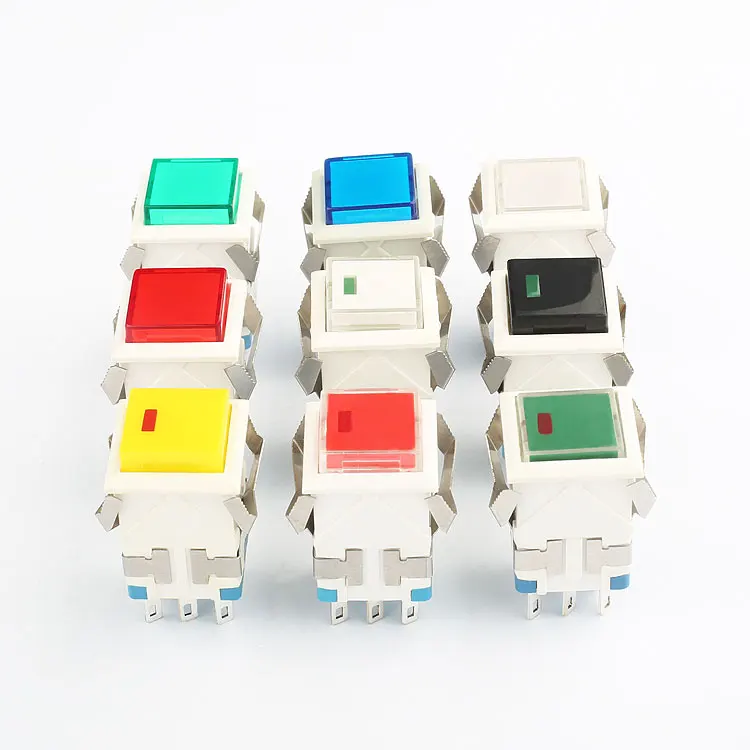

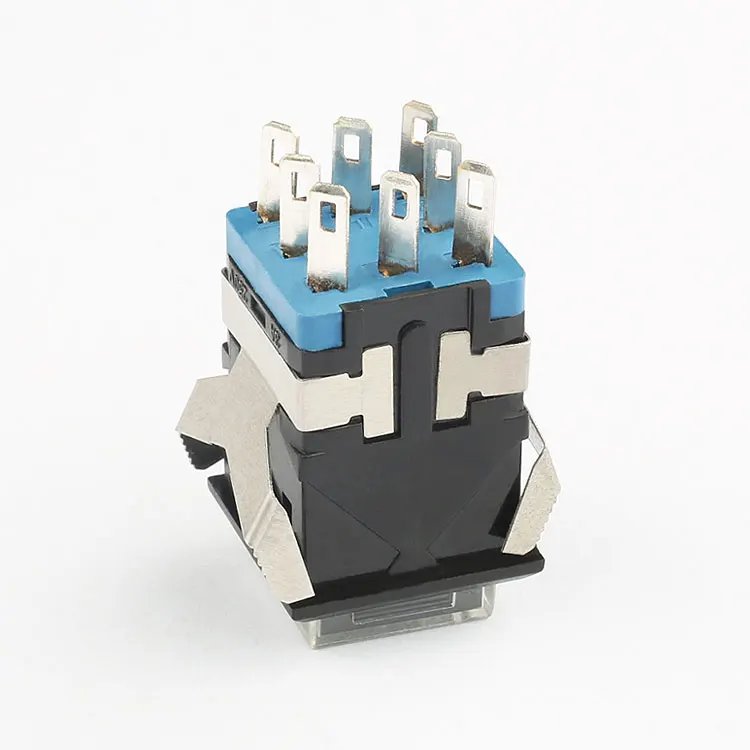

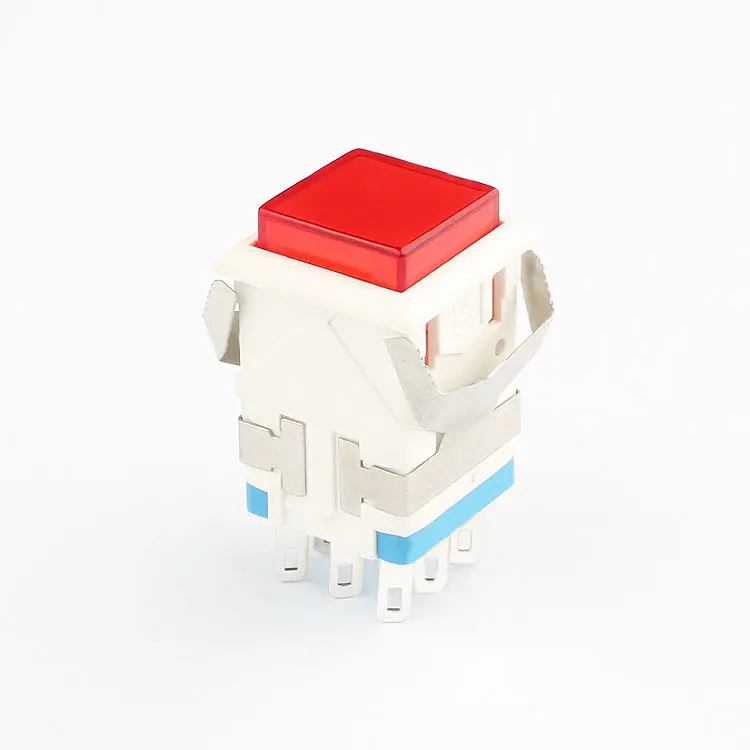

Why Choose Our 17mm Square LED Push Button Switch?
Our 17mm Square LED Push Button Switch is designed for durability and reliability, featuring a long electrical life of 10,000 cycles and a mechanical life of 50,000 cycles. The bright LED indicator provides clear status feedback, making it ideal for control panels and machinery. With various lamp voltage options and customizable configurations, it meets diverse industrial needs.
What Makes Our Switch Stand Out?
Our switch stands out with its low contact resistance (≤50mΩ) and high insulation resistance (≥100mΩ), ensuring superior performance. The IP40 protection level makes it suitable for a wide range of environments. As a factory-direct supplier, we offer wholesale pricing and excellent after-sales service, making it a cost-effective choice for businesses.
Applications and Benefits
Ideal for use in control panels, machinery, and automation systems, our switch provides reliable switching and clear status indication. Its compact size and multi-configuration options make it versatile and easy to integrate into various applications. Choose our switch for enhanced performance, durability, and value.
