Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD7-11-CF1B-B-G-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|

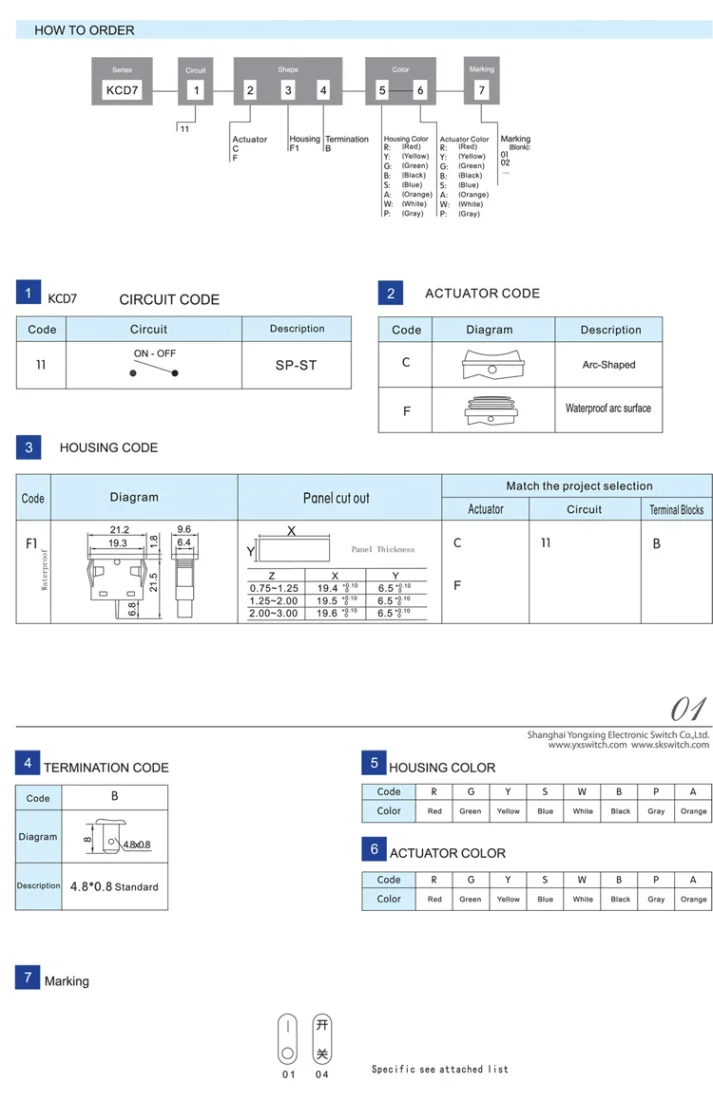

Circuit
|
SPST
|
|
Dimension Code
|
F1 (21.2×23.3×9.6, 19.3×21.5×6.4)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|
Why Choose Our 19.5x6.5mm Mini 6A SPST Rocker Switch?
Our switch stands out with its robust design, ensuring reliable performance in various applications. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it offers longevity that few competitors can match. The IP65 rating guarantees protection against dust and water, making it suitable for outdoor and harsh environments. As a factory-direct supplier, we offer wholesale pricing, making it a cost-effective choice for bulk purchases.
What Makes Our Switch Different?
Unlike many switches on the market, ours is CE, CQC, and ROHS certified, ensuring safety and compliance with international standards. The multiple color options allow for customization to match your specific needs. Additionally, our switch's superior contact and insulation resistance, along with its high dielectric strength, make it a top performer in its class.
How Can Our Switch Benefit You?
Whether you're an industrial user, a home appliance manufacturer, or an outdoor equipment provider, our switch offers the reliability and durability you need. Its easy panel mounting design simplifies installation, saving you time and effort. Choose our switch for peace of mind, knowing you're getting a high-quality product from a trusted supplier.
