Description

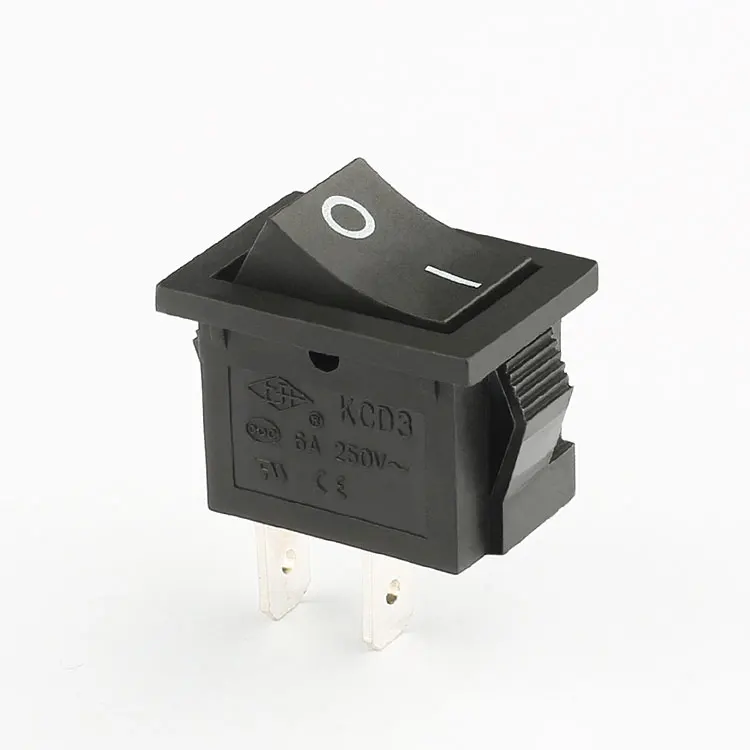

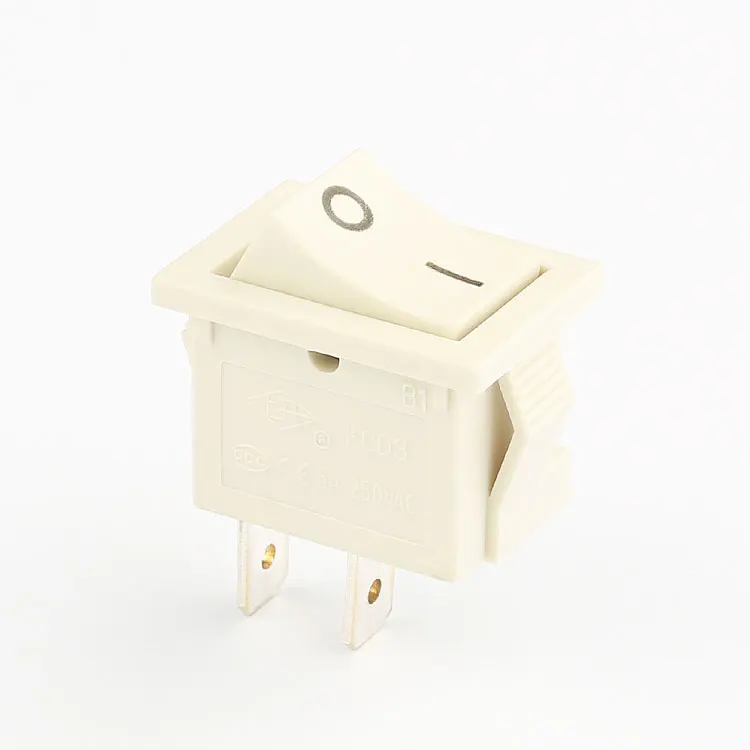

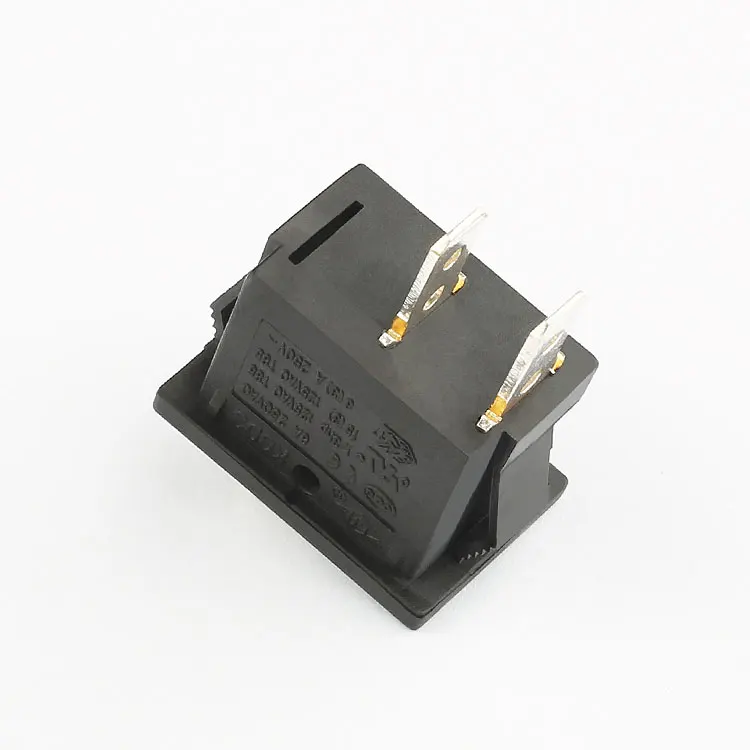

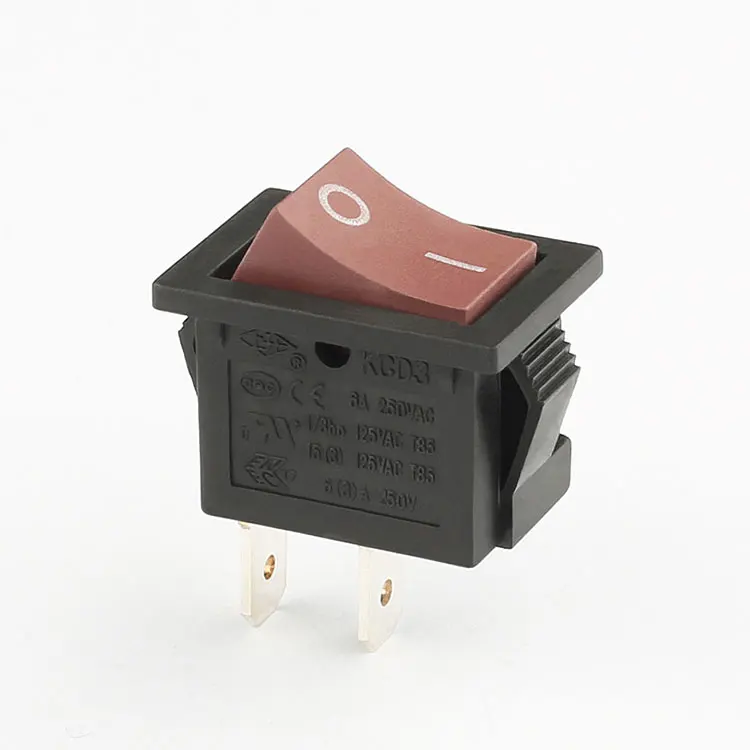

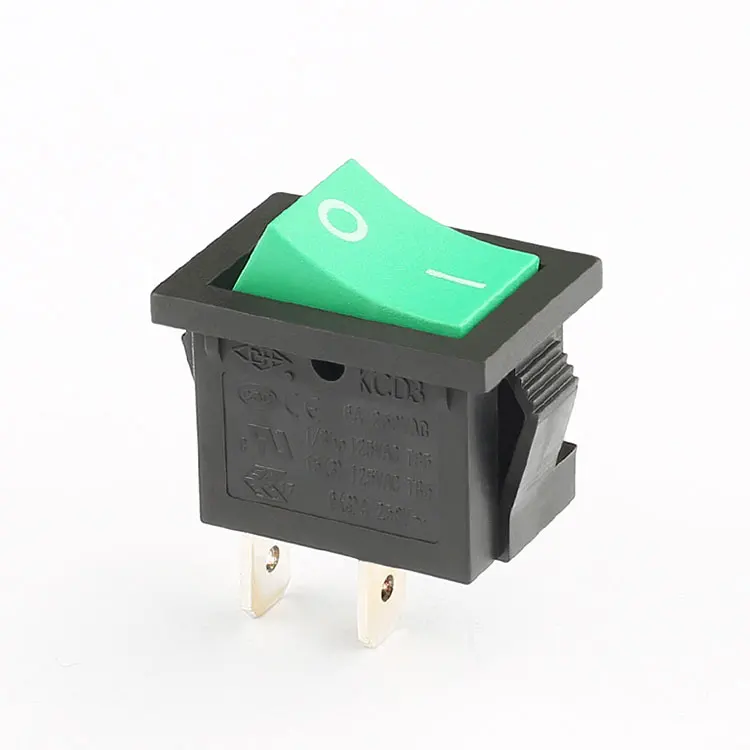

Our rocker switch is UL and ROHS certified, ensuring safety and environmental compliance. It boasts a 6A current rating and 250V AC voltage rating, making it suitable for a wide range of applications. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, our switch offers exceptional durability and reliability.
What sets our product apart is its precision engineering and attention to detail. The contact resistance is ≤50mΩ, while the insulation resistance is ≥1000MΩ, ensuring optimal performance. The dielectric strength of 1500VAC for 1 minute further guarantees the switch’s robustness.
Available in a variety of actuator colors including Red, Yellow, Green, Black, Blue, Orange, White, and Gray, our rocker switch can be customized to match your specific needs. Whether you’re looking for a reliable switch for your water dispenser or any other application, our product is the perfect choice.
As a factory supplier, we offer bulk purchasing options and excellent after-sales service. Choose us for your rocker switch needs and experience the difference in quality and service.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-B-G-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
UL ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 ( 21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Switch Function
|
On Off
|
Key Features
Our 19x13mm Mini Rocker Switch is designed for water dispensers, offering a 6A current rating and 250V AC voltage rating. It's UL and ROHS certified, ensuring safety and environmental standards are met. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it's built to last.
Differentiators
What makes our switch stand out is its precision engineering, with a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ. The dielectric strength of 1500VAC for 1 minute guarantees robustness. Plus, it's available in a variety of colors to match your needs.
Why Choose Us
As a factory supplier and wholesaler, we offer competitive pricing without sacrificing quality. Our bulk purchasing options and excellent after-sales service make us the ideal choice for your rocker switch needs. Choose us for reliability, durability, and value.
