2024 Hot Sale 4-Pin Rocker Switch Panel | Wholesale Supplier Factory

>= 1,000  pieces
$0.32

0 reviews

Wholesale 4-pin rocker switch panel from factory supplier. High quality, reliable performance.

Description

Introducing our high-quality 4-pin rocker switch panel, a must-have for any electrical application. As a direct factory supplier, we offer wholesale prices on this top-selling product. Crafted with precision, our rocker switch panel boasts a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and a dielectric resistance of 1500V AC, ensuring reliable performance. With a maximum current of 6A and voltage of 250VAC, it’s suitable for a wide range of uses. The operating temperature is T55, and it has a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles. The panel comes in a sleek black housing, and we also offer a red color option. Certified by CQC and CE, it meets the highest safety standards. Our DPST function and IP40 rating make it stand out from competitors. Plus, we provide excellent after-sales service to ensure your satisfaction. Don’t miss out on this wholesale opportunity from a trusted factory supplier.
Contact Resistance:
≤50mΩ
Insulation resistance:
≥100MΩ
Dielectric Resistance:
1500V AC
Operating temperature:
T55
Electrical life
10000
Housing Color
black

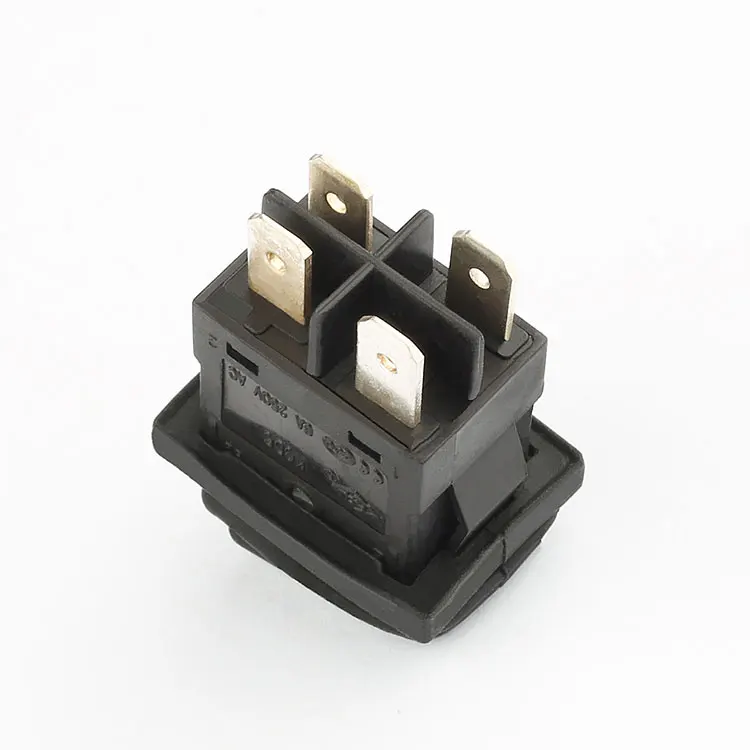

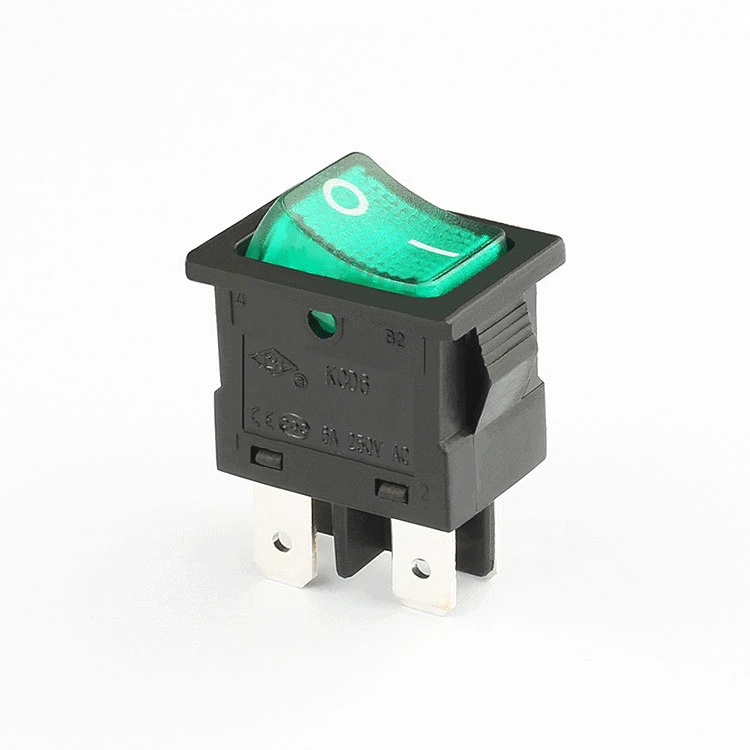

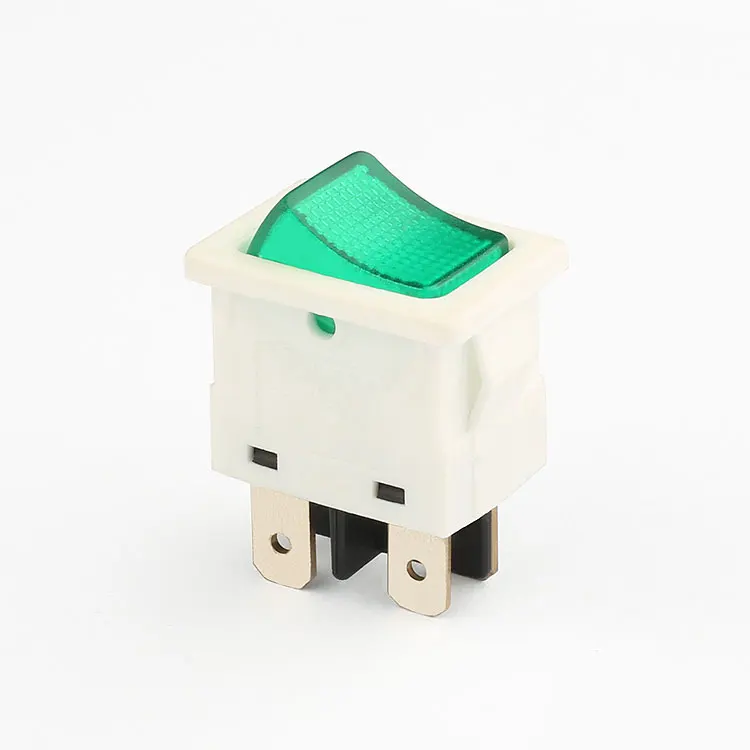

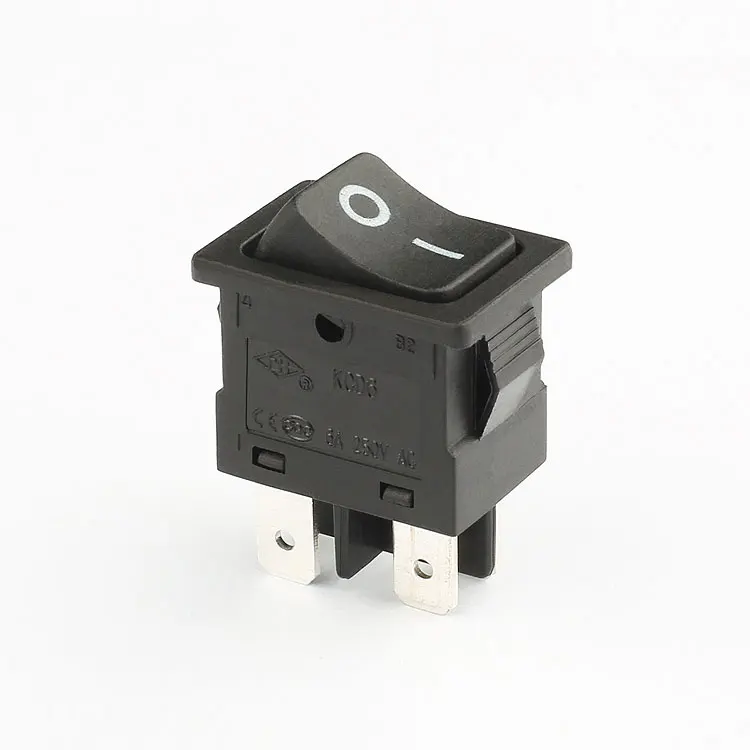

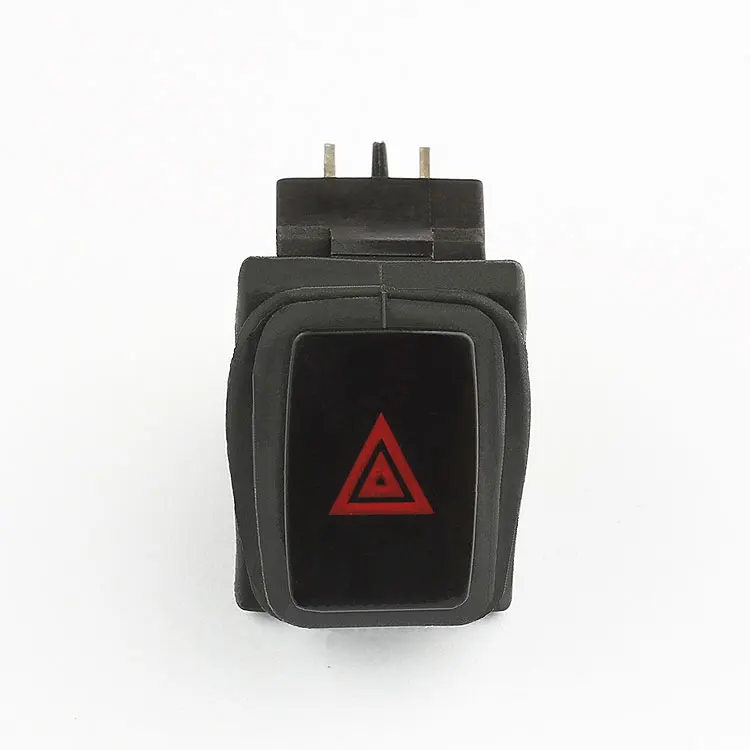

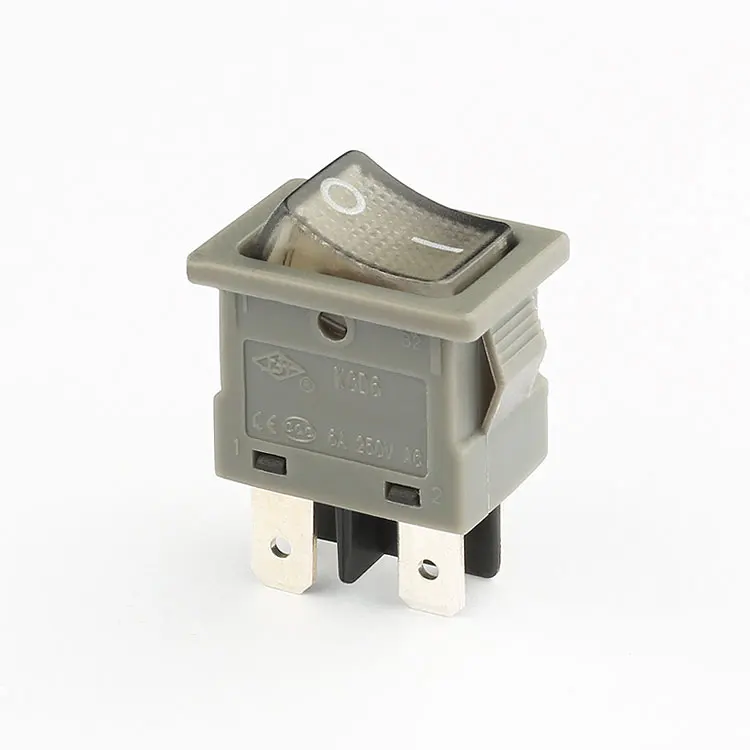

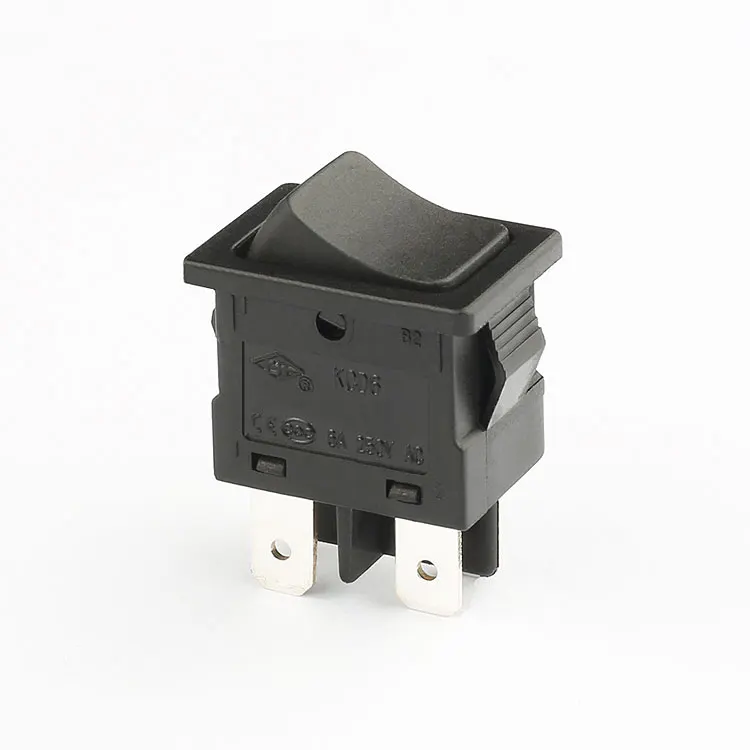

Electronic component product displayElectronic component product displayElectronic device product imageElectronic gadget product imageElectronic product product image


Product Features

Our 4-pin rocker switch panel is designed for durability and performance. With a 4-pin configuration, it can handle a maximum current of 6A and voltage of 250VAC, making it suitable for various electrical applications. The DPST function ensures reliable switching, and the IP40 rating provides protection against dust and water.

Why Choose Us

As a factory supplier, we offer competitive wholesale prices without compromising on quality. Our rocker switch panel is certified by CQC and CE, ensuring it meets international safety standards. With a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, it's built to last. Plus, we provide excellent after-sales service to address any concerns you may have.

Applications

This rocker switch panel is ideal for industrial use, home appliances, and any application requiring reliable electrical control. Its sleek black or red housing makes it a great addition to any device, and its high-performance specifications ensure it can handle the demands of your project.

Company Information Company Information Company Information Company Information Company Information Company Information

Additional information

Max. Current

6A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD6

Whether the smart

NO

Mechanical Life

100000 Cycles

Certificate

CQC. CE

Function

DPST

IP Rating

IP40

Pins

4

Contact Resistance:

≤50mΩ

Insulation resistance:

≥100MΩ

Dielectric Resistance:

1500V AC

Operating temperature:

T55

Electronic life (cycles) :

10000

Max.Rating Current&Voltage:

6A 250V AC
