Description
| series | electronic life | Mechanical life (times) | use | Ingress protection | certificate | rated current | rated voltage | working temperature | Contact resistance | Insulation resistance | Withstand voltage |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | CQC,CE | 16(4)A | 250V AC T125 5E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | ENEC17 | 16(4)A | 250V AC T125 1E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | ENEC17 | 15A | 250V AC T125 1E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | ENEC17 | 10(3)A | 250V T125 5E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | UL | 16A | 125/250V AC T125 5E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | UL | 10(4)A | 125/250V AC T125 5E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | UL | 16A | 1HP 125V AC T125 1E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |

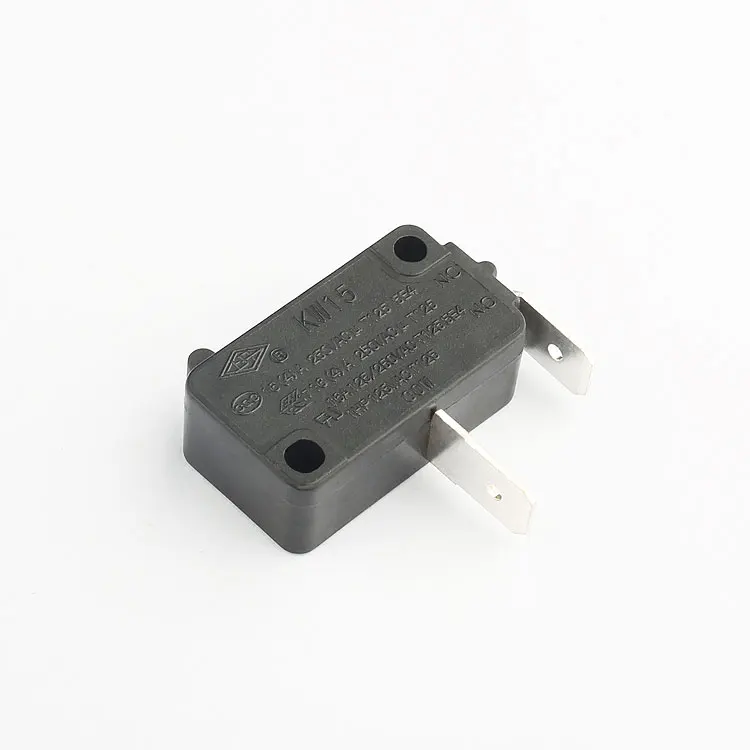

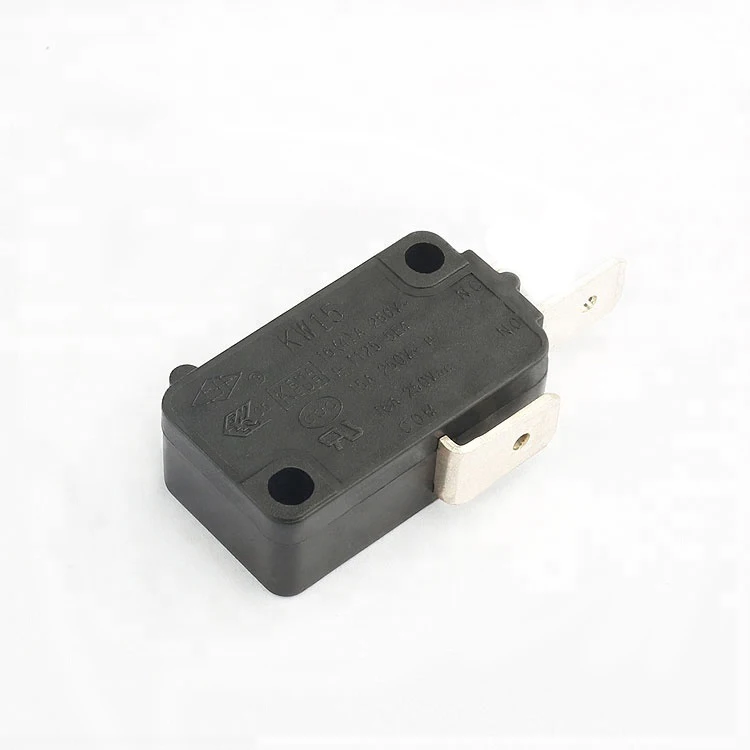

Why Choose Our Black Base Micro Switch?
Our Black Base Micro Switch stands out due to its high-quality ABS plastic construction, ensuring durability and longevity. With a maximum current of 5A and a maximum voltage of 250V AC, it's suitable for a wide range of applications. The roller lever design provides precise operation, while the IP40 protection level safeguards against dust and limited water ingress. Our factory-direct pricing and excellent after-sales service make it an unbeatable choice.
What Are the Key Features of Our Micro Switch?
Our micro switch boasts a mechanical life of 100,000 times, ensuring exceptional durability. It is certified by CQC, CE, ENEC17, and UL, guaranteeing its safety and compliance with international standards. The roller lever design allows for precise and reliable operation, making it ideal for various electronic devices.
How Can Our Micro Switch Benefit Your Business?
As a factory supplier, we offer wholesale options to meet your bulk purchase needs. Our micro switch's high durability, precise operation, and compliance with international standards make it a reliable choice for your business. Whether you're manufacturing automatic vending machines, microwave ovens, or other electronic devices, our micro switch will enhance the performance and reliability of your products.
