Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
20000
|
|
dielectric strength
|
1500V 1min
|
operating temperature
|
25T85
|
|
IP code
|
IP40
|
max.rating current & voltage
|
10(3)A 250V AC
|

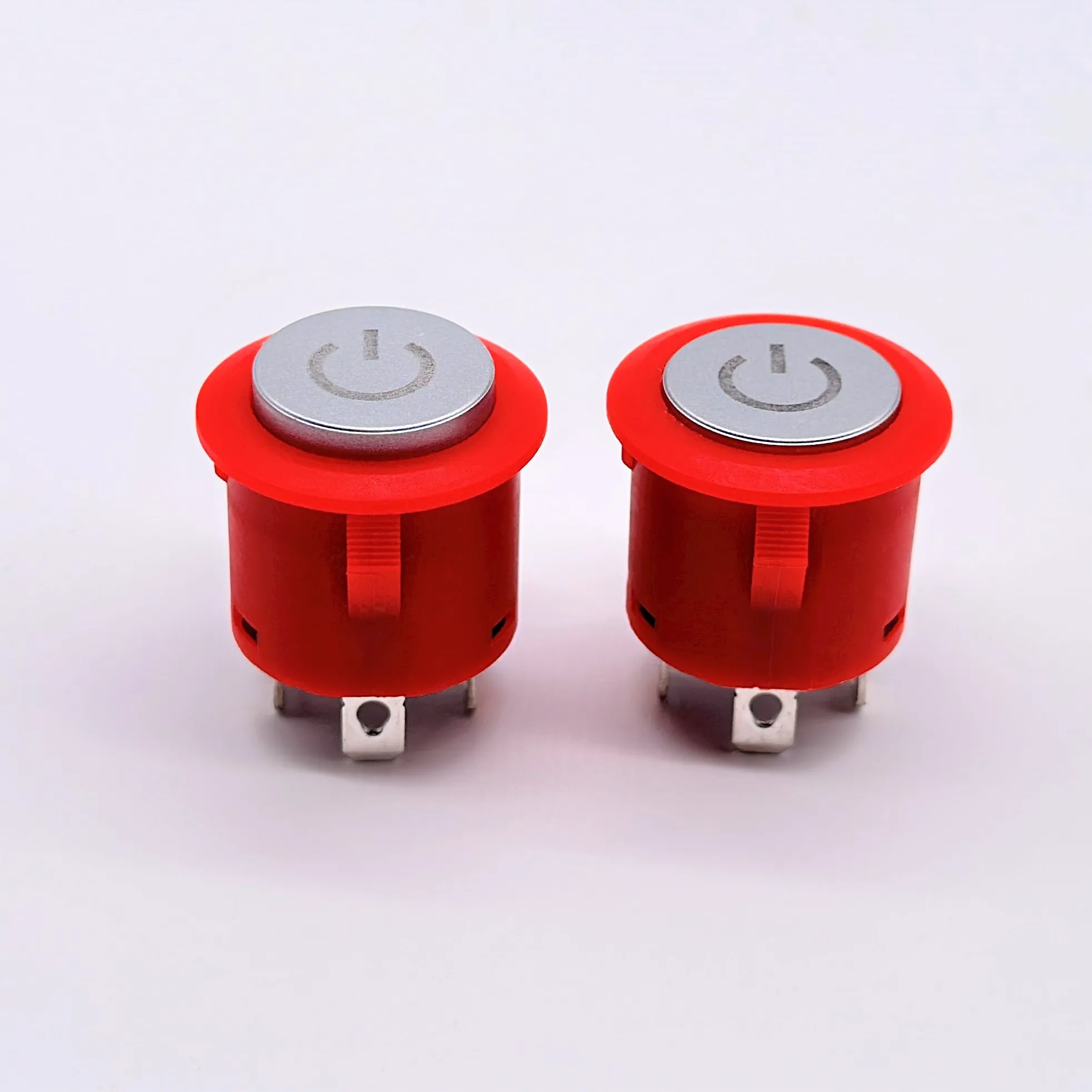

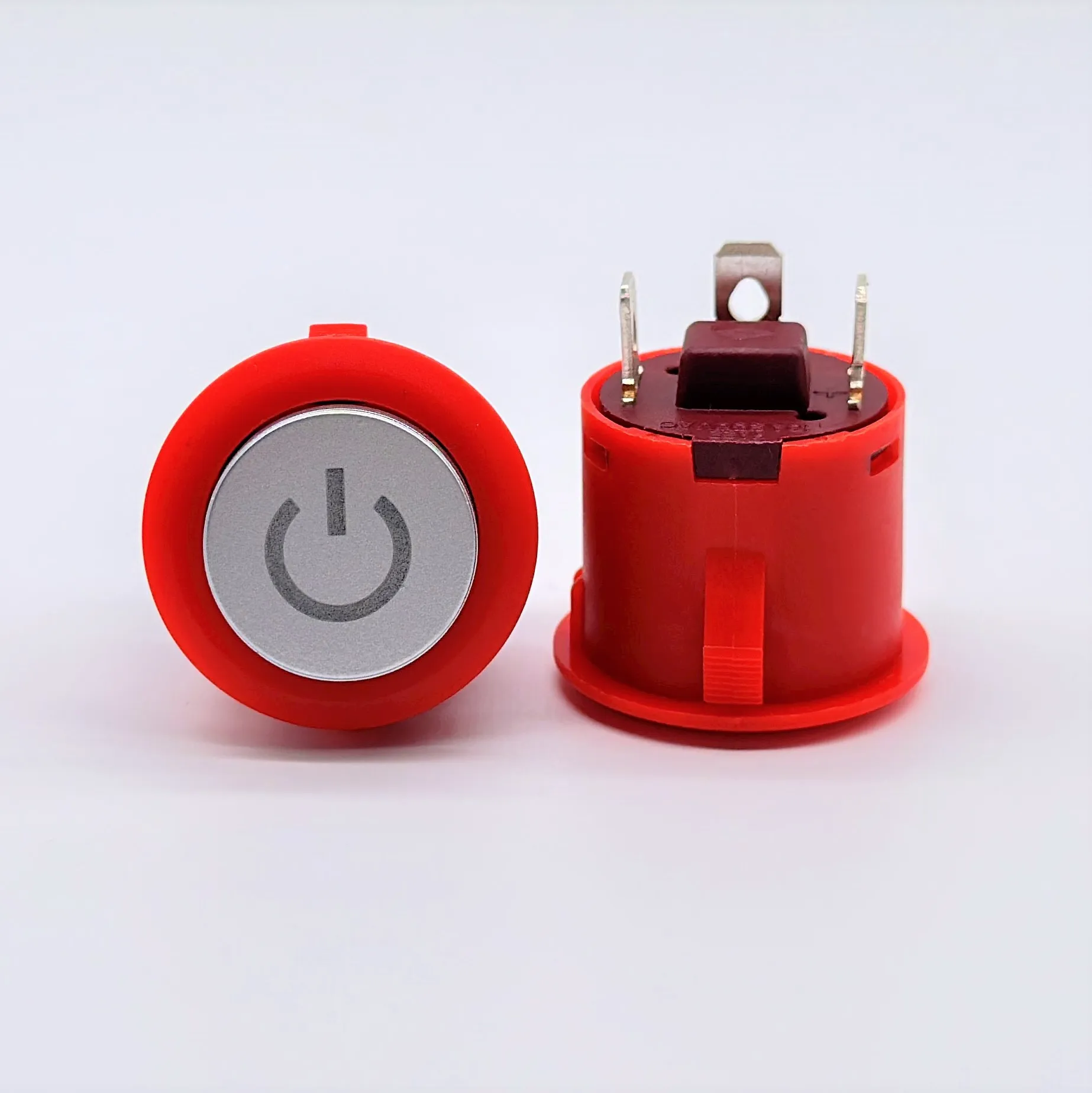

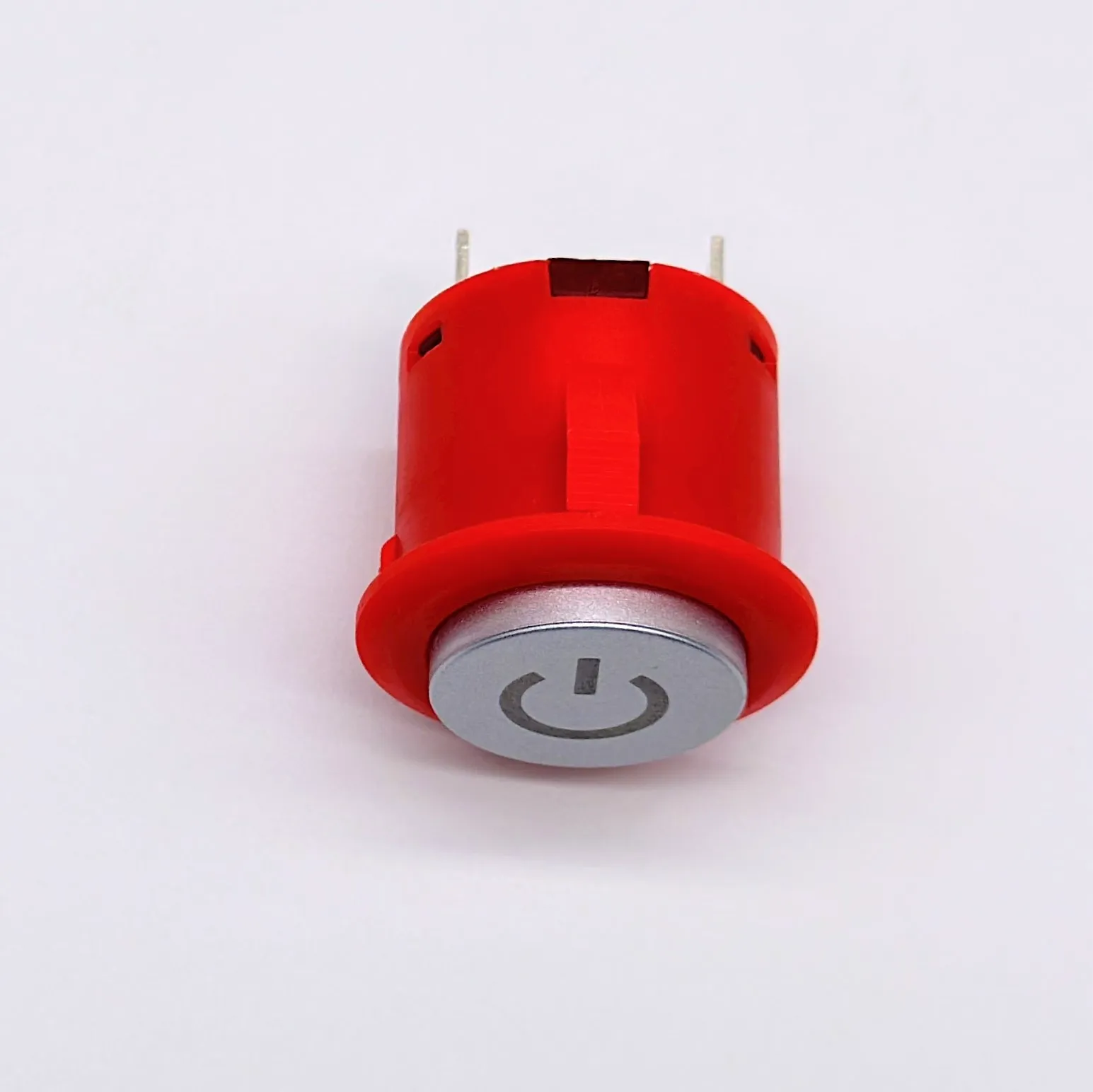

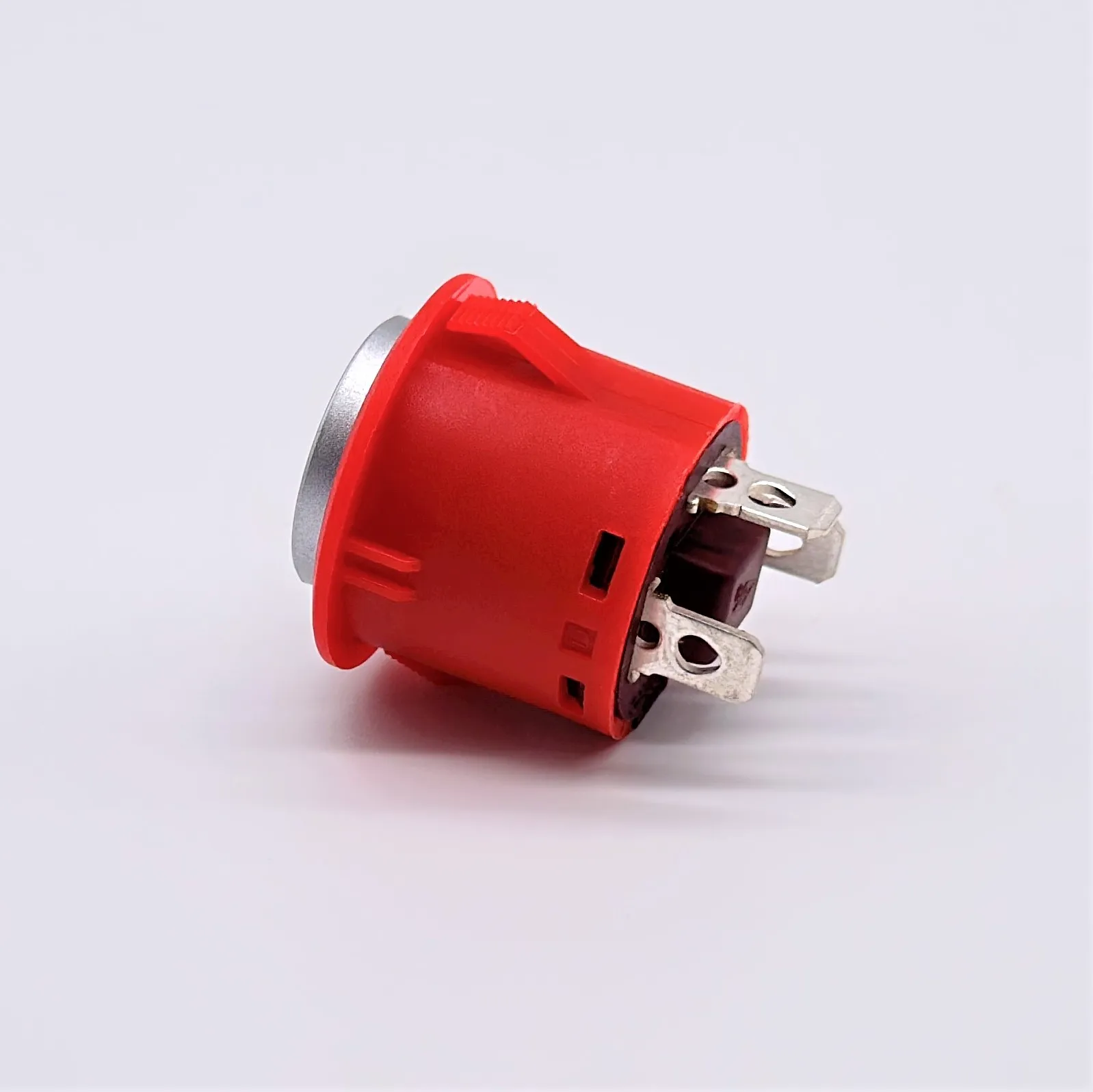

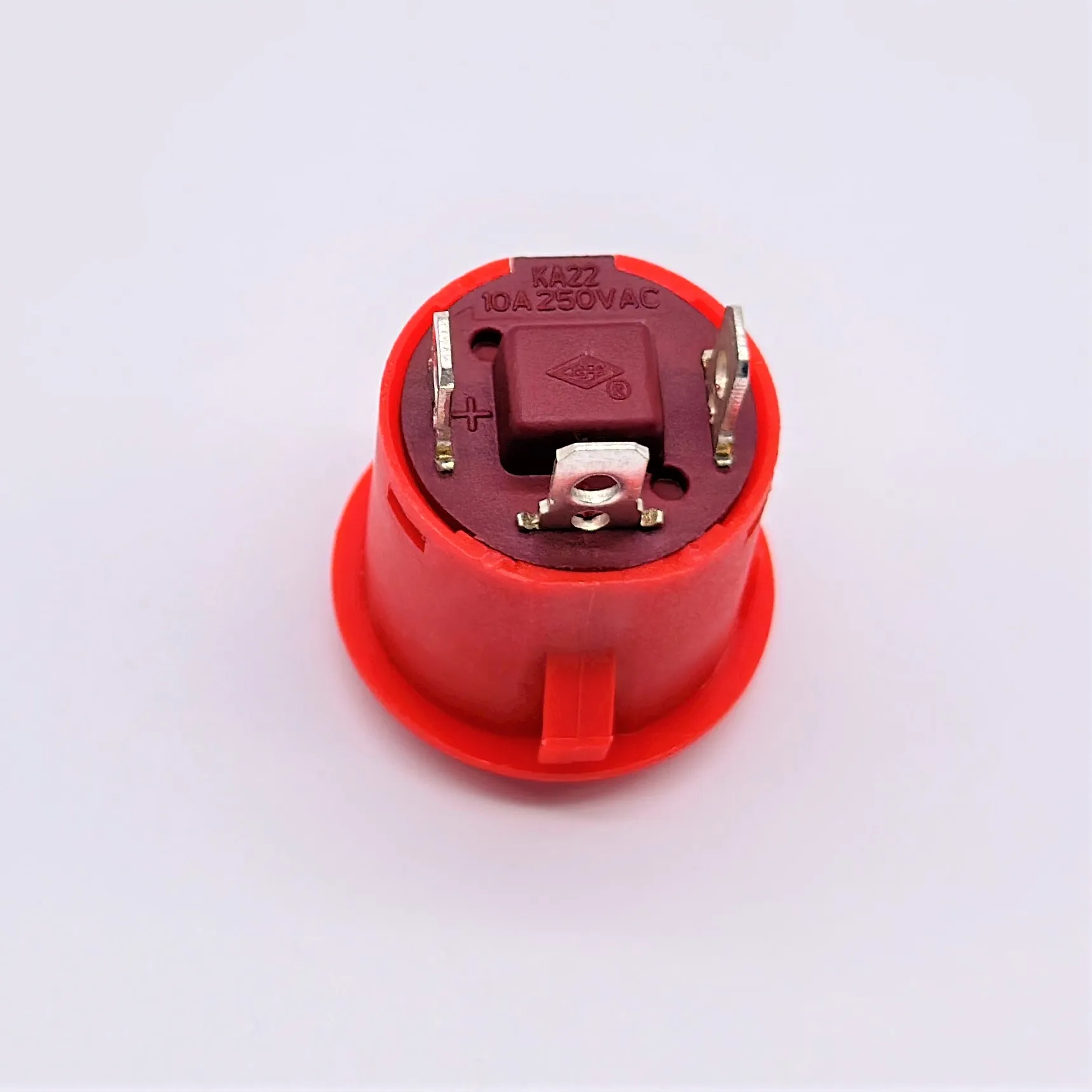

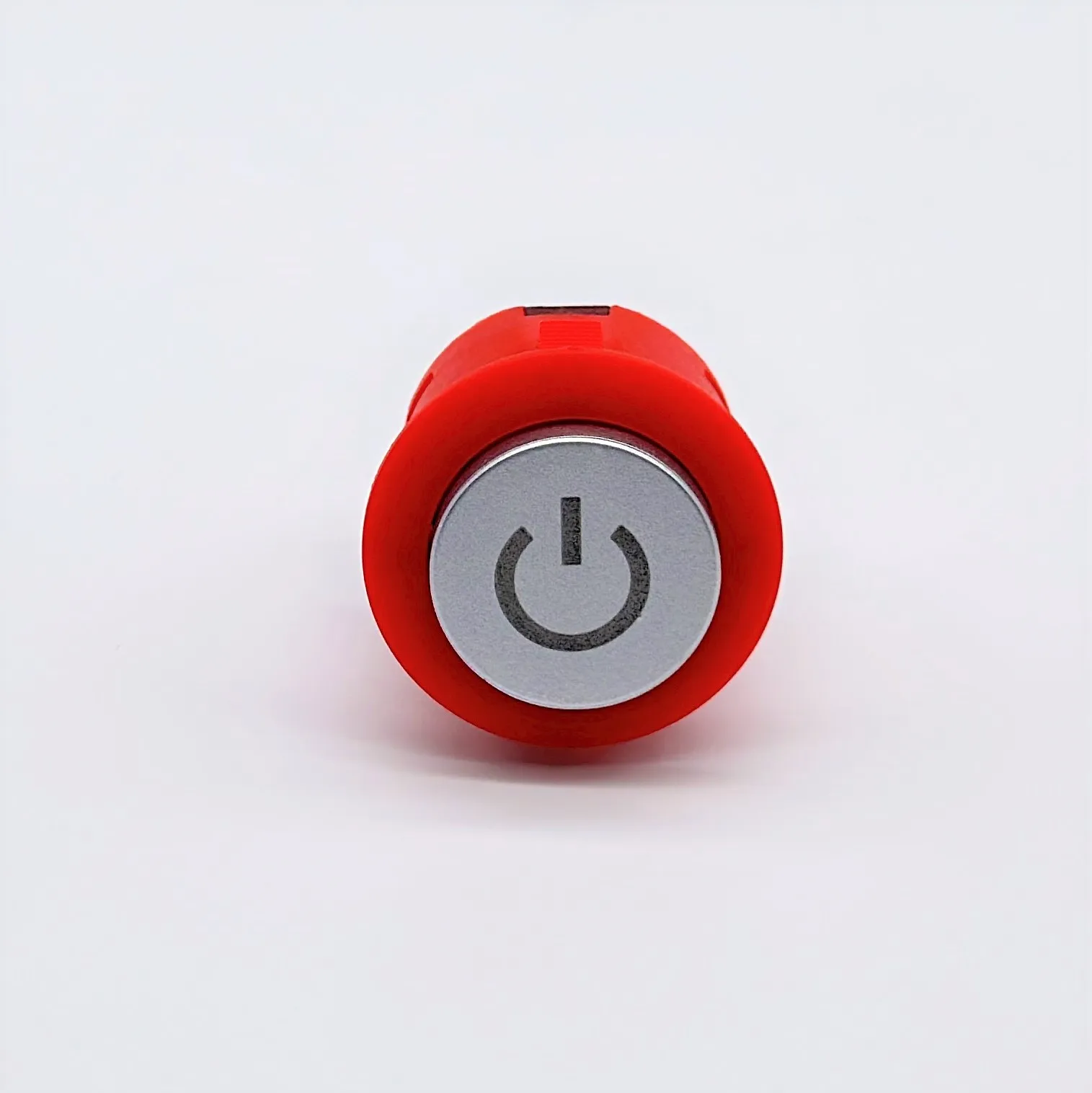

Why Choose Our 22mm 10A Latching Power Push Button Switch?
Our switch is designed for durability and reliability, with a mechanical life of 20,000 cycles and an electronic life of 10,000 cycles. The 12VAC blue LED indicator light provides clear visual feedback, enhancing user safety and convenience. As a factory-direct supplier, we offer competitive wholesale pricing without compromising on quality.
What Are the Key Features of Our Push Button Switch?
Key features include a 22mm size, 10A max current rating, 250V AC max voltage, and IP41 protection level. The switch also features a normally open circuit and pin terminal connections for easy installation. Our product is CE, CQC, and CB certified, ensuring compliance with international safety standards.
How Can Our Switch Benefit Your Business?
Our switch is ideal for industrial control, commercial equipment, automation systems, and panel mounting applications. Its high-quality construction and reliable performance make it a cost-effective solution for your business needs. As a factory-direct supplier, we offer flexible order quantities and fast shipping, ensuring you get the product you need when you need it.
