Description
Product Overview

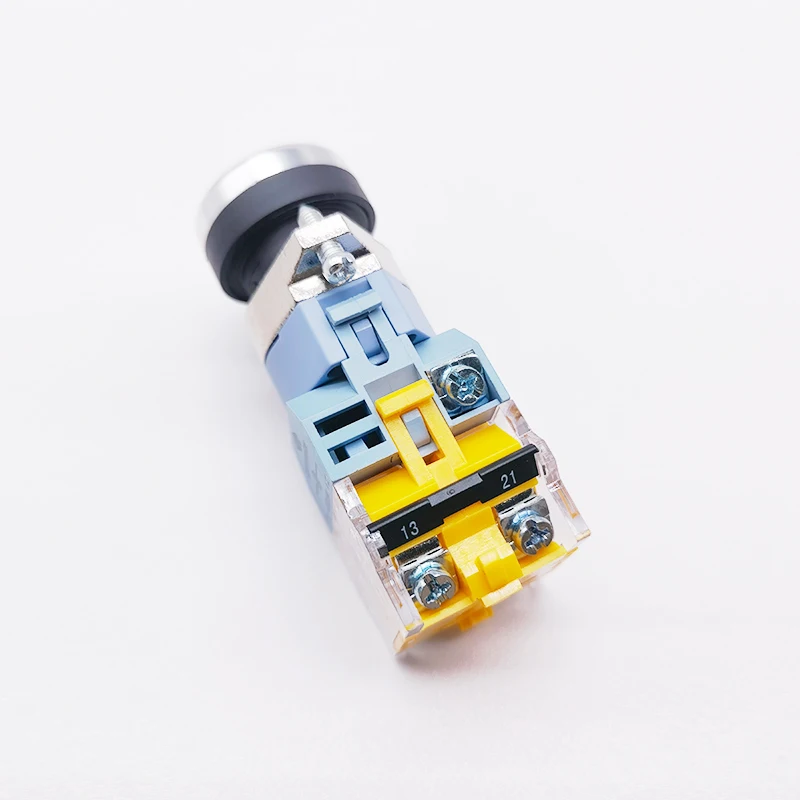

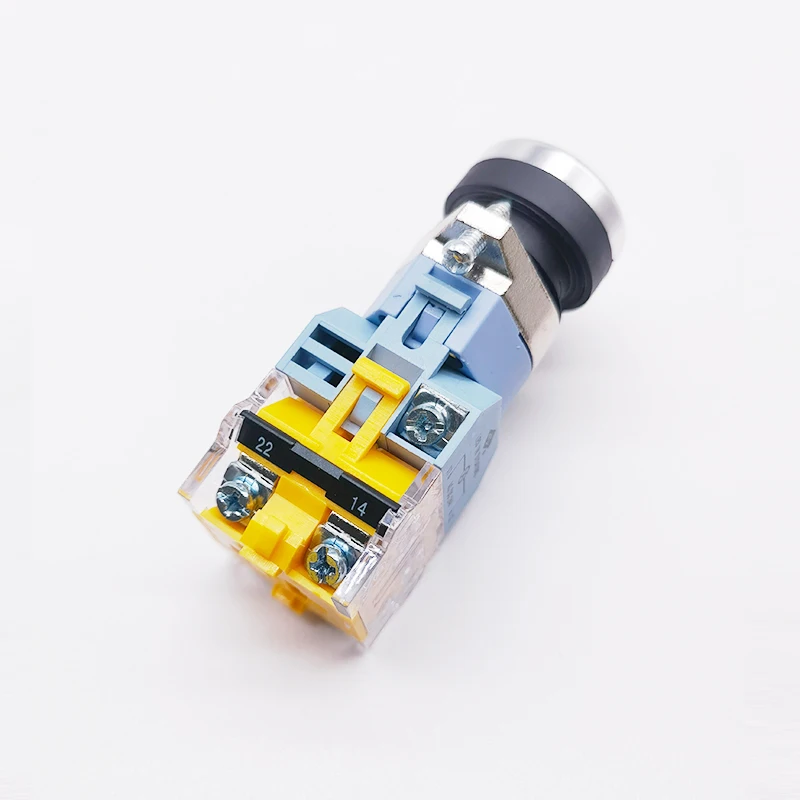

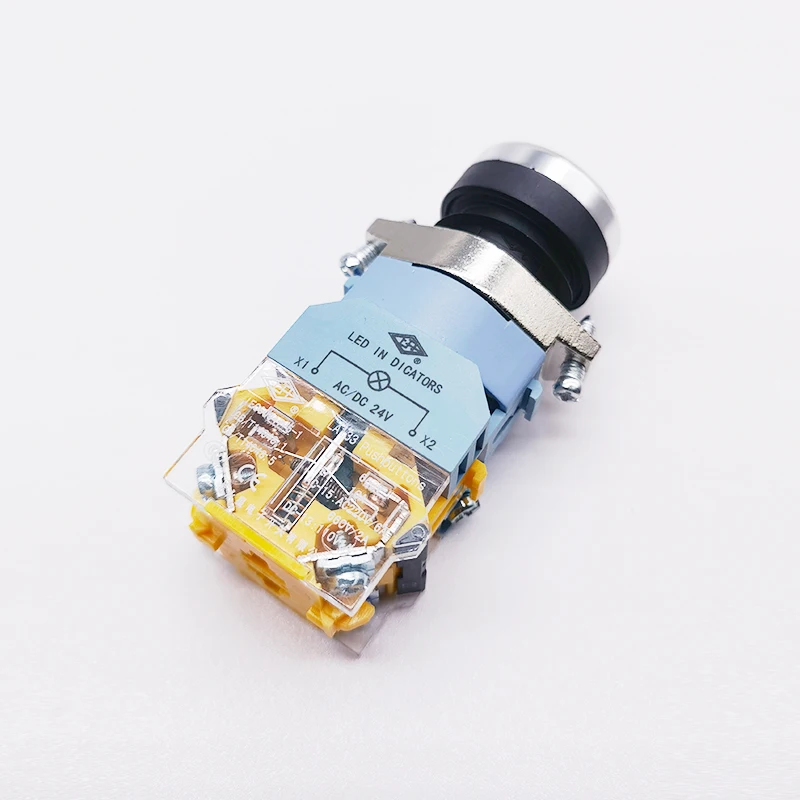

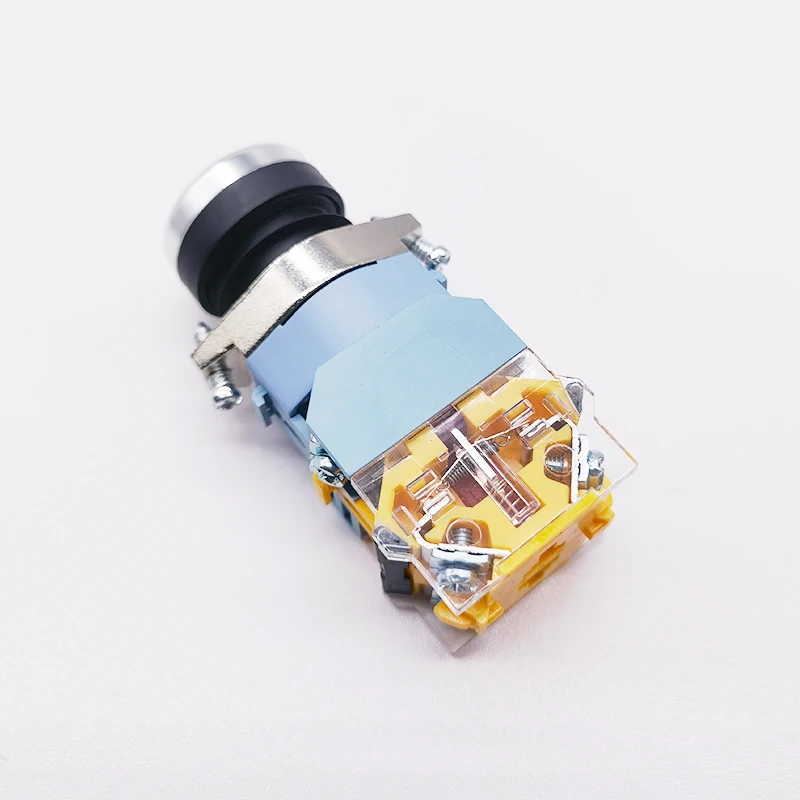

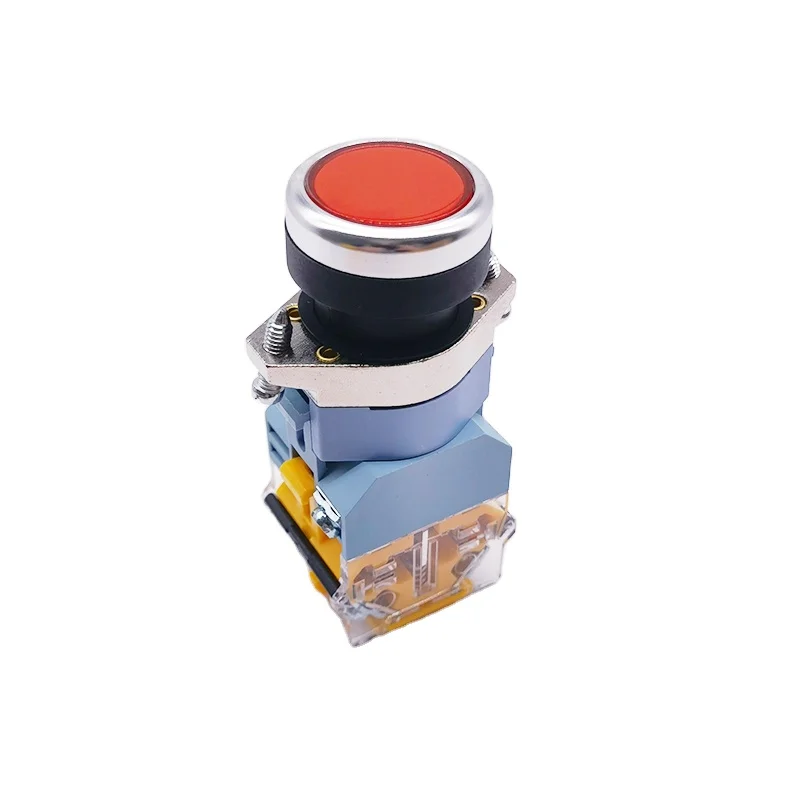

Introducing our premium 22mm 1NO1NC latching LED push button switch, a versatile and reliable solution for your electrical needs. As a factory direct supplier and wholesaler, we offer competitive pricing without compromising on quality. This illuminated push button switch is designed for both AC and DC applications, operating efficiently at 24V with a bright red LED indicator.
Key Features
- High Performance: Rated for a maximum current of 10A and a maximum voltage of 660VAC, ensuring durability and safety in demanding environments.
- Versatile Mounting: Features a 22mm diameter mounting hole size, making it compatible with a wide range of control panels and equipment.
- Long Mechanical Life: With a mechanical life of 1 million cycles and an electrical life of 600,000 cycles for AC-15 and 250,000 cycles for DC-13, this switch is built to last.
- Protection Levels: Offers IP40, IP65, and IP67 protection levels, providing excellent resistance against dust and water ingress.
- Adjustable Lamp Voltage: Supports lamp voltages ranging from 6V to 380V, including 24VAC, allowing for flexible installation options.
Differentiated Competitiveness
What sets our push button switch apart is its combination of high-quality construction, versatile specifications, and competitive pricing. As a factory supplier, we eliminate the middleman, passing on savings directly to our customers. Whether you’re looking for a single unit or bulk orders, we’ve got you covered.
After-Sales Service
We stand behind the quality of our products with a comprehensive after-sales service. Our dedicated support team is ready to assist with any questions or concerns you may have, ensuring a smooth and satisfying purchasing experience.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
|
Lamp Voltage
|
6v 12v 24v 36v 48v 110v 220v 380v
|
Why Choose Our 22mm 1NO1NC Latching LED Push Button Switch?
Our push button switch is designed to meet the demands of modern electrical applications. With its latching function and bright LED illumination, it provides clear visual feedback and reliable operation. The 22mm diameter mounting hole size makes it easy to integrate into existing control panels, while the high mechanical and electrical life ensures long-term reliability.
What Makes Our Product Stand Out?
As a factory supplier and wholesaler, we offer unbeatable pricing without sacrificing quality. Our switch supports a wide range of lamp voltages, making it suitable for various applications. Additionally, the IP40, IP65, and IP67 protection levels provide excellent resistance against environmental factors, ensuring reliable performance in harsh conditions.
How Can We Help You?
Whether you're looking for a single push button switch or need to stock up on bulk orders, we're here to help. Our dedicated support team is available to answer any questions you may have and provide personalized assistance. Choose us for high-quality products, competitive pricing, and exceptional customer service.
