Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Model Number
|
LA133-B1.XL2S-K11
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|

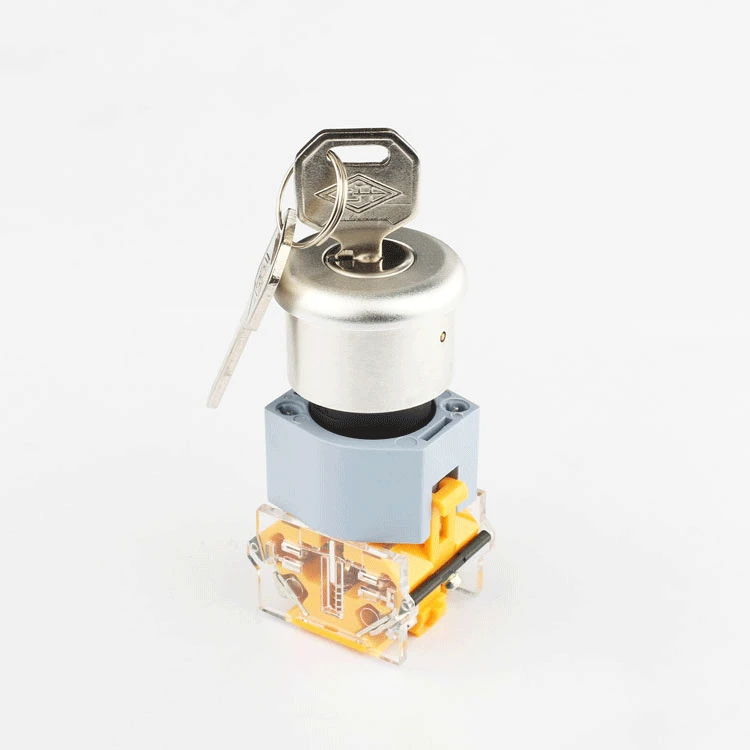

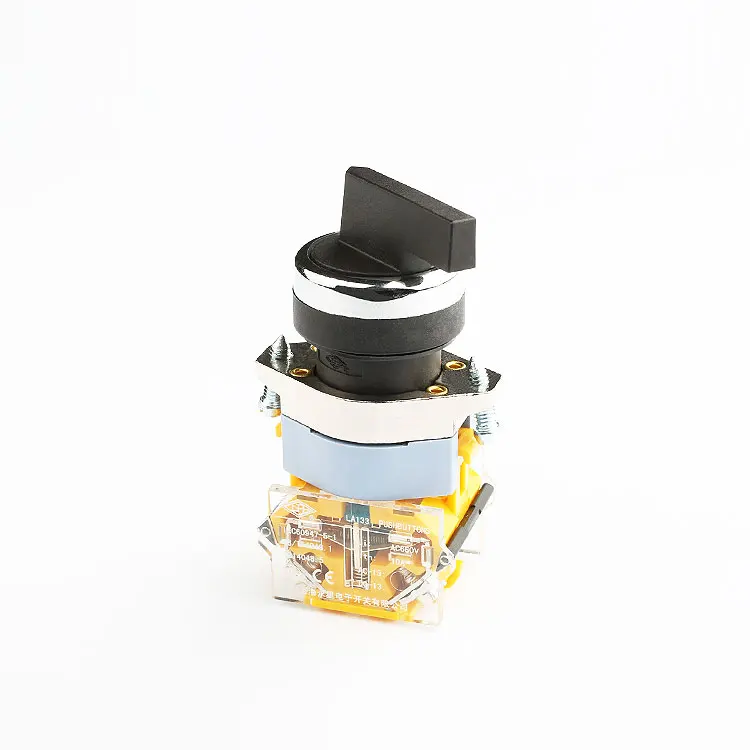

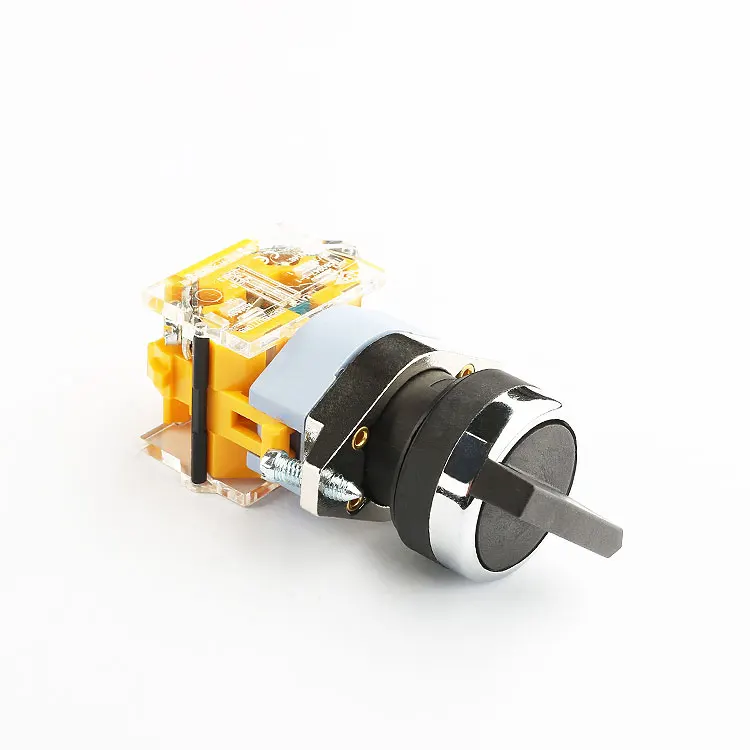

Why Choose Our Self Locking Rotary Switch?
Our Self Locking Rotary Switch stands out for its exceptional durability, reliability, and versatility. With a high mechanical and electrical life, it ensures long-lasting performance in demanding industrial and commercial environments. The self-locking feature provides added safety, preventing accidental operation. The 22mm mounting hole size and orange color make it easy to install and identify.
What Are the Key Specifications?
Our switch supports a maximum current of 10A and a maximum voltage of 660 VAC, with protection levels of IP40, IP65, or IP67. It has a mechanical life of 1,000,000 cycles and electrical lives of 600,000 cycles for AC-15 and 250,000 cycles for DC-13. The 22mm diameter mounting hole ensures compatibility with a wide range of applications.
Why Buy from Us as a Factory Supplier?
As a factory-direct supplier, we offer competitive wholesale pricing and excellent customer service. Our products are manufactured to the highest standards, ensuring quality and reliability. With fast shipping and reliable after-sales support, we make it easy for you to get the products you need when you need them. Choose us for unmatched value and service.
