Description

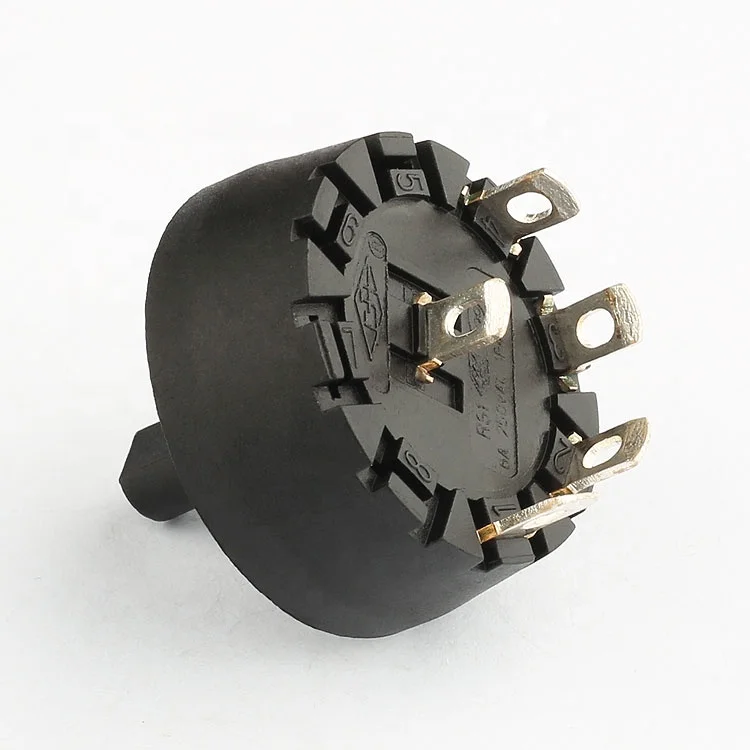

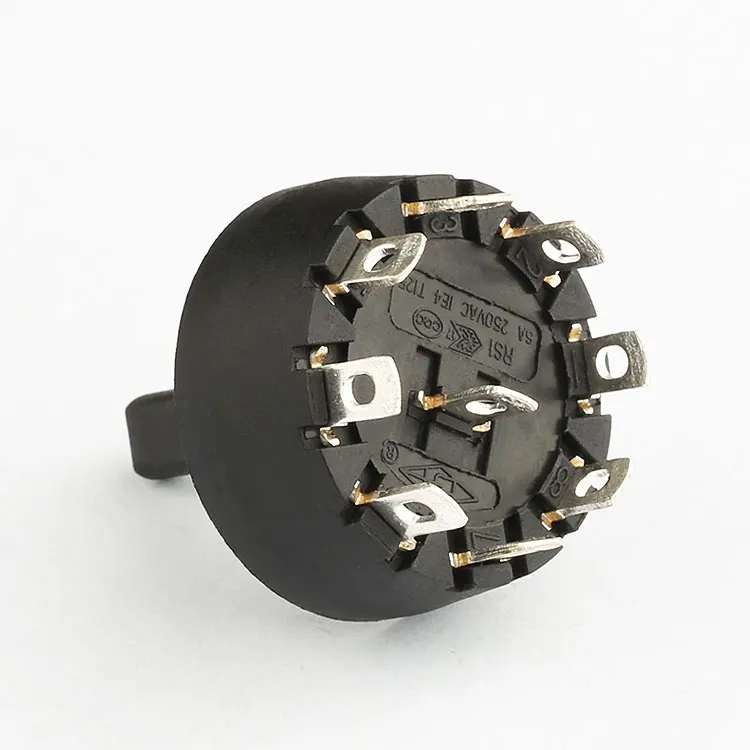

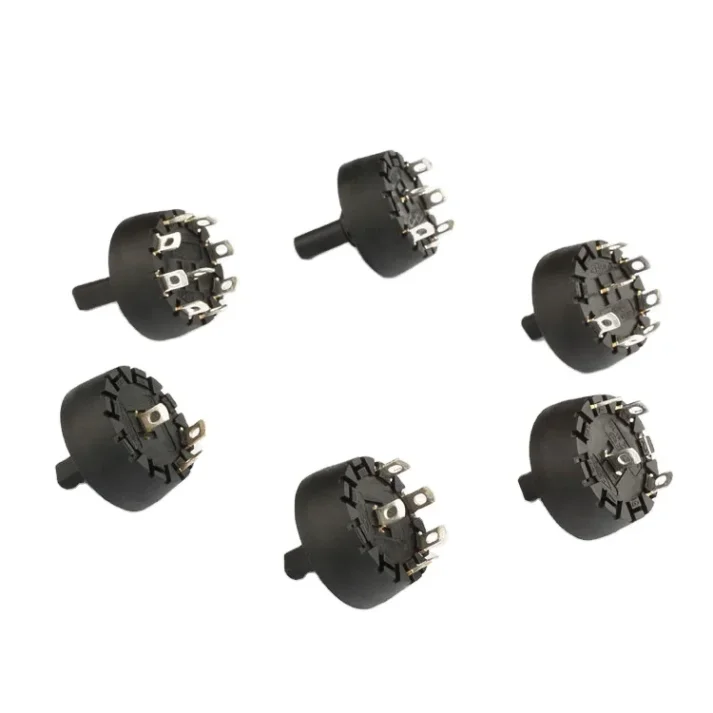

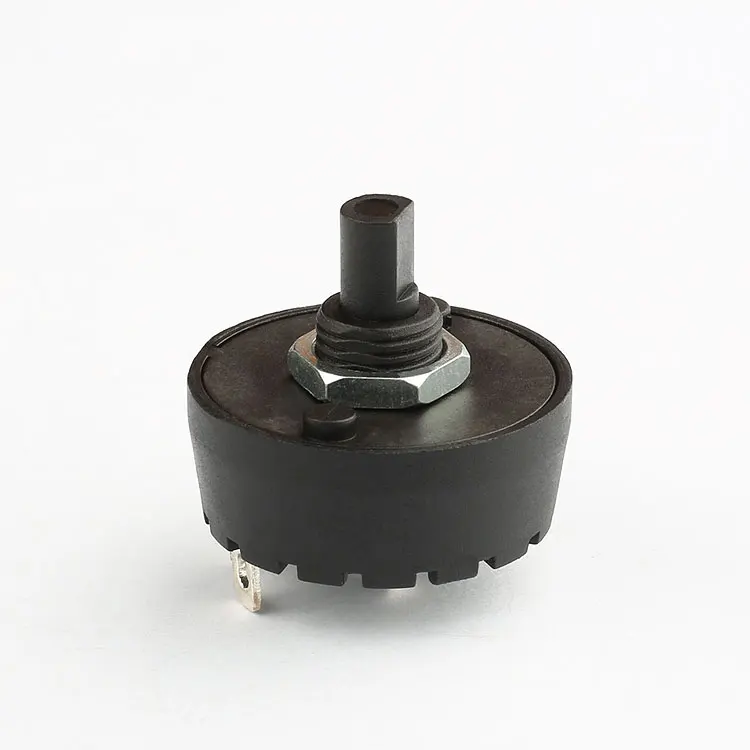

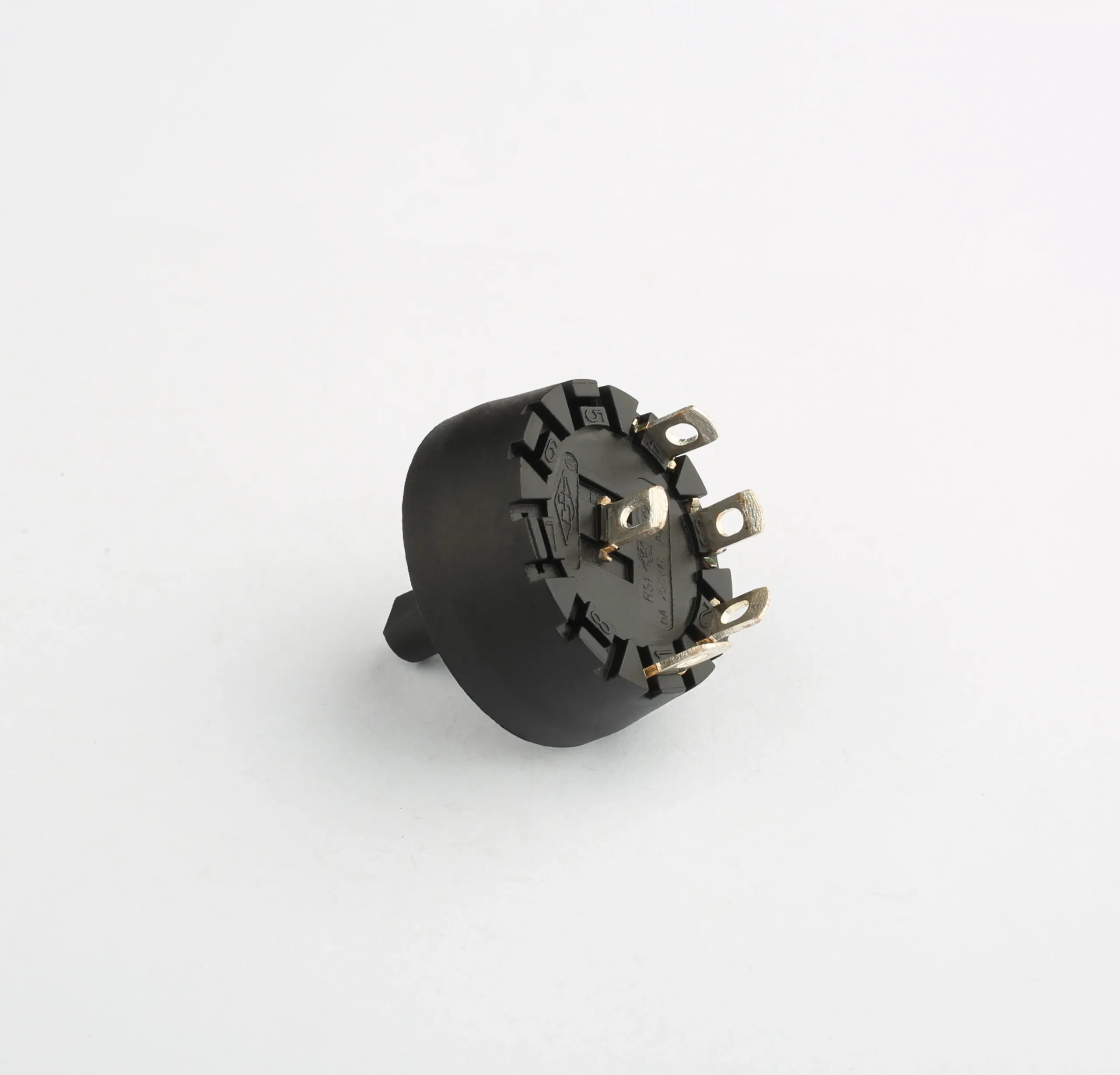

Our 22mm 220VAC 6A rotary switch, designed specifically for welding machines, is a high-quality, reliable component. Manufactured in Shanghai, China, by Yongxing, a trusted brand, this switch features a sleek black circular shell and a convenient rotary button. It boasts a maximum current of 6A and a maximum voltage of 250V, making it suitable for a wide range of applications. With a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, it offers durability and longevity. The switch has an insulation resistance of at least 100MΩ and a contact resistance of no more than 50mΩ, ensuring safe and efficient operation. It is also rated for an operating temperature of T125 and has a dielectric strength of 1500V AC. Certified by CQC and ENEC, this switch meets the highest quality standards. As a factory supplier, we offer wholesale pricing and excellent customer service, making it an ideal choice for bulk purchases.
|
Contact Resistance：
|
≤50mΩ
|
|
Insulation resistance：
|
≥100MΩ
|
|
Dielectric Resistance:
|
1500V AC
|
|
Operating temperature：
|
T125
|
|
Cetification
|
CQC ENEC
|
Product Overview
Our 22mm 220VAC 6A rotary switch is a high-quality component designed for welding machines, offering reliable performance and durability.
Key Features
With a maximum current of 6A and a maximum voltage of 250V, this switch is suitable for a wide range of applications. It features high insulation resistance, low contact resistance, and a long mechanical and electrical life.
Why Choose Us?
As a factory supplier, we offer wholesale pricing and excellent customer service. Our products are certified by CQC and ENEC, ensuring the highest quality standards. Choose us for reliable, high-performance rotary switches.
