Description

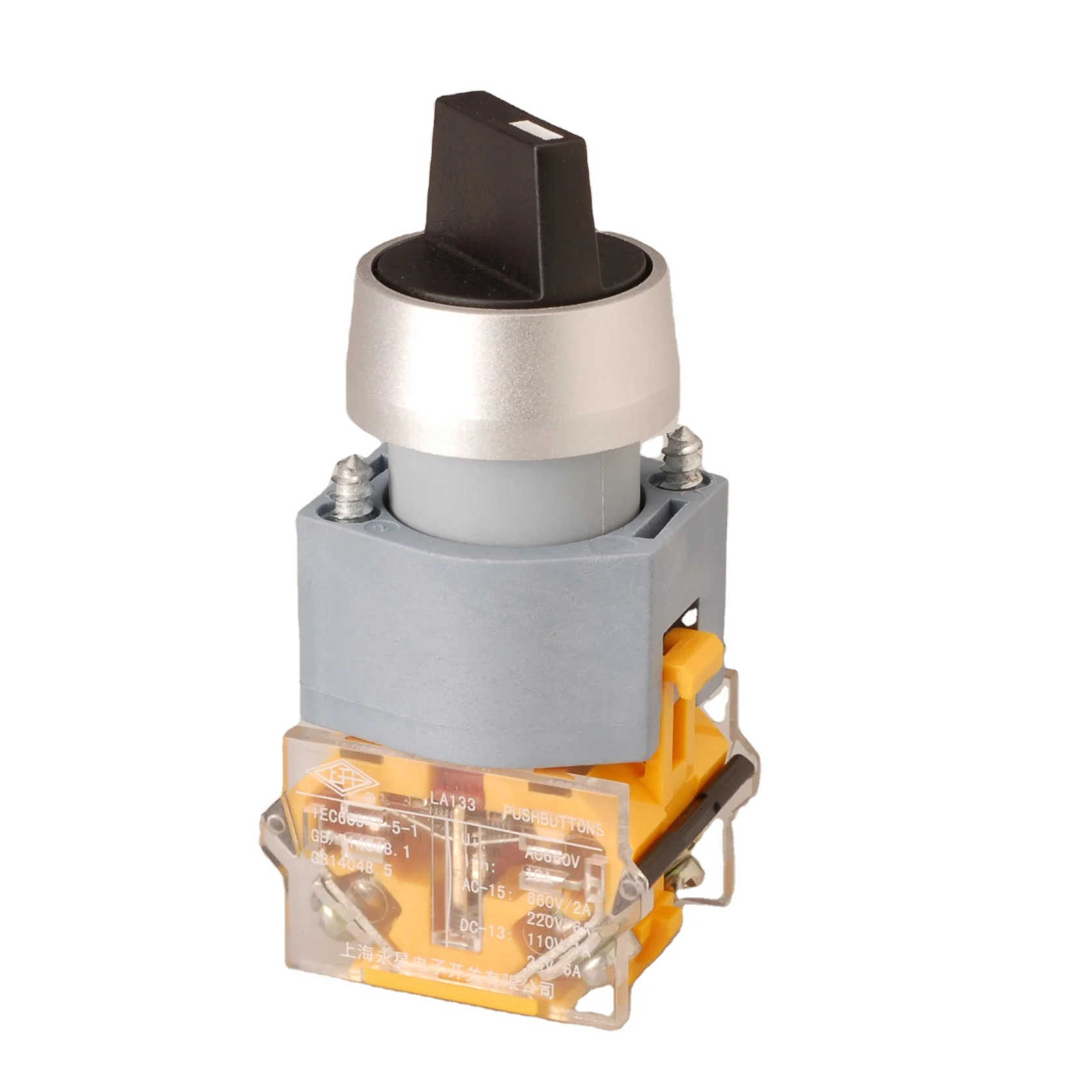

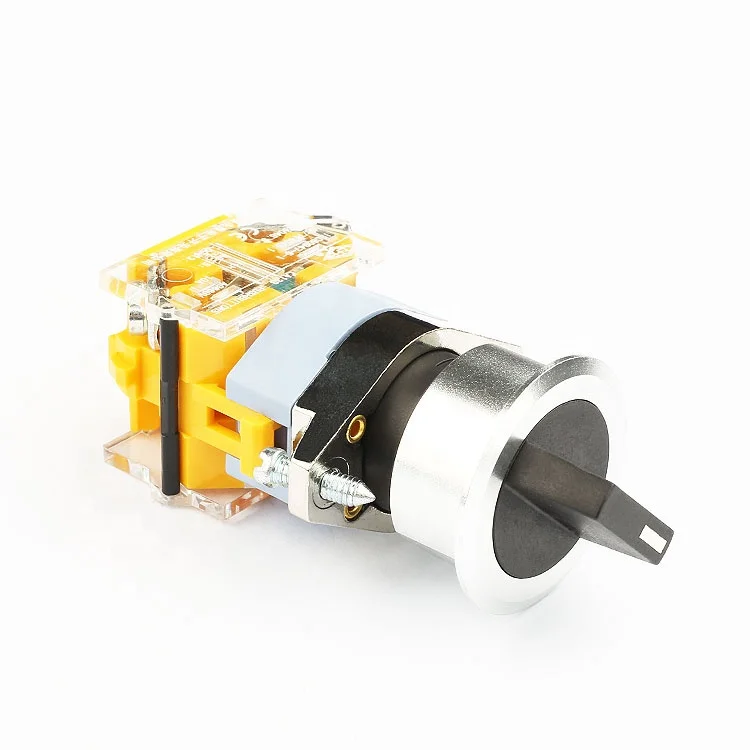

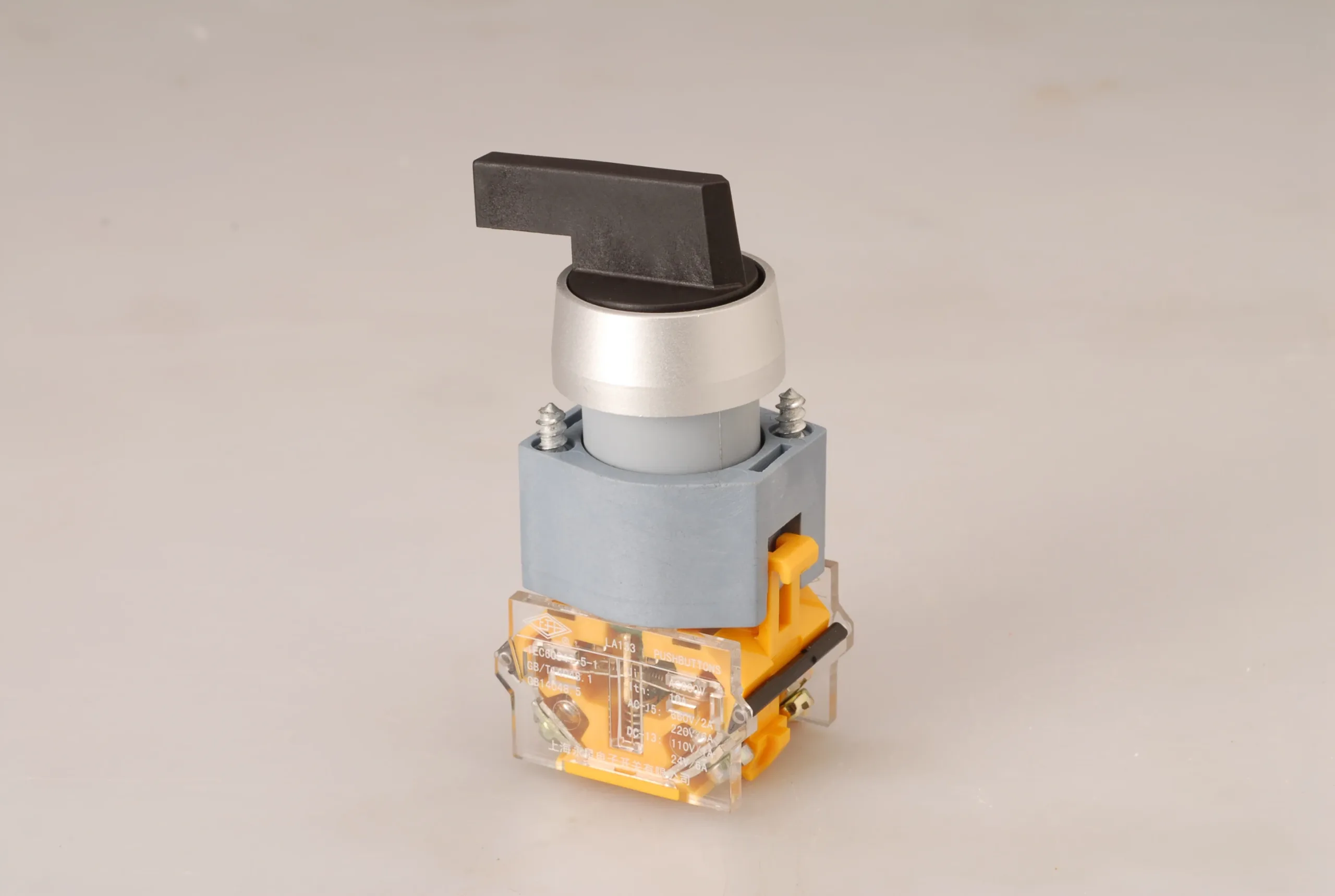

22mm Colored 660V Waterproof Push Button Switch – Direct from Factory
Introducing our premium 22mm colored 660V waterproof push button switch, a versatile and durable solution designed to meet the demands of industrial applications. As a leading factory and supplier, we offer wholesale pricing and exceptional quality.
Product Specifications:
- Max. Current: 10A
- Max. Voltage: 660V AC
- Size: 22mm
- Cap Colors: Red, Green, Yellow, Black
- Pushbutton Head: Long Lever
- Mechanical Life: Push Button: 1,000,000 / Keylock: 300,000
- Operating Temperature: -25℃~+55℃
- IP Code: IP40, IP65, IP67
- Degree of Pollution: Level 3
Product Advantages:
Our push button switch stands out with its high insulation voltage (AC660V), robust construction, and long mechanical life. It is suitable for use in harsh environments, thanks to its waterproof and dustproof design. The long lever pushbutton head and multiple cap color options provide flexibility in application and customization.
After-Sales Service:
We are committed to providing excellent after-sales service. If you have any questions or need technical support, our online customer service team is available 24/7 to assist you.
Why Choose Us?
As a factory and supplier, we offer competitive wholesale pricing without compromising on quality. Our products are rigorously tested to ensure they meet international standards. Choose us for reliable, durable, and cost-effective solutions.
| Operating temperature | -25°c~+55°c |
| Installation group | III Class |
| Degree of pollution | Level 3 |
| Installation height | ≤2000m |
| Vibration | 10~200HZ.1mm.15g |
| Relative humidity | ≤98% |
| Protection degree | IP40 or IP65 or IP67 |
| Rated Insulation Voltage | AC660V |
| Rated Thermal current | 10A |
| Max insulation voltage | 2500V/min |
| Usage Category | AC-15 DC-13 |
| Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator | 1 million |
| Rotary switch,Key switches&Maintained action actuator | 0.3 million |
Product Functions
Our 22mm 660V waterproof push button switch is designed for reliable operation in industrial settings. It features a waterproof and dustproof design, making it suitable for use in harsh environments. The long lever pushbutton head and multiple cap color options provide flexibility in application and customization.
Product Advantages
Compared to similar products on the market, our push button switch stands out with its high insulation voltage (AC660V), robust construction, and long mechanical life. It offers exceptional durability and reliability, ensuring consistent performance over time.
Why Choose Our Product?
Choose our 22mm 660V waterproof push button switch for its superior quality, competitive pricing, and excellent after-sales service. As a factory and supplier, we are committed to providing reliable, durable, and cost-effective solutions that meet your industrial needs.
