Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Model Number
|
LA133-E1.TS-K20 S
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
|
Lamp Voltage
|
6v 12v 24v 36v 48v 110v 220v 380v
|

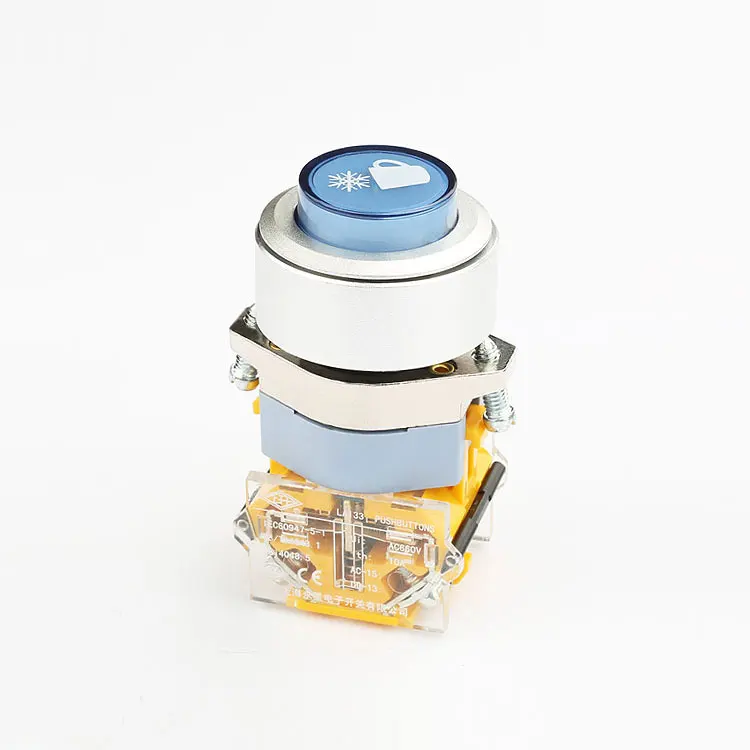

Why Choose Our 22mm Blue Self-Locking Push Button Switch?
Our 22mm Blue Self-Locking Push Button Switch is designed for industrial control applications, offering a normally closed design with 2NO contacts for reliable operation. With a maximum current of 10A and a maximum voltage of 660VAC, it can handle demanding industrial environments. The switch's IP40, IP65, and IP67 protection levels ensure durability and resistance to dust and water, making it ideal for various industrial settings.
What Are the Key Features of Our Push Button Switch?
Our switch boasts a mechanical life of 1,000,000 cycles and an electrical life of 600,000 cycles for AC-15 and 250,000 cycles for DC-13, ensuring long-lasting performance. The 22mm diameter mounting hole size and various lamp voltage options make it versatile and easy to install. As a factory direct supplier, we offer competitive pricing without compromising on quality.
How Does Our Switch Stand Out from Competitors?
Our 22mm Blue Self-Locking Push Button Switch stands out with its superior quality, competitive pricing, and reliable after-sales service. As a factory direct supplier, we eliminate the middleman, passing on the savings to our customers. Choose our switch for a cost-effective, high-performance solution for your industrial control needs.
