Description
|
Certification
|
CQC
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
SK(ShangKai)
|
|
Model Number
|
LA133-A1.TDS-K11-W
|
|
Protection Level
|
IP65
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660V AC
|
|
LED
|
Other
|
|
Name
|

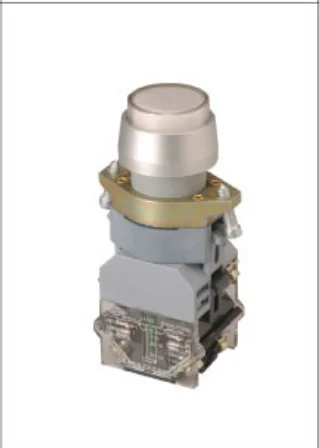

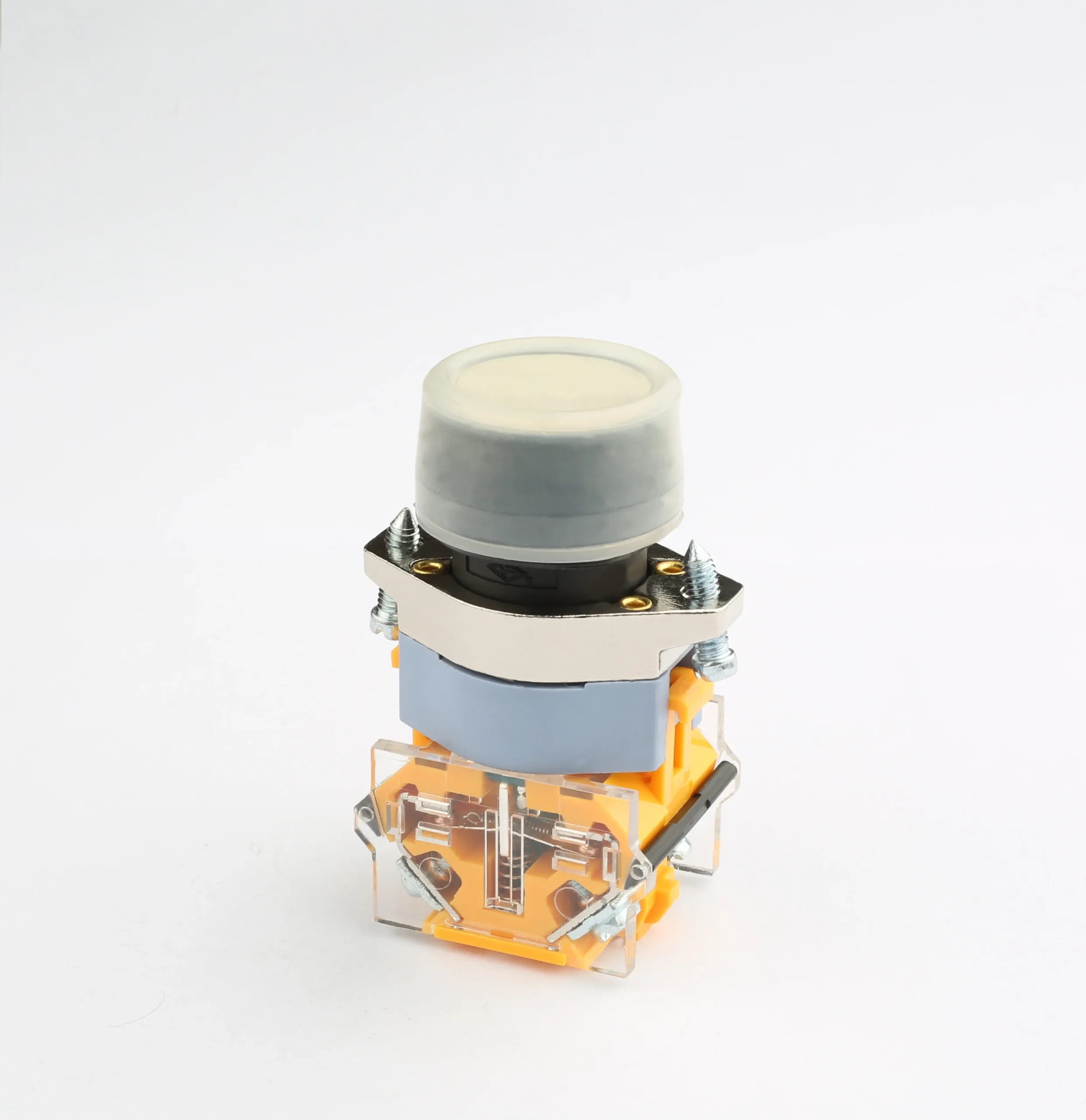

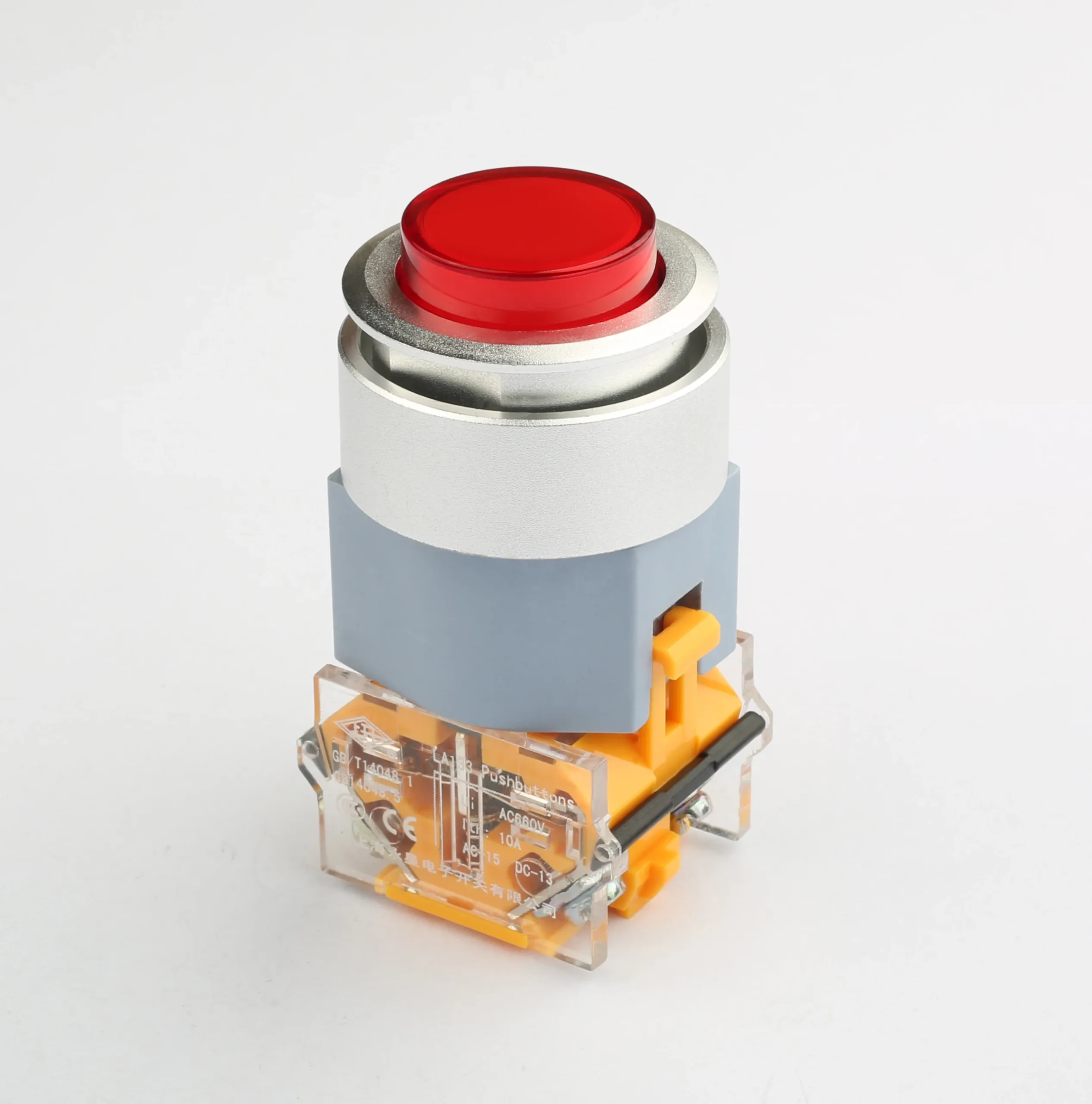

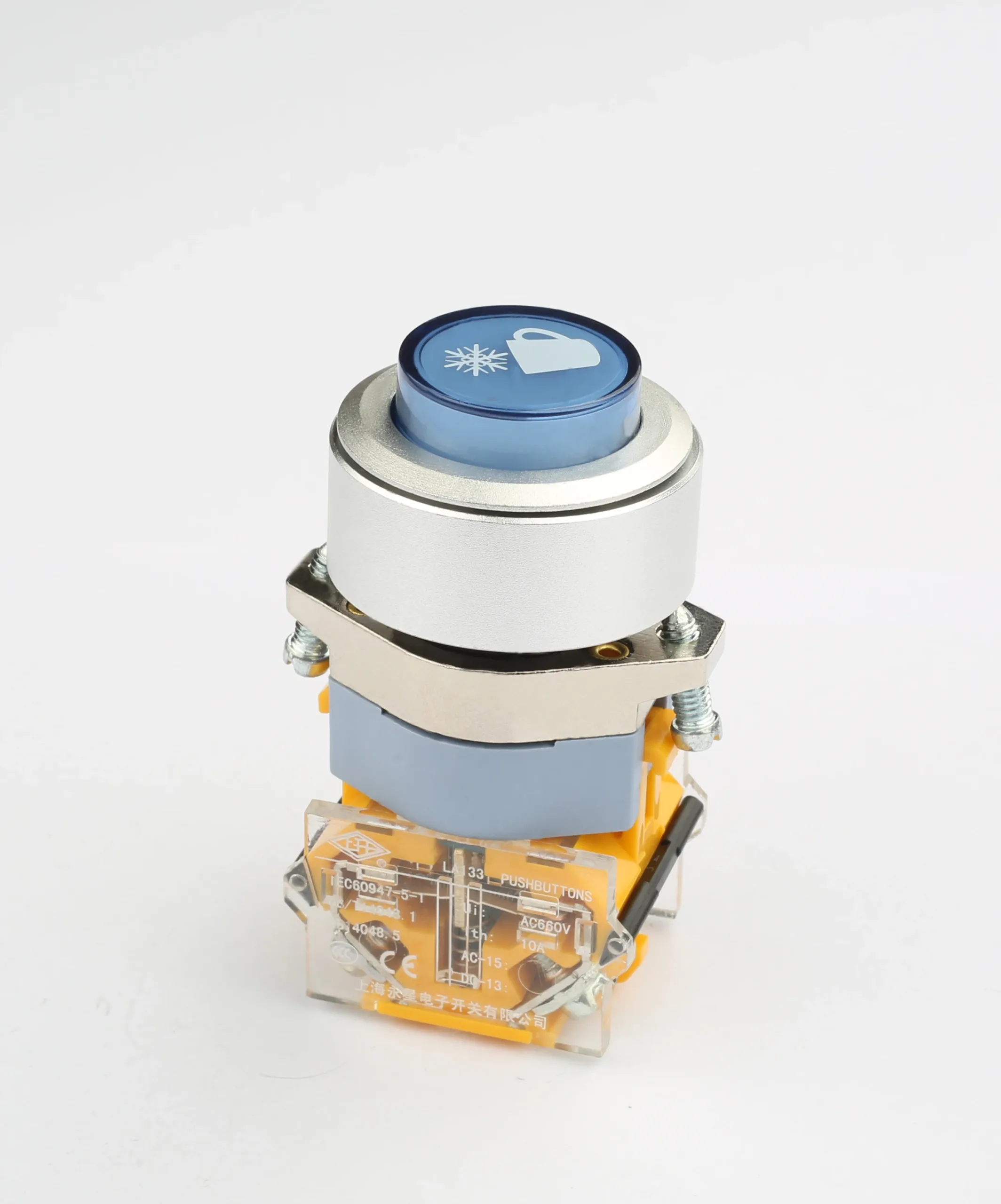

Self Locking Waterproof Touch Anti Vandal Push Button Switch
|
|
Cap colors
|
red, green, yellow, black
|
|
Pushbutton Head
|
Round Head
|
|
Mechanical life
|
300000cycles
|
|
Electronic life
|
600000cycles
|
|
Operating temperature
|
-25℃~+55℃
|
|
Function
|
Self locking
|
Why Choose Our 22mm High Voltage Push Button Switch with LED?
Our switch is engineered to withstand high voltages up to 660V AC, making it perfect for industrial applications. With an IP65 protection level, it ensures reliability even in challenging environments. The self-locking mechanism and LED indicator light enhance user experience, providing clear visual feedback.
What Are the Key Features of Our Product?
Our switch features a round head design, multiple cap colors, and a long mechanical life of 300,000 cycles. It also offers an electronic life of 600,000 cycles, ensuring long-lasting performance. As a factory supplier, we provide wholesale pricing and excellent after-sales service.
What Are the Applications of Our Push Button Switch?
Our switch is ideal for industrial control, machine operation, and safety systems. Its high voltage tolerance and durable design make it a reliable choice for various applications.
