Description

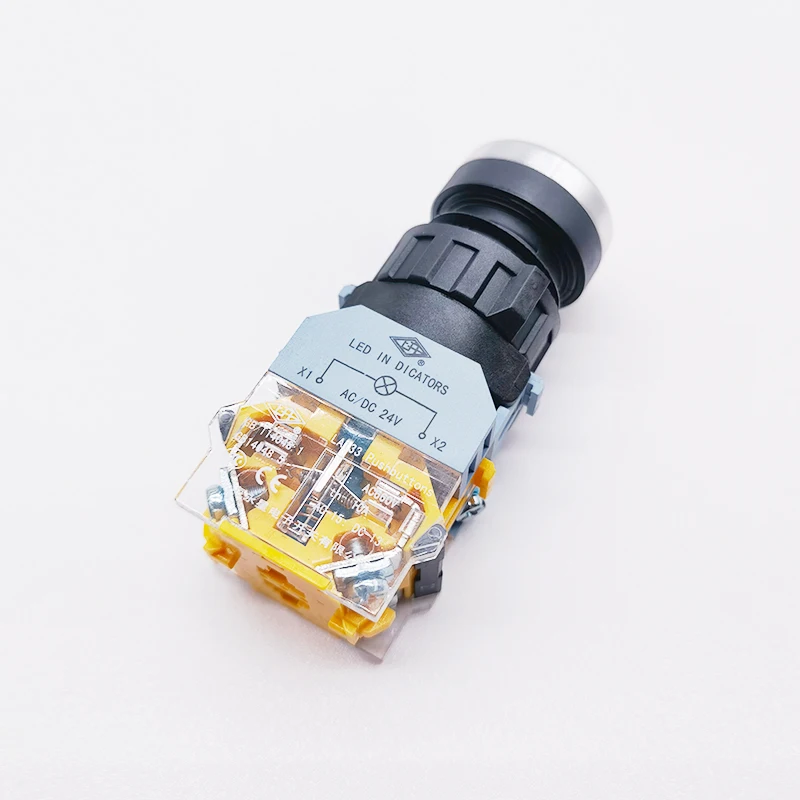

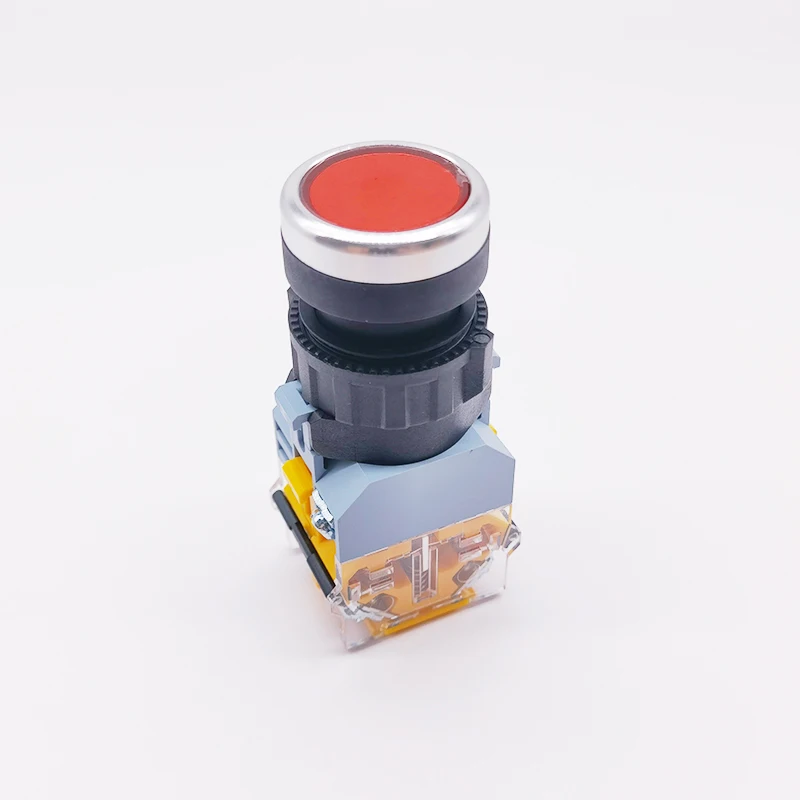

Introducing our premium 22mm Illuminated Push Button Switch, a high-quality product from a trusted factory supplier. This switch is designed with a momentary action, rated at 10A and 660VAC, making it suitable for a wide range of applications. It features a bright red light indicator, ensuring visibility even in low-light conditions. Our switch is built to last, with a mechanical life of 1 million cycles and electrical life ratings of 600,000 cycles for AC-15 and 250,000 cycles for DC-13. It supports various lamp voltages, including 6V, 12V, 24V, 36V, 48V, 110V, 220V, and 380V, offering flexibility in installation. With protection levels of IP40, IP65, and IP67, it is suitable for use in various environments. As a factory supplier, we offer wholesale pricing and excellent customer service. Choose our Illuminated Push Button Switch for reliability, durability, and value.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
|
Lamp Voltage
|
6v 12v 24v 36v 48v 110v 220v 380v
|
Key Features
Our 22mm Illuminated Push Button Switch stands out with its momentary action, high current and voltage ratings, and bright LED indicator. It offers multi-voltage support, making it versatile for various applications.
Durable and Reliable
Built to last, this switch has a mechanical life of 1 million cycles and electrical life ratings that ensure long-term reliability. Its high protection levels (IP40, IP65, IP67) make it suitable for use in harsh environments.
Wholesale Pricing and Support
As a factory supplier, we offer competitive wholesale pricing and excellent customer service. Choose our switch for quality, durability, and value.
