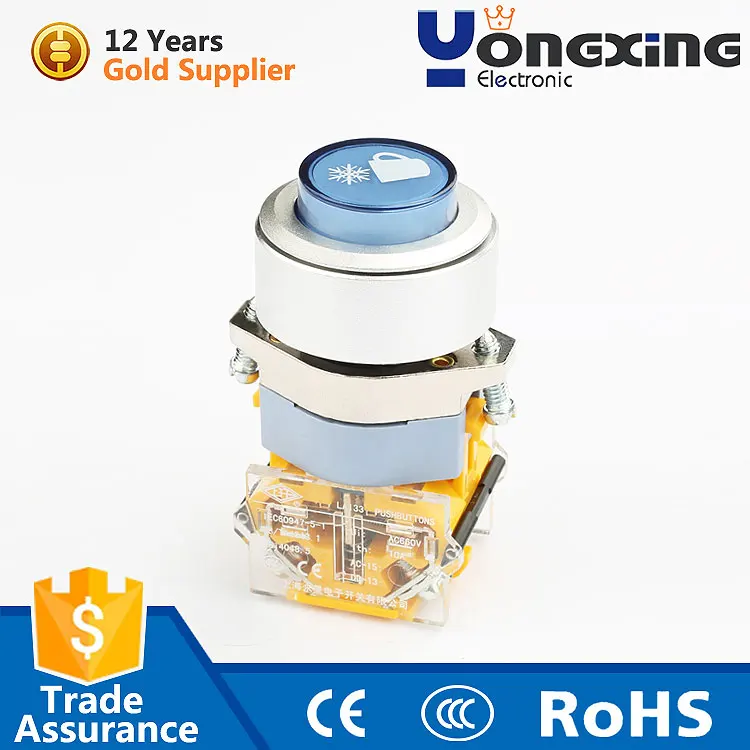

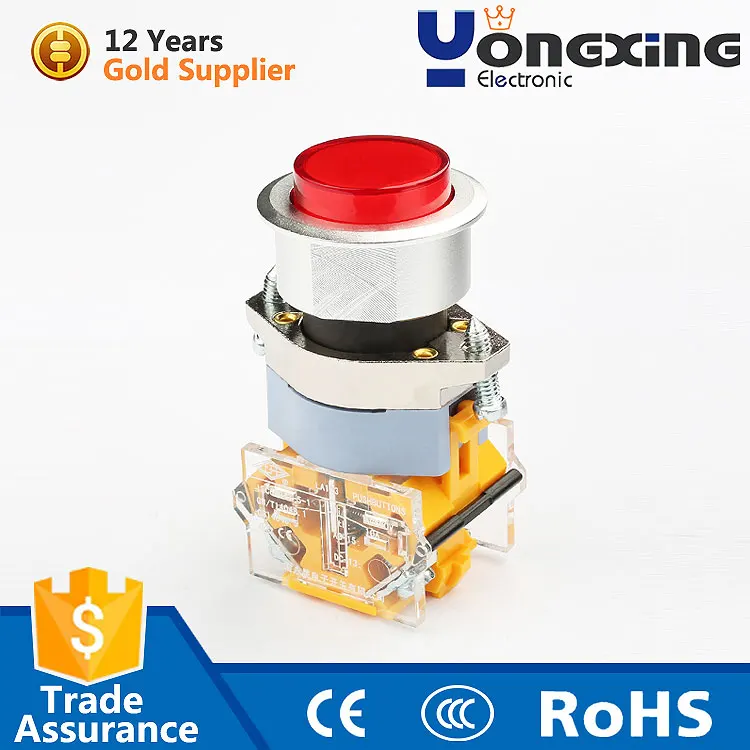

22mm Illuminated Push Button Switch – Your Reliable Wholesale Supplier
Our 22mm illuminated push button switch, manufactured directly by our factory, is a top-notch choice for both industrial and commercial applications. This maintained action actuator switch, available with a raised lens, is designed to enhance visibility and ease of use in various environments.
Key Specifications:
- Operating Temperature: -25°C to +55°C
- Rated Voltage: AC660V
- Rated Thermal Current: 10A
- Protection Degree: IP40, IP65, IP67
- Mechanical Life: Push button: 1,000,000 cycles; Keylock: 300,000 cycles
- Cap Colors: Red, Green, Yellow, Black
- Pushbutton Head: Long lever
- Certifications: CQC, CE
Product Advantages:
1. High Visibility: The illuminated design ensures easy identification even in low-light conditions.
2. Durable Construction: Built to withstand harsh environments with a protection degree up to IP67.
3. Long Lifespan: High mechanical and electronic life cycles reduce maintenance costs.
4. Versatile Use: Suitable for a wide range of applications, from machinery control to safety systems.
Why Choose Us?
As a direct factory supplier and wholesaler, we offer competitive prices, high-quality products, and excellent customer service. Our push button switches are trusted by customers worldwide for their reliability and performance.
After-Sales Service:
We provide comprehensive after-sales support, including technical assistance and warranty services. Contact our online customer service for more information or to place an order.
| Operating temperature | -25°c~+55°c |
| Installation group | III Class |
| Degree of pollution | Level 3 |
| Installation height | ≤2000m |
| Vibration | 10~200HZ.1mm.15g |
| Relative humidity | ≤98% |
| Protection degree | IP40 or IP65 or IP67 |
| Rated Insulation Voltage | AC660V |
| Rated Thermal current | 10A |
| Max insulation voltage | 2500V/min |
| Usage Category | AC-15 DC-13 |
| Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator | 1 million |
| Rotary switch,Key switches&Maintained action actuator | 0.3 million |
Why Choose Our 22mm Illuminated Push Button Switch?
Our 22mm illuminated push button switch stands out for its high visibility, durability, and long lifespan. The illuminated design ensures easy identification in low-light conditions, making it ideal for safety-critical applications. The durable construction and high protection degree (up to IP67) allow it to withstand harsh environments, reducing maintenance costs and downtime.
What Are the Key Specifications?
The switch operates at a rated voltage of AC660V and a rated thermal current of 10A. It features a protection degree of IP40, IP65, or IP67, depending on your needs. The mechanical life is up to 1,000,000 cycles for the push button and 300,000 cycles for the keylock, ensuring reliable performance over time.
How Can It Benefit Your Business?
As a direct factory supplier and wholesaler, we offer competitive prices and excellent customer service. Our push button switches are trusted by customers worldwide for their reliability and performance. By choosing our products, you can reduce costs, improve efficiency, and enhance the safety of your operations.
