Description

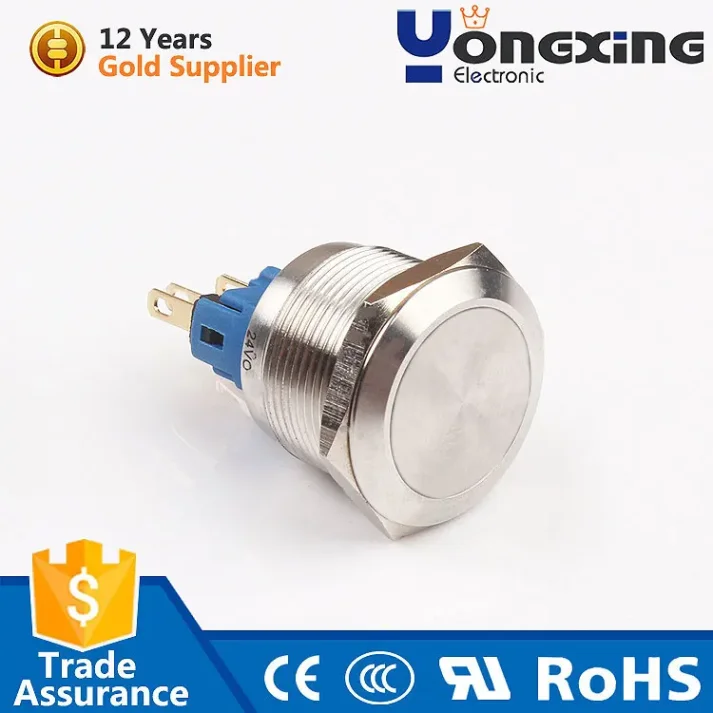

multi-function 22mm 10a momentary lift button elevator 4 pin metal push button switch |
| Panel Thickness | 1-10mm |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ 4 pin push button switch |
| Torque | 5-14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8mm |
| Mounting Hole Size | 22mm |
| Dielectric Strength | 2000VAC |
| Electronic Life | >1,000,000 times |
| Mechanical Life | >200,000 times |
| Operating temperature | -20°c~+55°c |
| IP code | IP67 IK09 |
| Switch Rating | 2A /36VAC emergency push button switch |
| Contact Configuration | 1NO |
| Operating Type | Momentary elevator push button switch |
| The Front Shape | High Round |
| The Crust Material | Stainless Stell,Nickel-plated Brass or Gold-Plated Brass |
|
Material |
Contact : Sliver Alloy (Can be made to order) |
Why Choose Our 22mm IP67 Waterproof Metal Push Button Switch?
Our switch stands out for its durability, reliability, and versatility. With a stainless steel, nickel-plated brass, or gold-plated brass crust, it's built to last and resistant to corrosion. The momentary operating type and high round front shape make it easy to use and visually appealing. Plus, it's waterproof and dustproof, making it ideal for harsh environments.
What Are the Key Features of Our Switch?
Our switch features a max current of 5A and max voltage of 250V, suitable for a wide range of applications. It also boasts a mechanical life of over 1,000,000 times and an electrical life of over 200,000 times, ensuring reliable performance over time. Additionally, it's equipped with a silver alloy contact for excellent conductivity.
Can We Customize the Switch to Meet Our Needs?
Yes, we offer customization options to meet your specific needs. Whether it's a different material, size, or configuration, we can work with you to create the perfect switch for your application. Choose us, your trusted supplier, for quality, affordability, and excellent customer service.
