Description
|
contact resistance
|
≤50MΩ
|
operating temperature
|
-25℃ to +85℃
|
|
dielectric strength
|
1500V
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
IP code
|
IP40
|
High-Quality Material and Design

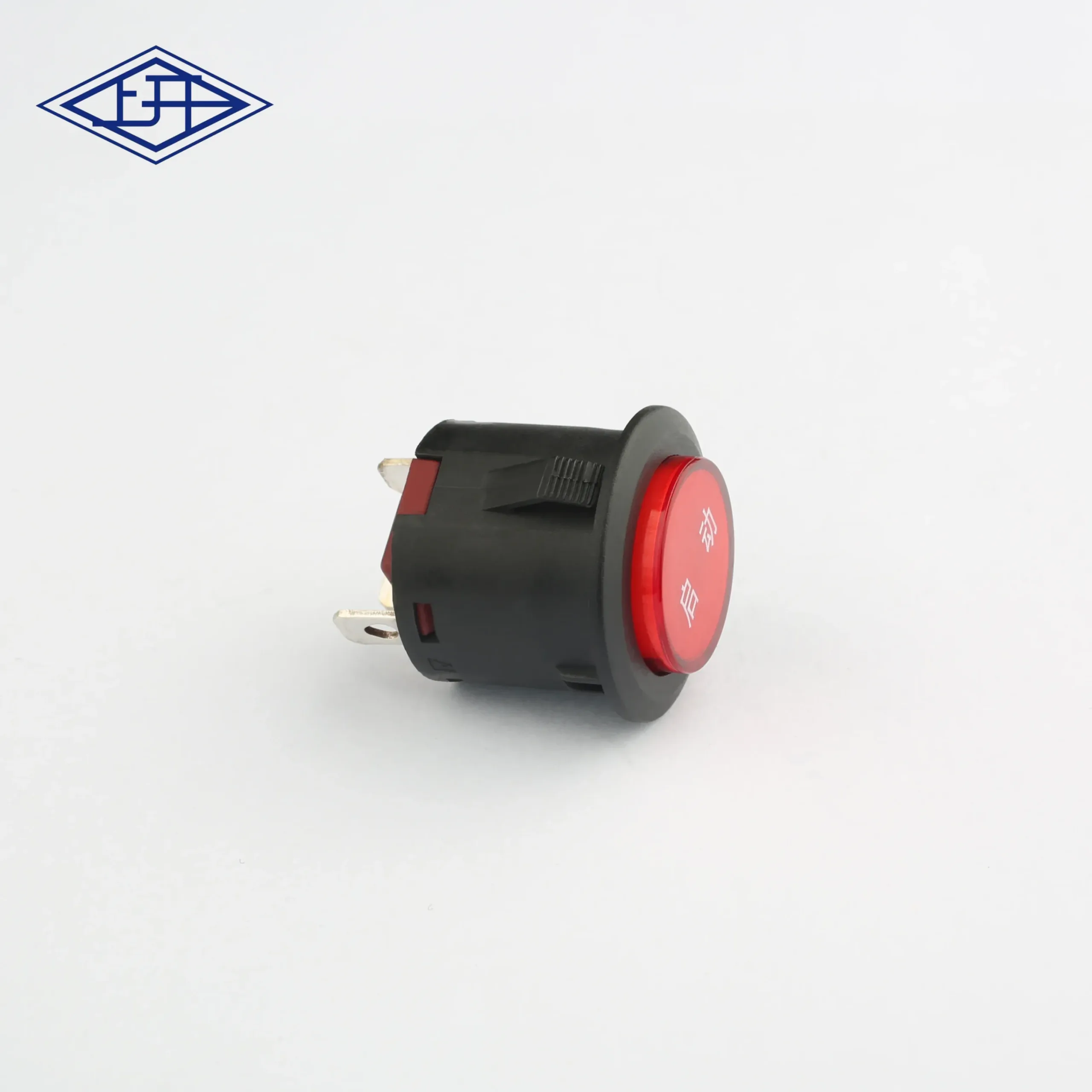

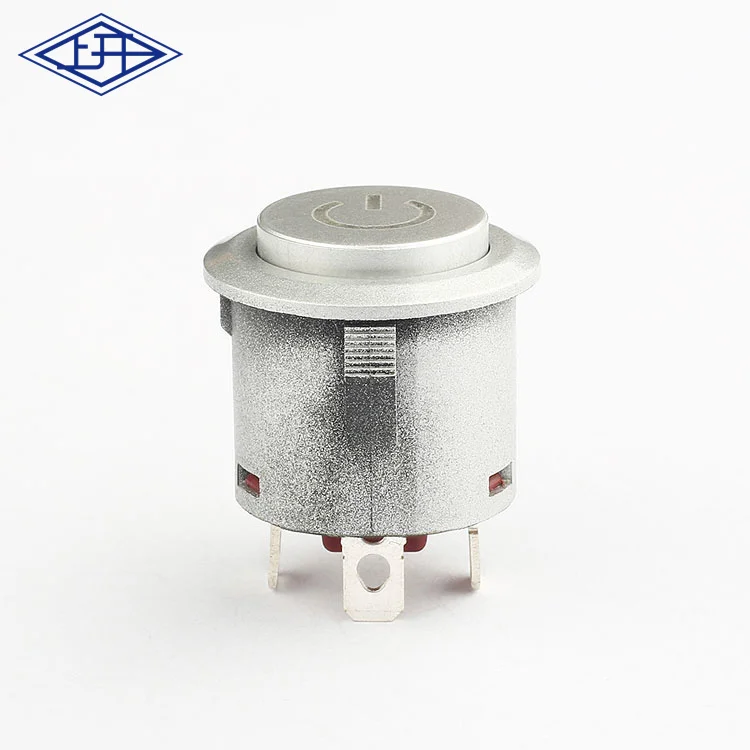

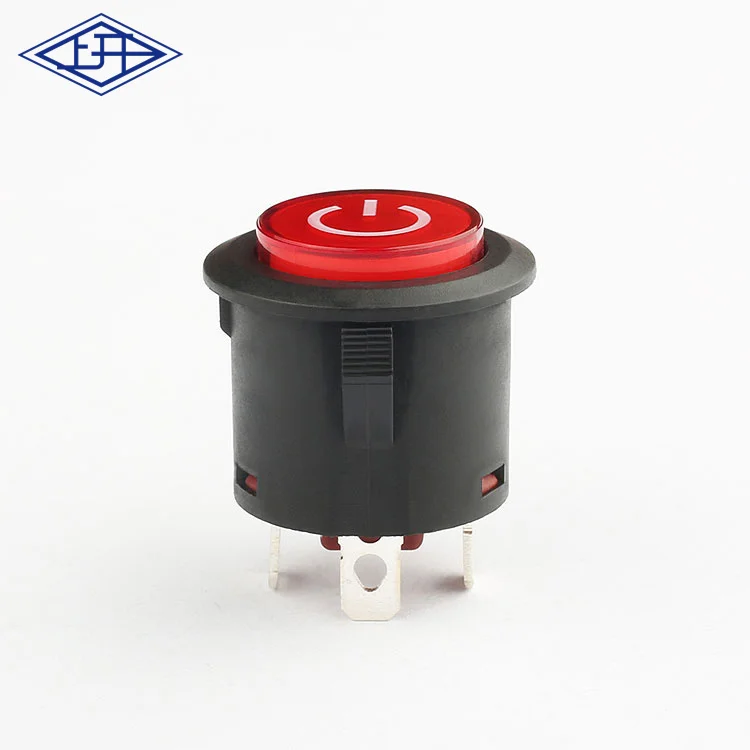

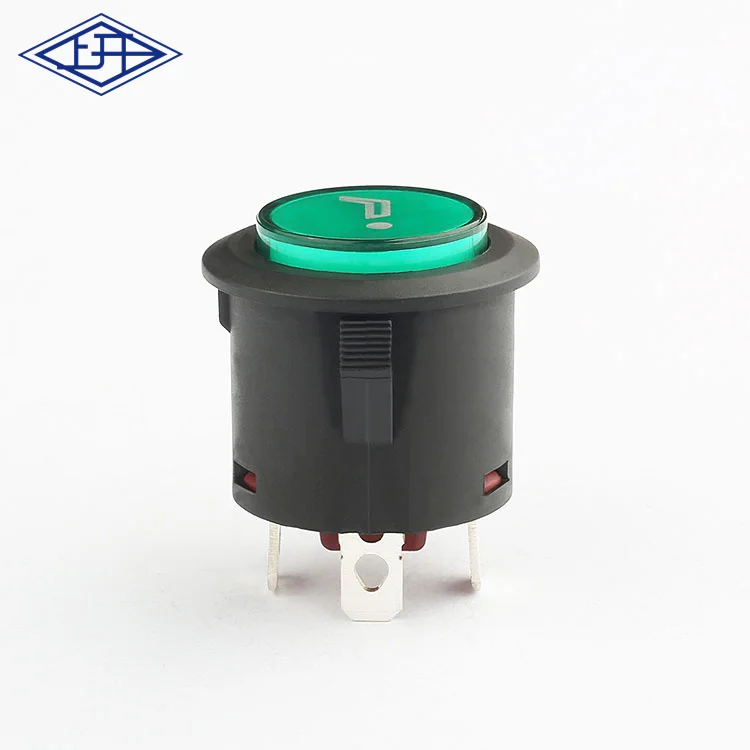

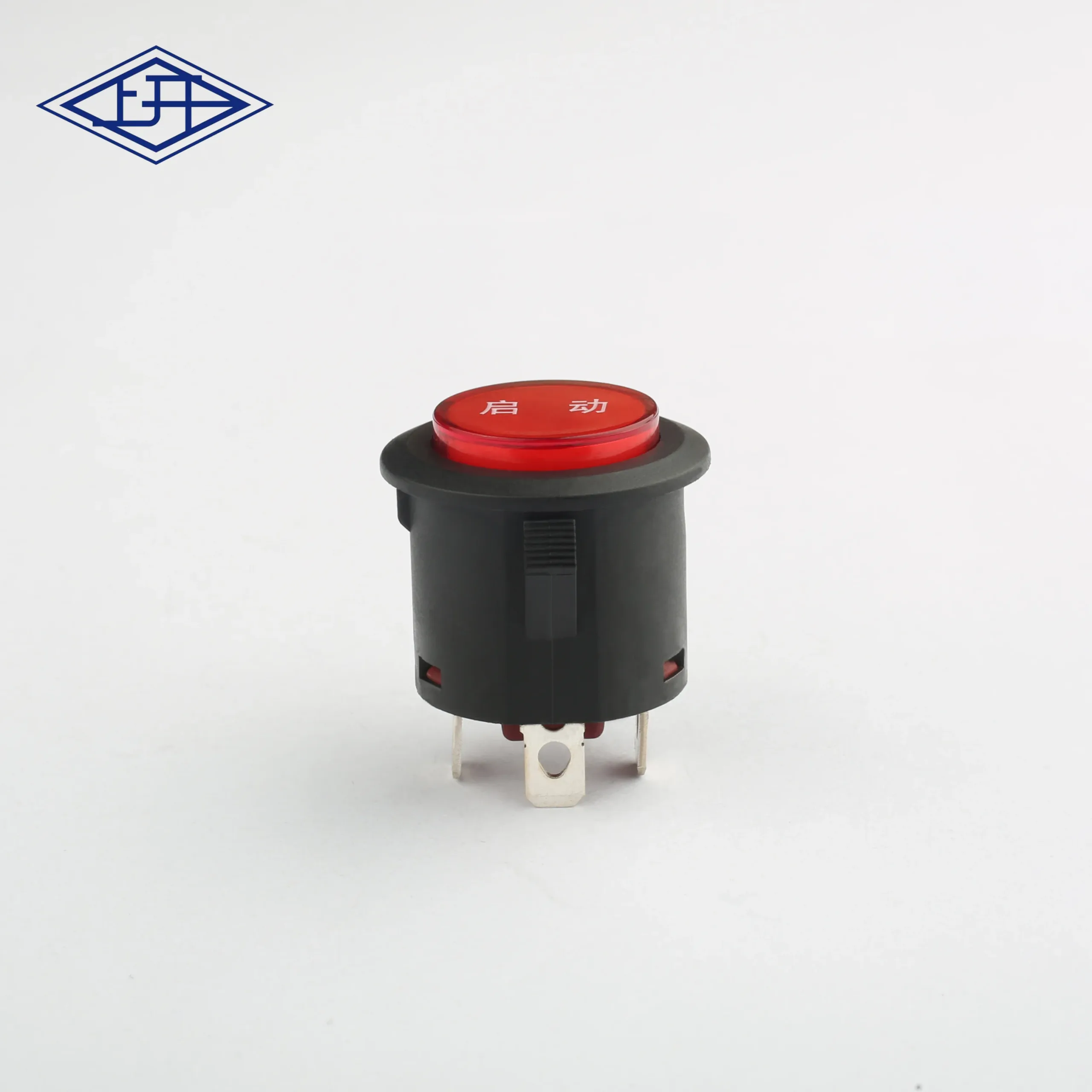

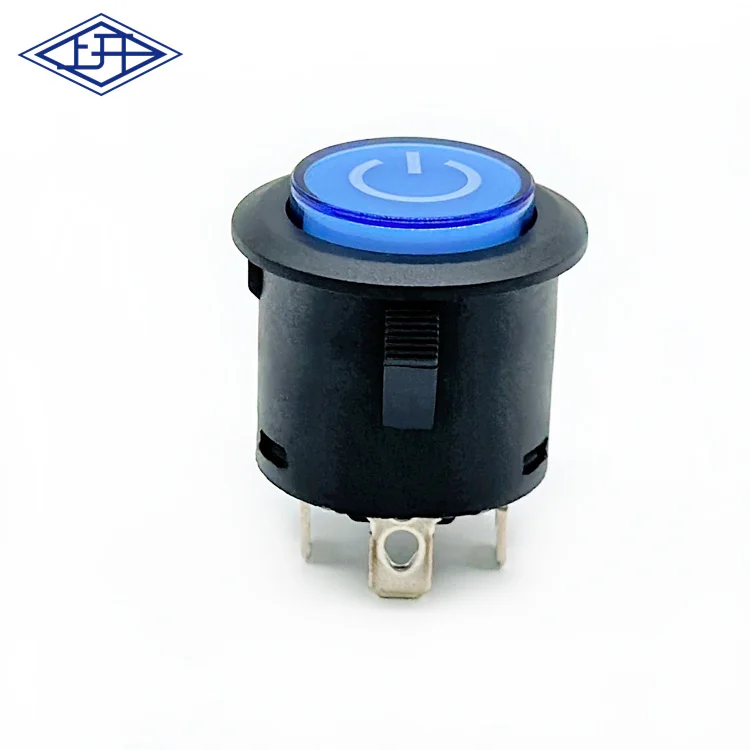

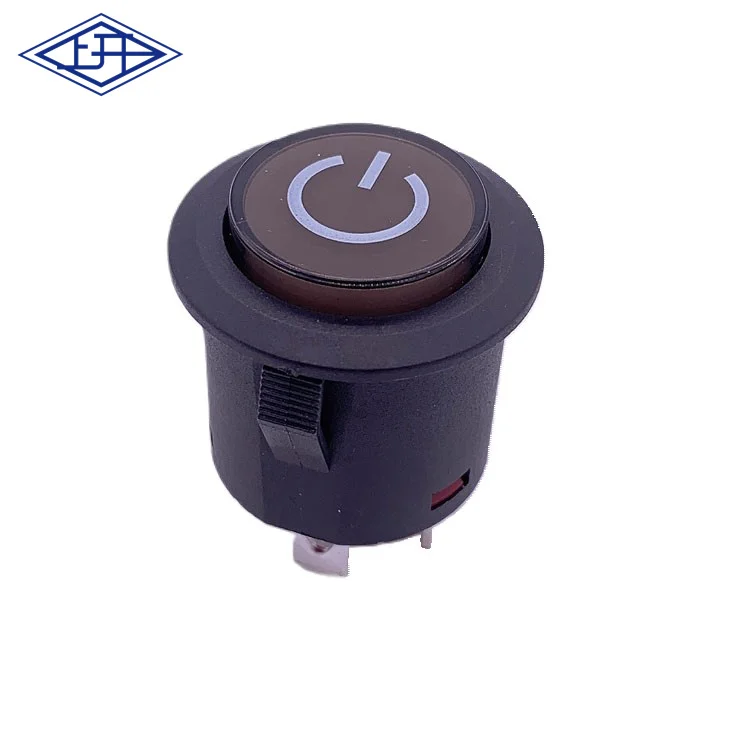

Our 22mm plastic push button switches are crafted from durable plastic, ensuring longevity and resistance to wear and tear. The round head design and pin terminal automatic selector switch make installation and operation straightforward, catering to a wide range of applications.
Superior Performance and Reliability
With a max current of 10A and max voltage of 250V AC, these switches are built to handle demanding electrical environments. The mechanical life of 20,000 cycles and electronic life of 10,000 cycles guarantee reliable performance over time, reducing maintenance costs and downtime.
Wide Range of Applications and Certifications
Our switches are suitable for electric, industrial control, and home appliance applications, thanks to their versatile design and high-quality construction. Certified by CE, CQC, and CB, they meet international safety standards, giving you peace of mind when choosing our products. As a wholesale supplier and factory, we offer competitive pricing and direct access to our high-quality switches.
