Description
|
contact resistance
|
≤50MΩ
|
electronic life
|
10000
|
|
insulation resistance
|
≥100MΩ
|
operating temperature
|
25T55
|
|
dielectric strength
|
1500V
|
IP code
|
IP40
|
Key Features and Benefits

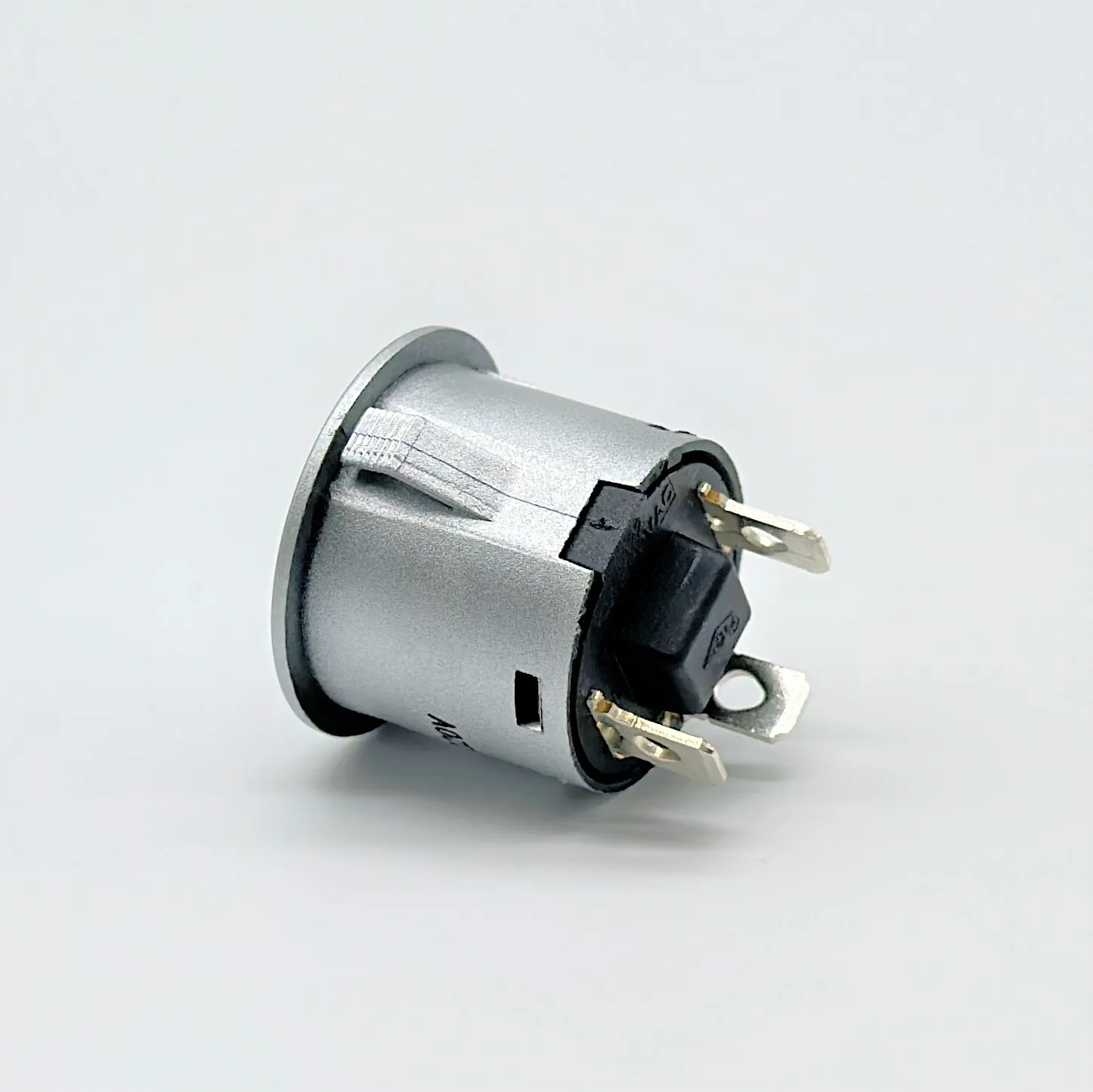

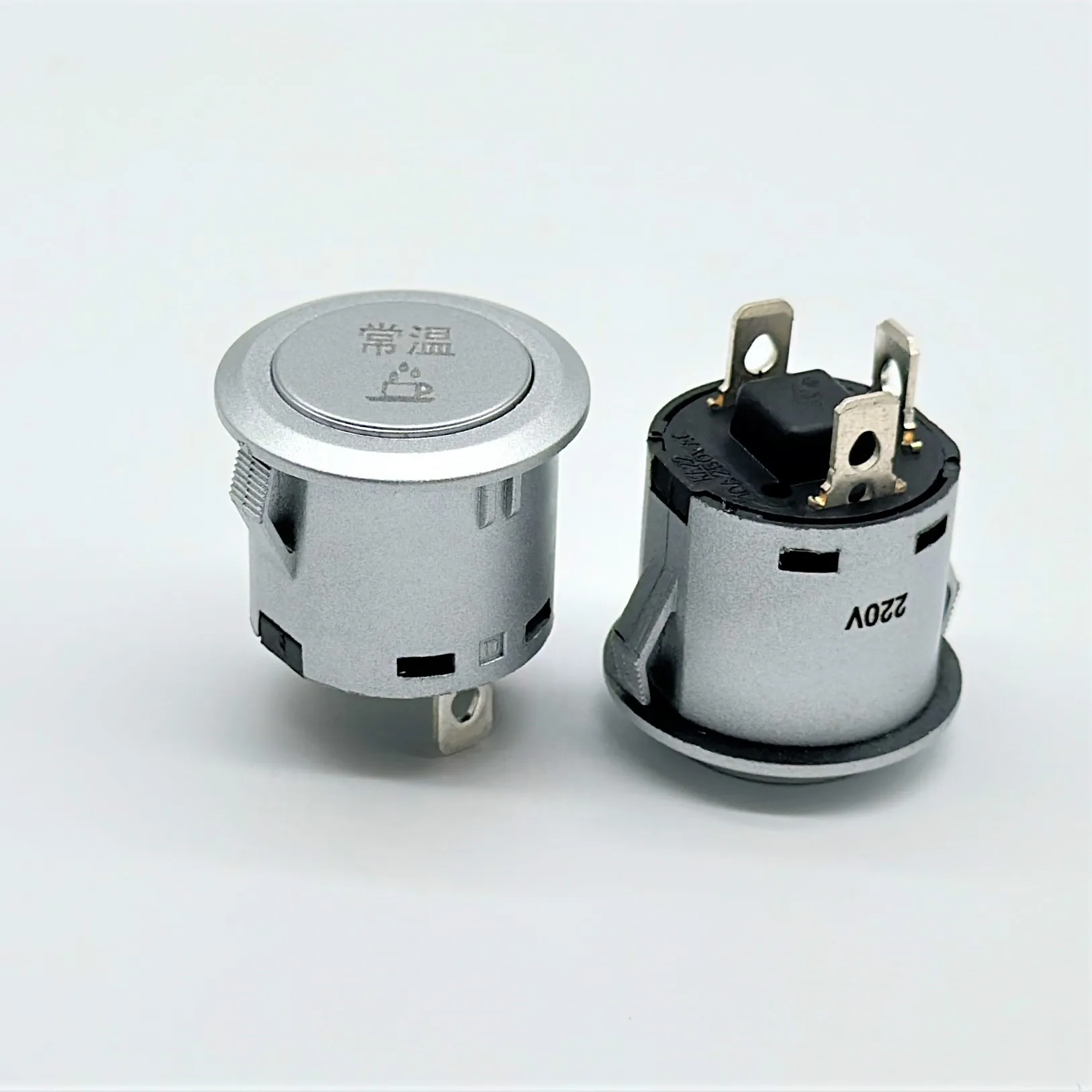

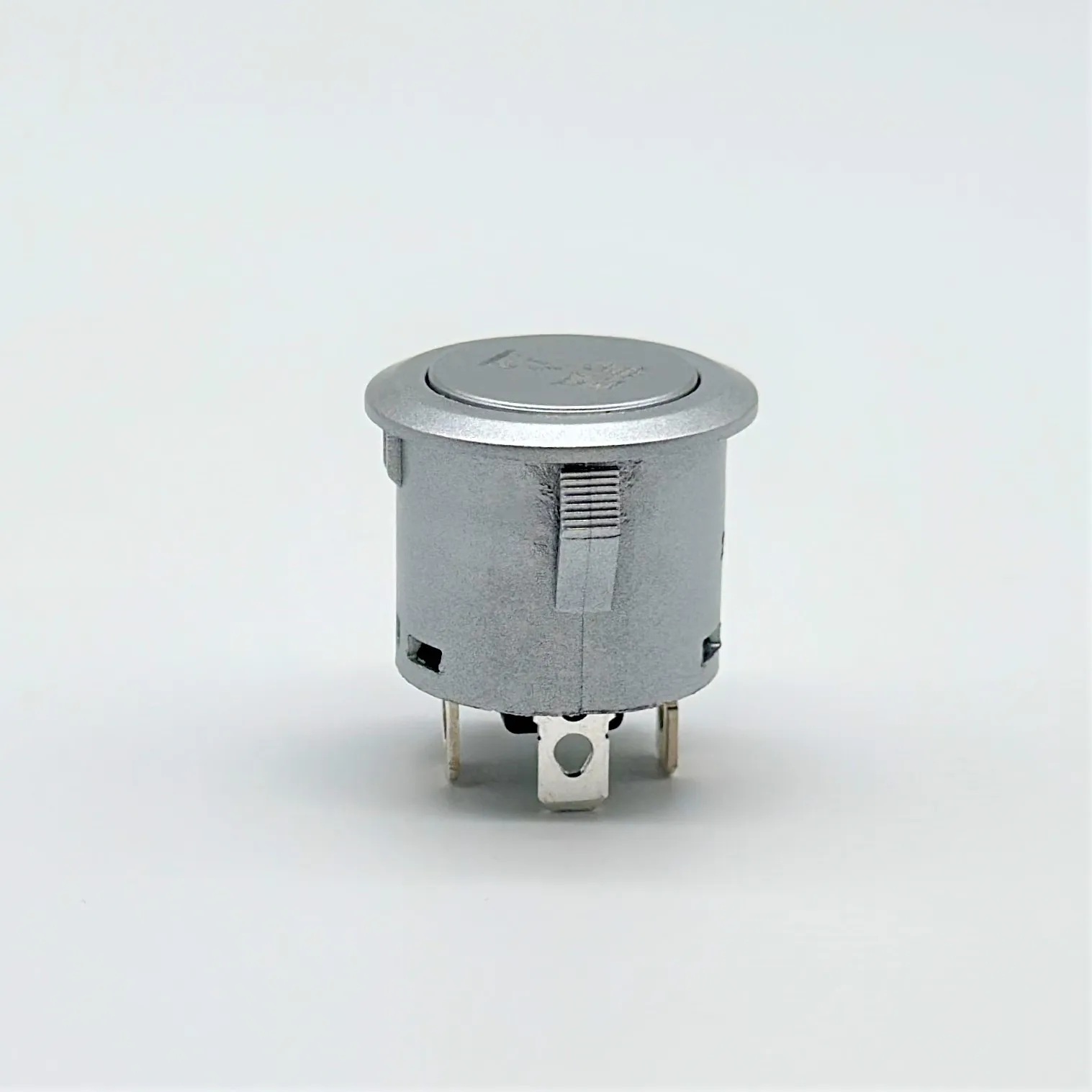

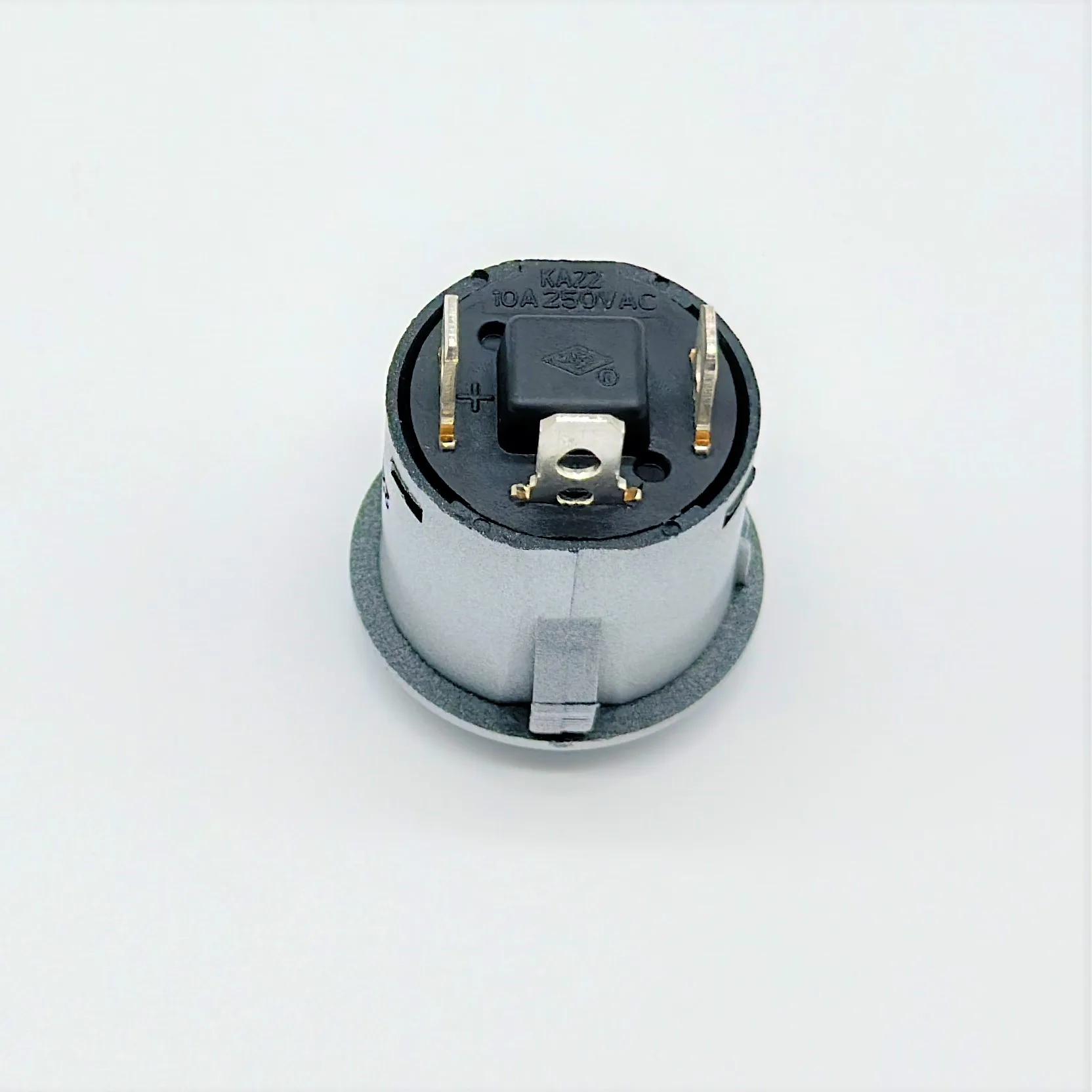

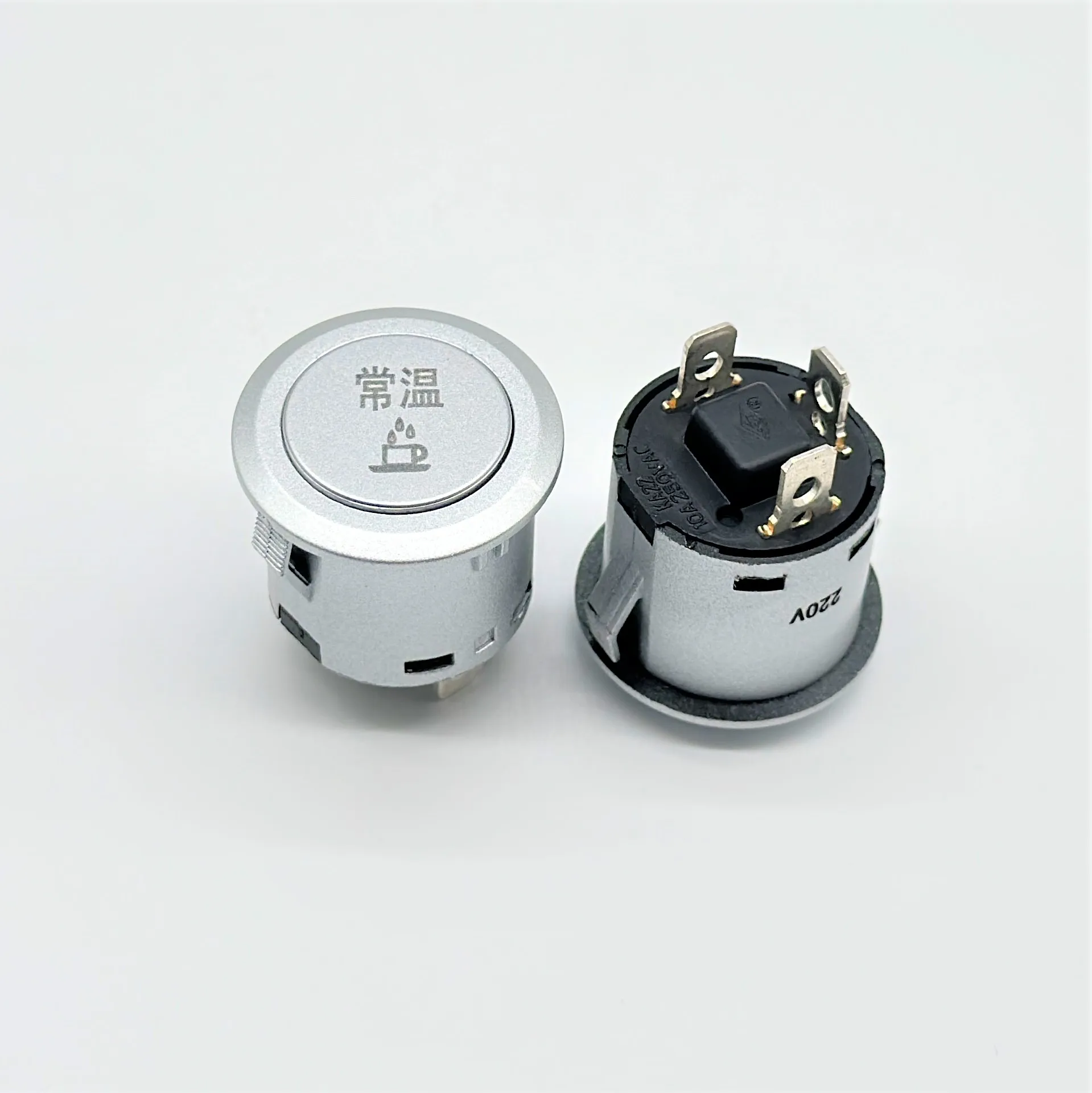

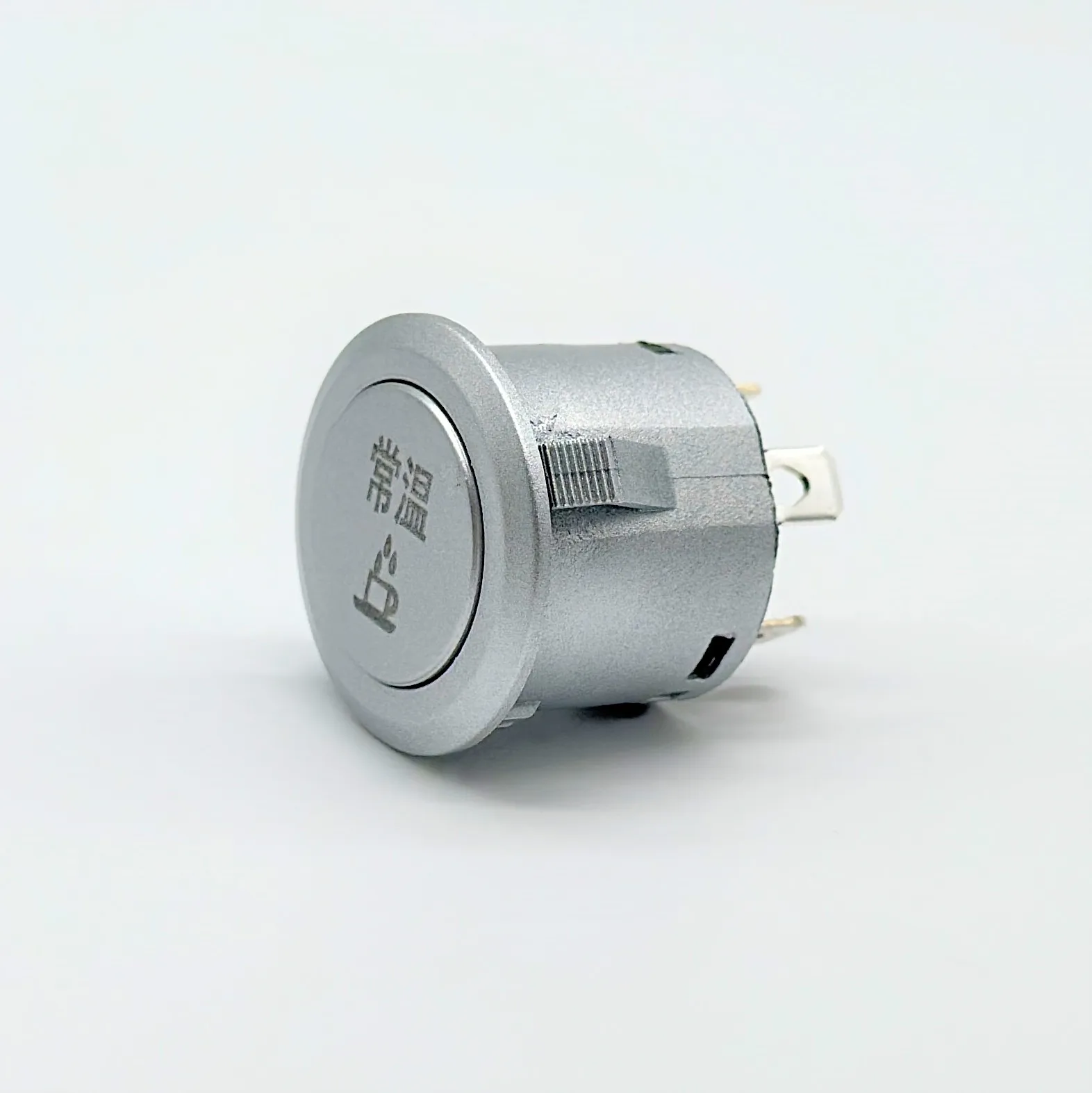

Our 22mm Plastic Silver Push Button Switch stands out with its robust construction and high-performance capabilities. The plastic silver housing not only adds durability but also gives it a sleek, professional look. The blue LED light provides clear indication of activation, enhancing user experience. With a maximum current of 10A and voltage of 250V AC, it's suitable for a variety of demanding applications.
Why Choose Our Switch?
As a factory supplier, we offer unbeatable wholesale prices without compromising on quality. Each switch undergoes rigorous testing to ensure it meets our high standards for mechanical and electronic life. The IP40 rating and wide operating temperature range make it ideal for use in harsh environments. Plus, with CE, CQC, and CB certifications, you can be confident in its safety and reliability.
Application Areas
This switch is perfect for electric control systems, home appliances, and industrial control applications. Its latching function ensures that it stays in the activated position until manually reset, making it ideal for applications where continuous operation is required. The ring illuminated design adds a touch of style and functionality, making it a great choice for both commercial and residential use.
