22MM Pushbutton Switch Wholesale Supplier – LA133 Series

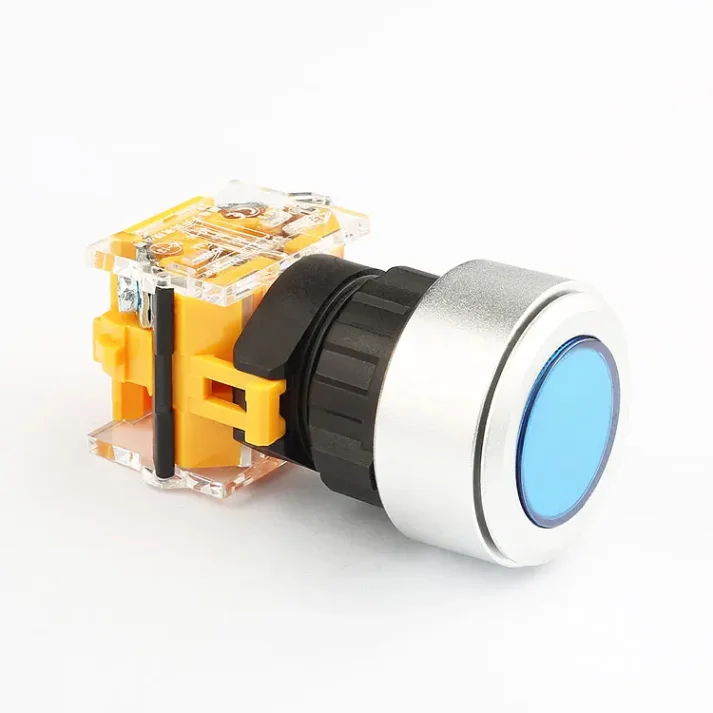

Name: 22MM Pushbutton Switch Wholesale Supplier - LA133 Series
SKU: 65278
Availability: InStock

Category: LA133 Series (22,25,30mm) Tags: 22MM Pushbutton, factory Direct, Industrial Control, LA133 Series, wholesale Supplier

100 - 499 pieces
$4.80

500 - 999 pieces
$4.50

>= 1,000 pieces
$4.30

Rated 0 out of 5

0 reviews

Wholesale 22MM Pushbutton Switch Supplier – LA133 Series

Description
Specification

Description

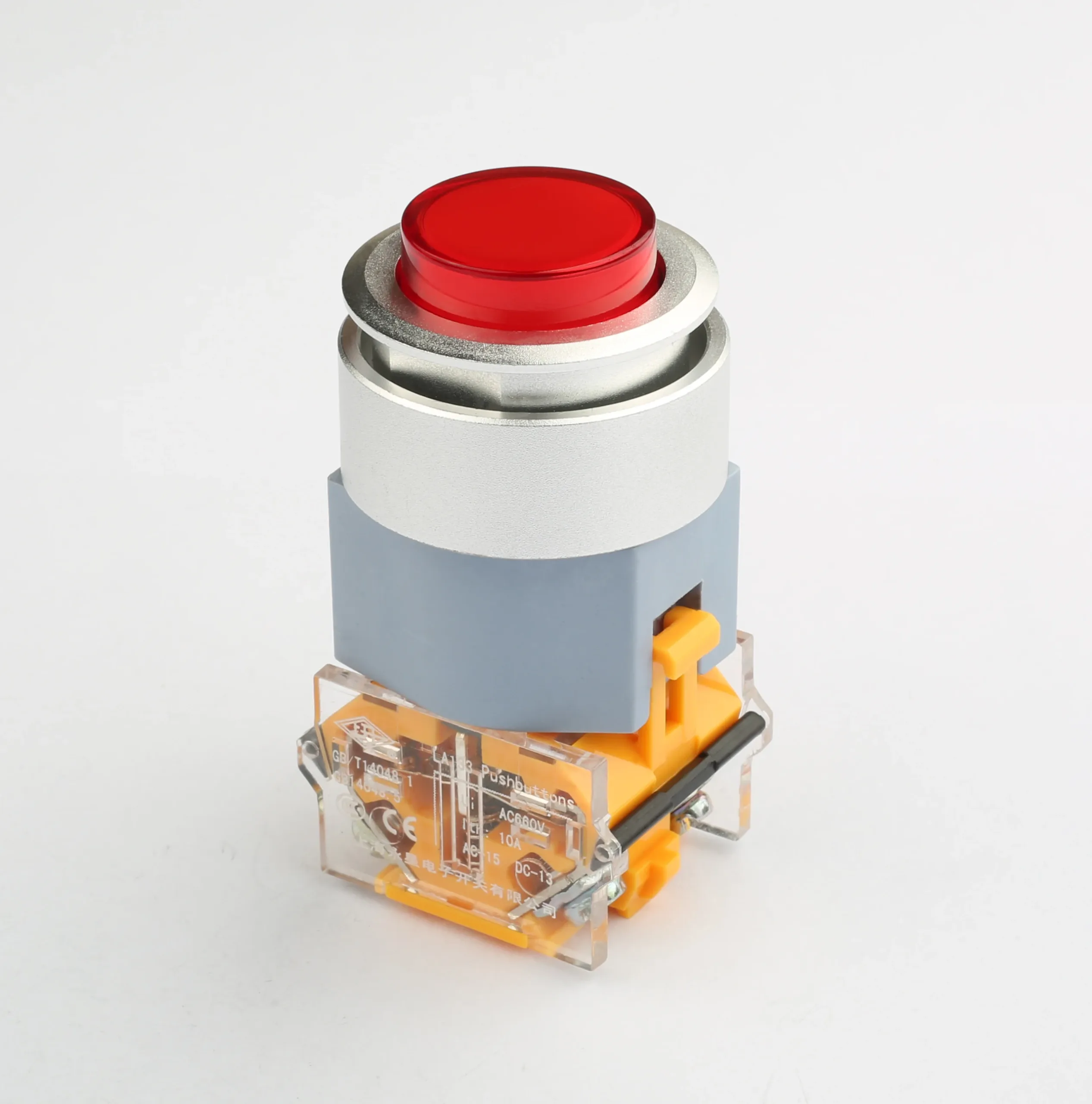

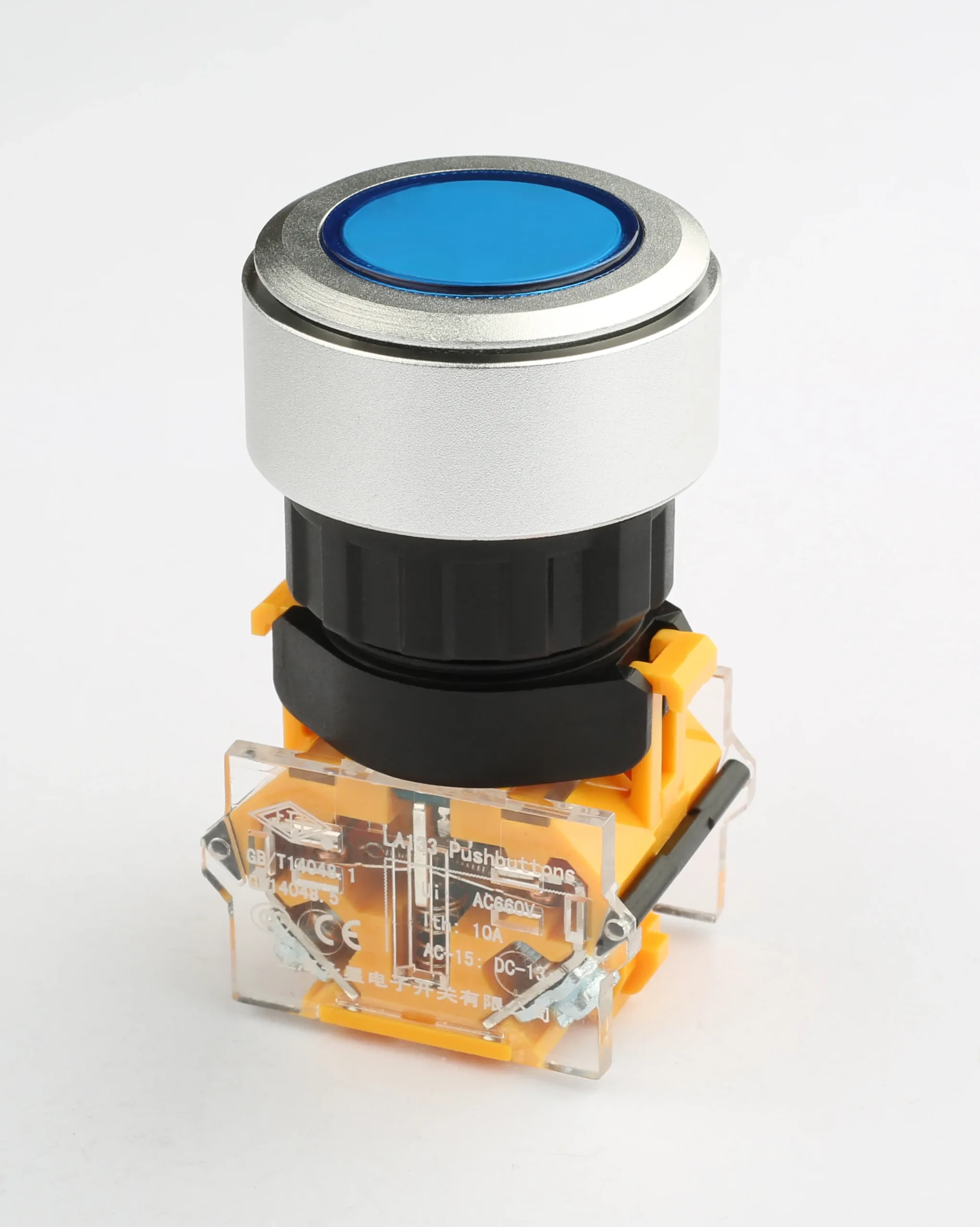

Introducing our LA133 series 22MM Pushbutton Switch, a top-tier choice for industrial control applications. As a factory-direct supplier, we offer wholesale pricing on this high-quality switch. With a rated voltage of 660V AC and a maximum current of 10A, it’s designed to handle demanding environments. The switch features a round head, pin terminal, and is available with LED illumination options. Its mechanical life is an impressive 1,000,000 operations for push buttons and 300,000 for keylocks, ensuring long-lasting durability. Certified with CQC and CE, it meets stringent quality standards. The switch is also available in IP40, IP65, and IP67 protection levels, offering versatility for various installation needs. Our product stands out with its superior build quality, competitive pricing, and the assurance of dealing directly with a trusted supplier. For bulk orders or more information, contact our online customer service today.

Operating temperature	-25°c~+55°c
Installation group	III Class
Degree of pollution	Level 3
Installation height	≤2000m
Vibration	10~200HZ.1mm.15g
Relative humidity	≤98%
Protection degree	IP40 or IP65 or IP67
Rated Insulation Voltage	AC660V
Rated Thermal current	10A
Max insulation voltage	2500V/min
Usage Category	AC-15 DC-13

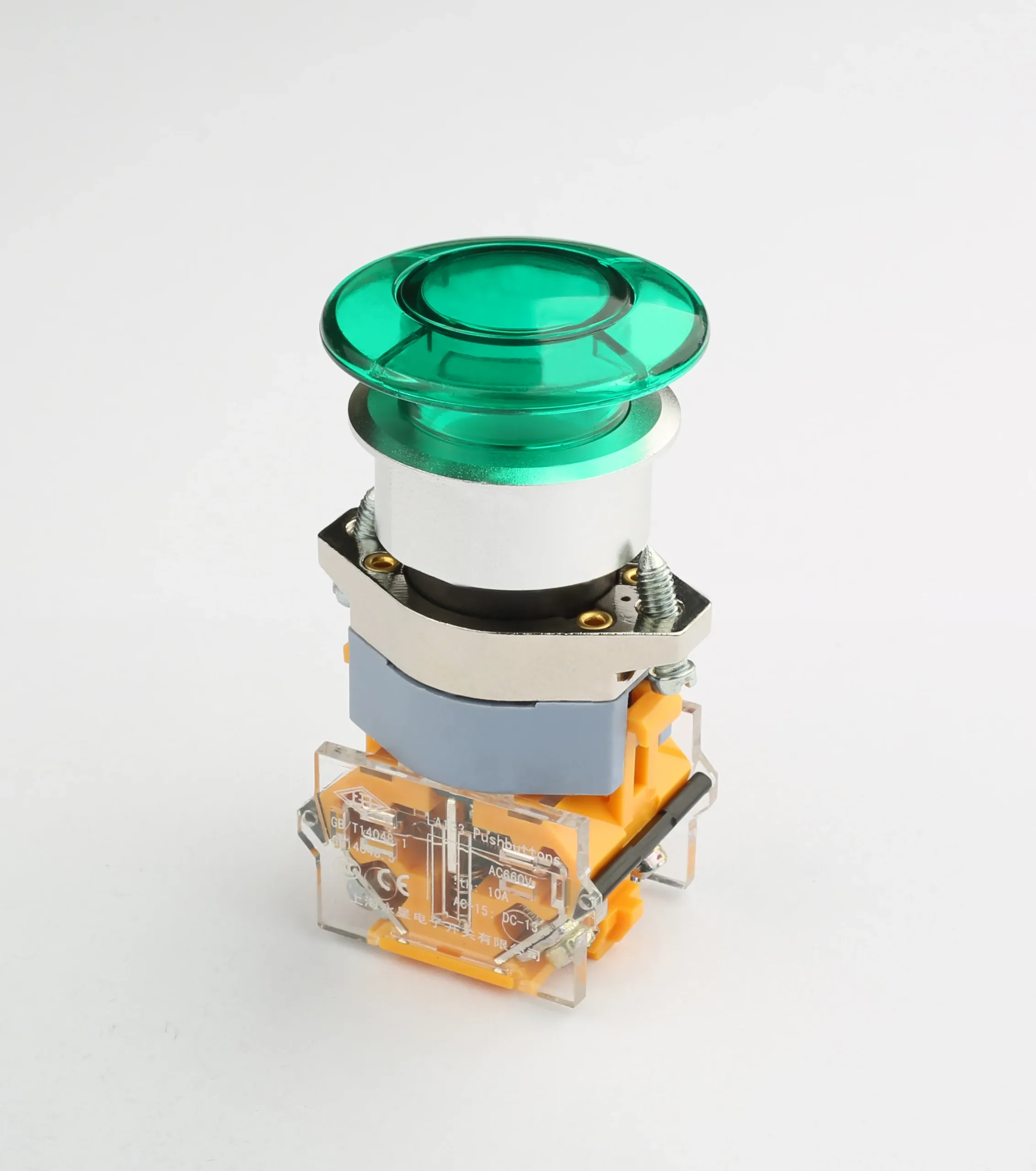

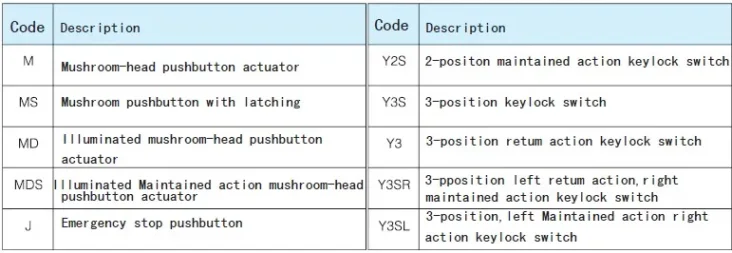

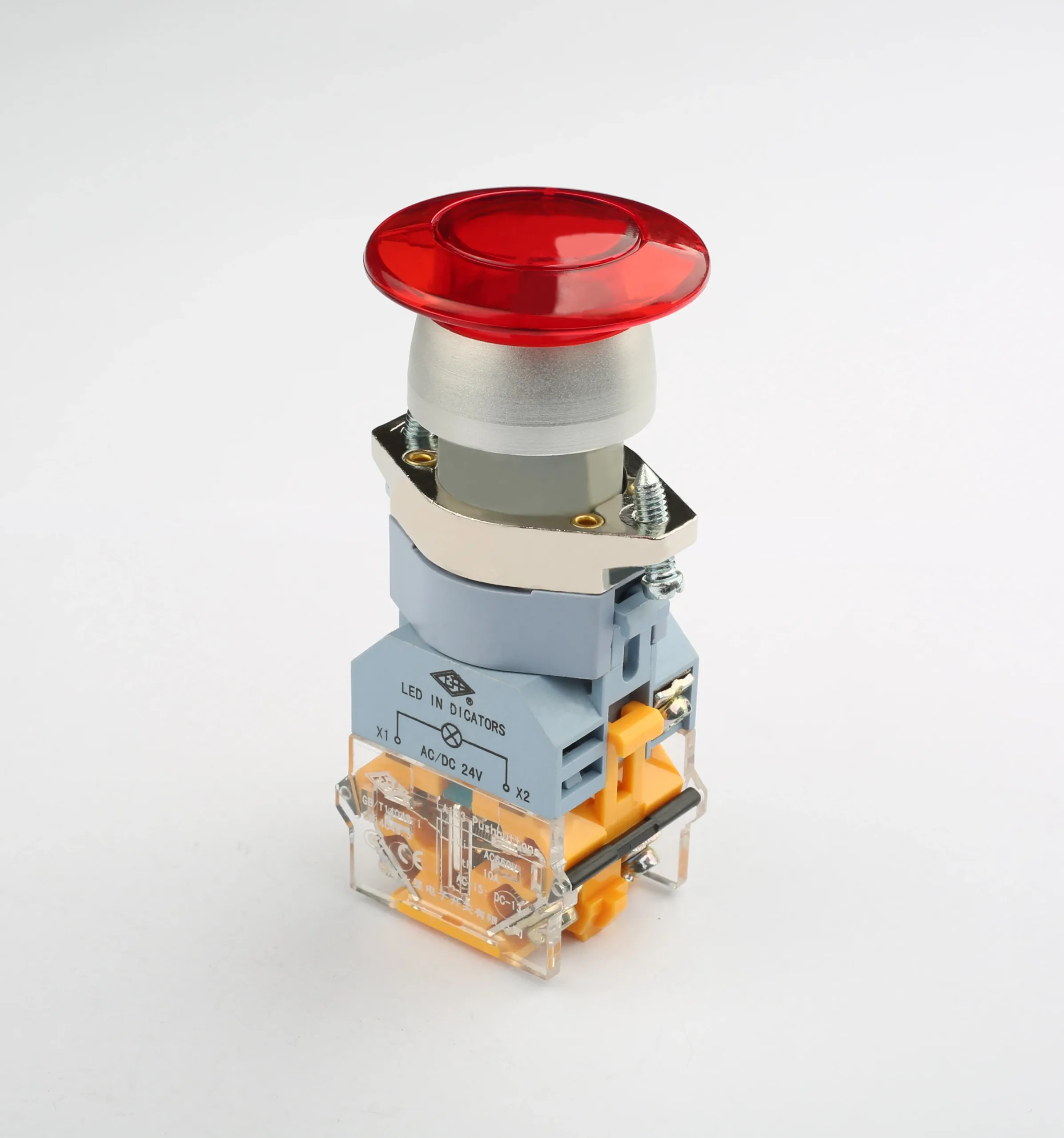

Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator	1 million

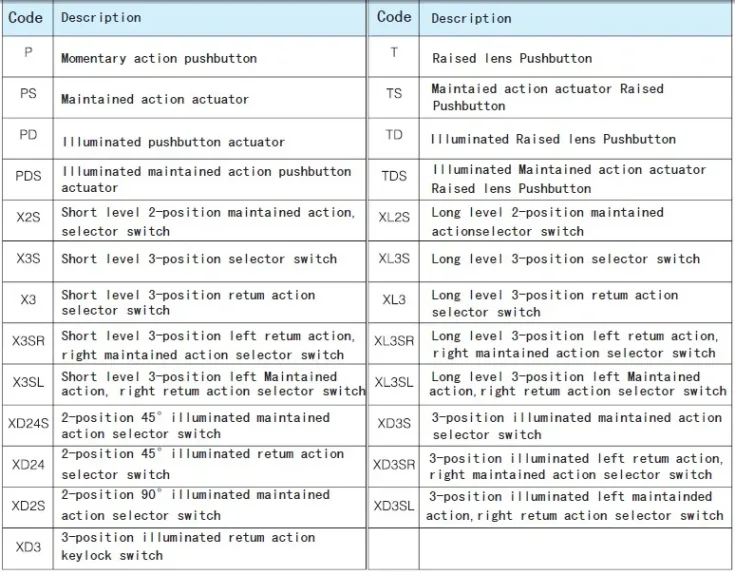

Rotary switch,Key switches&Maintained action actuator	0.3 million

Why Choose Our 22MM Pushbutton Switch?

Our 22MM Pushbutton Switch, part of the LA133 series, is a top choice for industrial control needs. With a factory-direct supplier advantage, we offer wholesale pricing on this durable switch. It's designed to withstand tough environments, thanks to its high rated voltage and current capacity. The switch's long mechanical life ensures reliability over time, reducing maintenance costs.

What Makes Our Product Stand Out?

Our switch stands out with its superior build quality, competitive pricing, and the option for LED illumination. It's also available in multiple protection levels, making it versatile for various installation needs. As a trusted supplier, we provide excellent customer service and support for bulk orders.

How Can Our Switch Benefit Your Business?

By choosing our 22MM Pushbutton Switch, you're investing in a product that offers long-term value and reliability. Its robust design and high-performance capabilities make it ideal for factory automation, equipment operation, and more. With factory-direct pricing, you can save on costs while getting a top-quality product. Contact us today to learn more about our wholesale options.

Additional information

Max. Current	10A
Max. Voltage	660V AC
Place of Origin	Shanghai, China
Brand Name	Yongxing
Model Number	LA133

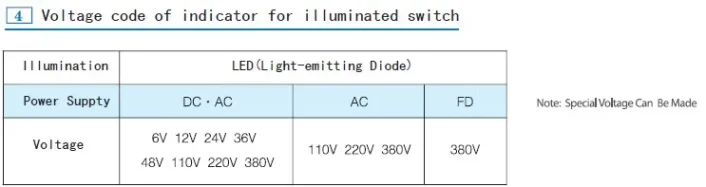

LED	Other
Application	Industrial Control

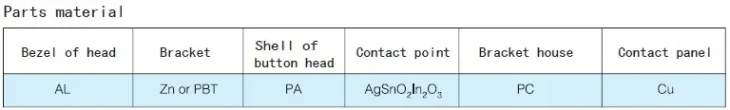

Material	plastic
Structure	Mechanical, Electronic
Head Type	Round Head
Terminal Type	Pin terminal
Whether the smart	NO
Switch Combination	1NO
Pushbutton Head	long lever
Certefication	CQC, CE
Mechanical life	Push button:1000000 /Keylock:300000
Electronic life	AC-15:600000/ DC-13:300000
Operating temperature	-25℃~+55℃
IP code	IP40 IP65
Degree of pollution	Lever 3
Rated thermal current	10A
Protection Level	IP40/IP65/IP67
