Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
|
Lamp Voltage
|
6v 12v 24v 36v 48v 110v 220v 380v
|

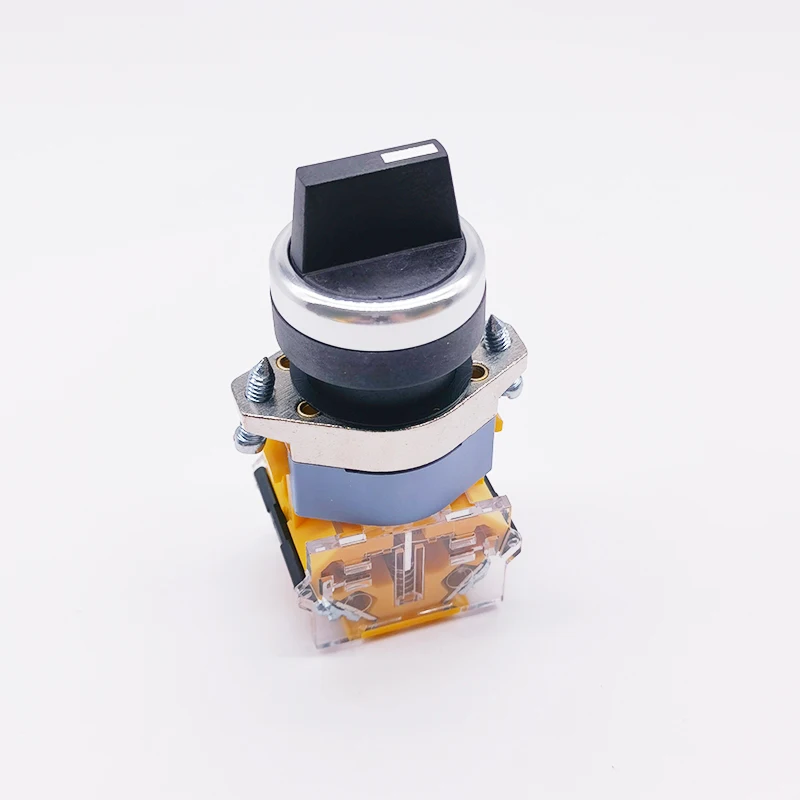

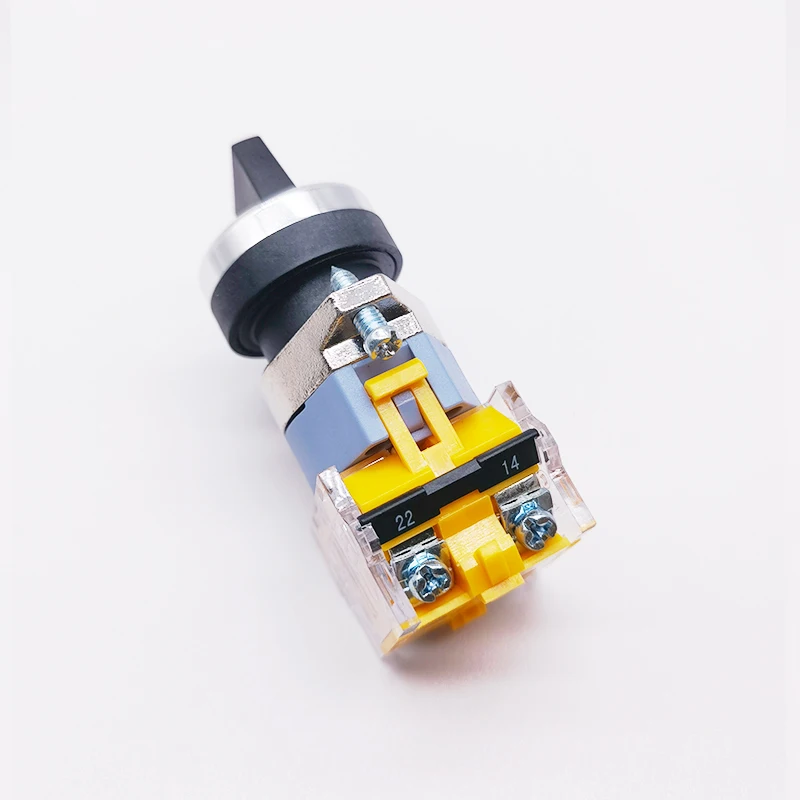

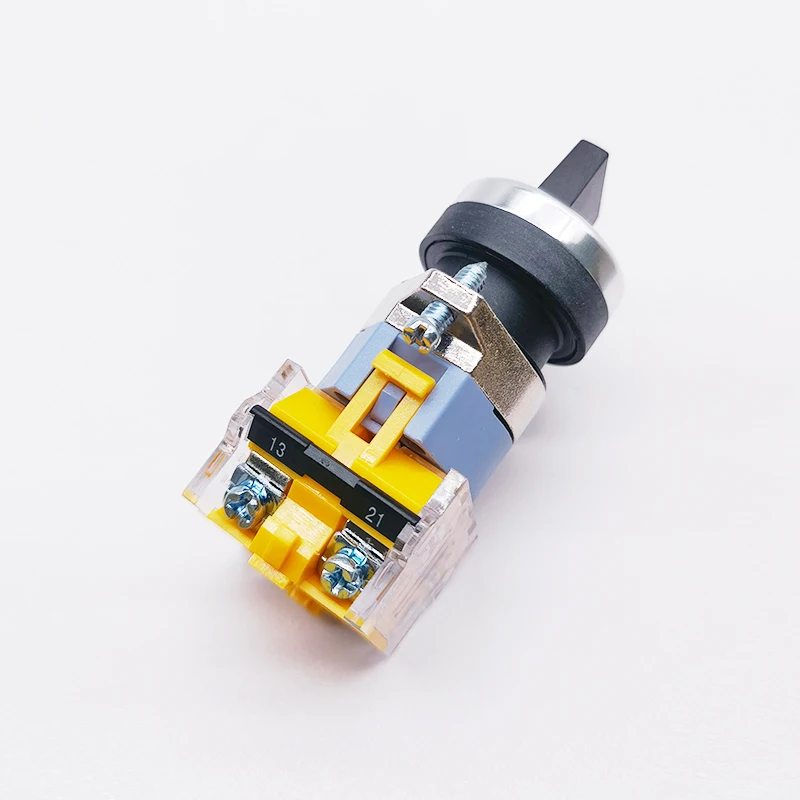

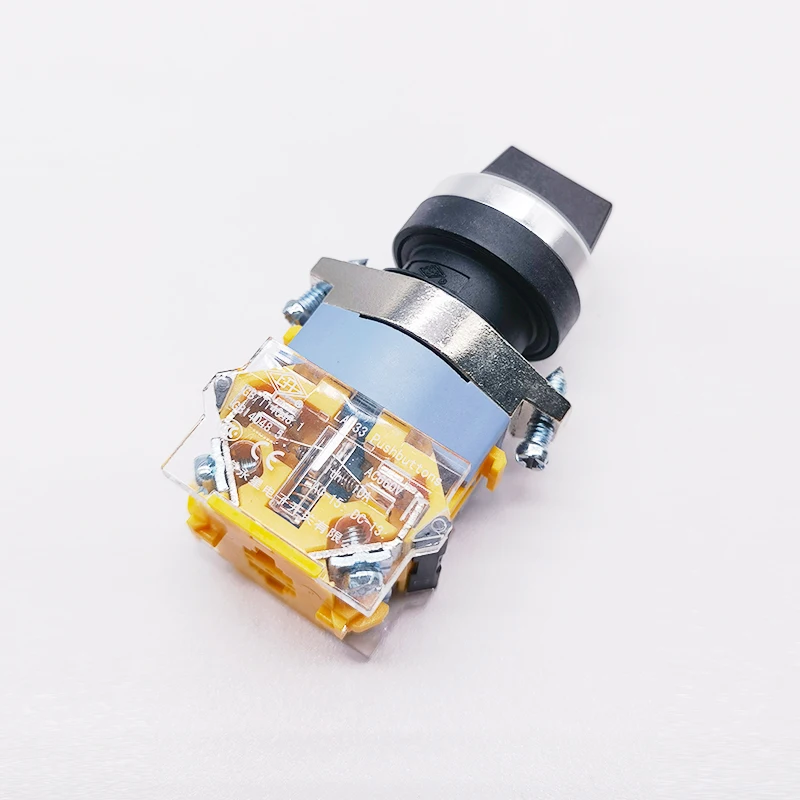

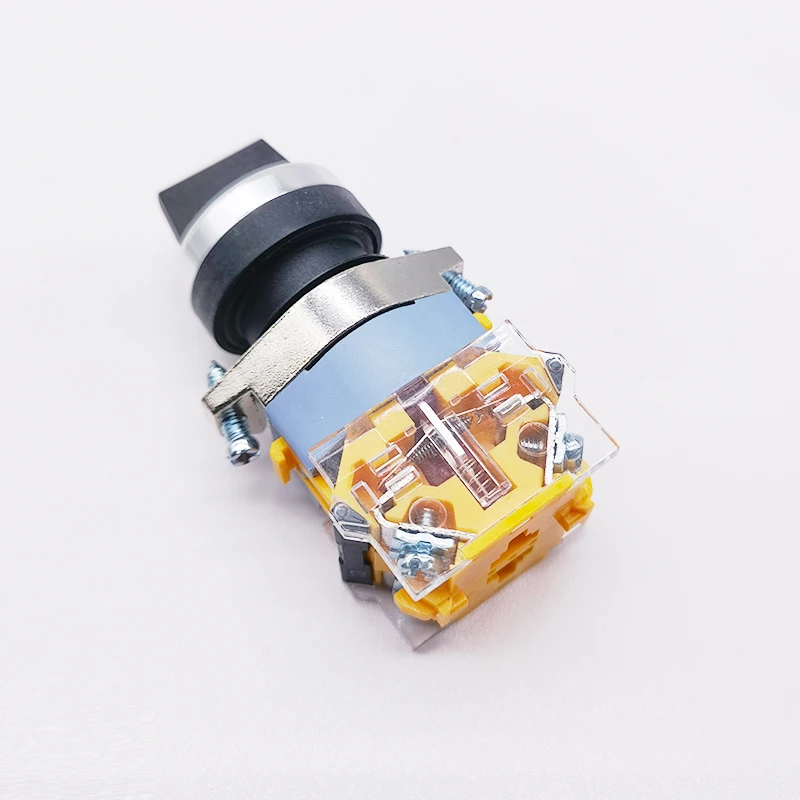

Key Features of Our 22mm Rotary Switch
Our 22mm Rotary Switch is designed with precision and durability in mind. It features a latching snap action mechanism, ensuring reliable operation even in demanding environments. With adjustable 2/3 positions, it offers flexibility for various applications. The switch supports a wide range of lamp voltages, from 6V to 380V, making it compatible with diverse electrical systems.
Why Choose Our Rotary Switch?
As a factory direct supplier, we offer competitive wholesale pricing without compromising on quality. Our switch boasts a high mechanical life of 1,000,000 cycles and impressive electrical lives, ensuring long-term reliability. With IP40, IP65, and IP67 protection levels, it can withstand dust, water, and other harsh conditions, making it ideal for industrial use.
Applications and Benefits
Our rotary switch is perfect for industrial control, electrical equipment, automation systems, machinery operation, and energy management. Its durable construction and reliable performance make it a cost-effective solution for businesses looking to upgrade their electrical setups. Trust in our expertise as a leading supplier to provide you with the best rotary switch for your needs.
