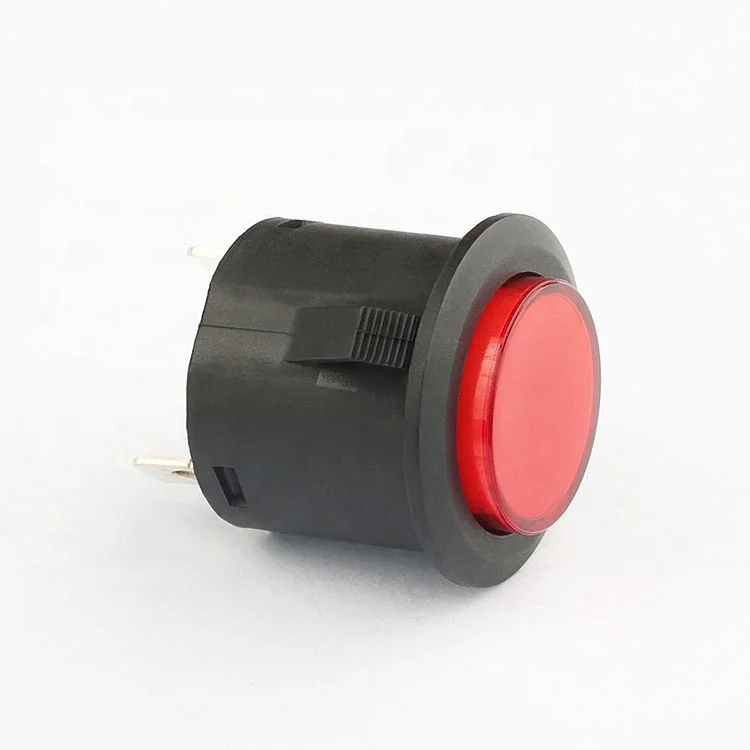

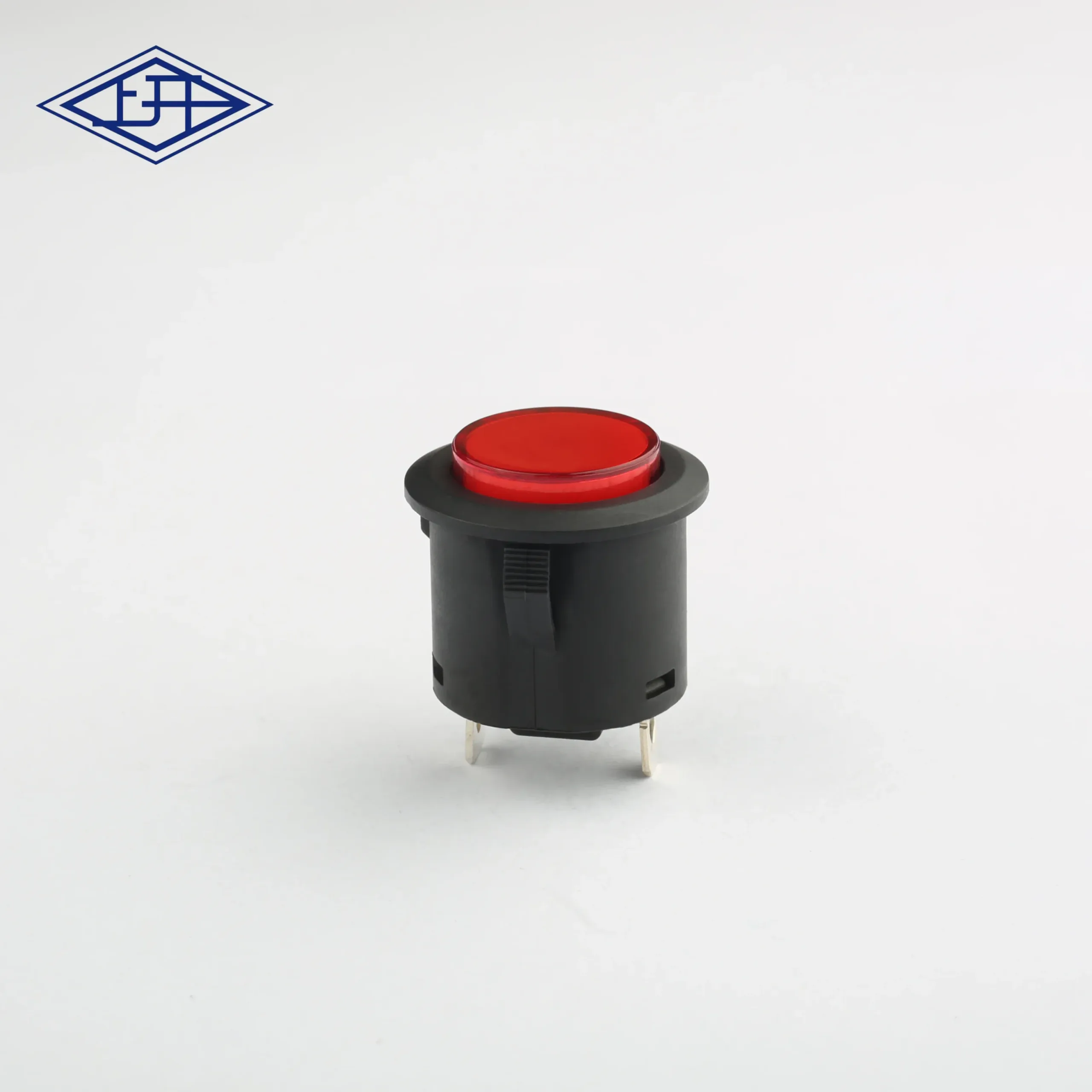

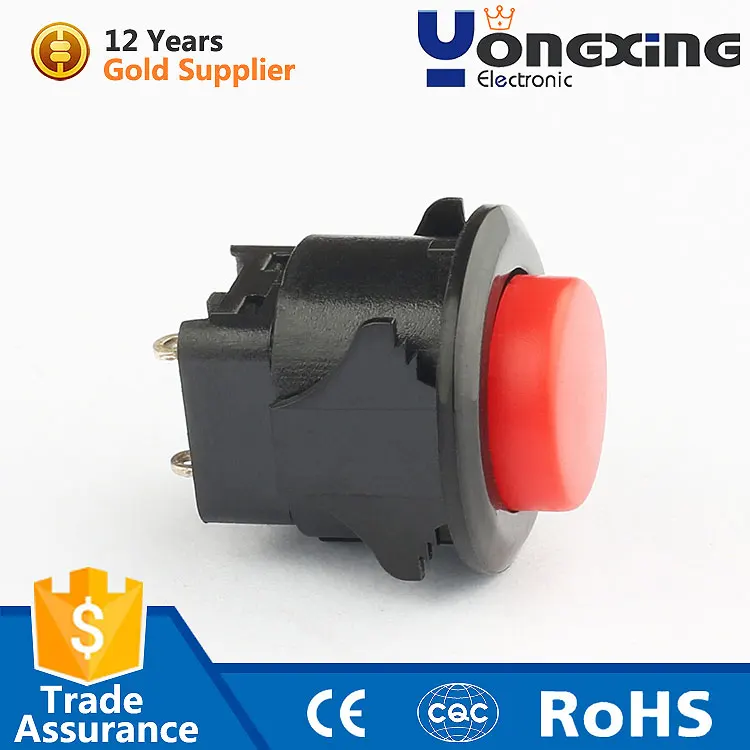

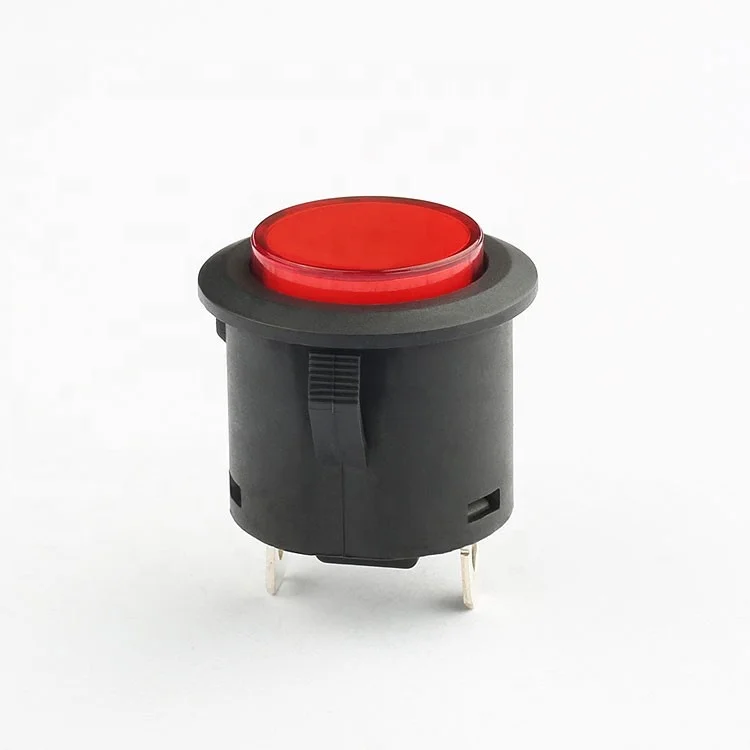

22mm Round Push Button Switch | Wholesale Factory Supplier with 12VDC LED

Category: Tags: , ,
>= 10,000  pieces
$0.49
0 reviews

Factory direct 22mm push button switch with 12VDC LED. Wholesale supplier, durable & reliable.

Clean All

Description

Discover our high-quality 22mm Round Push Button Switch, a versatile and reliable solution for various applications. As a direct factory supplier and wholesaler, we offer competitive pricing and excellent quality. This switch features a 12VDC LED indicator light, making it ideal for electric, home appliance, latching, and industrial control systems. With a maximum current of 10A/16A and a maximum voltage of 250V AC, it ensures safe and efficient operation. The switch is made of durable plastic material, with a round head and pin terminal design, providing easy installation and long-lasting performance. Our switch stands out with its full illuminated LED, IP40 protection level, and 1NO1NC switch combination. It boasts a mechanical life of 20,000 cycles and an electronic life of 10,000 cycles, ensuring reliability under heavy use. The operating temperature range of -25℃ to +85℃ makes it suitable for various environments. Choose our switch for its exceptional quality, competitive pricing, and reliable after-sales service.
contact resistance
≤50MΩ
operating temperature
-25℃ to +85℃
insulation resistance
≥100MΩ
electronic life（cycles）
10000
dielectric strength
1500V
mechanical life（cycles）
20000

Electronic component product for cross-border e-commerceCross-border e-commerce electronics product display


Product Features

Our 22mm Round Push Button Switch with 12VDC LED is designed for durability and reliability. With a maximum current of 10A/16A and a maximum voltage of 250V AC, it ensures safe and efficient operation in various applications.

Why Choose Us?

As a direct factory supplier and wholesaler, we offer competitive pricing without compromising on quality. Our switch stands out with its full illuminated LED, IP40 protection level, and long mechanical and electronic life, making it a superior choice for electric, home appliance, latching, and industrial control systems.

After-Sales Service

We are committed to providing excellent after-sales service. If you have any questions or concerns, our dedicated team is here to assist you. Choose our switch for peace of mind and long-term reliability.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

10A/16A
Max. Voltage

250V AC
Place of Origin

Shanghai, China
Brand Name

Yongxing
Model Number

KA22-11L-AAA-BR12D-01
LED

Yes
Application

Electric, Home Appliance, latching, Industrial Control
Material

plastic
Structure

Electronic, Mechanical, Electromagnetic
Head Type

Round Head
Terminal Type

Pin terminal
Whether the smart

NO
illuminated Type

full illuminated
IP level

IP40
Switch Combination

1NO1NC
Name

KA22-11L-AAA-BR12D-01
color

black housing, red button
Circuit

Normally open, 1NO
LED Voltage

12vdc red
Mechanical life

20000cycles
Electronic life

10000cycles
Operating temperature

-25℃~+85℃
Insulation Resistance

≥100mΩ
Color

Orange
