Description
|
contact resistance
|
≤50MΩ
|
operating temperature
|
-25℃ to +85℃
|
|
dielectric strength
|
1500V
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
IP code
|
IP40
|
Key Features

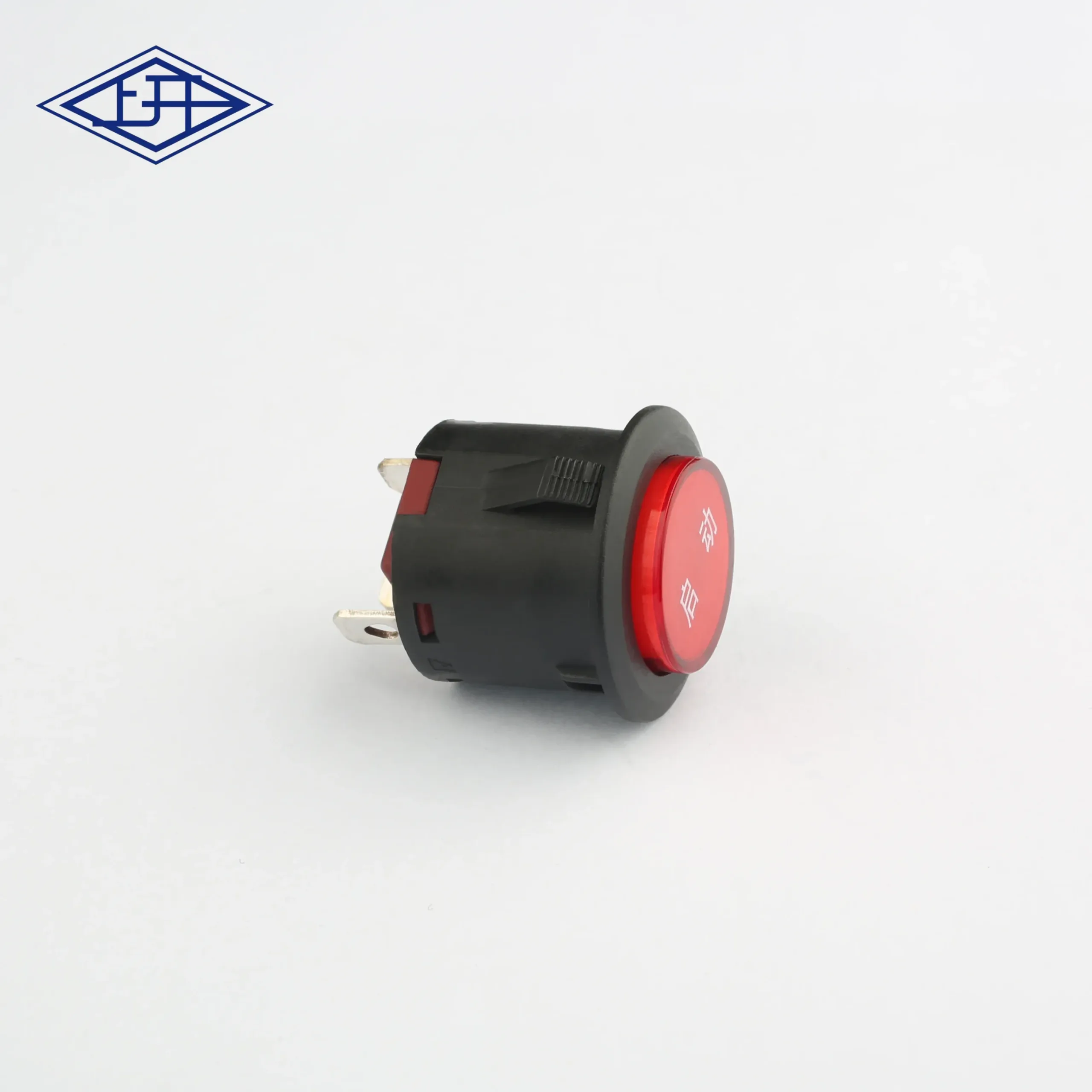

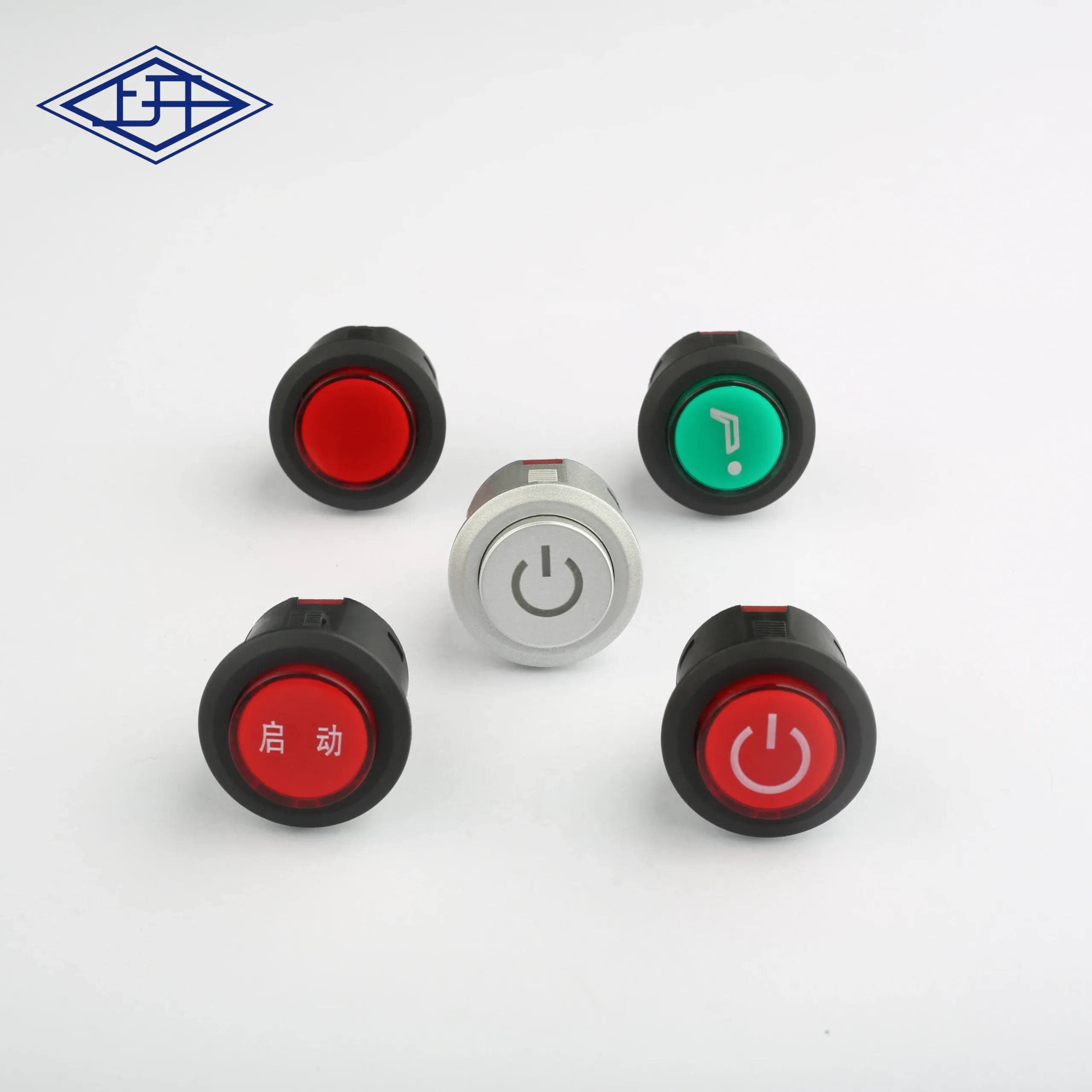

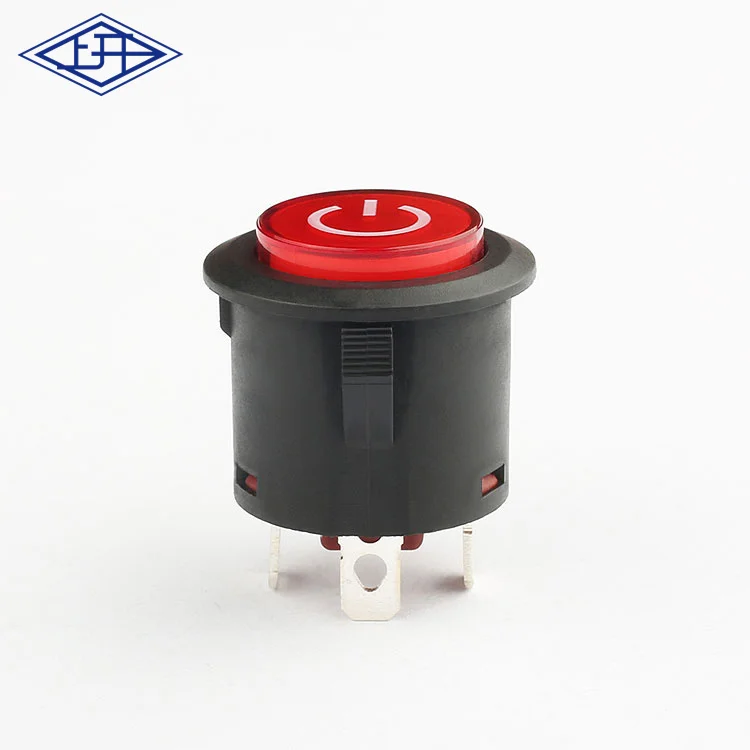

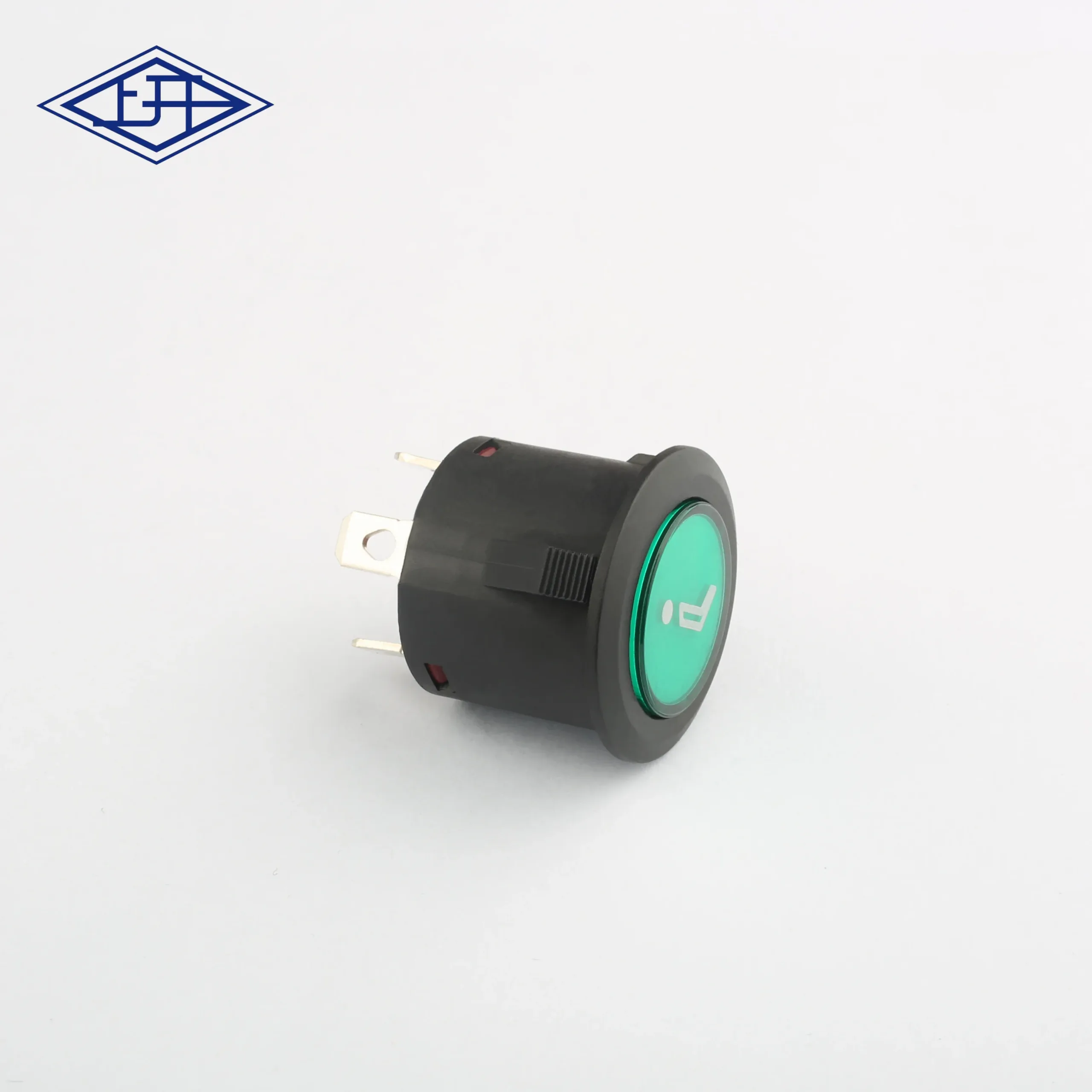

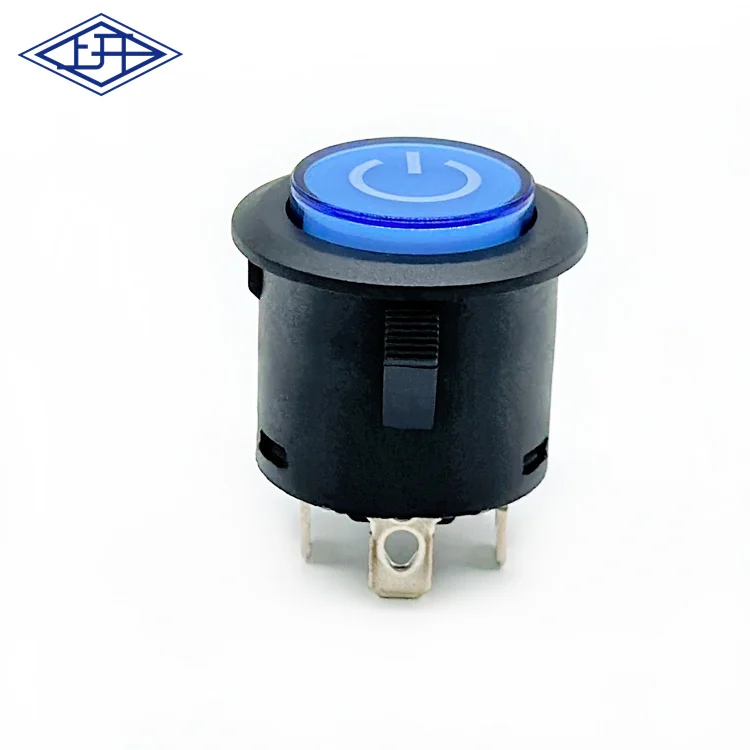

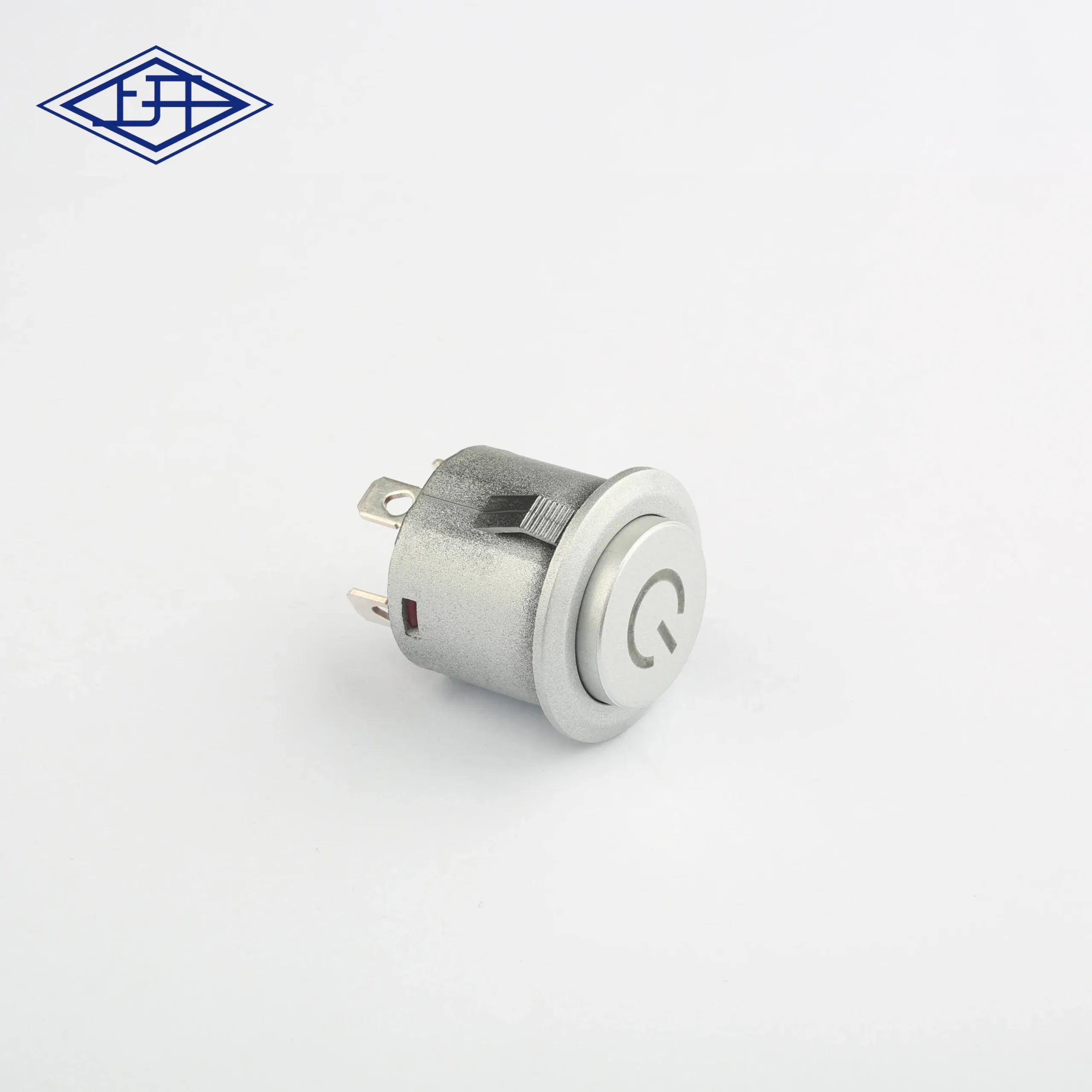

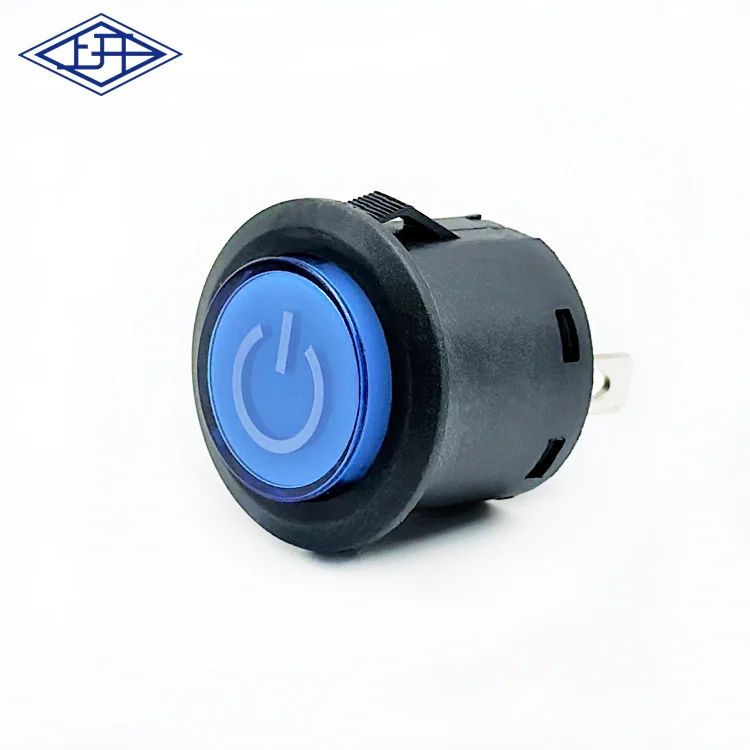

Our 22mm Round Self-locking Push Button Switch is engineered for excellence. With a robust plastic body and a round head design, it offers durability and ease of installation. The switch includes a ring-illuminated LED, available in a variety of colors, making it suitable for various applications. Its self-locking mechanism ensures stable operation, while the IP40 rating provides protection against dust and water.
Why Choose Our Switch?
As a factory direct supplier, we offer competitive wholesale prices without compromising on quality. Our switch undergoes rigorous testing to ensure it meets international standards, including CE, CQC, and CB certifications. With a mechanical life of 20,000 cycles and an electronic life of 10,000 cycles, it provides long-lasting performance, reducing the need for frequent replacements.
Versatile Applications
This switch is ideal for a wide range of applications, including electric, industrial control, and home appliances. Its self-locking feature and ring-illuminated LED make it perfect for environments where visual feedback and reliable operation are crucial. Choose our switch for its versatility, reliability, and exceptional value.
