Description
Key Specifications:
- Model: LA133-A1.XL2S-K11
- Protection Level: IP40, IP65, IP67
- Max. Current: 10A
- Max. Voltage: 660 VAC
- Rated Insulation Voltage: 660V AC
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 600,000 cycles (AC-15), 250,000 cycles (DC-13)
- Mounting Hole Size: 22mm Diameter
Product Advantages:
- Durable Construction: Built to withstand harsh industrial environments with IP ratings up to IP67.
- Long Lifespan: High mechanical and electrical life ensures minimal maintenance and replacement costs.
- Versatile Applications: Suitable for control panels, machinery, automation systems, and more.
- Factory Direct Pricing: As a factory supplier, we offer competitive wholesale prices without compromising on quality.
- Excellent Customer Service: We provide comprehensive after-sales support, including technical assistance and warranty services.

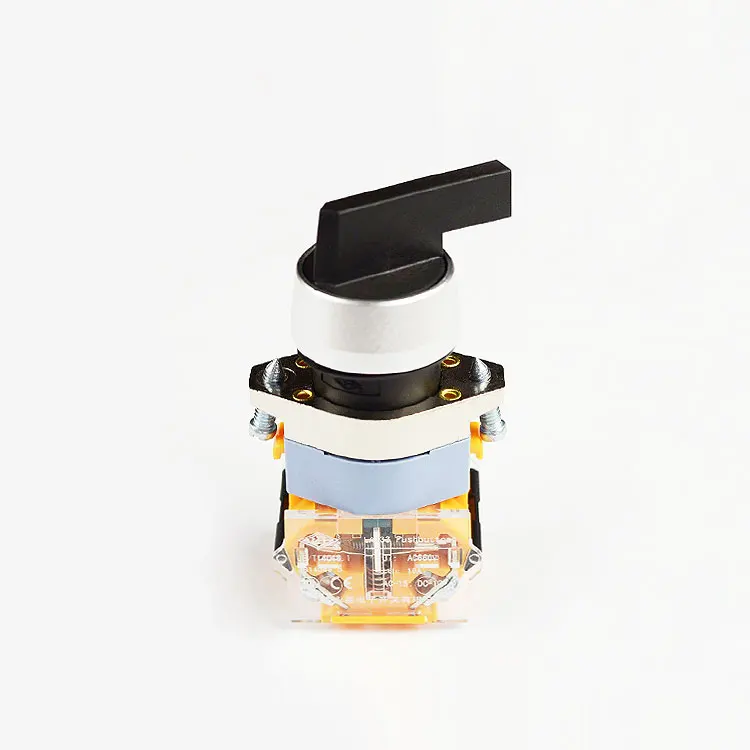

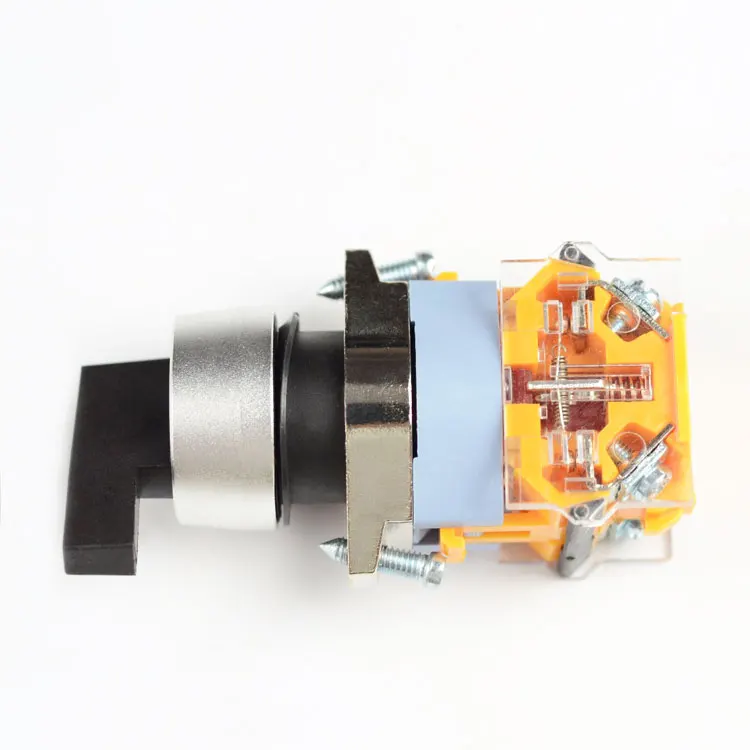

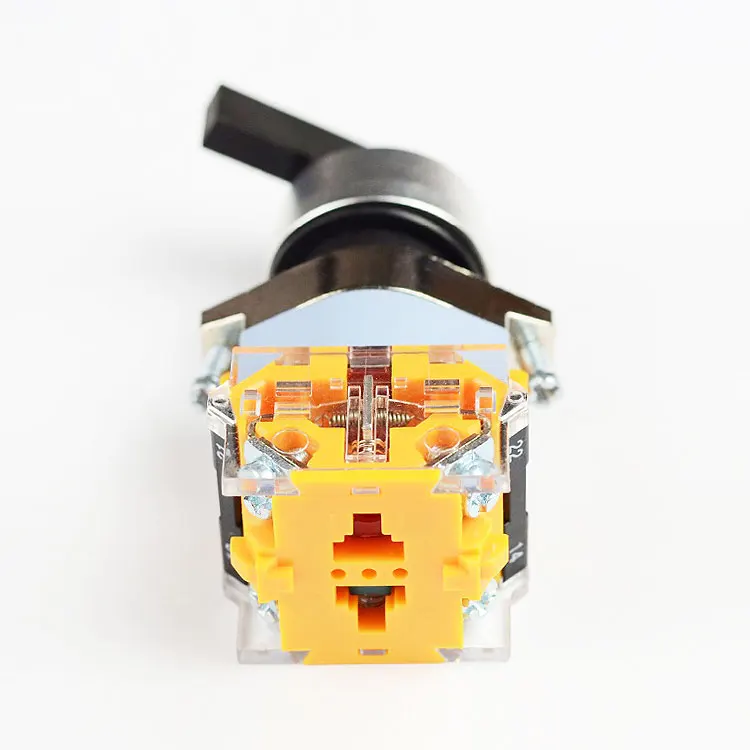

Choose our 22mm Self-Locking Selector Rotary Switch for its reliability, durability, and cost-effectiveness. Whether you’re a distributor, reseller, or end-user, we’re here to meet your needs with quality products and exceptional service.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Model Number
|
LA133-A1.XL2S-K11
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
Why Choose Our 22mm Self-Locking Selector Rotary Switch?
Our 22mm Self-Locking Selector Rotary Switch stands out for its durability, reliability, and versatility. With a high mechanical and electrical life, it ensures minimal maintenance and replacement costs, making it a cost-effective choice for long-term use. The integrated light indicator provides visual status confirmation, enhancing user experience and safety.
What Are the Key Features of This Switch?
Key features include a robust design with IP40, IP65, and IP67 protection levels, 2NO2NC contacts, and support for both 2-position and 3-position configurations. It is suitable for a wide range of applications, from control panels to machinery and automation systems.
How Does Our Factory Supplier Status Benefit You?
As a factory supplier, we offer competitive wholesale prices without compromising on quality. We ensure strict quality control measures throughout the manufacturing process, providing you with products that meet or exceed industry standards. Additionally, our comprehensive after-sales support includes technical assistance and warranty services, giving you peace of mind with your purchase.
