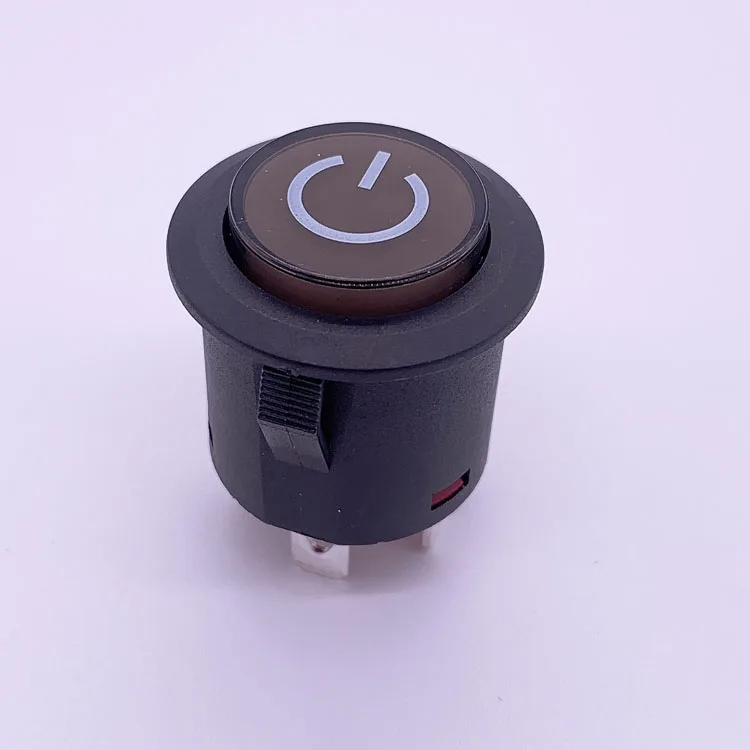

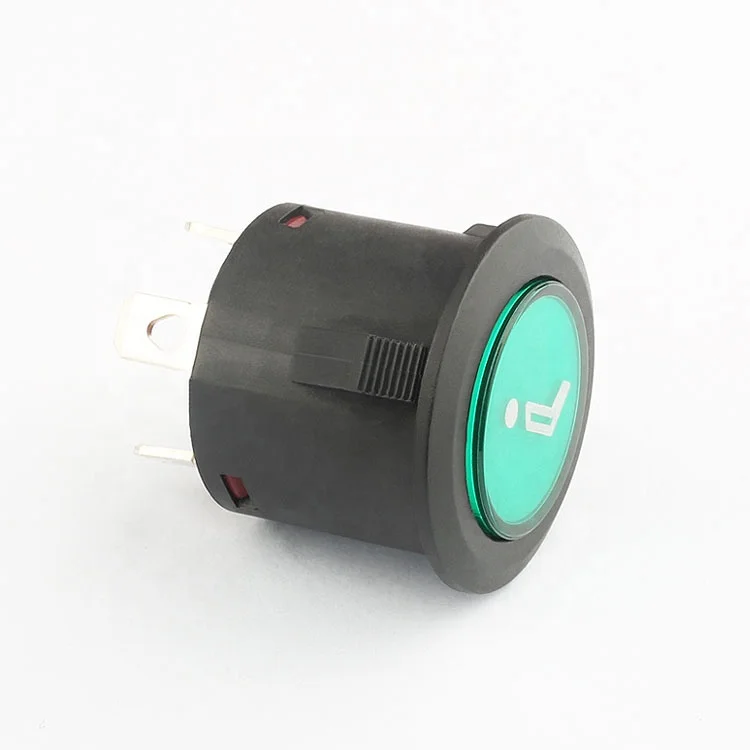

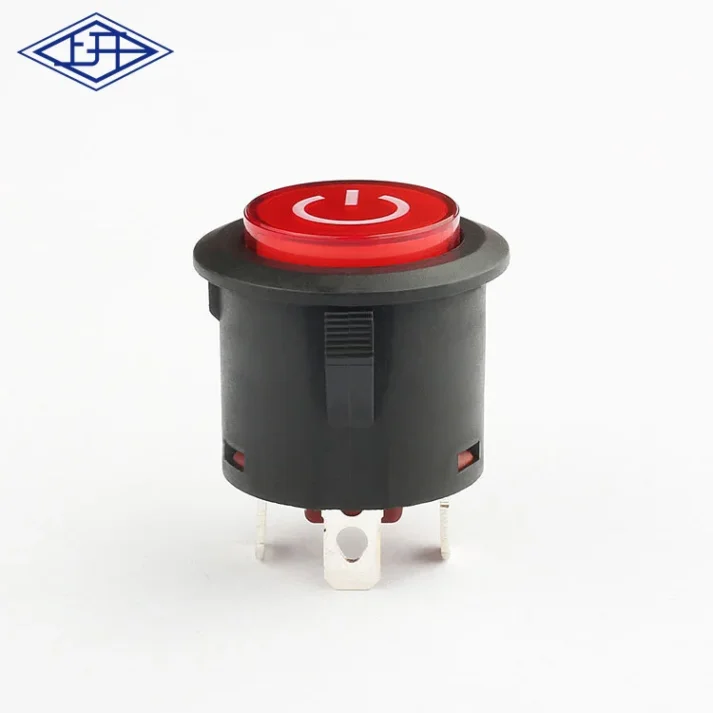

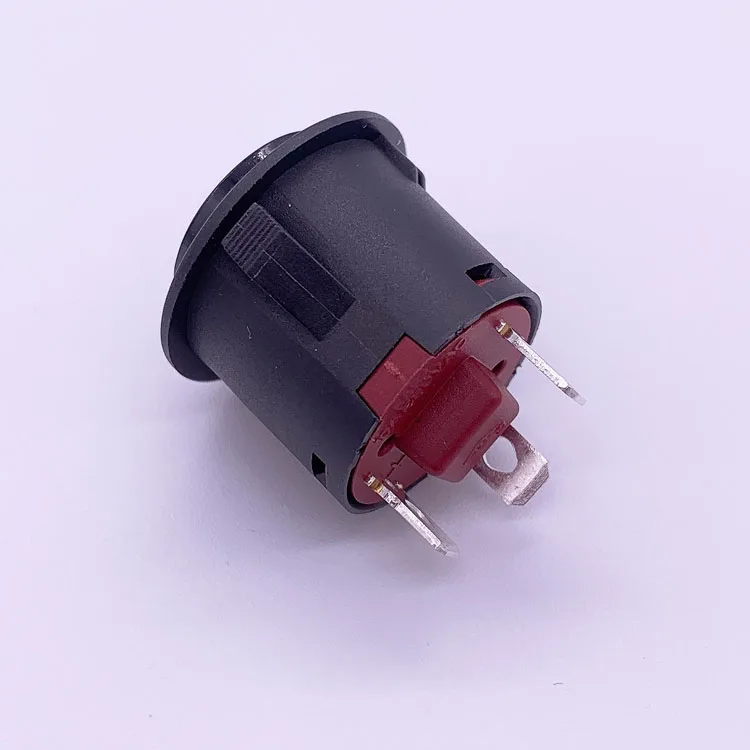

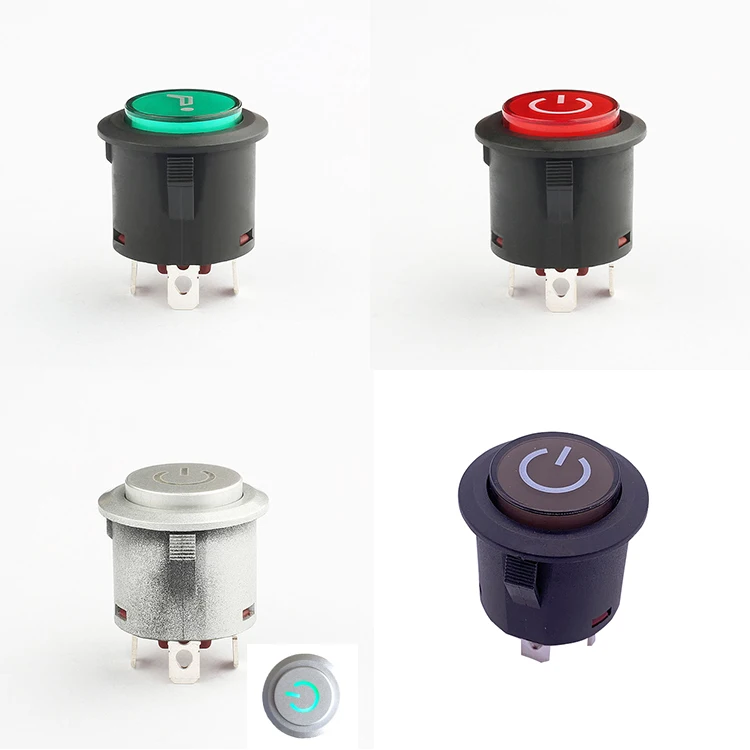

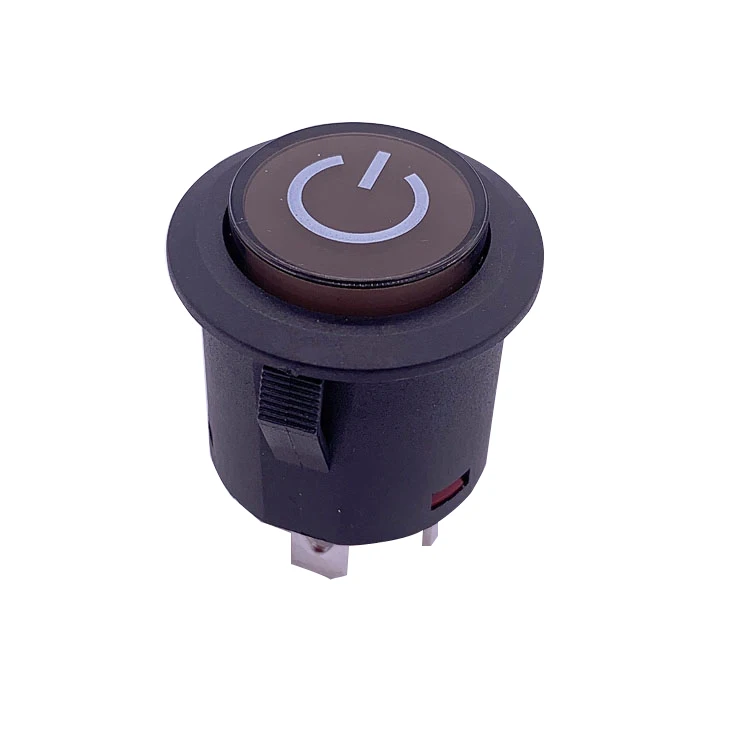

22mm Wholesale Factory Push Button Switch 12V LED 16A 250VAC IP40

As a direct factory supplier, we offer this high-quality 22mm Single Pole Momentary Push Button Switch with 12V LED illumination. Designed for a wide range of applications including electric, home appliances, and industrial control, this switch stands out with its robust features. It boasts a maximum current of 16A and a maximum voltage of 250VAC, making it suitable for various demanding environments. The switch is constructed with durable plastic material, ensuring longevity and reliability. Its round head design and pin terminal type offer easy installation and compatibility. With a contact resistance of ≤50mΩ and an insulation resistance of ≥100MΩ, this switch guarantees efficient and safe operation. The dielectric strength of 1500V ensures protection against electrical surges. The operating temperature range of -25℃ to +85℃ makes it suitable for extreme conditions. The ring illuminated LED provides clear visibility, even in low-light environments. With a mechanical life of 20,000 cycles and an electrical life of 10,000 cycles, this switch offers exceptional durability. Our factory-direct pricing and wholesale availability make it a cost-effective choice for bulk purchases.
