Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD1-11N-CA5C-B-G-01-DC24
|
|
Current Rating
|
16A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50,000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
A5 27.7×10.7mm
|
|
Contact Piece Code
|
C 6.3X0.8X9.5mm standard
|
|
Lamp voltage
|
DC24V green led light
|

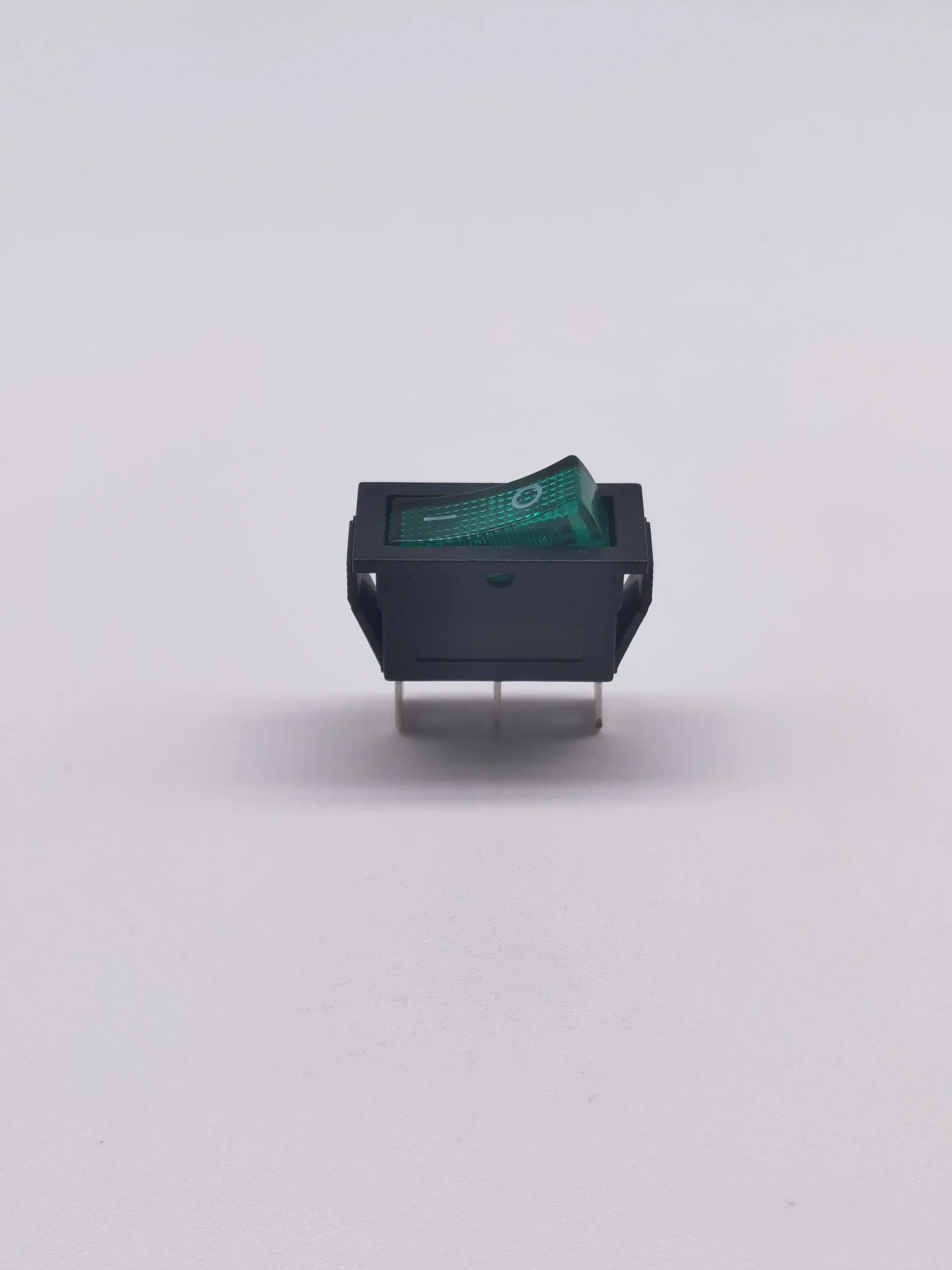

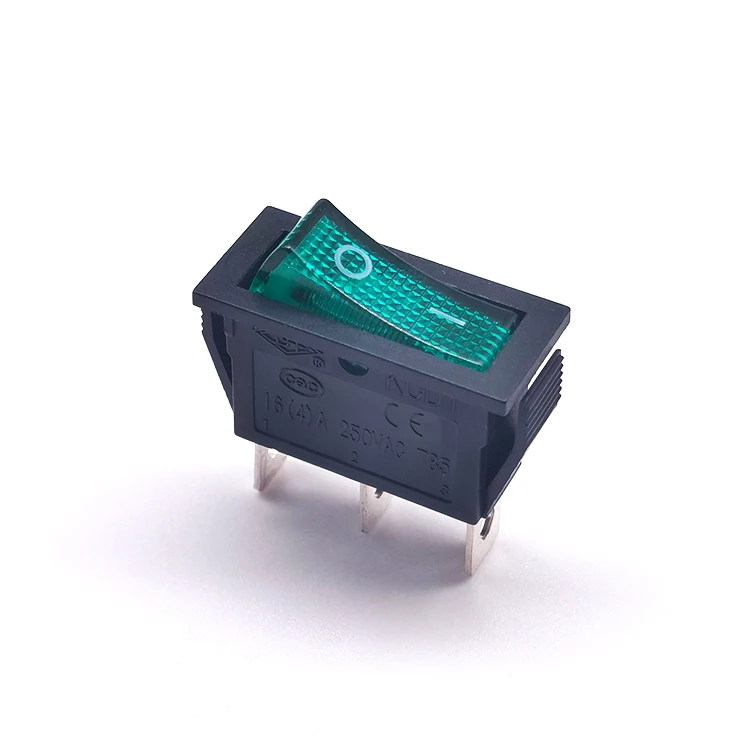

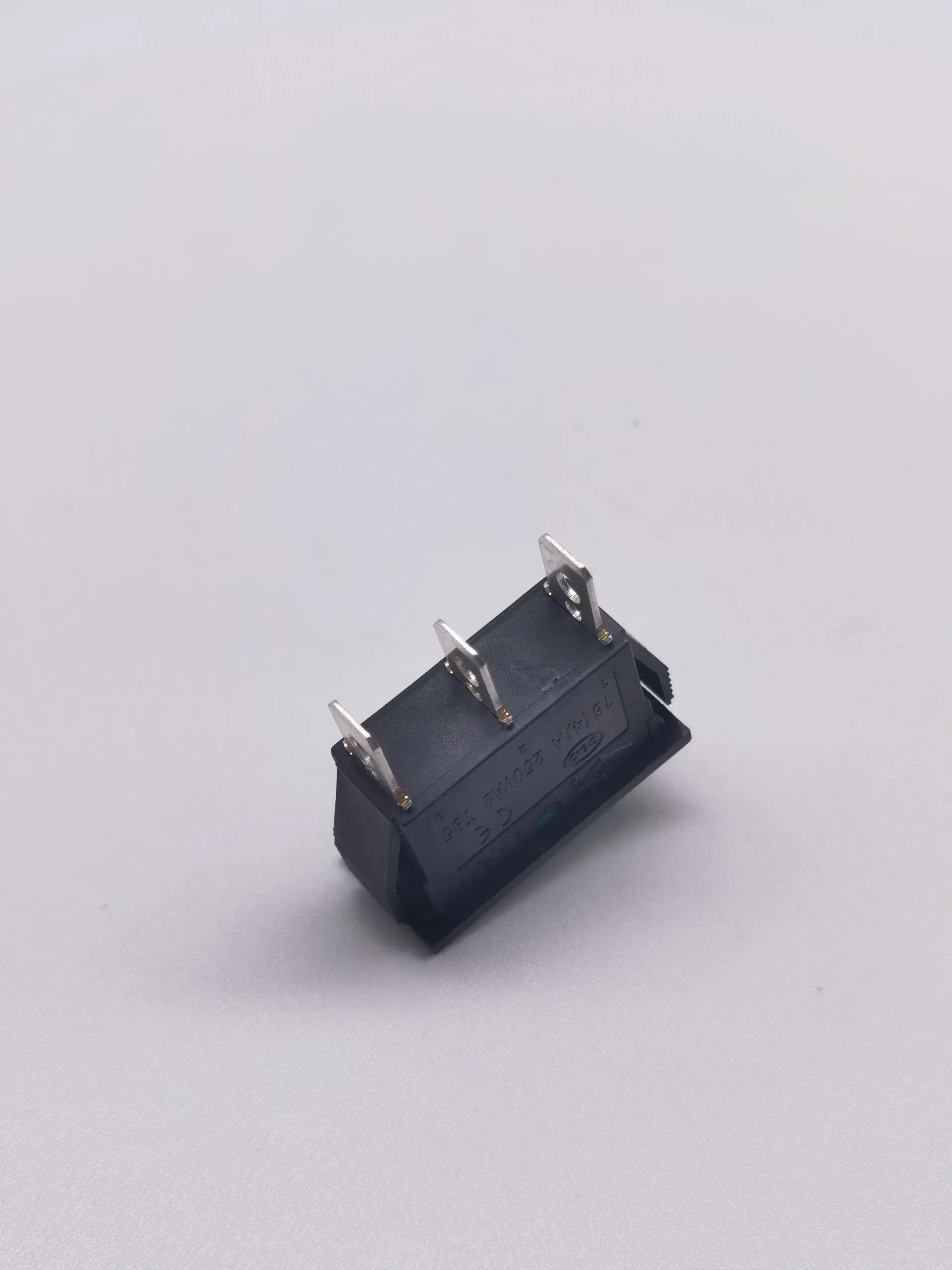

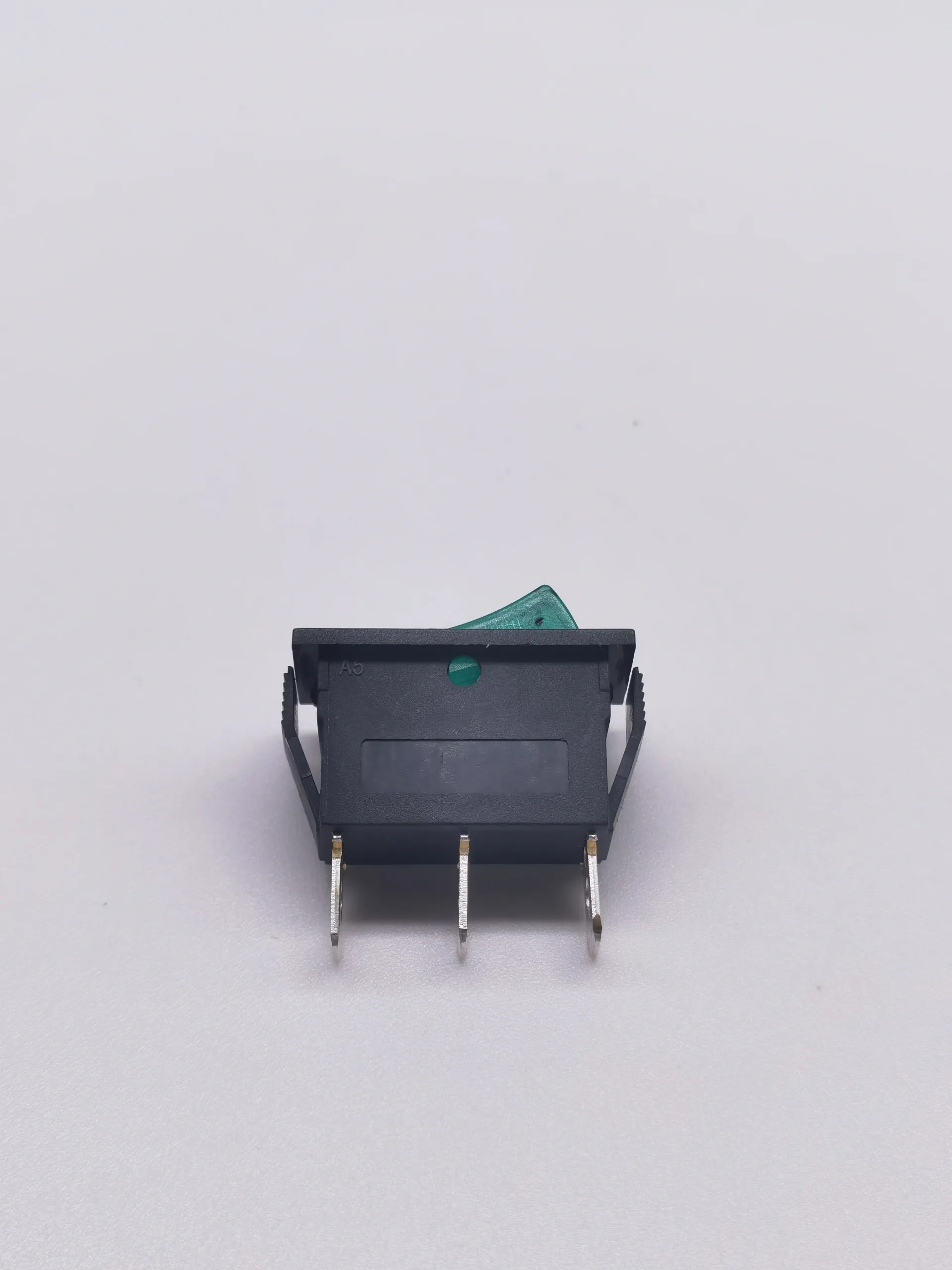

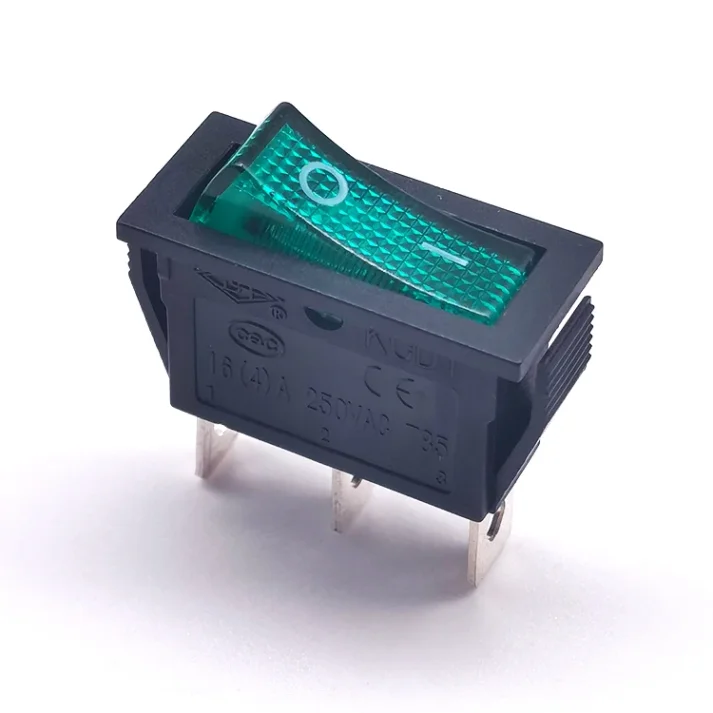

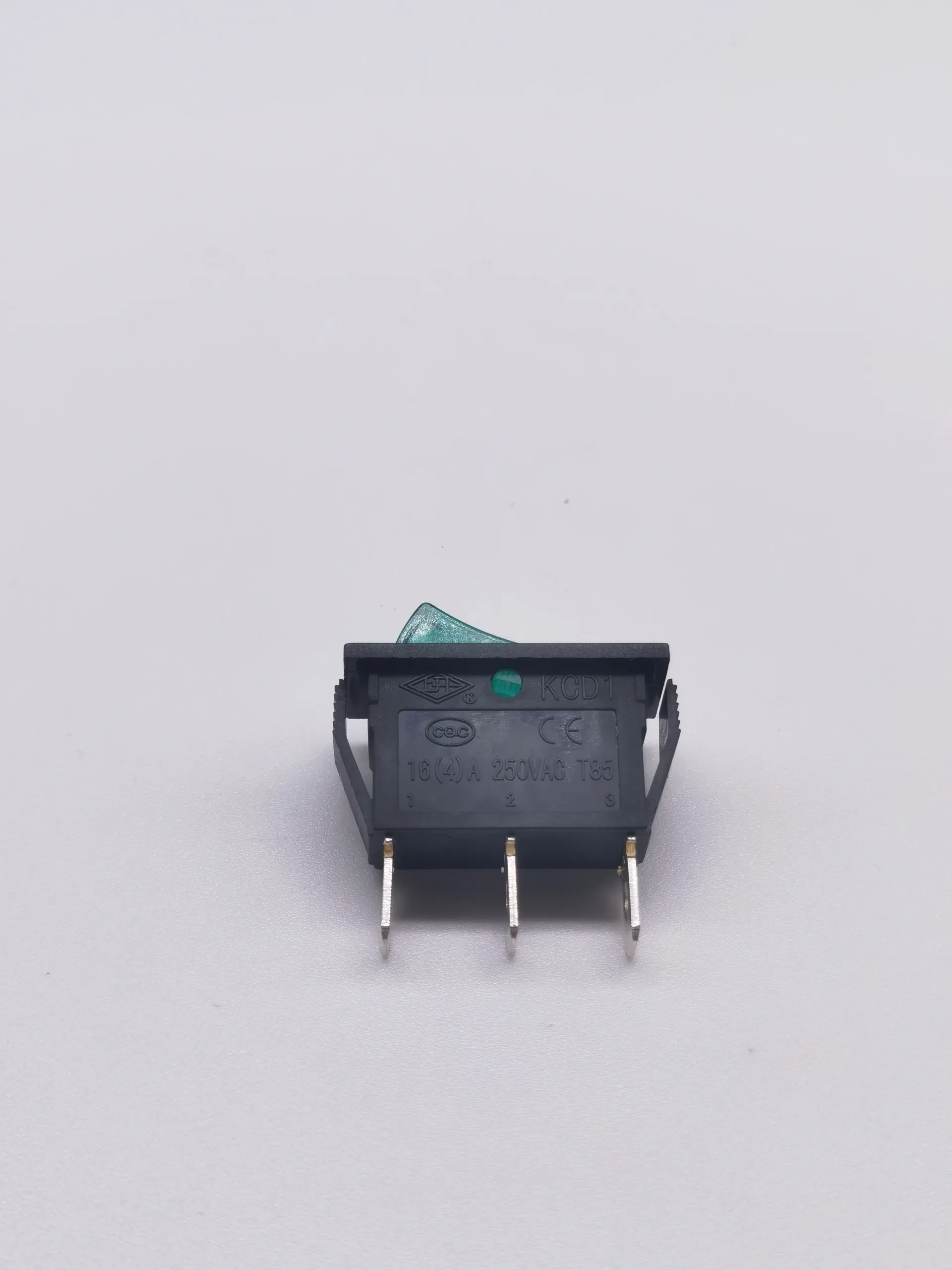

Why Choose Our 24VDC Green LED Rocker Switch?
Our 24VDC Green LED Rocker Switch stands out with its high current rating of 16A and voltage rating of 250V AC, making it suitable for a wide range of applications. The green LED light provides clear status indication, enhancing user convenience. With a long mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, our switch offers exceptional durability and reliability. Additionally, its low contact resistance and high insulation resistance ensure optimal performance.
What Are the Advantages of Buying from Our Factory?
As a direct supplier and factory, we offer wholesale prices on our 24VDC Green LED Rocker Switch, allowing you to save money without compromising on quality. Our product is certified by multiple international standards, guaranteeing its safety and compliance. With fast shipping and excellent customer service, we strive to provide a seamless buying experience.
How Can Our Rocker Switch Benefit Your Business?
Our 24VDC Green LED Rocker Switch is ideal for businesses looking for a reliable and cost-effective switching solution. Its high-quality construction and long lifespan make it a great investment for industrial applications, home appliances, automotive use, and more. By choosing our factory-direct wholesale supplier, you can ensure a steady supply of this exceptional product at competitive prices.
