Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1C-R-R-01
|
|
Current Rating
|
10(3)A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 ( 21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Switch Function
|
On Off
|

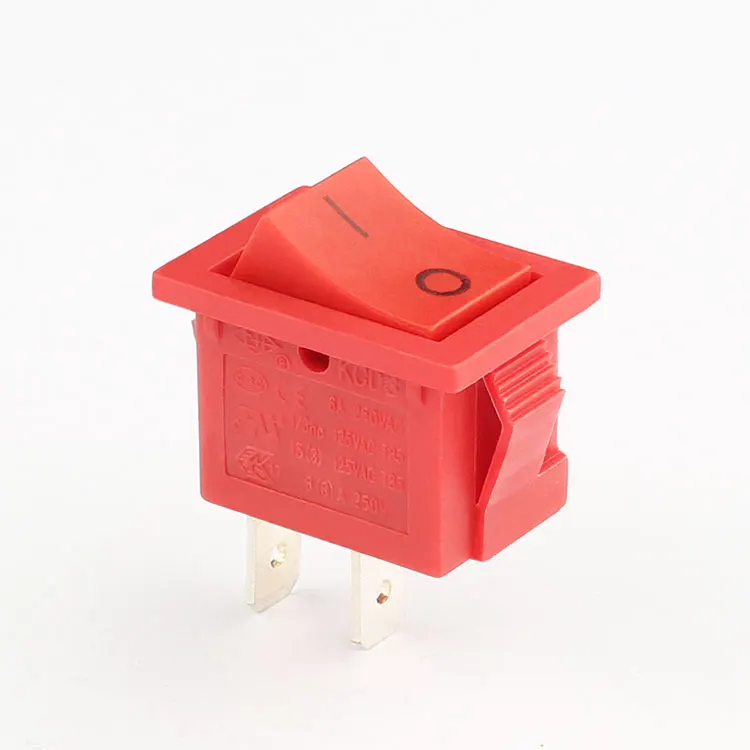

Why Choose Our T105 SPST Red Rocker Switch?
Our T105 SPST Red Rocker Switch stands out with its high current and voltage ratings, ensuring reliable performance in demanding applications. With a long mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it offers durability and longevity that other switches can't match. The low contact resistance and high insulation resistance guarantee efficient electrical conduction and safety. As a factory direct supplier, we offer competitive pricing and excellent customer service, making it the ideal choice for wholesalers and end-users alike.
Key Features and Benefits
The switch's compact design and multiple actuator color options make it versatile and easy to integrate into various projects. Its CB ENEC17 ROHS certification ensures compliance with international safety standards, giving you peace of mind. Choose our T105 SPST Red Rocker Switch for its superior quality, reliability, and value, and experience the difference in performance and service.
Applications and Suitability
This switch is perfect for electrical control applications, panel mounting, and boat equipment. Its robust construction and high ratings make it suitable for use in harsh environments, ensuring reliable operation under various conditions. Whether you're a wholesaler looking for a reliable supplier or an end-user seeking a high-quality switch, our T105 SPST Red Rocker Switch is the ideal choice.
