Description
contact resistance
|
≤50MΩ
|
operating temperature
|
T55 T85 T105
|
insulation resistance
|
≥1000MΩ
|
electronic life(cycles)
|
10000
|
dielectric strength
|
1500V AC 1min
|
max.rating current &voltage
|
2A 250V AC
|

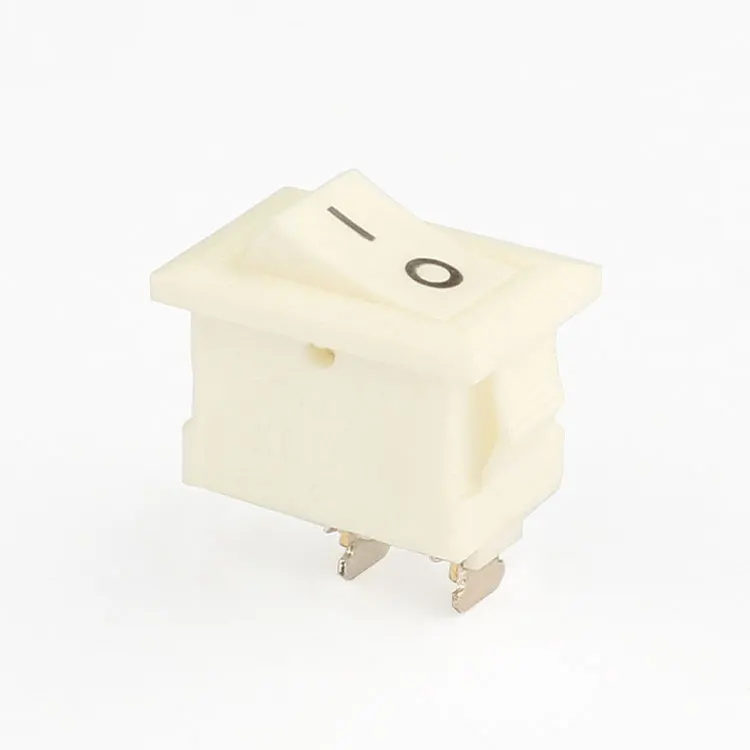

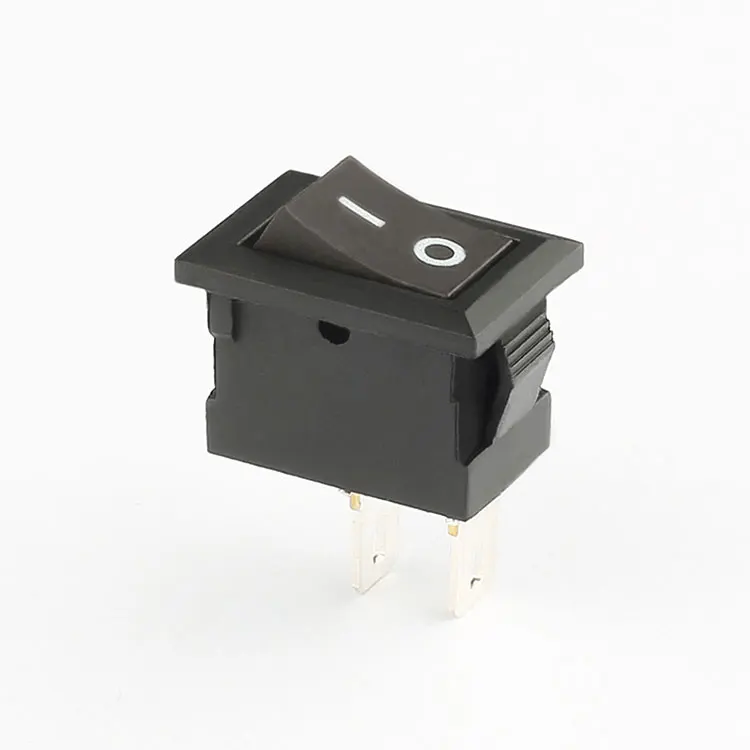

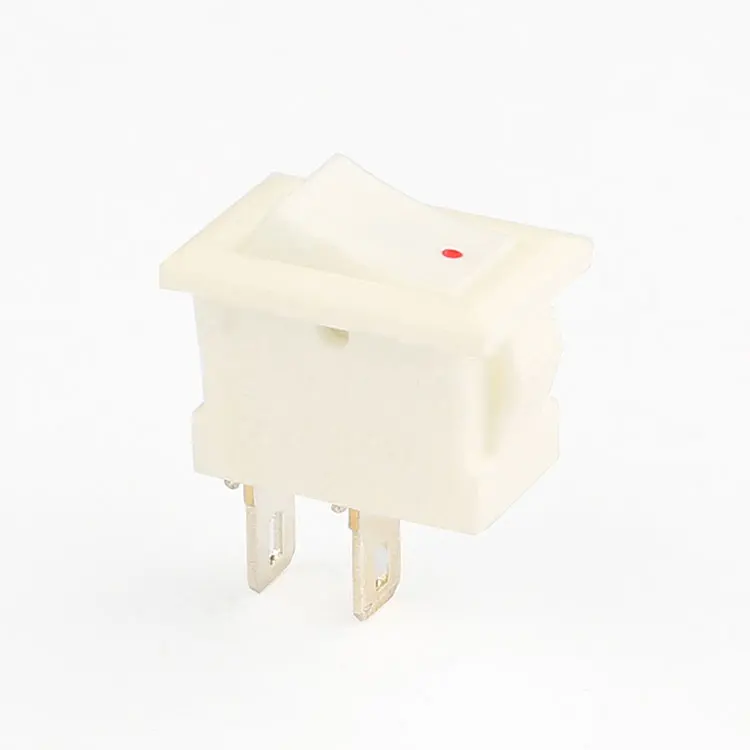

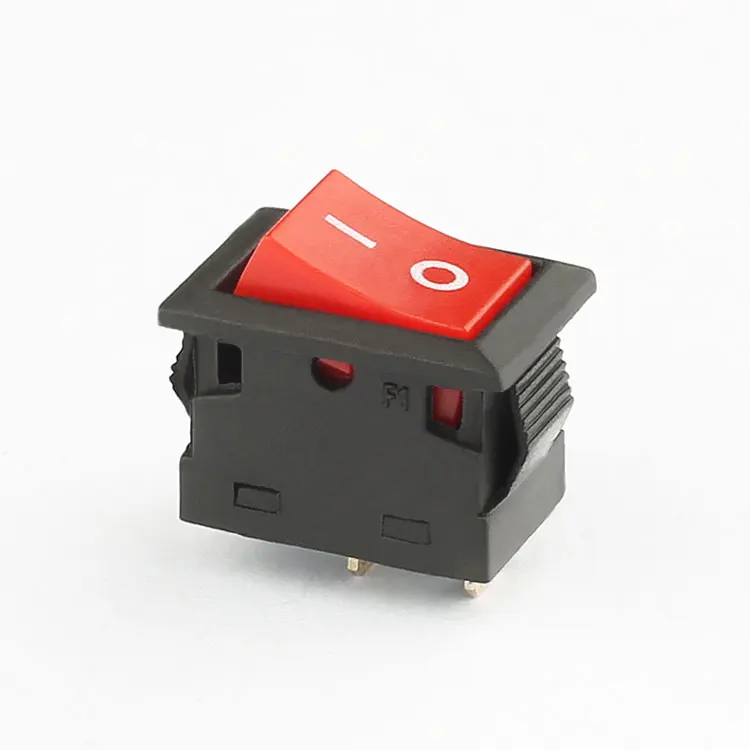

Why Choose Our 2A 250V AC Rocker Switch?
Our Rocker Switch stands out due to its high-grade plastic construction, ensuring durability and reliability in various applications. With a maximum current rating of 2A and a voltage rating of 250V AC, it's perfect for industrial use, cars, marine applications, and more. Its long mechanical life of 100,000 times and excellent insulation resistance guarantee safety and efficiency.
What Are the Key Features?
Key features include an ON-OFF action, pin termination type for easy installation, and multiple color options to match your design needs. Additionally, it offers a dielectric strength of 1500VAC for 1 minute, providing an extra layer of safety.
Why Buy from Us?
As a factory supplier, we offer competitive wholesale pricing without compromising on quality. Benefit from our direct-from-factory pricing, excellent after-sales service, and the assurance of a high-performance, cost-effective solution for your switching needs.
