2NO2NC Momentary Latching Push Button Switch with LED – Wholesale from Factory

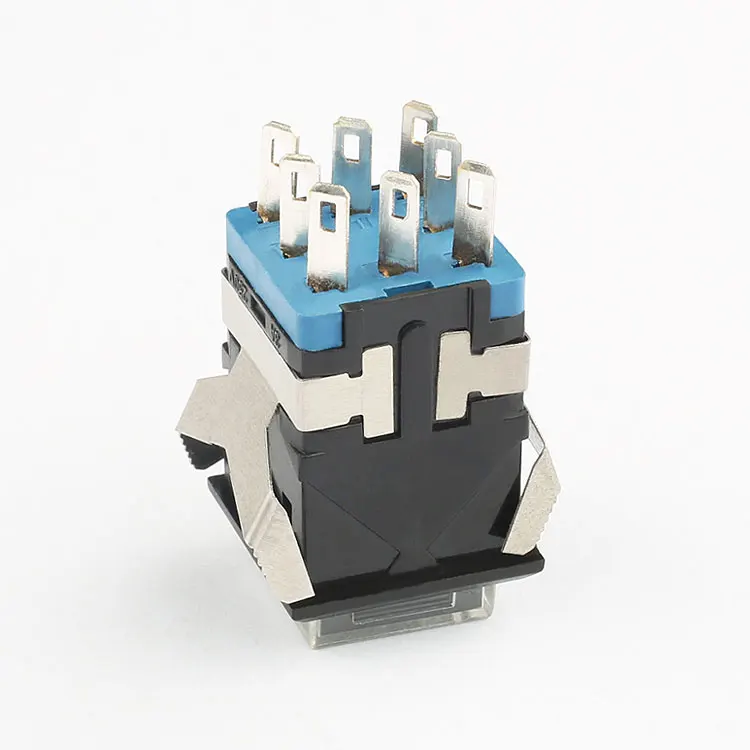

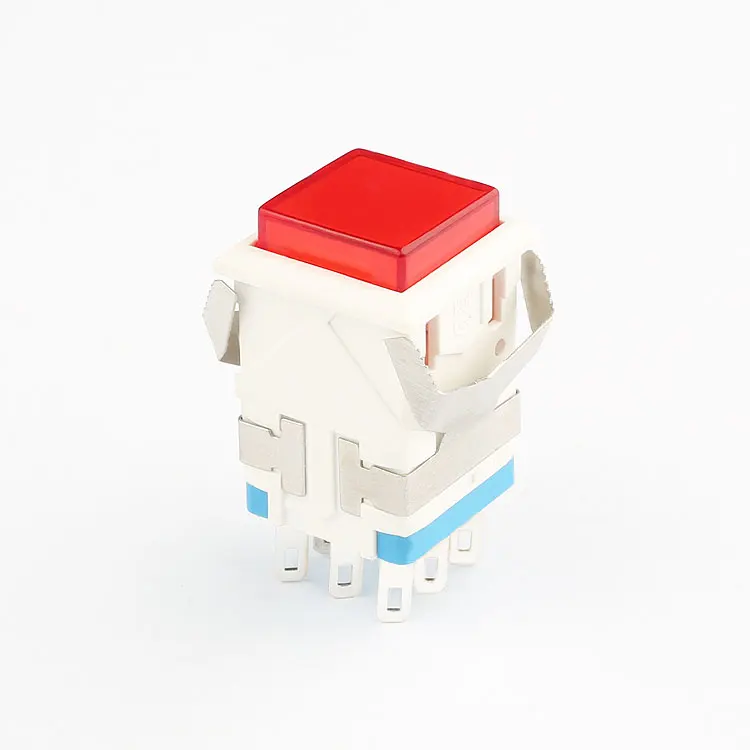

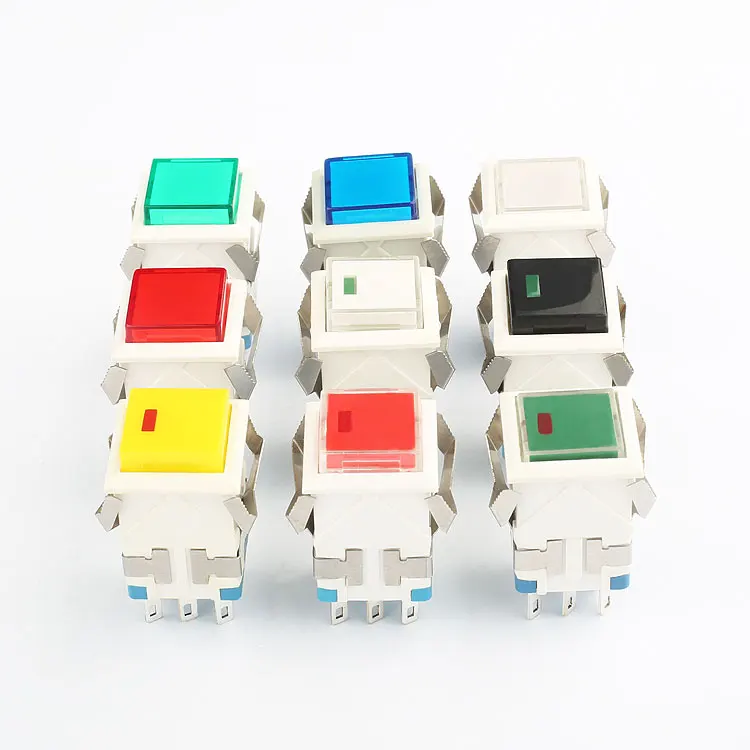

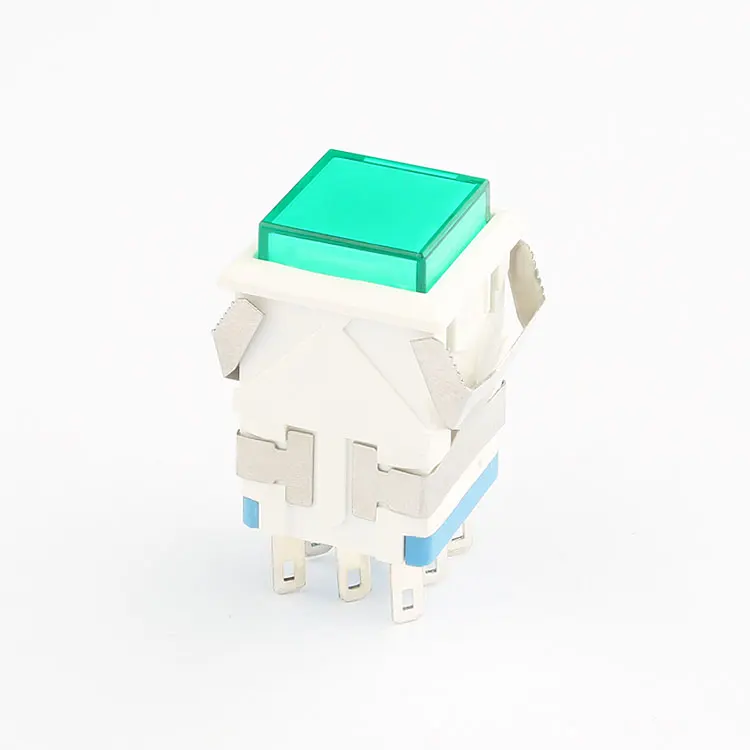

Introducing our high-quality 2NO2NC Momentary Latching Push Button Switch with LED, proudly manufactured and supplied directly from our factory in Shanghai, China. This compact and durable switch, model KD2-A21L, is designed to meet the demands of various industrial and commercial applications. With a maximum rating of 3A at 250V AC, it ensures reliable performance and safety. The switch features a low contact resistance of ≤50mΩ and high insulation resistance of ≥100mΩ, guaranteeing efficient electrical conductivity and minimizing power loss. Its dielectric strength of 1500V provides excellent protection against electrical surges, while the IP40 protection level ensures dust resistance. The built-in LED lamp, operating at 24V with a current of ≤15mA, offers clear visual indication of the switch status. Our switch boasts a long electrical life of 10,000 cycles and an impressive mechanical life of 50,000 cycles, making it a cost-effective choice for long-term use. The operating temperature range of -25℃ to +55℃ allows for versatile use in different environments. Certified by CQC and CE, our product meets international quality standards. As a factory direct supplier, we offer competitive wholesale prices and excellent after-sales service, ensuring your satisfaction. Choose our switch for its reliability, durability, and value for money.
