4A 250V Refrigerator Door Switch | Wholesale Supplier Factory

>= 1,000  pieces
$0.35

0 reviews

Wholesale Refrigerator Door Switch | Direct Factory Supplier

Description

As a direct factory supplier, we offer a high-quality 4A 250V refrigerator door switch, model KBM. This switch is designed for refrigerators, featuring a 1NO1NC switch combination for versatile use. With a maximum current of 4A and a maximum voltage of 250V, it ensures reliable performance. The switch operates within a temperature range of -25℃ to +55℃, making it suitable for various environments. Our product boasts an electronic life of 10,000 cycles and a mechanical life of 50,000 cycles, ensuring longevity. The white color and IP41 protection level add to its durability and safety. Additionally, it has a dielectric strength of 1000V, contact resistance of 50mΩ Max, and insulation resistance of 100MΩ Min. We provide excellent after-sales service and support wholesale orders, making it an ideal choice for bulk buyers.

Yongxing factory 4a 250v normally open normally closed refrigerator door switch of refrigerator

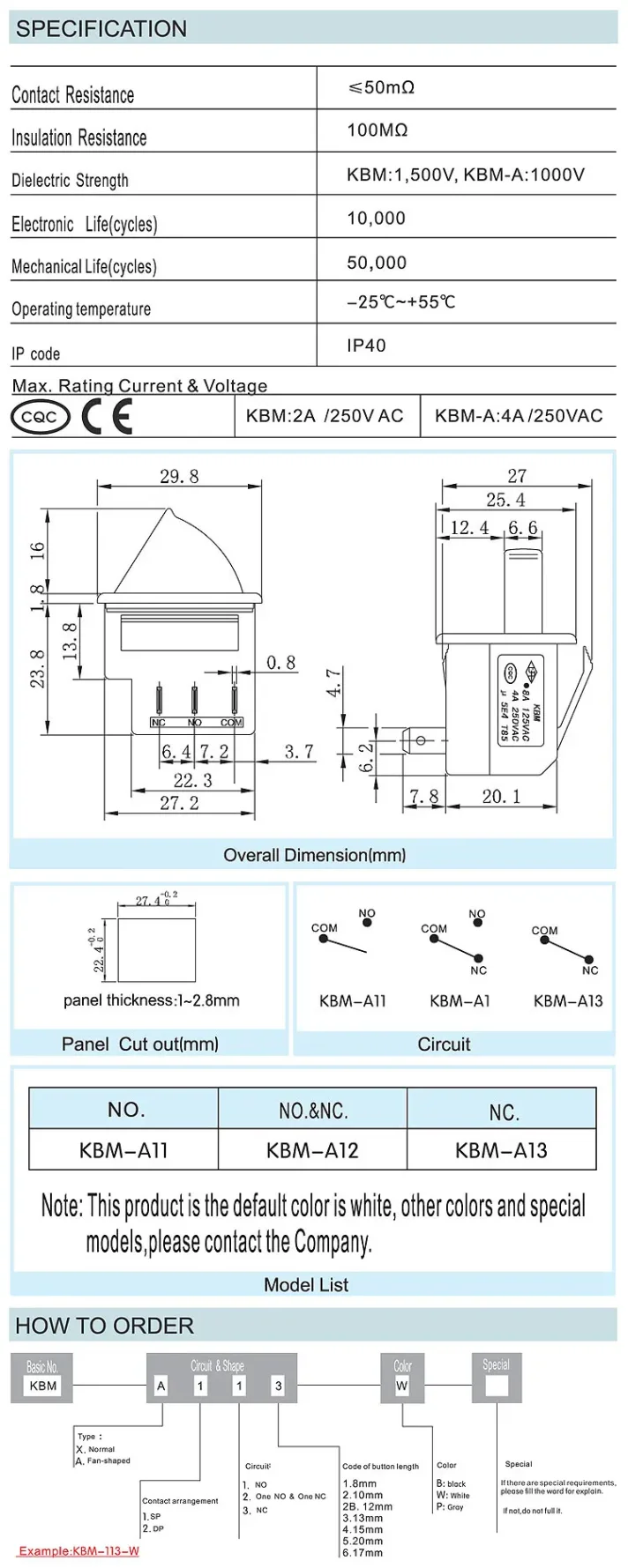

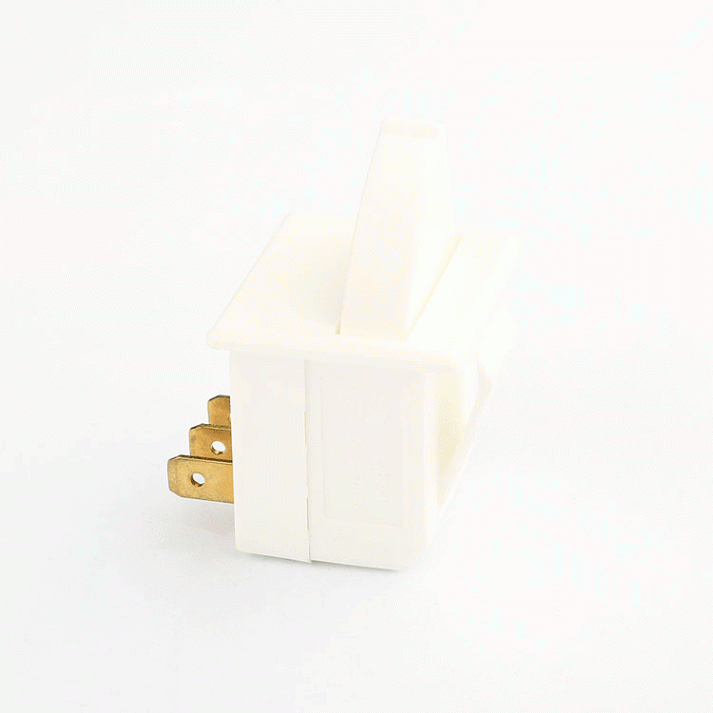

Electronic component in motion, highlighting its featuresElectronic device display, showing detailed specifications


Why Choose Our Refrigerator Door Switch?

Our refrigerator door switch is designed for reliability and durability, with a 4A 250V rating that ensures it can handle the demands of daily use. The 1NO1NC switch combination provides flexibility, allowing it to be used in a variety of applications. With a long electronic and mechanical life, this switch will save you money in the long run by reducing the need for frequent replacements.

What Makes Our Product Stand Out?

As a factory supplier, we offer competitive pricing and the ability to purchase in bulk. The switch's IP41 protection level and high dielectric strength make it safe and reliable, even in harsh environments. Additionally, our excellent after-sales service ensures that you're supported every step of the way.

How Does It Benefit Your Business?

By choosing our refrigerator door switch, you're getting a high-quality product at a great price. The switch's versatility and reliability make it an ideal choice for refrigerator manufacturers and repair services. With our wholesale options, you can stock up on this essential component and keep your operations running smoothly.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

4A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

SK

Model Number

KBM refrigerator door switch

LED

Other

Whether the smart

NO

IP level

IP41

Switch Combination

1NO1NC, 1NO

Operating temperature

-25℃~+55℃(-13℉~+131℉)

Electronic life

10000

Mechanical life

50000

Color

White

Dielectric Strength

1000V

Contact Resistance

50m Max

Insulation Resistance

100M Min

Protection Level

IP40
