Description

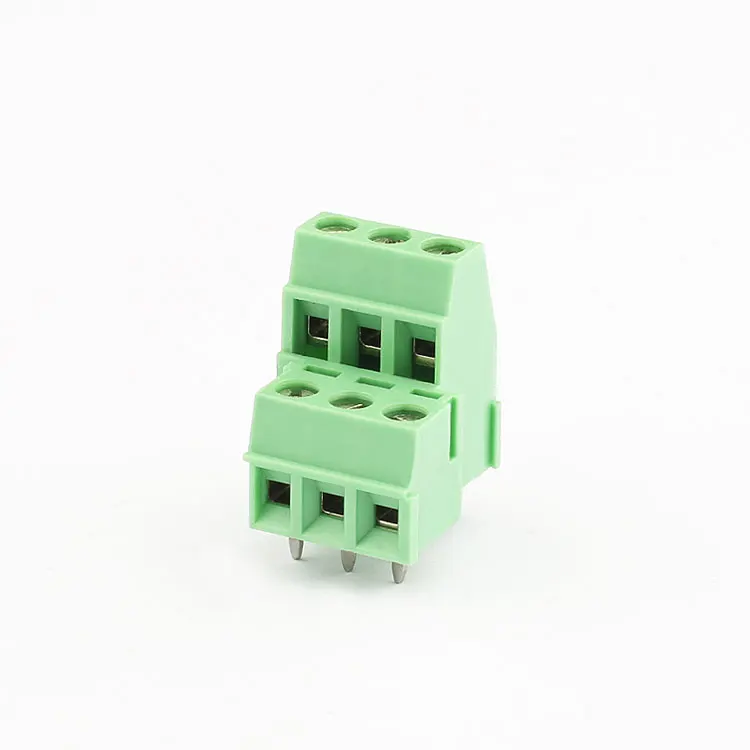

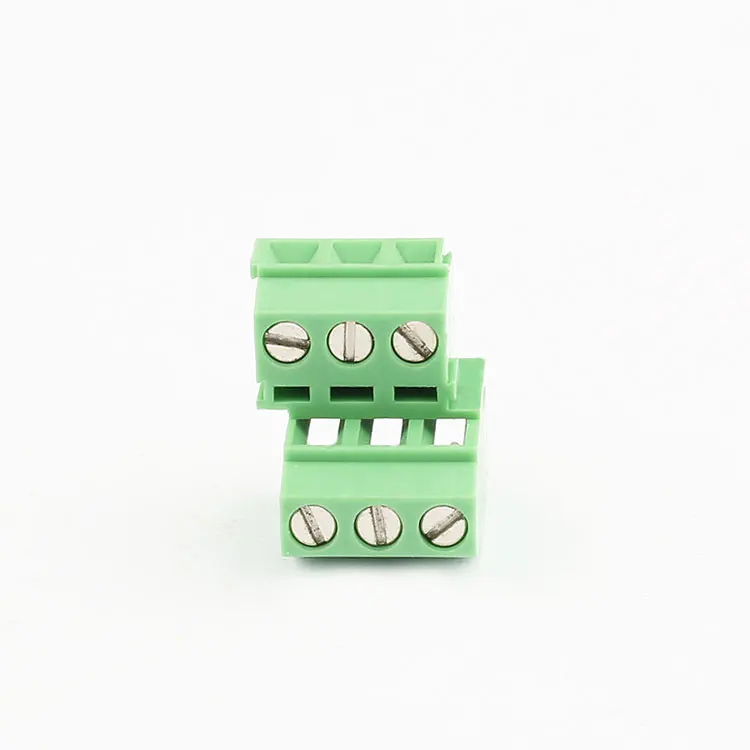

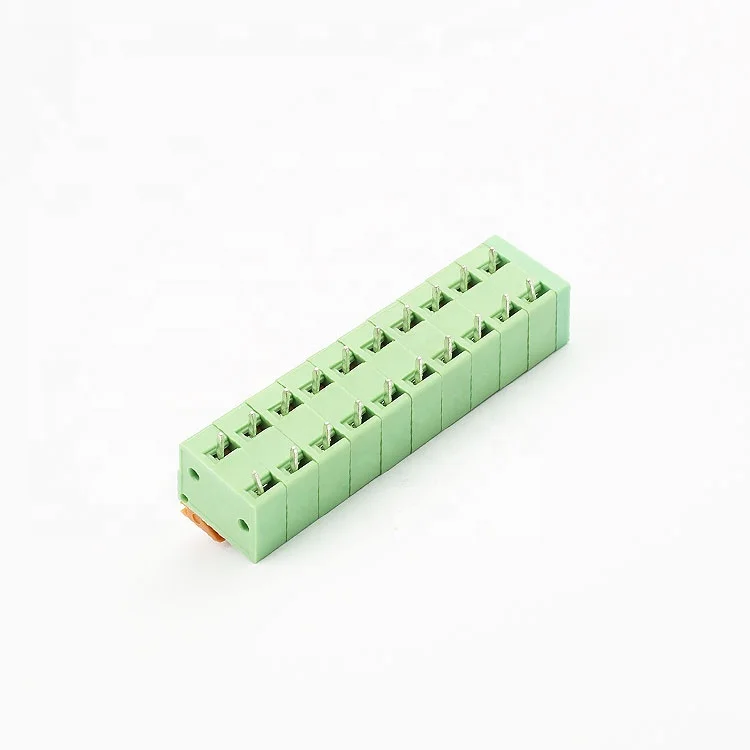

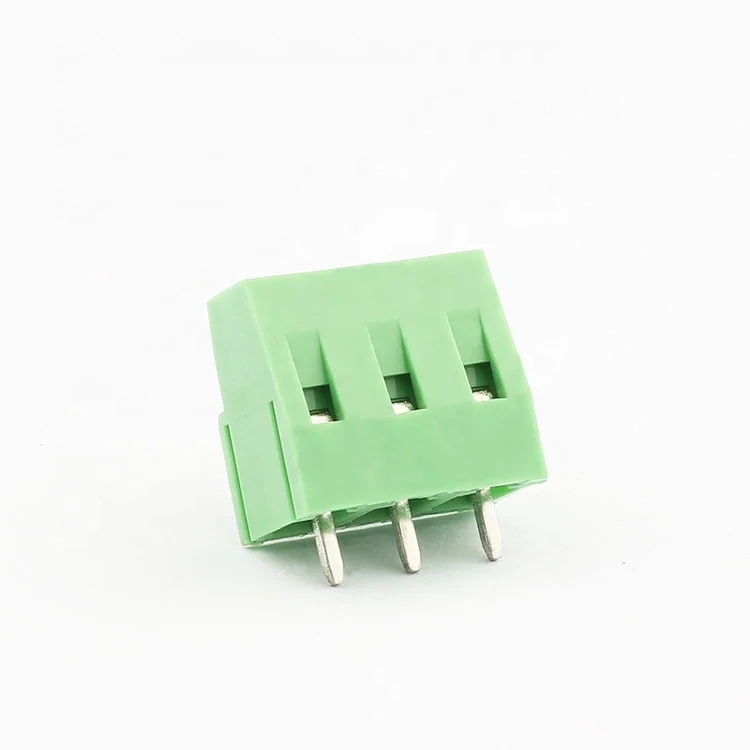

High-Quality 5.00mm PCB Welding Terminal Connector from Factory Supplier
Our 5.00mm PCB welding terminal connector is a top-selling product, ideal for various electronic applications. As a factory supplier, we offer wholesale pricing and customization options to meet your specific needs. With our independent plant, injection workshop, and advanced experimental equipment, we ensure high-quality production and strict management standards (5S and 5m).
Product Specifications:
- Place of Origin: Shanghai, China
- Brand Name: Yongxing
- Model Number: YB
- Number of Contacts: 1 – 10
- Type: Plug-in
- Material: Plastic terminal block
- Color: Green (also available in orange, blue, black, red)
- Poles: 2-24 poles
- Operation Temperature: -40℃~+150℃
- Certificate: CQC, UL, RoHS
- Rated Voltage: 300V
- Rated Current: 12A
- Housing: PA66.UL94V-0
- Contact Resistance: 20mΩ
Product Advantages:
Our terminal connectors stand out in the market due to their high durability, excellent electrical performance, and wide range of color options. The use of PA66.UL94V-0 housing ensures fire resistance and safety. Additionally, our ability to customize the terminal block according to your requirements sets us apart from competitors.
After-Sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage. As a factory supplier, we are committed to ensuring your satisfaction and building long-term relationships with our customers.
|
flange
|
no
|
||
|
cage clamp material
|
iron or copper
|
||
|
pitch
|
508mm
|
||
|
NO. of pole
|
3 poles
|
||
|
color
|
green (orange, blue,black,red)
|
||
|
certifacates
|
UL, CQC,RoHS
|
Why Choose Our 5.00mm PCB Welding Terminal Connector?
Our 5.00mm PCB welding terminal connector offers superior electrical performance and durability, making it ideal for various electronic applications. The use of high-quality materials, such as PA66.UL94V-0 housing, ensures fire resistance and safety, providing peace of mind for your projects.
Customization Options
As a factory supplier, we understand that every project has unique requirements. That's why we offer customization options, allowing you to tailor the terminal connector to your specific needs. Whether it's the number of poles, color, or other specifications, we can develop the terminal block to meet your demands.
After-Sales Support
We pride ourselves on providing excellent after-sales service. Our technical support team is always available to assist you with any questions or issues you may have. Additionally, our warranty coverage ensures that you are protected against any defects or malfunctions, giving you confidence in your purchase.
