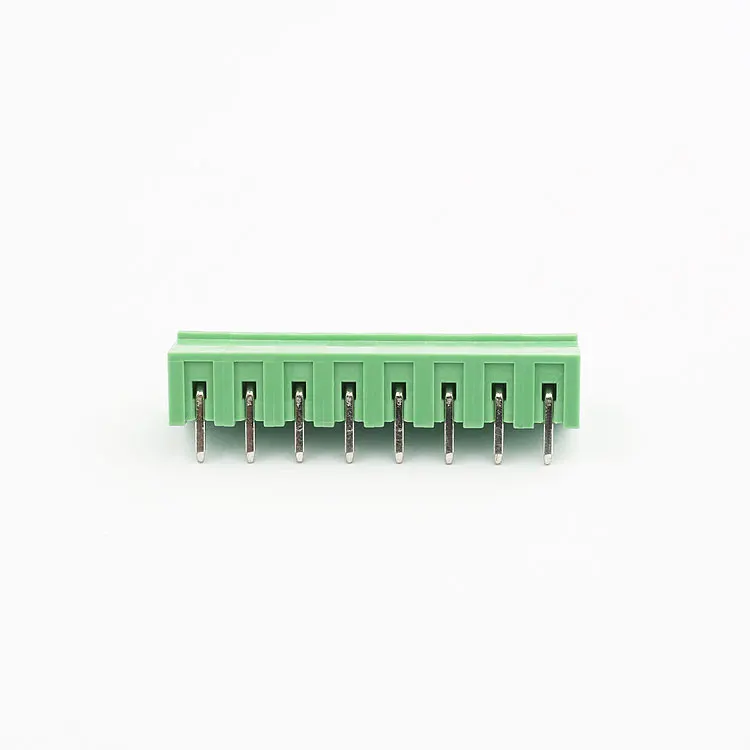

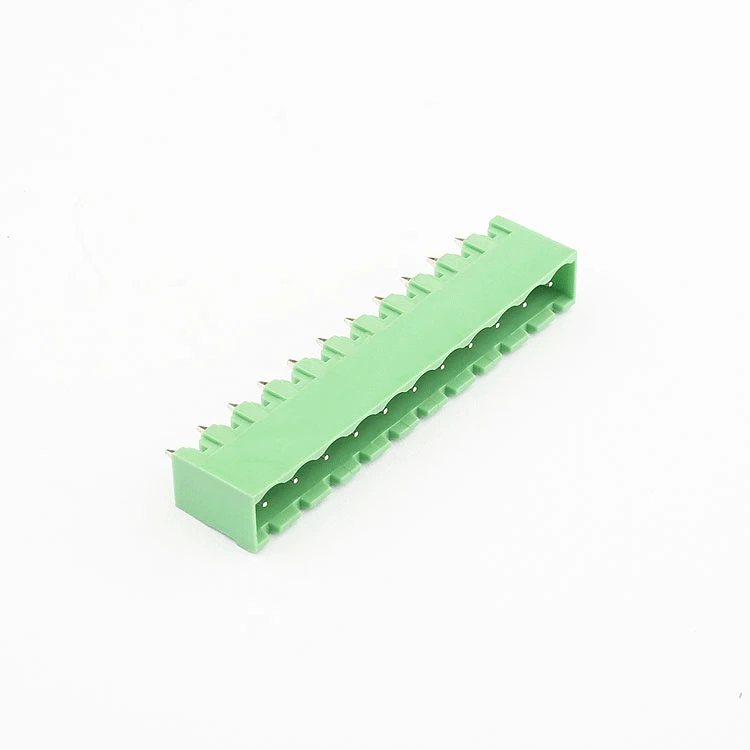

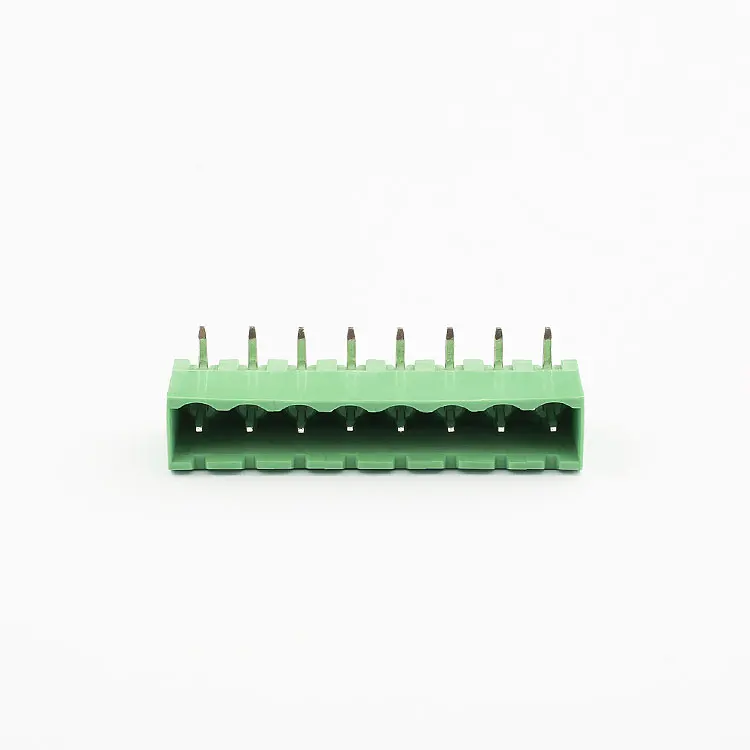

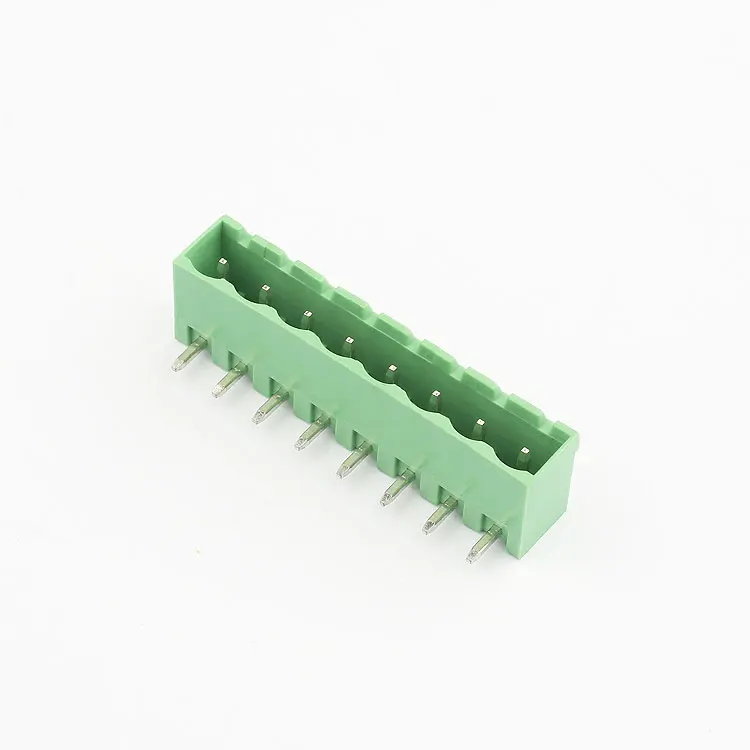

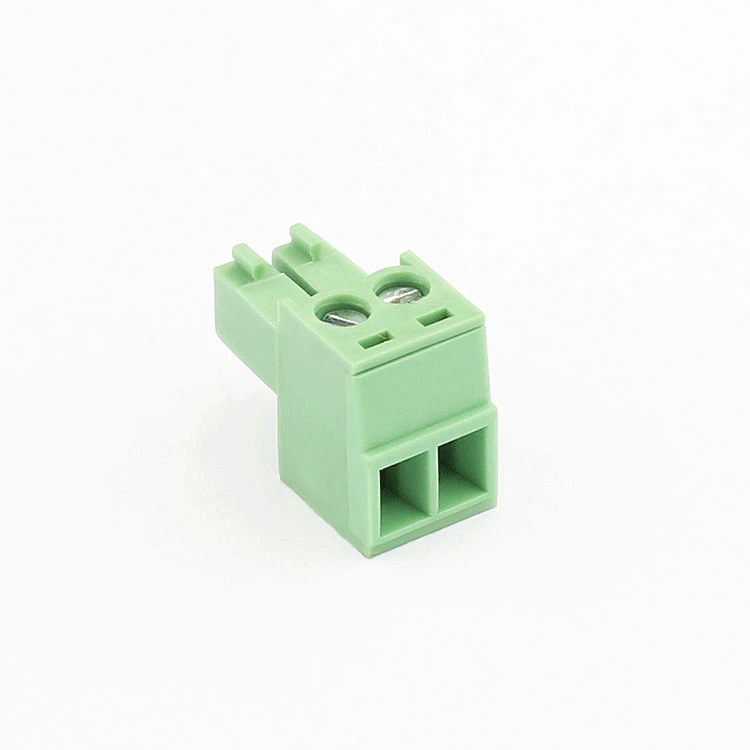

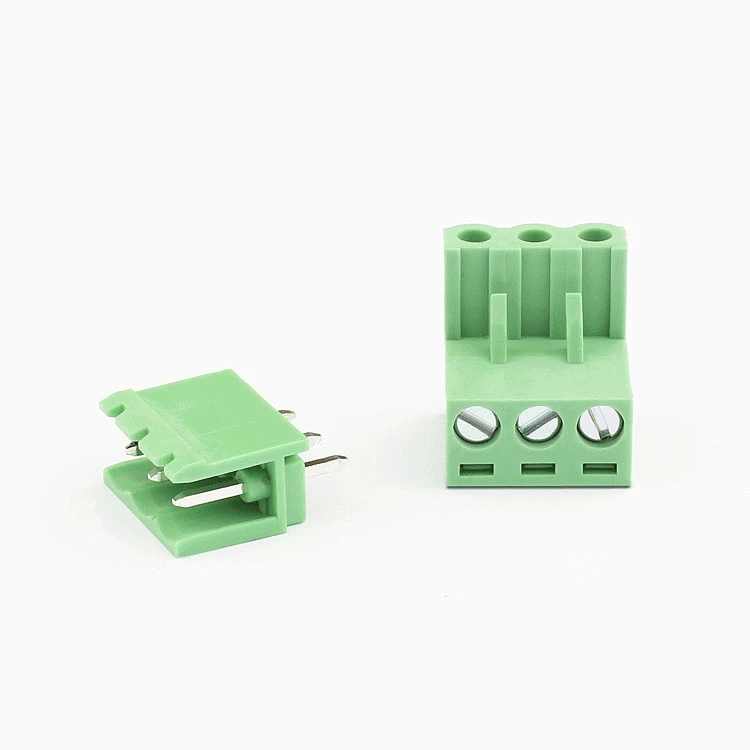

5.08mm Green Female Pluggable Terminal Block – Wholesale Supplier

200 - 4,999  pieces
$0.04

>= 5,000  pieces
$0.03

0 reviews

Wholesale 5.08mm Green Pluggable Terminal Blocks from Factory Supplier.

Description

Our 5.08mm Green Female Pluggable Terminal Block is a high-quality electrical connector designed for industrial and automotive applications. As a factory-direct supplier, we offer competitive wholesale prices on this versatile product. The terminal block features a pitch of 5.08mm, supports 2 to 24 poles, and is rated for 16A at 250V AC, making it suitable for a wide range of wire connecting tasks. It is made with tin-plated copper contacts for excellent conductivity and durability. The push-in connection method simplifies installation, while the insulation resistance of >5000MΩ DC500V ensures safety and reliability. With CQC and UL certifications, our terminal block meets the highest industry standards. Additionally, it comes in a variety of colors including red, yellow, green, black, white, blue, gray, and orange, allowing for easy identification and organization. Our terminal block stands out from competitors with its robust construction, high current and voltage ratings, and excellent contact resistance. We provide comprehensive after-sales support to ensure your satisfaction. Choose us as your trusted supplier for all your terminal block needs.

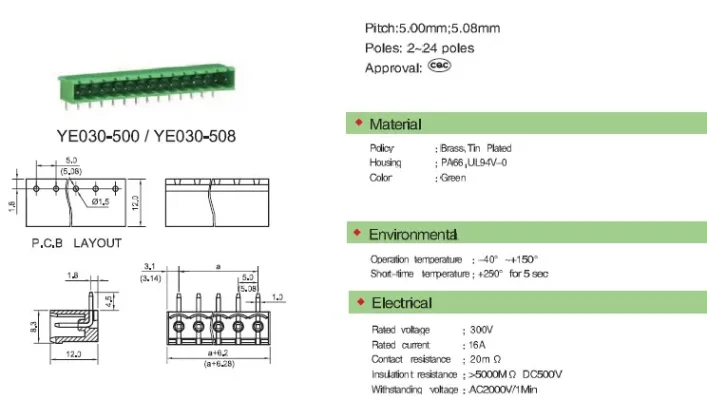

pitch
5.08mm
operation temperature
-40° ~ +150°
poles
2~24 poles
max.rating current & voltage
16A 250V AC
certificate
CQC UL
contact resistance
20MΩ

Electronic component product image for cross-border e-commerce


Why Choose Our 5.08mm Green Female Pluggable Terminal Block?

Our terminal block is designed with a 5.08mm pitch, supporting 2 to 24 poles, and rated for 16A at 250V AC, making it ideal for industrial and automotive wiring needs. The push-in connection method simplifies installation, while the tin-plated copper contacts ensure excellent conductivity and durability.

What Makes Our Terminal Block Stand Out?

Our product stands out with its high insulation resistance of >5000MΩ DC500V, CQC and UL certifications, and a variety of color options for easy identification. We offer factory-direct wholesale prices, ensuring you get the best value for your money.

How Can We Support Your Needs?

As a reliable supplier, we provide comprehensive after-sales support to ensure your satisfaction. Our terminal block is built to last, with robust construction and excellent contact resistance, making it a smart choice for all your wire connecting tasks.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai, China

Application

Industrial, Automotive, wire connecting, spring terminal block

Number of Pole

Other, 2, 4, 6, 1, 3, 5

Contact Material

tin-plated copper

Connection Method

push-in connection

Max continuous amp

16A

Brand Name

Yong Xing

Model Number

YE030-508

Number of Contacts

2-27

Conductor Size

11 – 20 AWG

Type

Plug-in

color

Red, Yellow ,Green, Black, White, Blue, Gray, Orange

current

16A

voltage

300V AC

pole

2-24

pitch

5.00mm 5.08mm

insulation resistance

>5000MΩ DC500V
