5.08mm Green PCB Flanged Terminal Block – Wholesale Supplier

Categories: , Tags: , ,
200 - 1,999  pieces
$0.17

2,000 - 4,999  pieces
$0.15

>= 5,000  pieces
$0.13
0 reviews

Wholesale 5.08mm Green PCB Flanged Terminal Block – Factory Supplier

Clean All

Description

Introducing our premium 5.08mm Green PCB Flanged Terminal Block, a top-tier choice for industrial and automotive applications. As a direct factory supplier, we offer wholesale pricing on this high-quality product. With a pitch of 5.08mm, it accommodates 2 to 24 poles, ensuring versatility for various wiring needs. The terminal block operates efficiently in temperatures ranging from -40°C to +150°C, with a maximum rating current of 16A and voltage of 300V AC. Certified by CQC and UL, it guarantees safety and reliability. Made with tin-plated copper contacts, it ensures excellent conductivity and longevity. Our product stands out with its insulation resistance exceeding 5000MΩ DC500V, providing superior electrical insulation. Choose us for competitive pricing, direct factory supply, and exceptional after-sales service.
pitch
5.08mm
operation temperature
-40° to +150°
poles
2~24 poles
max.rating current & voltage
16A 300V AC
certificate
CQC UL
contact resistance
20MΩ

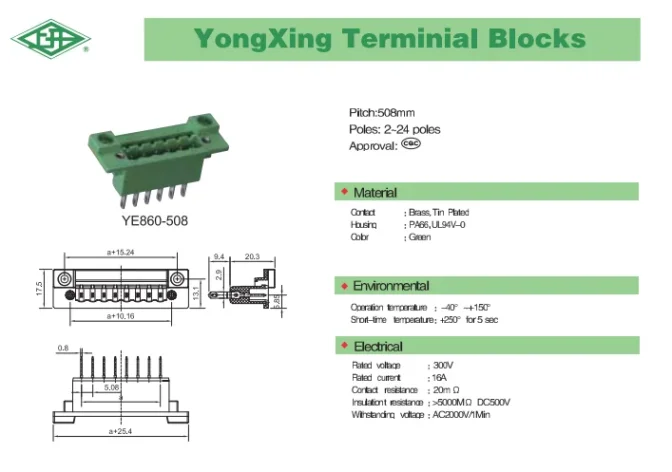

Electronic device accessory image for cross-border e-commerce


Key Features and Advantages

Our 5.08mm Green PCB Flanged Terminal Block offers high conductivity with tin-plated copper contacts, ensuring efficient electrical connections. It boasts excellent insulation resistance, exceeding 5000MΩ DC500V, providing enhanced safety and reliability. The versatile design accommodates 2 to 24 poles, making it suitable for a wide range of applications.

Why Choose Our Product?

As a direct factory supplier, we offer competitive wholesale pricing without compromising on quality. Our terminal block is certified by CQC and UL, meeting international safety standards. With a wide operating temperature range and robust construction, it ensures long-lasting performance in demanding environments.

Applications and Suitability

Ideal for industrial wiring and automotive applications, our terminal block simplifies wire connecting processes. Its spring-loaded design ensures secure connections, reducing the risk of loose or faulty wiring. Whether you're an OEM or a distributor, our product offers a reliable solution for your electrical connection needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai, China
Application

Industrial, Automotive, spring terminal block, wire connecting
Number of Pole

Other, 2, 4, 6, 1, 3, 5
Contact Material

tin-plated copper
Connection Method

push-in connection
Max continuous amp

16A
Brand Name

Yong Xing
Model Number

YE860-508
Number of Contacts

2-27
Conductor Size

11 – 20 AWG
Type

PCB
color

green
Certification

CQC UL
current

16A
voltage

300V AC
pole

2-16poles
pitch

3.5mm,3.81mm5.00mm 5.08mm 10.00mm
insulation resistance

>5000MΩ DC500V
