Description
|
Pitch:
|
5.0mm; 5.08mm
|
|
Poles:
|
2~6
|
|
Rated voltage:
|
300V
|
|
Rated current:
|
16A
|
|
Operation temperature :
|
-40-150
|
|
Short-time temoerature:
|
250 for 5 sec
|

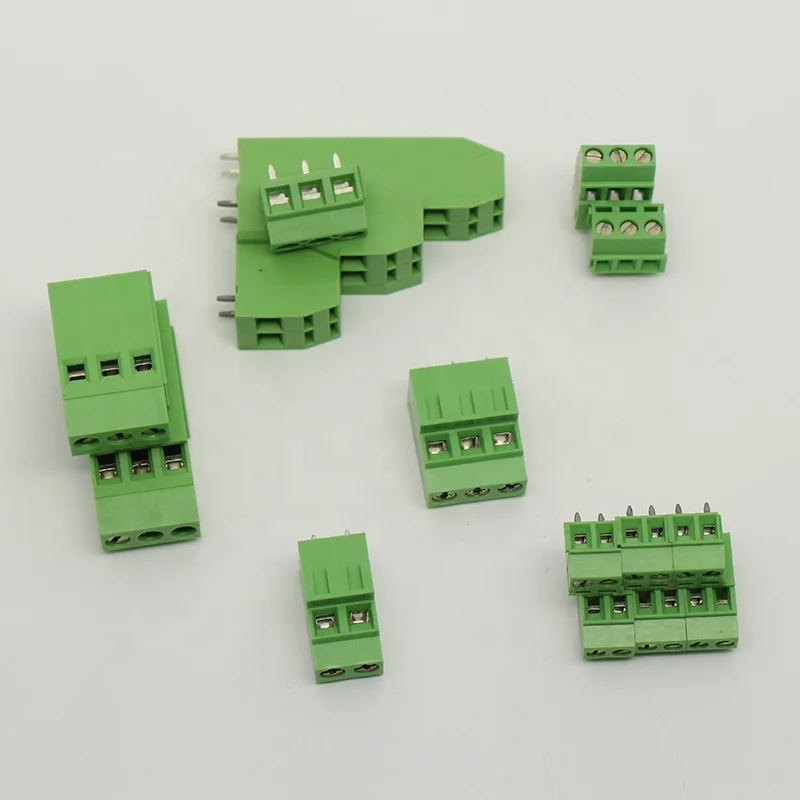

Why Choose Our 5.08mm Screw Terminal Block?
Our 5.08mm Screw Terminal Block offers unmatched reliability and performance. With a pitch of 5.0mm/5.08mm and 2 to 6 poles, it provides versatile connectivity options. Rated at 16A and 300V, it ensures safe and efficient operation in various electrical applications. The durable PA66.UL94V-0 housing and green color enhance its aesthetic and functional appeal.
What Are the Key Features?
Key features include support for 24-12AWG conductor sizes, an operating temperature range of -40℃ to +150℃, and a short-time temperature tolerance of 250℃ for 5 seconds. Additionally, its low contact resistance of 20mΩ ensures stable and efficient electrical connections, making it ideal for industrial and control panel applications.
Why Buy from Us?
As a direct factory supplier, we offer wholesale pricing and excellent after-sales service. Our product undergoes rigorous quality checks to ensure it meets the highest standards. Choose us for quality, reliability, and competitive pricing, and experience the difference in your electrical connections.
