Description
|
Contact Resistance：
|
≤50mΩ
|
|
Insulation resistance：
|
≥100MΩ
|
|
Dielectric Resistance:
|
1500V AC
|
|
Operating temperature：
|
T125
|
|
Cetification
|
CQC ENEC
|
Key Features and Benefits

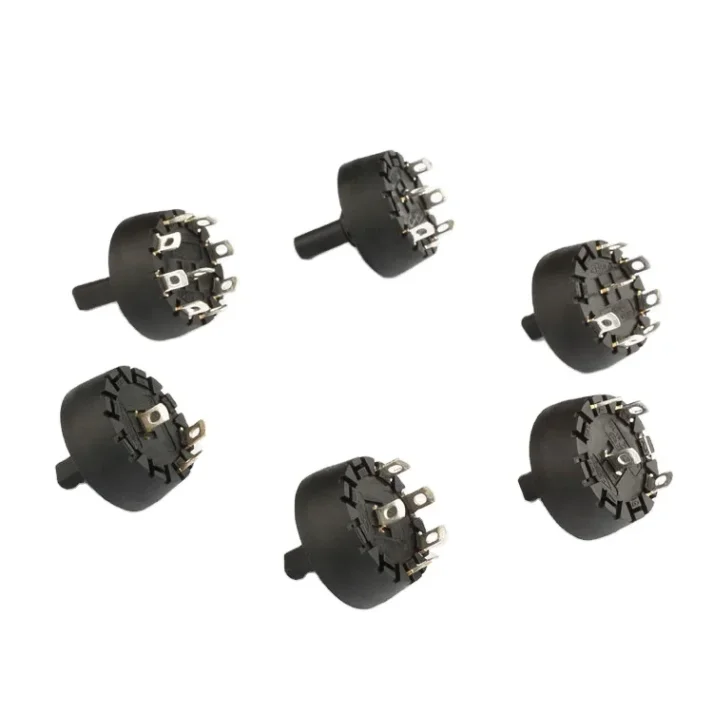

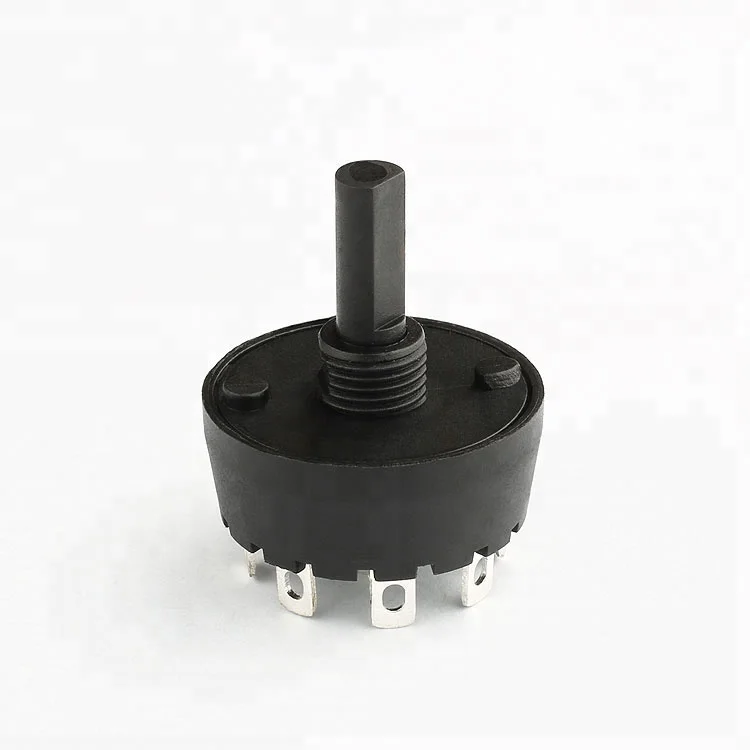

Our 6.5A 250V RS3 T130 Rotary Switch is engineered for optimal performance in pedestal fans. With a contact resistance of ≤50mΩ and insulation resistance of ≥100MΩ, it ensures efficient and safe operation. The switch's dielectric strength of 1500V AC and T125 operating temperature (T150 available) make it suitable for various environments. Its mechanical life of 100,000 cycles and electrical life of 10,000 cycles guarantee longevity.
Why Choose Our Rotary Switch?
As a factory-direct supplier, we offer competitive wholesale pricing without compromising on quality. Our switch meets CQC and ENEC certifications, ensuring safety and reliability. The IP40 rating provides protection against dust and limited water ingress, making it ideal for industrial and home applications. Additionally, our dedicated after-sales service ensures your satisfaction and peace of mind.
Applications and Compatibility
This rotary switch is perfect for pedestal fan control but also finds applications in various industrial settings and home appliances. Its robust design and excellent performance make it a versatile choice for any application requiring reliable switching.
