Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11N-FB1A-B-G-01-AC12V right side slot
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|

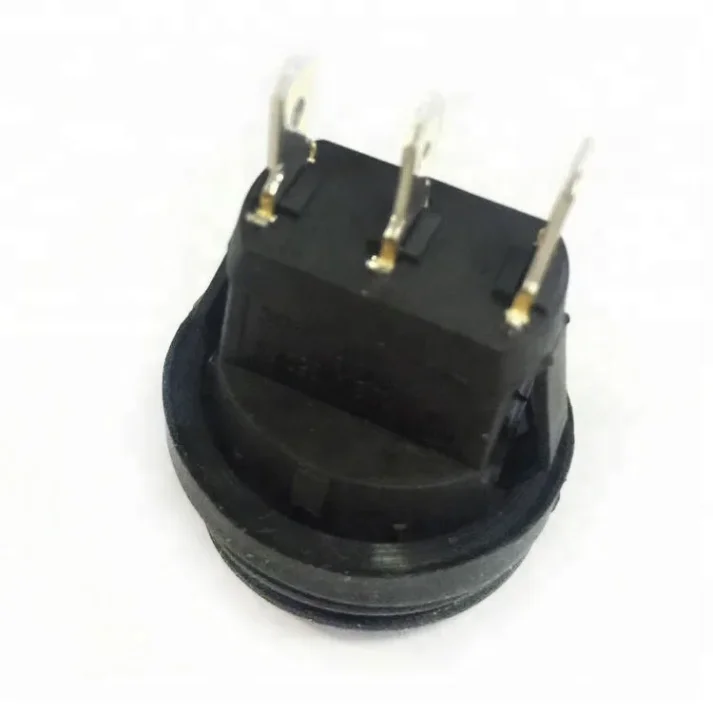

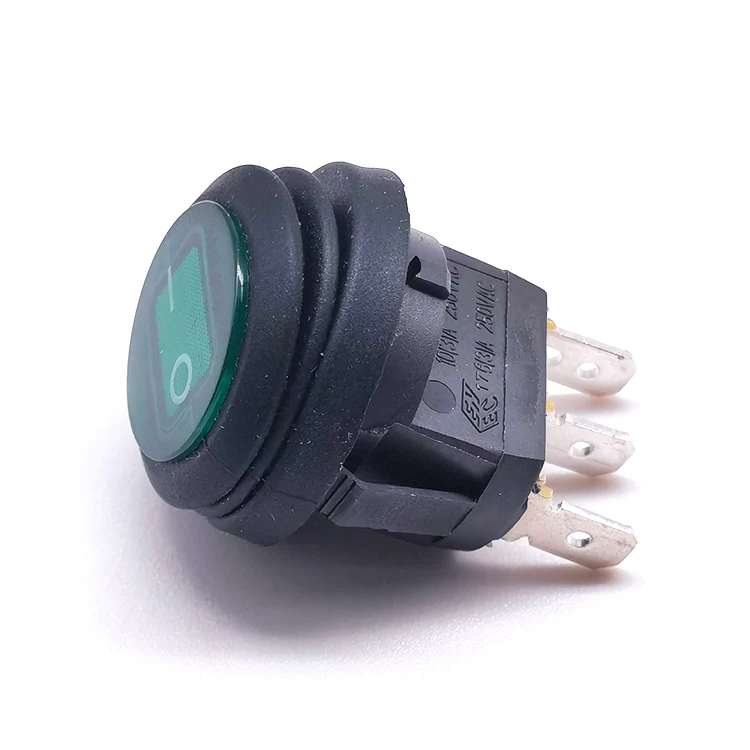

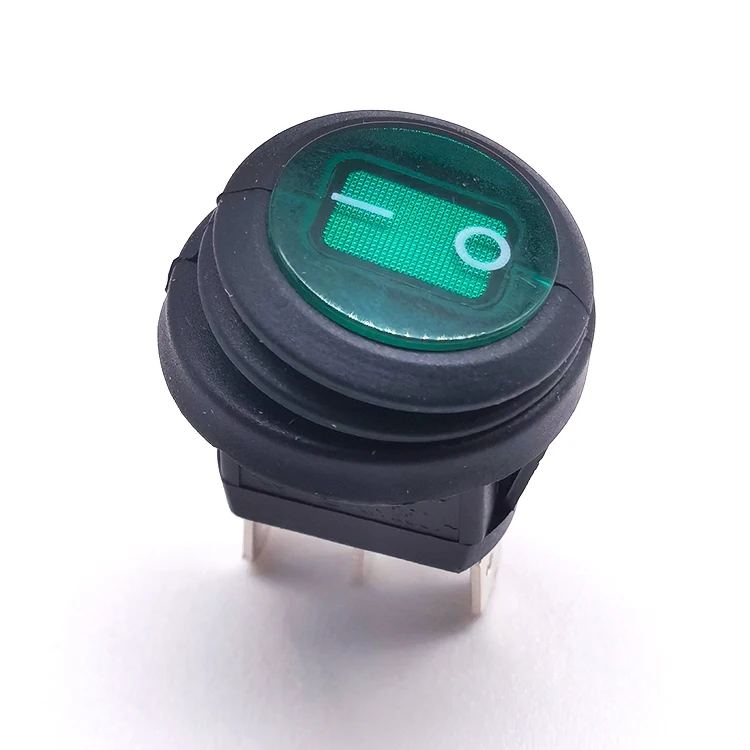

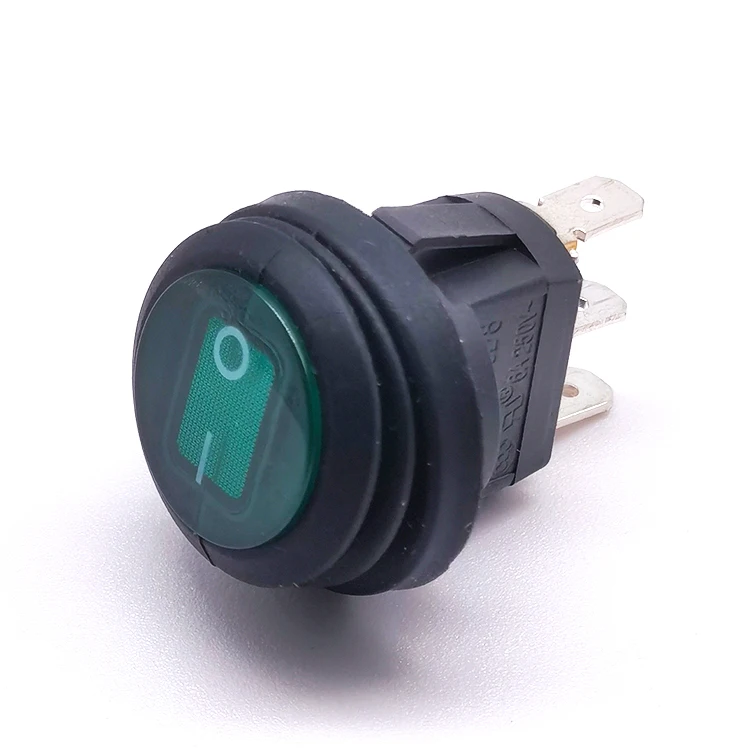

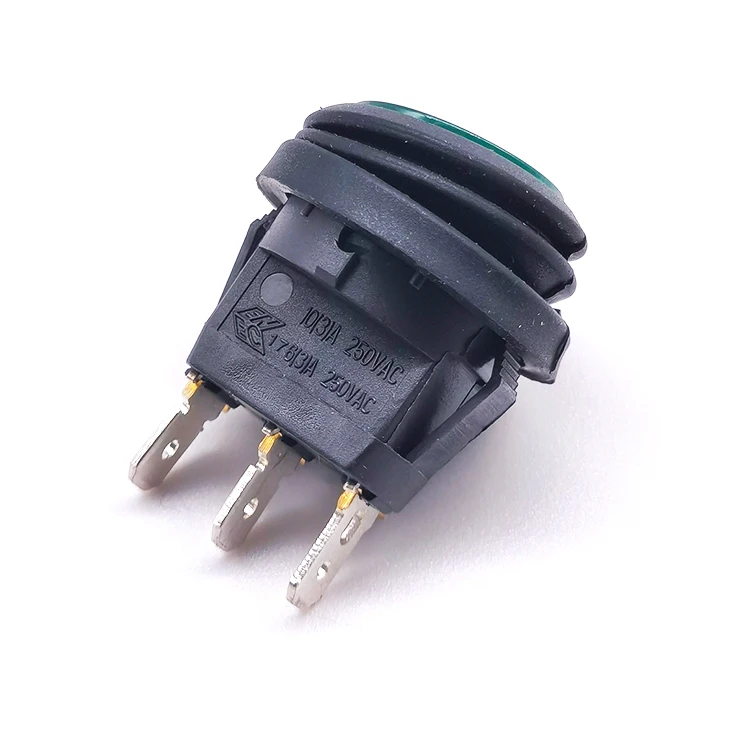

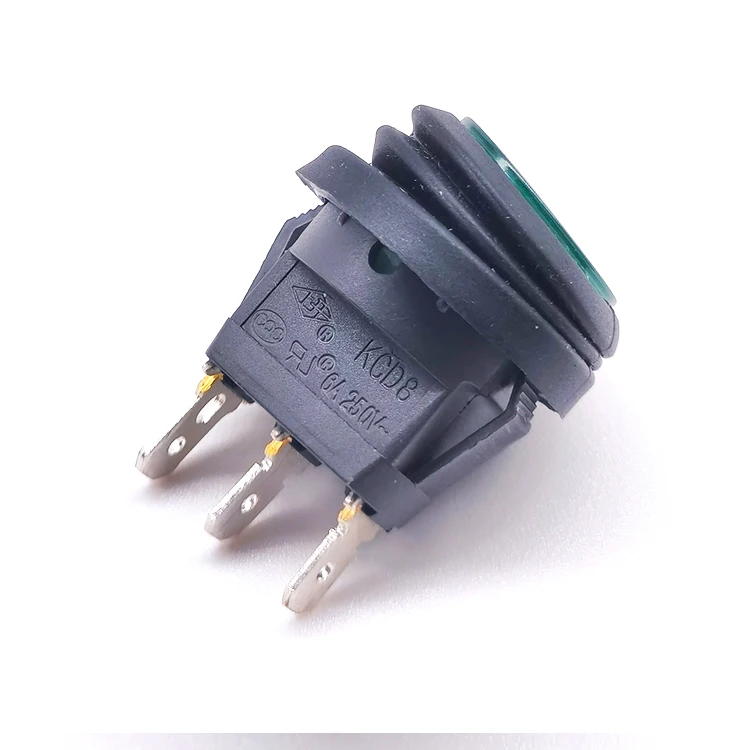

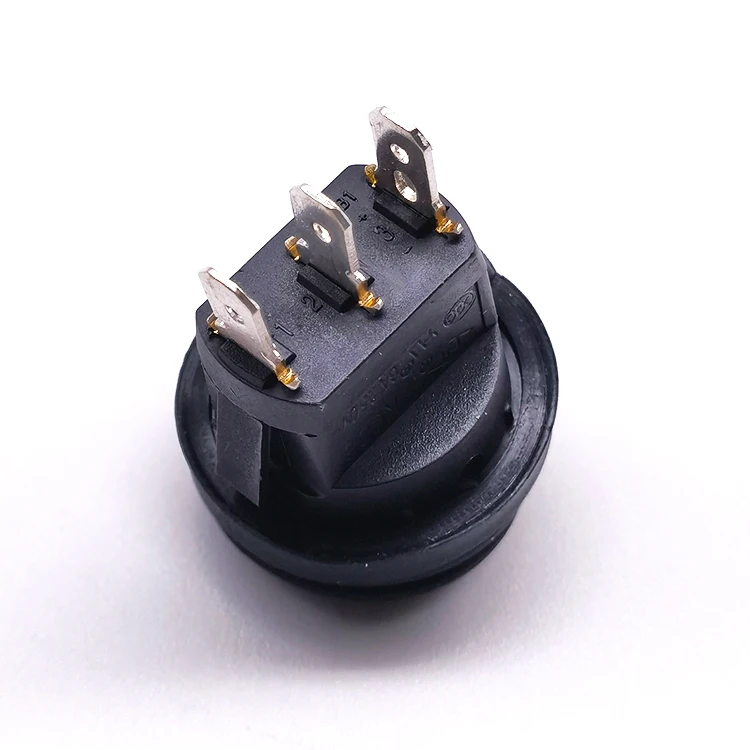

Why Choose Our 6A 12V Green LED Waterproof Rocker Switch?
Our 6A 12V Green LED Waterproof Rocker Switch stands out with its durable construction, reliable performance, and versatile applications. As a factory supplier and wholesaler, we offer competitive pricing without compromising on quality. The LED illumination provides clear visibility, while the waterproof design ensures safety in wet environments. With a long mechanical life and high insulation resistance, this switch is built to withstand the test of time.
What Are the Key Features of This Rocker Switch?
Key features include a 3-pin design, SPST ON/OFF control, IP41/IP65 waterproof ratings, and a variety of color options. It also boasts a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. The contact resistance is ≤50mΩ, and the insulation resistance is ≥1000MΩ, providing peace of mind in terms of safety and reliability.
Where Can This Rocker Switch Be Used?
This rocker switch is ideal for a wide range of applications, including electric equipment, industrial machinery, home appliances, automotive applications, and marine use. Its versatility and durability make it a popular choice among professionals and DIY enthusiasts alike. Choose us as your supplier for factory-direct pricing and exceptional customer service.
