Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11-CB1A-B-B-01
|
|
Current Rating
|
6A 10A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|
Product Overview

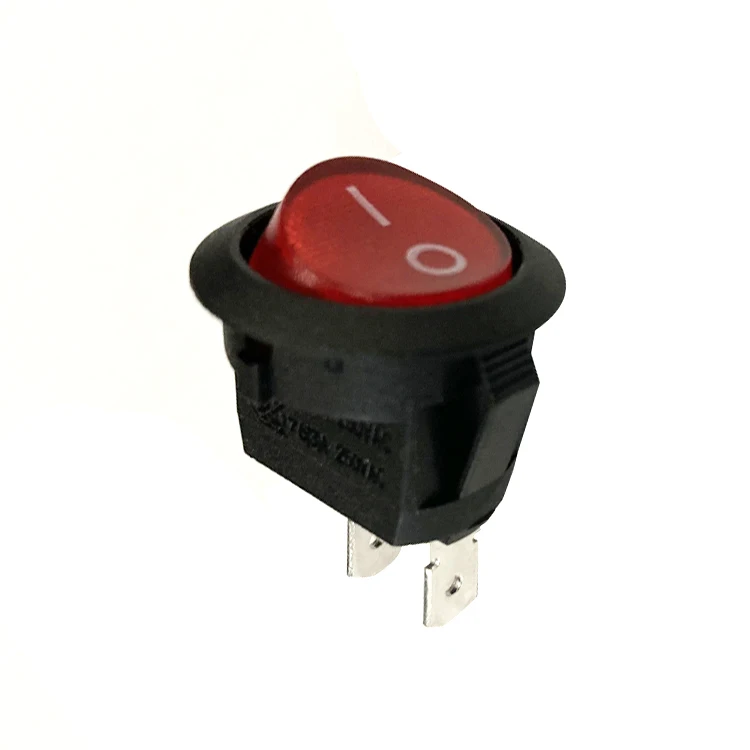

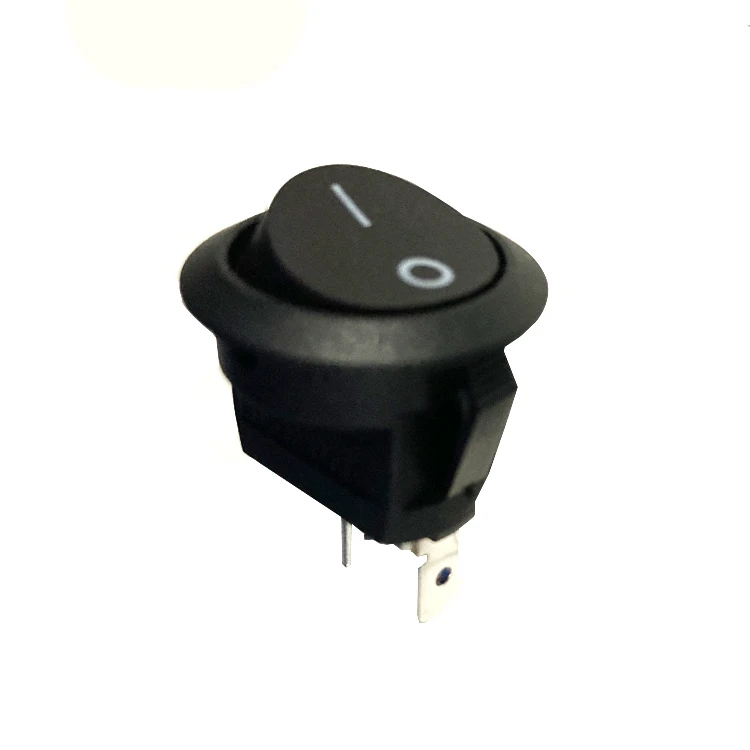

Our 6A 20.2mm SPST Rocker Switch is a versatile and reliable component designed for electric equipment. With a current rating of 6A/10A and a voltage rating of 250V AC, it offers robust performance and durability. Manufactured in Shanghai, China, by our factory, SK Yongxing, this switch meets high-quality standards and is available for wholesale purchase.
Key Features and Benefits
The switch features a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting reliability. Its compact design with dimensions coded as B1 and contact piece code A makes it easy to install in various applications. Available in multiple colors, it can match different aesthetic requirements. As a factory direct supplier, we offer competitive pricing and excellent customer service, making it a cost-effective choice for your projects.
Why Choose Our SPST Rocker Switch?
Our SPST Rocker Switch stands out with its high insulation resistance, dielectric strength, and compliance with CQC, CE, CB, ENEC17, and ROHS certifications. It is suitable for a wide range of applications including electric equipment, industrial machinery, home appliances, and automotive use. Choose our switch for a durable, reliable, and safe solution that meets your needs.
