Description

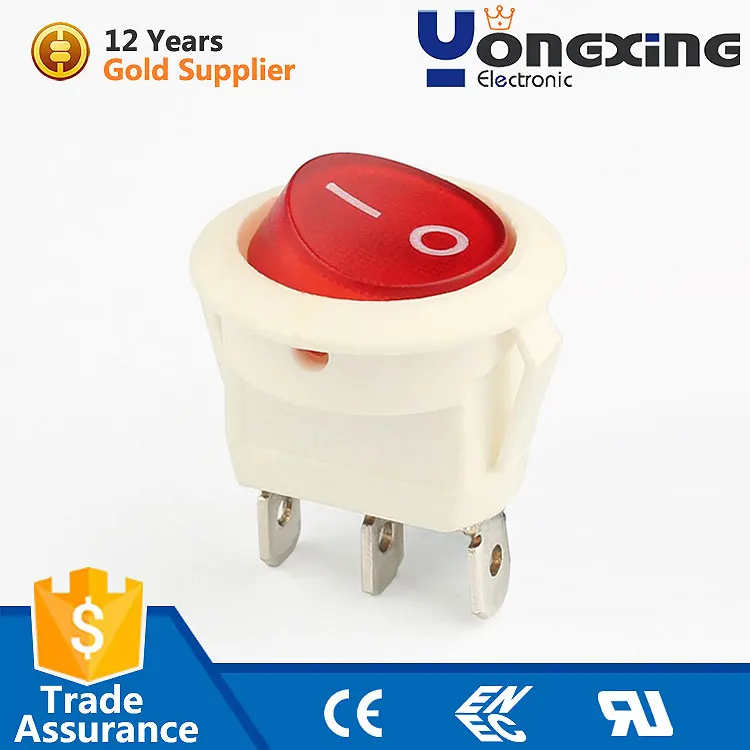

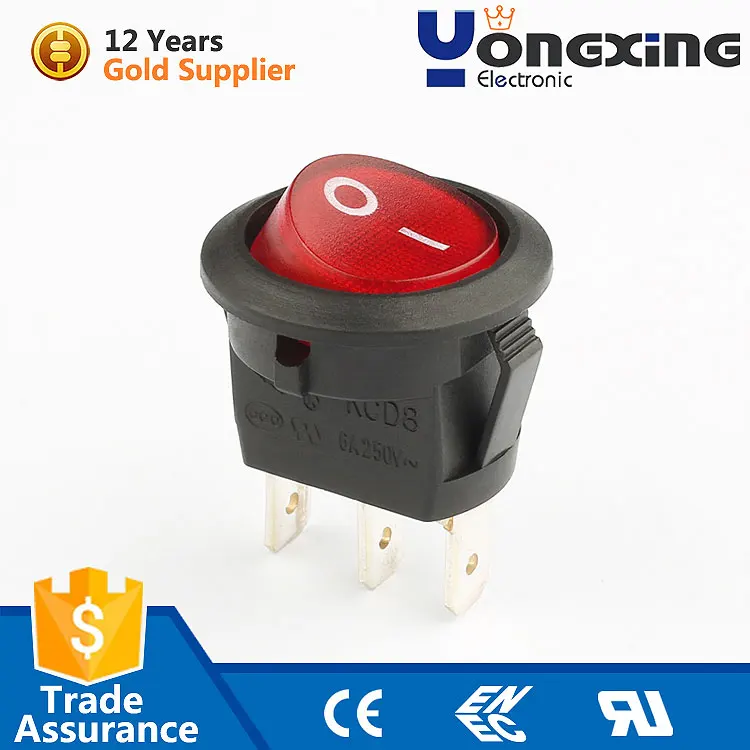

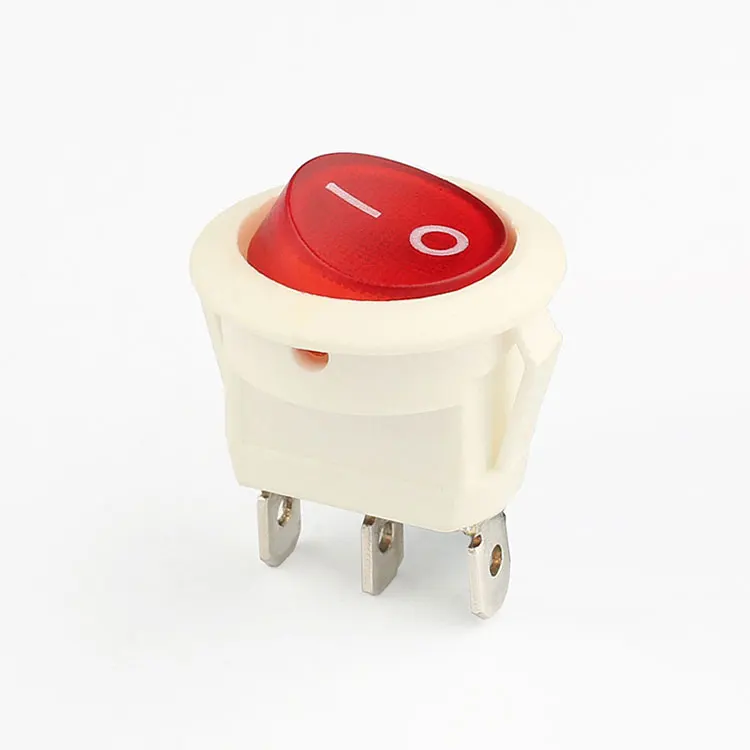

Our 6A 20mm Rocker Switch with Light is a high-quality, reliable electrical component suitable for a wide range of applications. As a factory-direct supplier, we offer wholesale pricing and excellent customer service. This switch features a maximum current rating of 6A and a maximum voltage rating of 250V AC, making it suitable for various electrical devices. The switch comes with a built-in LED indicator, available in Red, Yellow, Green, Blue, and White colors, providing clear visual feedback on the switch’s status. The switch is made of durable plastic material, ensuring longevity and resistance to wear and tear. With an operating temperature range of T55, T85, and T105, it can withstand harsh environmental conditions. The switch has a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500V AC for 1 minute, ensuring safety and reliability. The switch combination is 1NO1NC, and it has an IP40 protection level, suitable for indoor use. The panel cutout size is 20mm, and it is certified by CQC, CE, and UL, meeting international quality standards. Our rocker switch stands out with its high-quality construction, competitive pricing, and excellent after-sales service. Choose us as your trusted supplier for all your electrical switch needs.
|
contact resistance
|
≤50MΩ
|
operating temperature
|
T55 T85 T105
|
|
insulation resistance
|
≥1000MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V AC 1min
|
max.rating current & voltage
|
6A 250V AC
|
Key Features
Our 6A 20mm Rocker Switch with Light offers a maximum current rating of 6A and a maximum voltage rating of 250V AC, making it ideal for a variety of electrical devices. The built-in LED indicator provides clear visual feedback, enhancing user experience.
Durability and Reliability
Constructed from durable plastic material, this switch is designed to withstand wear and tear, ensuring longevity. It has an operating temperature range of T55, T85, and T105, making it suitable for use in harsh environmental conditions.
Why Choose Us?
As a factory-direct supplier, we offer competitive pricing and excellent customer service. Our switch is certified by CQC, CE, and UL, meeting international quality standards. Choose us for high-quality, reliable, and affordable electrical switches.
