Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB3A-B-B-01
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST 2 Pin On Off Rocker Switch
|
|
Dimension Code
|
B3, 19.0×13.1mm mounting hole size
|
|
Contact Piece Code
|
A, 4.8×0.8x8mm
|
|
Lamp voltage
|
No lamp
|
|
Function
|
On-Off SPST rocker switch
|

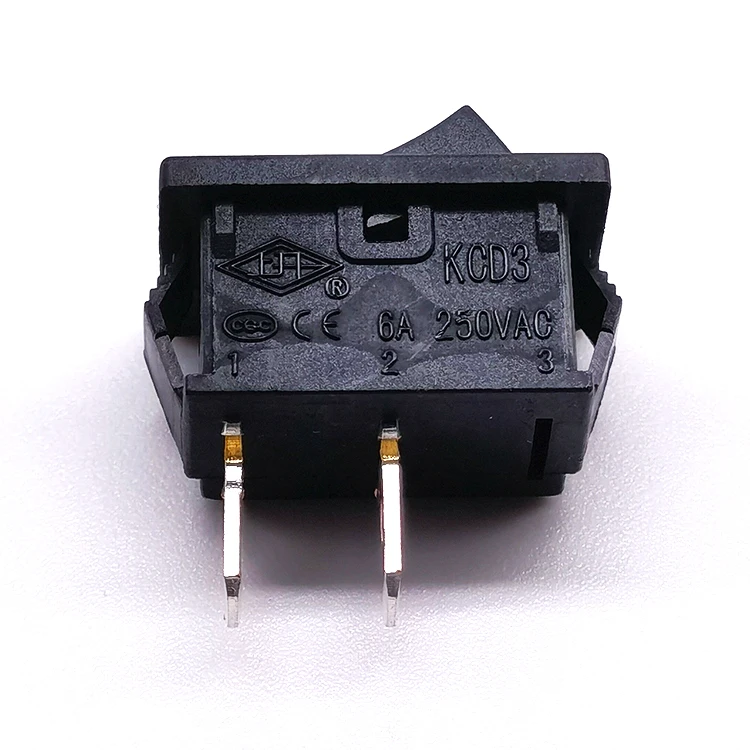

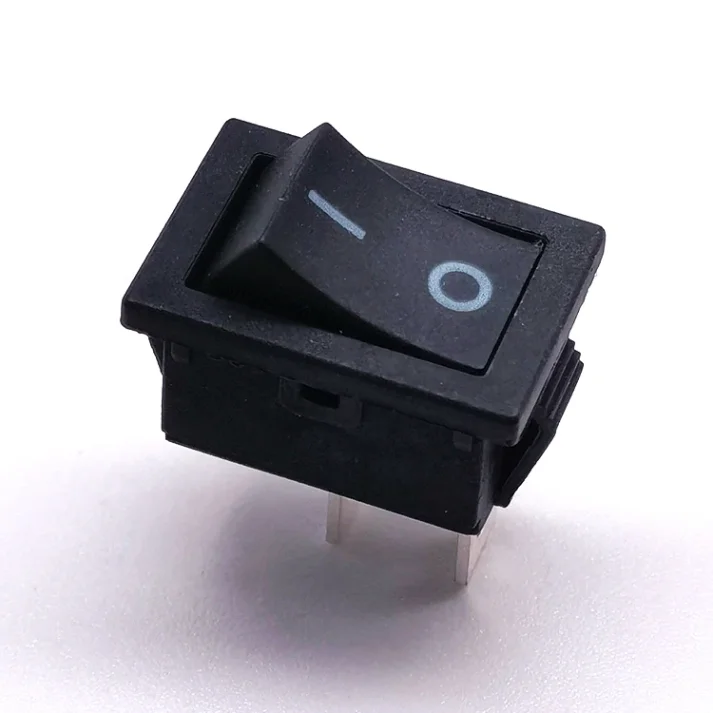

Why Choose Our Black Mini Rocker Switch?
Our Black Mini Rocker Switch is a top choice for anyone seeking a reliable, durable, and high-performance switch. With a maximum current of 6A and a maximum voltage of 250V AC, it can handle a wide range of electrical loads. The switch's mechanical life of 50,000 cycles and electronic life of 10,000 cycles ensure long-lasting use, reducing the need for frequent replacements. Its compact size and easy installation make it suitable for various applications, from home appliances to industrial equipment.
What Sets Our Switch Apart?
What makes our Black Mini Rocker Switch stand out is its exceptional quality and value. As a factory-direct supplier and wholesaler, we offer competitive pricing without compromising on quality. The switch is CQC, CE, UL, CB, ENEC17, and ROHS certified, ensuring compliance with international safety standards. Its excellent electrical performance, including low contact resistance and high insulation resistance, guarantees reliable operation.
How Can You Benefit from Our Wholesale Pricing?
By choosing us as your supplier, you can take advantage of our wholesale pricing, saving you money on bulk purchases. Our factory-direct approach eliminates the middleman, allowing us to offer you the best possible prices. Additionally, our exceptional customer service ensures that you receive the support you need, from order placement to after-sales service. Make the smart choice and choose our Black Mini Rocker Switch for your next project.
