Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD7-11-CF1B-B-B-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
F1 (21.2×23.3×9.6, 19.3×21.5×6.4)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|

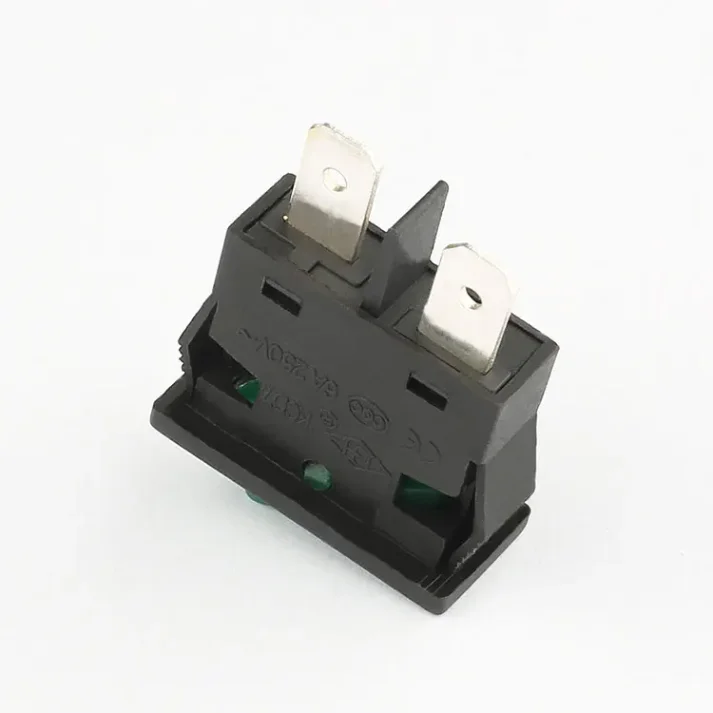

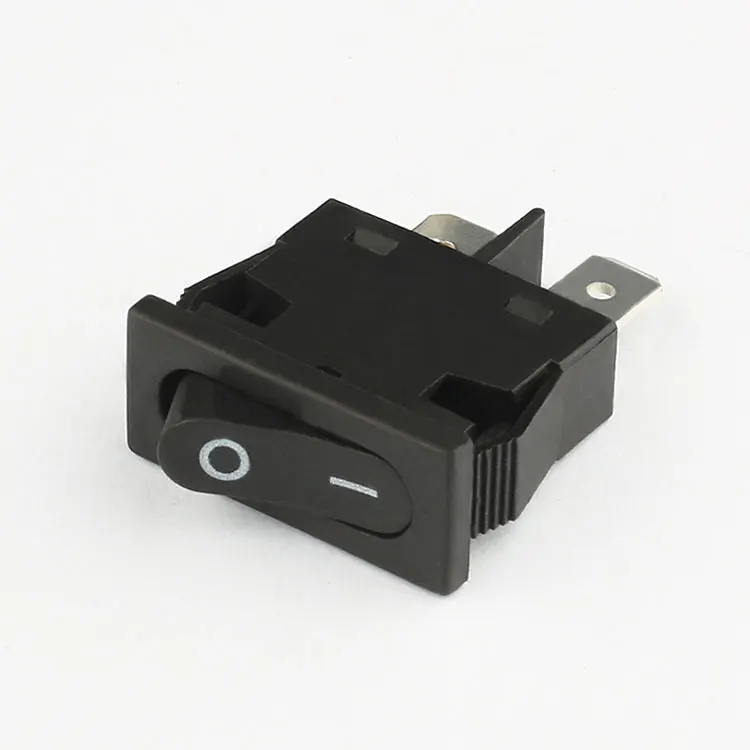

Why Choose Our 6A 250V AC Mini Rocker Switch?
Our Mini Rocker Switch is designed for durability and versatility, making it an excellent choice for household electrical instruments and boats. With a high mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures reliable performance over time.
What Are the Key Features of This Switch?

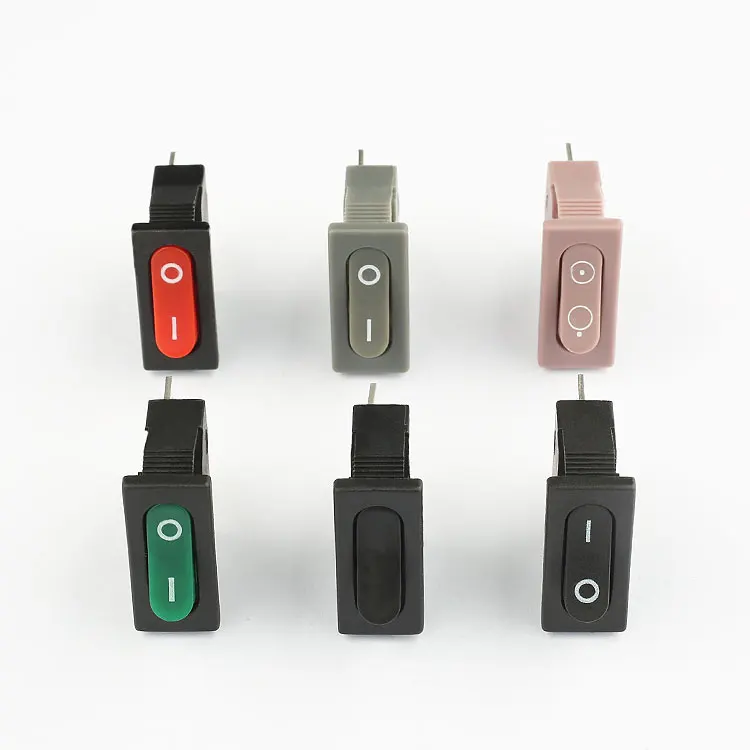

This switch is waterproof (IP65 rated), operates at 6A 250V AC, and comes in multiple colors to suit your design preferences. It's also certified by CQC, CE, and ROHS, guaranteeing its quality and safety.
Why Buy from Us as a Factory Supplier?
As a factory supplier, we offer competitive pricing and bulk purchasing options. Our switches are directly sourced from the factory, ensuring you get the best quality at the most affordable prices. Perfect for businesses looking to stock up on essential electrical components.
